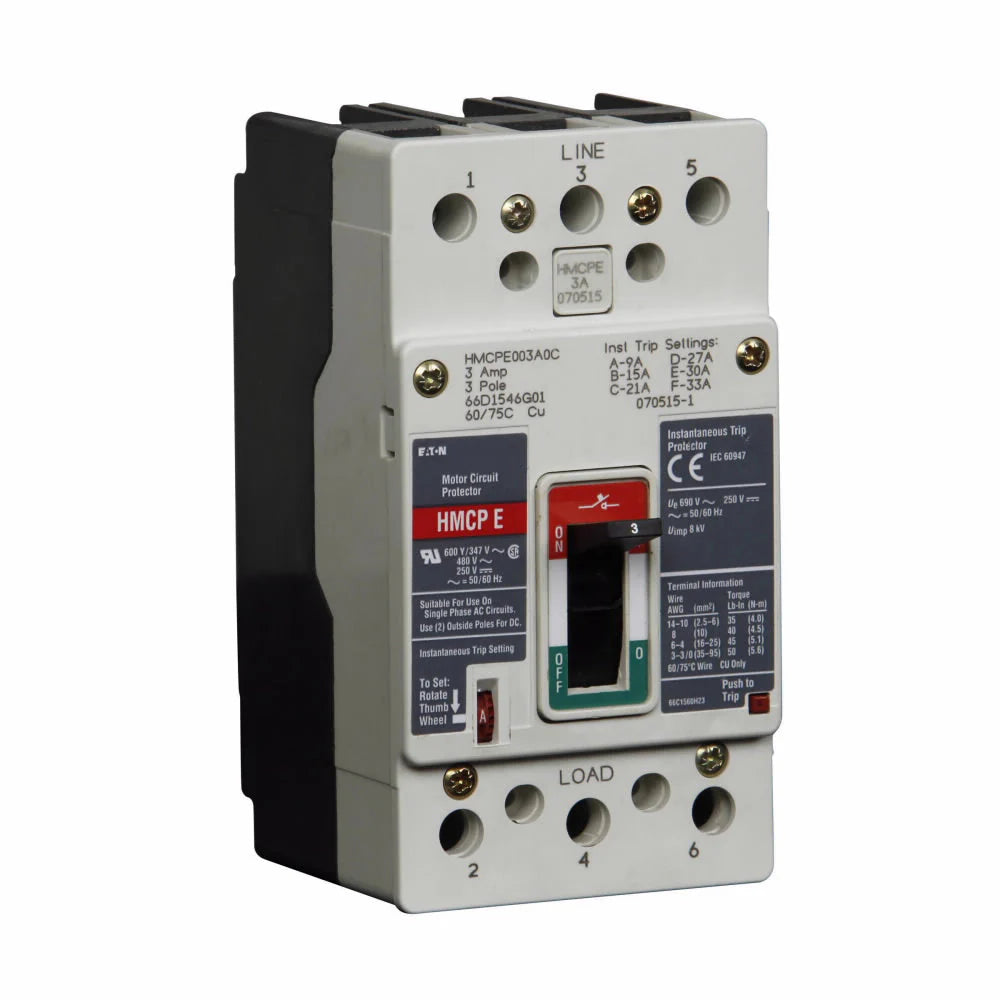

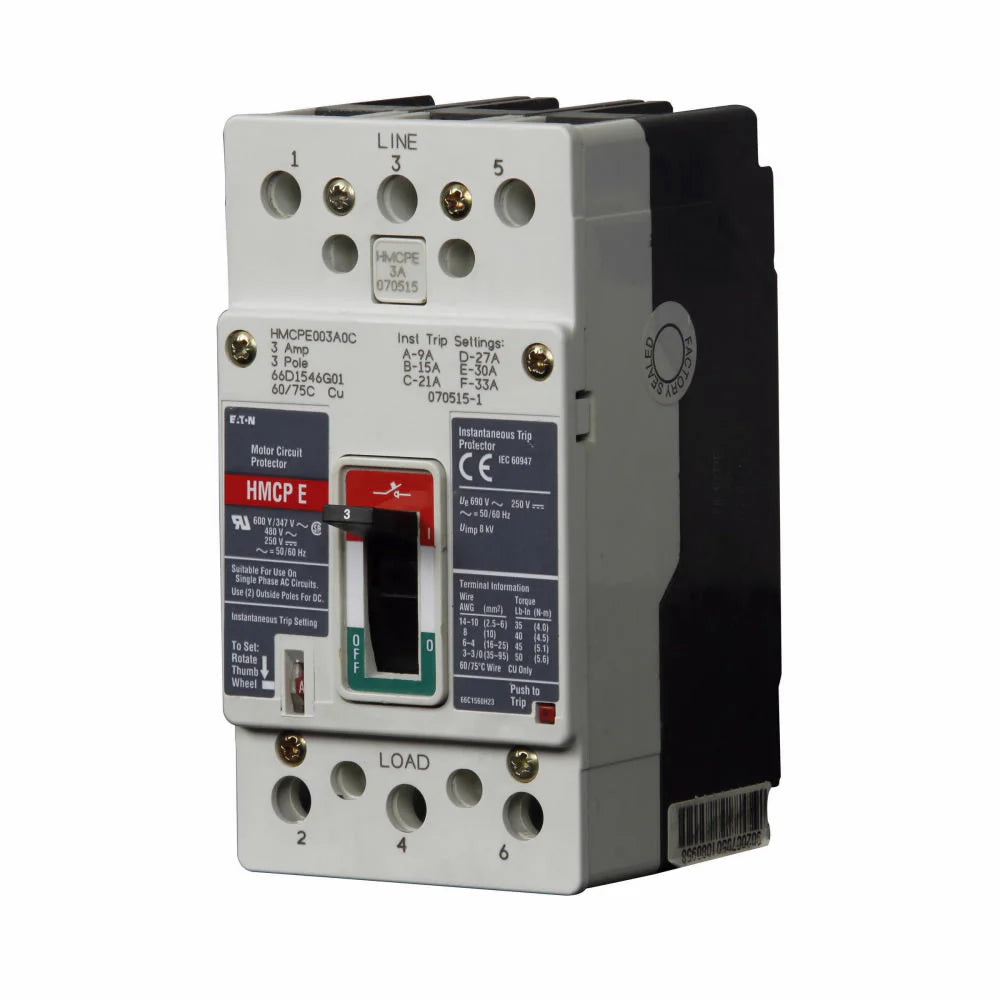

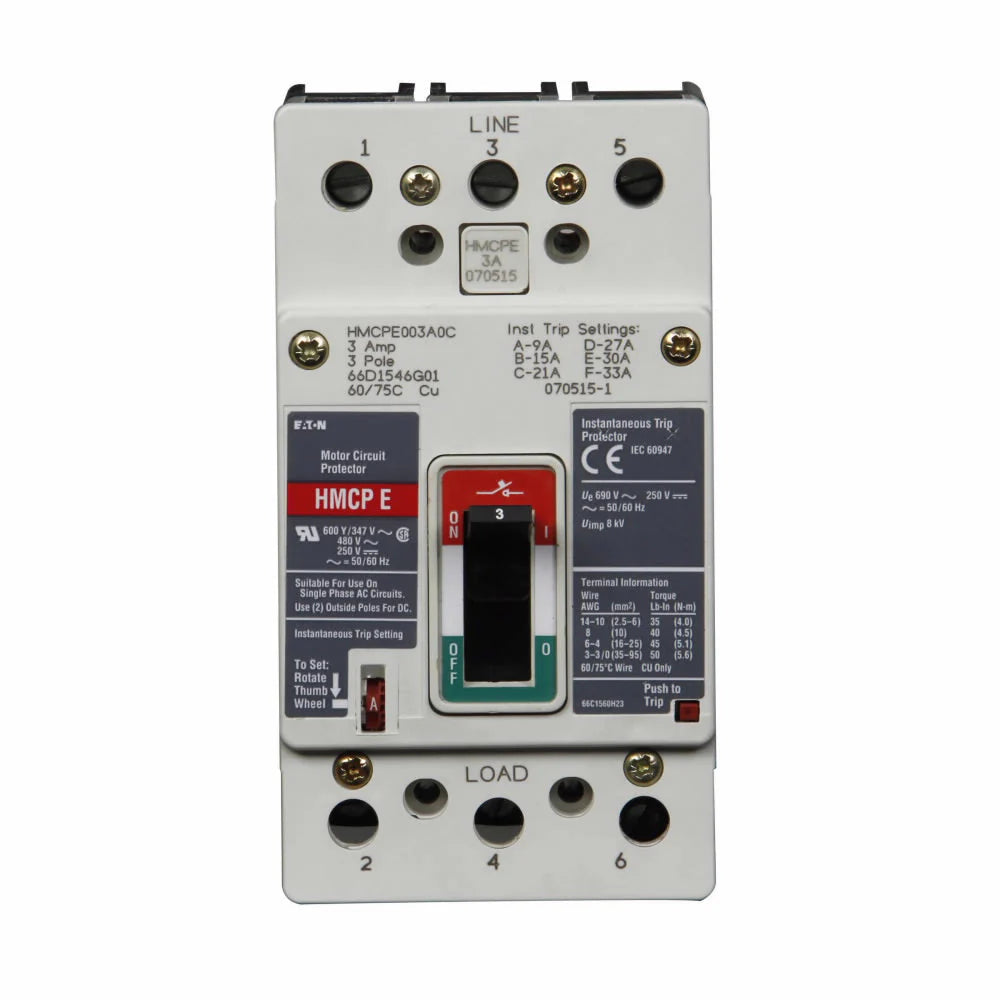

Eaton HMCPE003A0C Molded Case Circuit Breaker – 3A – 3-Pole / 3-Phase – 480V – Magnetic Range 9–33A – Feed-Thru – Series G HMCPE

The Eaton HMCPE003A0C is a 3A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Eaton / Cutler-Hammer Series G Type HMCPE EG Frame. It provides magnetic-only instantaneous protection for compatible motor circuit applications.

The HMCPE003A0C is rated for 480V and 600Y/347V AC at 40°C. It features a non-interchangeable instantaneous trip, a 9–33A magnetic range, and a 0.69–2.8A motor FLA range. The breaker has a feed-thru configuration with non-aluminum line- and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series G
• Series: Series G
• Type: HMCPE
• Frame: EG Frame
• Catalog No.: HMCPE003A0C
• Current Rating: 3A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480V AC, 600Y/347V AC
• Temperature Rating: 40°C
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I)
• Trip Type: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Configuration: Non-Aluminum Line- and Load-Side Lug Terminals
• Magnetic Range: 9–33A
• Motor FLA Range: 0.69–2.8A
• Application: Motor Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCPE003A0C
• Catalog Number: HMCPE003A0C
• Model: HMCPE003A0C
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Type: HMCPE
• Frame: EG Frame
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 3A
• Trip Configuration: Non-Interchangeable Instantaneous Trip
• UPC:786679113639

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series G Type HMCPE motor circuit protection applications. The HMCPE003A0C is a 3-pole, 3A MCP providing magnetic-only instantaneous protection for compatible motor circuits.

The breaker features a 9–33A magnetic range, 0.69–2.8A motor FLA range, feed-thru configuration, and non-aluminum line- and load-side lug terminals. Always verify the specific motor application, panelboard or electrical equipment model, approved MCP type, system voltage, available fault current, pole configuration, magnetic trip requirements, and installation requirements before installation.
