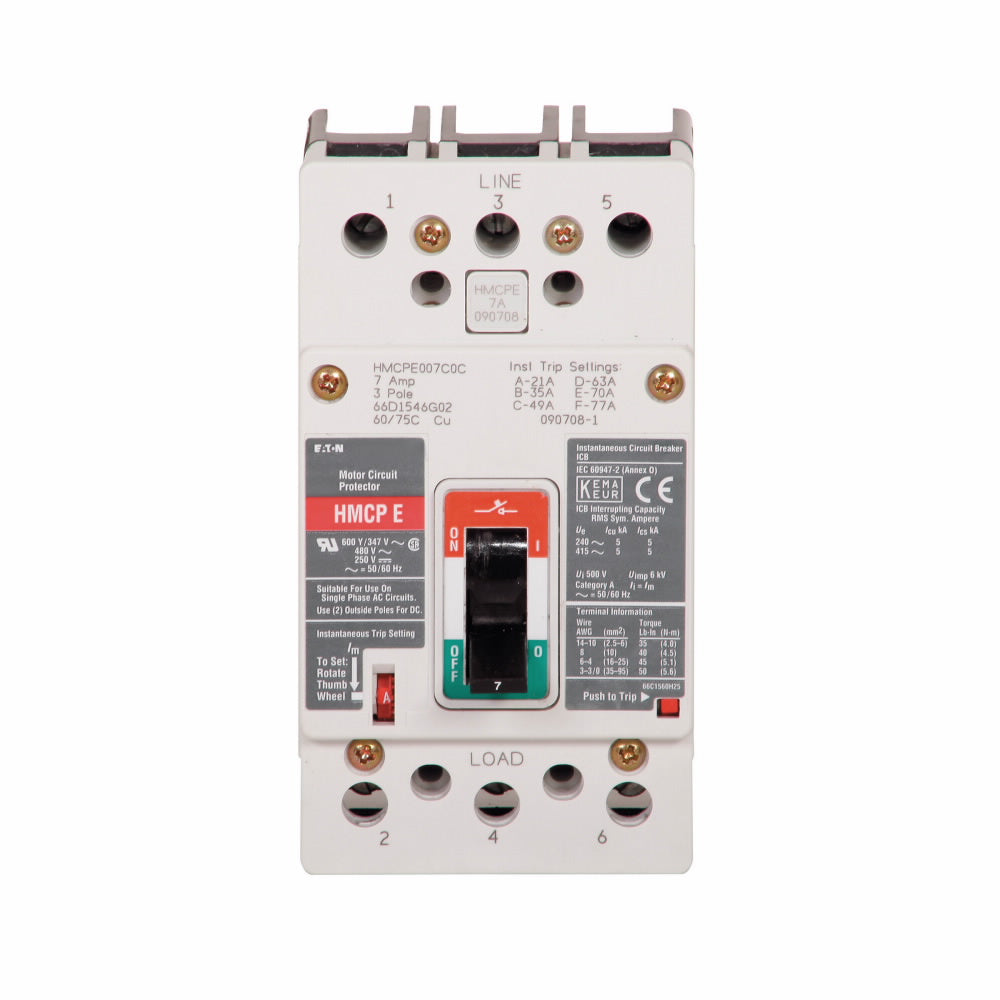

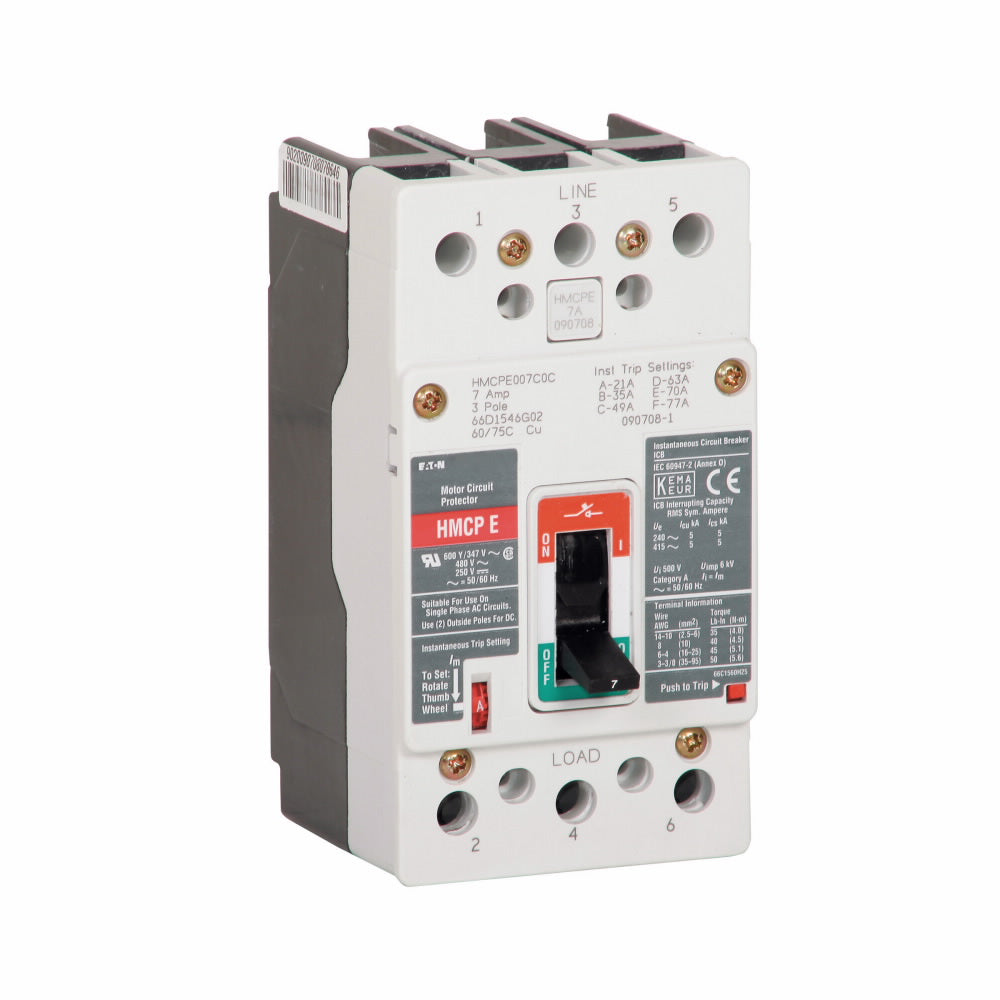

Eaton HMCPE007C0C Molded Case Circuit Breaker – 7A – 3-Pole / 3-Phase – 480V / 600Y/347V AC – Instantaneous Protection – Feed-Thru – Series G HMCPE

The Eaton HMCPE007C0C is a 7A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Eaton / Cutler-Hammer Series G Type HMCPE EG-Frame. It provides magnetic-only, instantaneous protection rather than thermal-magnetic protection.

The HMCPE007C0C is rated for 480V and 600Y/347V AC and is configured for feed-thru installation. It features a non-interchangeable instantaneous trip, a 21–77A magnetic range, and a 1.5–6.1A motor FLA range. The breaker includes non-aluminum line- and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series G
• Series: Series G
• Type: HMCPE
• Frame: EG-Frame
• Catalog No.: HMCPE007C0C
• Current Rating: 7A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480V AC, 600Y/347V AC
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I)
• Trip Type: Non-Interchangeable
• Calibration Temperature: 40°C
• Mounting / Configuration: Feed-Thru
• Terminal Configuration: Non-Aluminum Line- and Load-Side Lug Terminals
• Magnetic Range: 21–77A
• Motor FLA Range: 1.5–6.1A
• Application: Motor Circuit Protection
• Brand: Eaton / Cutler-Hammer
• Authenticity: Not Specified

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCPE007C0C
• Catalog Number: HMCPE007C0C
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Type: HMCPE
• Frame: EG-Frame
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Model: HMCPE007C0C
• Breaker Configuration: 3-Pole, 7A
• UPC:786679150801

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series G Type HMCPE motor circuit protection applications. The HMCPE007C0C is a 3-pole, 7A MCP with magnetic-only instantaneous protection, a 21–77A magnetic range, and a 1.5–6.1A motor FLA range.

The breaker uses a feed-thru configuration and includes non-aluminum line- and load-side lug terminals. Always verify the specific motor application, panelboard or electrical equipment model, approved breaker/MCP type, system voltage, available fault current, pole configuration, magnetic trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• Series G HMCPE
• EG-Frame
• 7A Rated
• 3-Pole / 3-Phase
• 480V / 600Y/347V AC Rated
• Magnetic-Only Protection
• Instantaneous (I) Protection
• Non-Interchangeable Trip
• 40°C Calibration
• Feed-Thru Configuration
• Non-Aluminum Line- and Load-Side Lug Terminals
• 21–77A Magnetic Range
• 1.5–6.1A Motor FLA Range
• Motor Circuit Protector (MCP)
