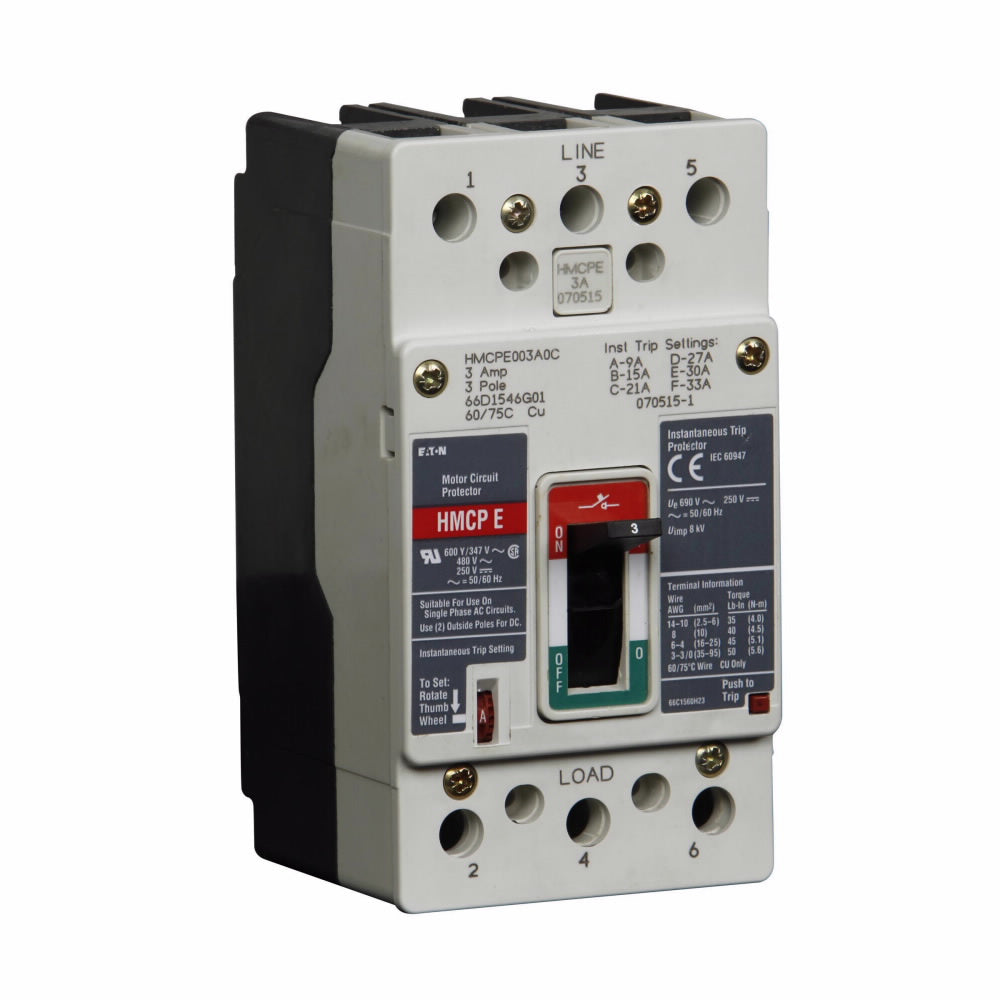

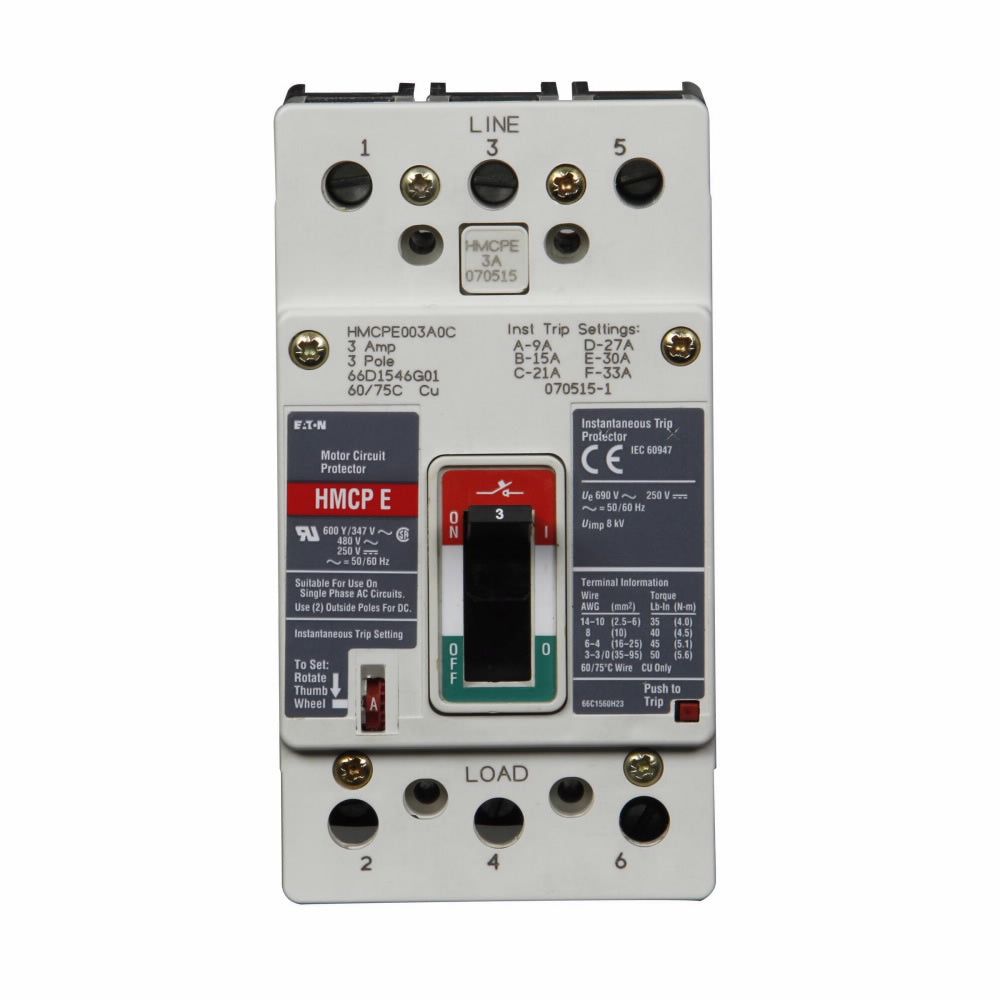

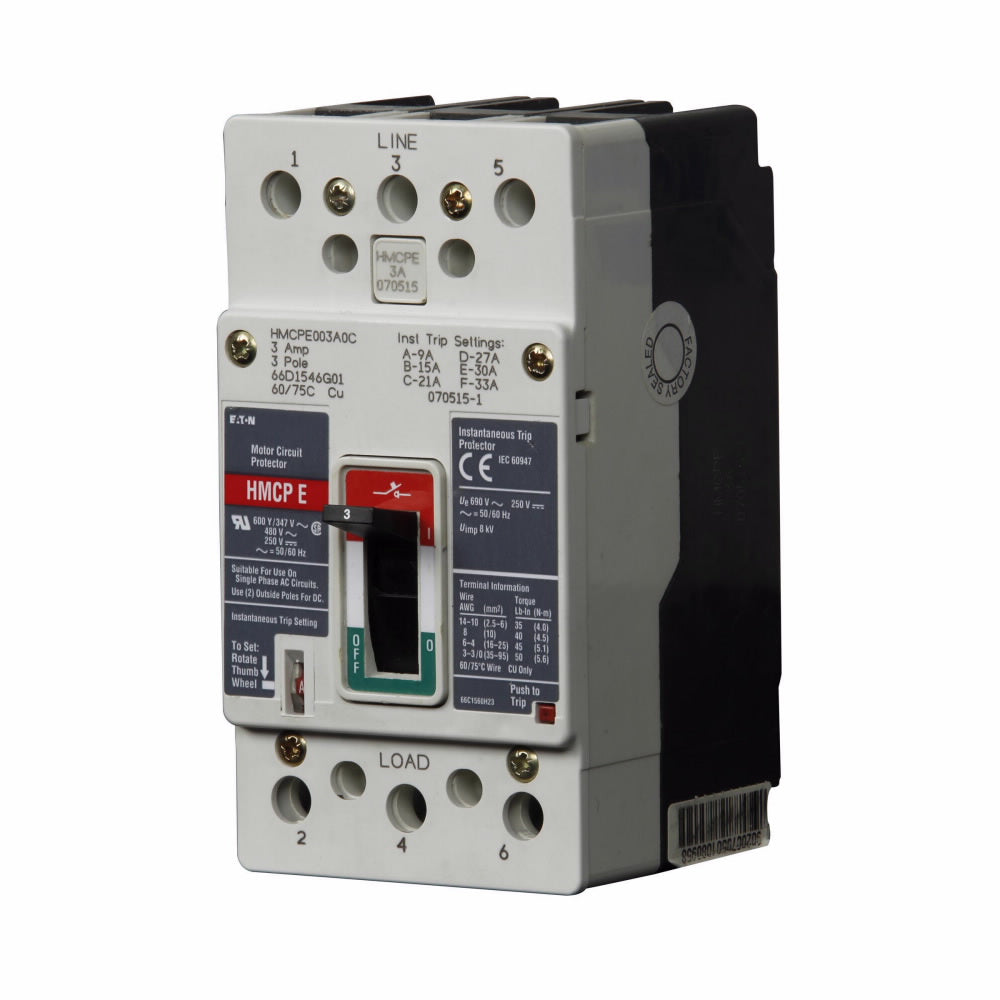

Eaton HMCPE015E0C Molded Case Circuit Breaker – 15A – 3-Pole / 3-Phase – 480V / 600Y/347V AC – Magnetic-Only MCP – Feed-Thru – Series G HMCPE

The Eaton HMCPE015E0C is a 15A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Eaton / Cutler-Hammer Series G Type HMCPE EG Frame. It provides magnetic-only, instantaneous protection for motor circuit applications.

The HMCPE015E0C is rated for 480V and 600Y/347V AC and is designed for 40°C operation. It features a non-interchangeable instantaneous trip, a 45–165A magnetic range, and a 3.4–13A motor FLA range. The breaker has a feed-thru configuration and includes non-aluminum line-side and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series G
• Series: Series G
• Type: HMCPE
• Frame: EG Frame
• Catalog No.: HMCPE015E0C
• Current Rating: 15A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480V, 600Y/347V AC
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Only
• Trip Type: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Type: Non-Aluminum Line-Side and Load-Side Lug Terminals
• Magnetic Range: 45–165A
• Motor FLA Range: 3.4–13A
• Ambient Temperature Rating: 40°C
• Application: Motor Circuit Protection
• MCP Type: Motor Circuit Protector
• Contactor Application: Magnetic-Only Motor Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCPE015E0C
• Catalog Number: HMCPE015E0C
• Model: HMCPE015E0C
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Type: HMCPE
• Frame: EG Frame
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 15A
• UPC:786679113653

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series G Type HMCPE motor circuit protection applications. The HMCPE015E0C is a 3-pole, 15A MCP with magnetic-only instantaneous protection, a 45–165A magnetic range, and a 3.4–13A motor FLA range.

The breaker features a feed-thru configuration with non-aluminum line-side and load-side lug terminals. Always verify the specific motor application, electrical equipment model, approved MCP type, system voltage, available fault current, pole configuration, magnetic trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
