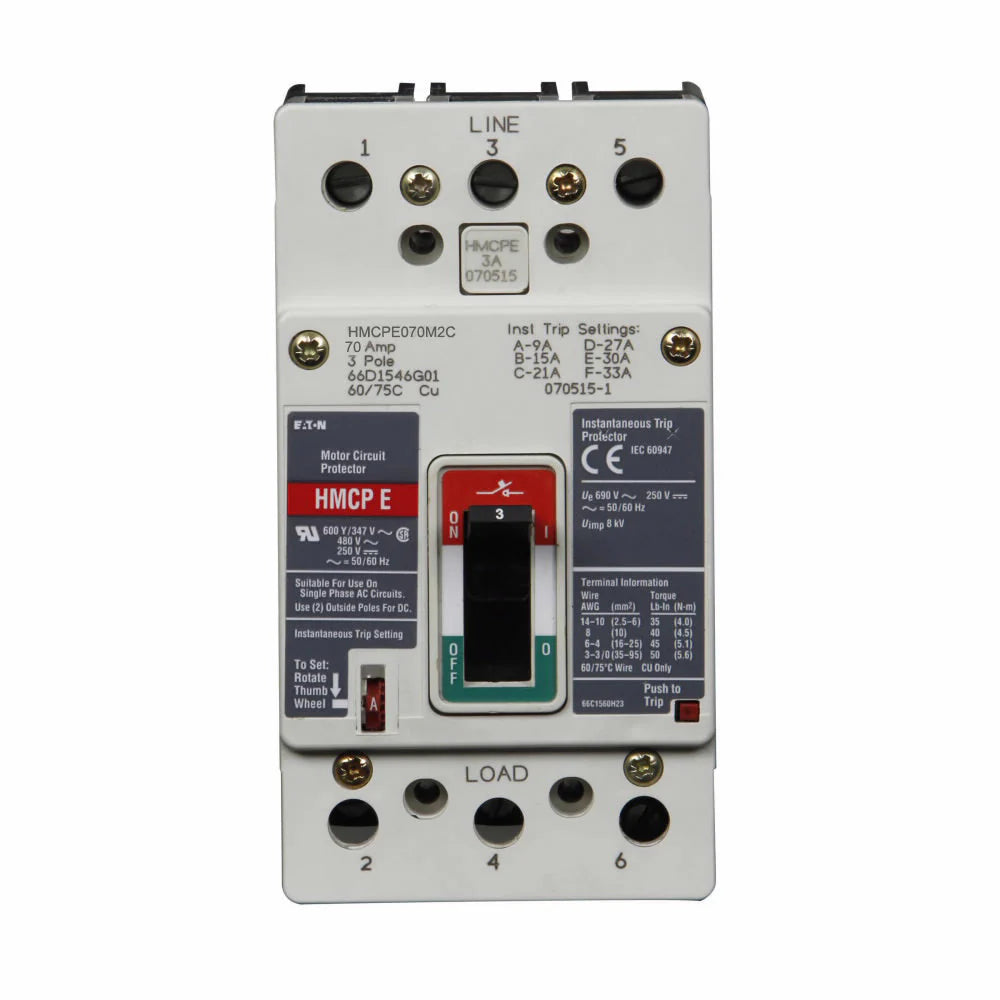

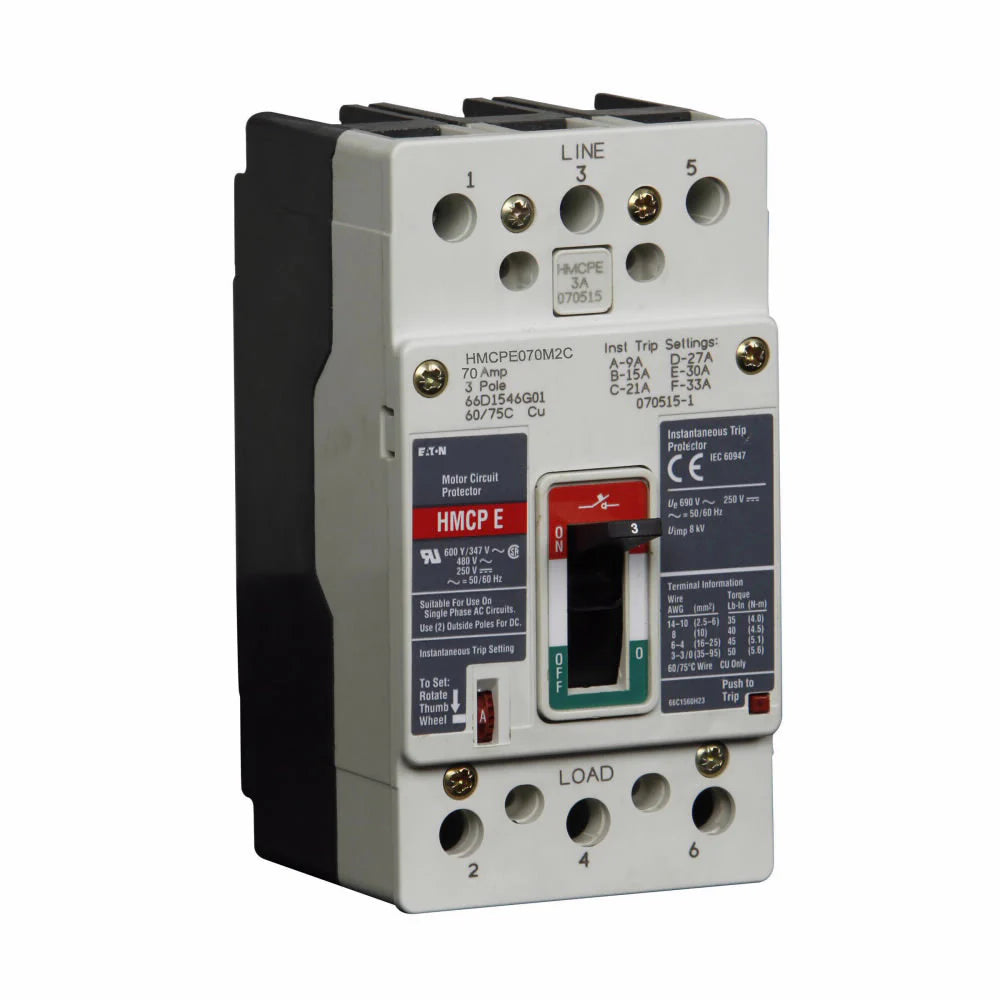

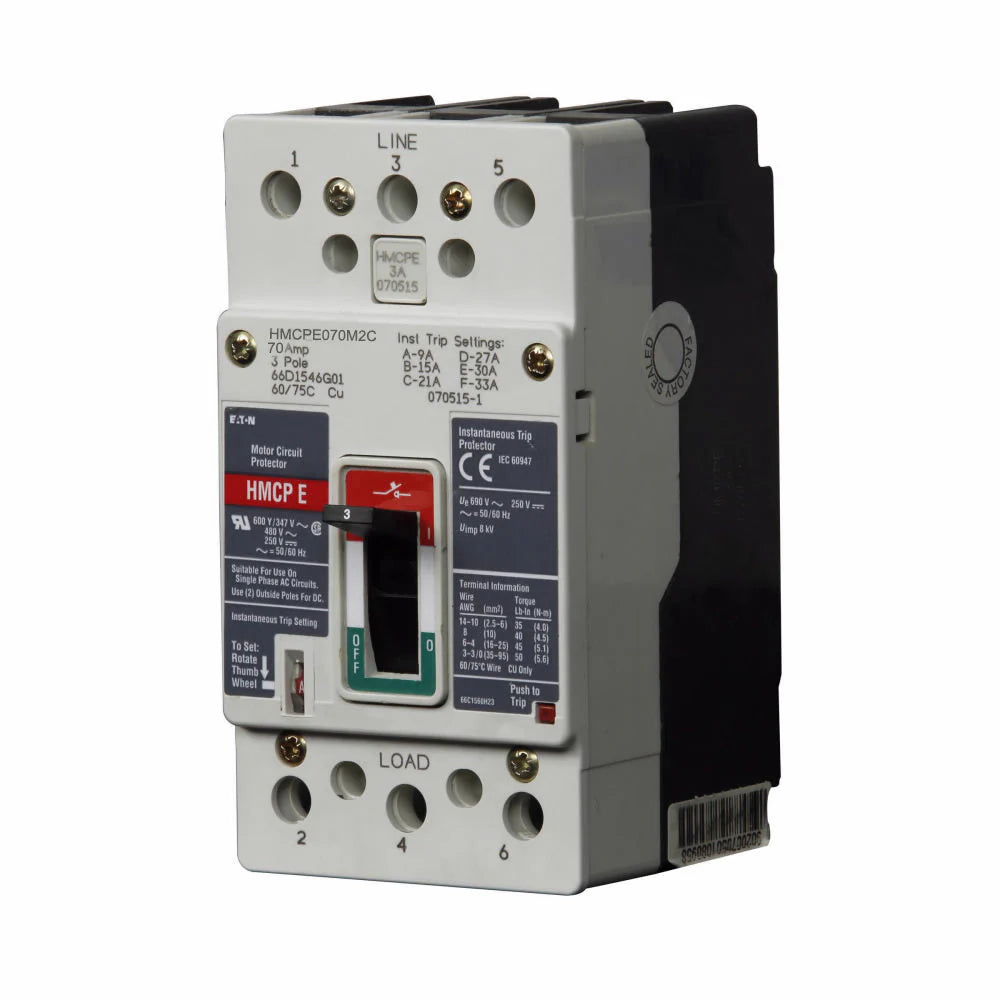

Eaton HMCPE070M2C Molded Case Circuit Breaker – 70A – 3-Pole / 3-Phase – 480V – Magnetic-Only MCP – Feed-Thru – Series G HMCPE

The Eaton HMCPE070M2C is a 70A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Eaton / Cutler-Hammer Series G Type HMCPE, EG Frame. It provides magnetic-only, instantaneous protection for compatible motor circuit applications.

The breaker is rated for 480V and 600Y/347VAC applications and features a feed-thru configuration with non-aluminum line- and load-side lug terminals. It has a non-interchangeable instantaneous trip, a 210–770A magnetic range, and a 16.1–60.9A motor FLA range.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series G
• Series: Series G
• Type: HMCPE
• Frame: EG Frame
• Catalog No.: HMCPE070M2C
• Current Rating: 70A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480V, 600Y/347VAC
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Only
• Trip Type: Non-Interchangeable
• Interrupting / Rating Information: 40°C Ambient
• Connection / Configuration: Feed-Thru
• Terminal Type: Non-Aluminum Line- and Load-Side Lug Terminals
• Magnetic Range: 210–770A
• Motor FLA Range: 16.1–60.9A
• Application: Motor Circuit Protection
• Breaker Type: Motor Circuit Protector (MCP)

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCPE070M2C
• Catalog Number: HMCPE070M2C
• Model: HMCPE070M2C
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Type: HMCPE
• Frame: EG Frame
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 70A
• Trip Configuration: Non-Interchangeable Instantaneous Trip
• UPC:786679113684

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series G Type HMCPE motor circuit protection applications. The HMCPE070M2C provides 70A, 3-pole magnetic-only motor circuit protection for compatible 480V and 600Y/347VAC applications.

The breaker has an instantaneous-only non-interchangeable trip, a 210–770A magnetic range, and a 16.1–60.9A motor FLA range. It uses a feed-thru configuration with non-aluminum line- and load-side lug terminals. Always verify the specific motor application, equipment model, system voltage, available fault current, magnetic trip requirements, motor FLA, terminal arrangement, and installation requirements before installation.

Certifications:

• Series G HMCPE
• EG Frame
• 70A Rated
• 3-Pole / 3-Phase
• 480V Rated
• 600Y/347VAC Rated
• Magnetic-Only Protection
• Instantaneous (I) Protection Only
• Non-Interchangeable Trip
• Motor Circuit Protector (MCP)
• Feed-Thru Configuration
• Non-Aluminum Line- and Load-Side Lug Terminals
• 210–770A Magnetic Range
• 16.1–60.9A Motor FLA Range
