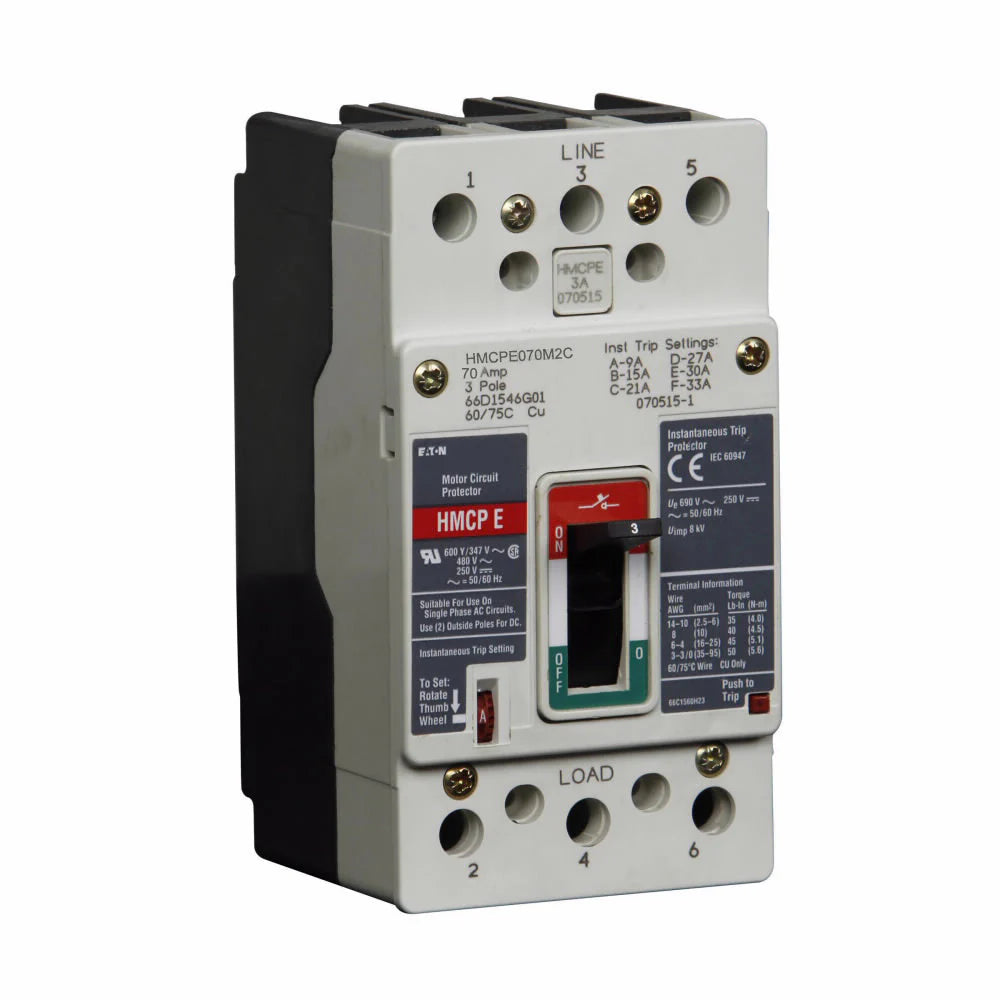

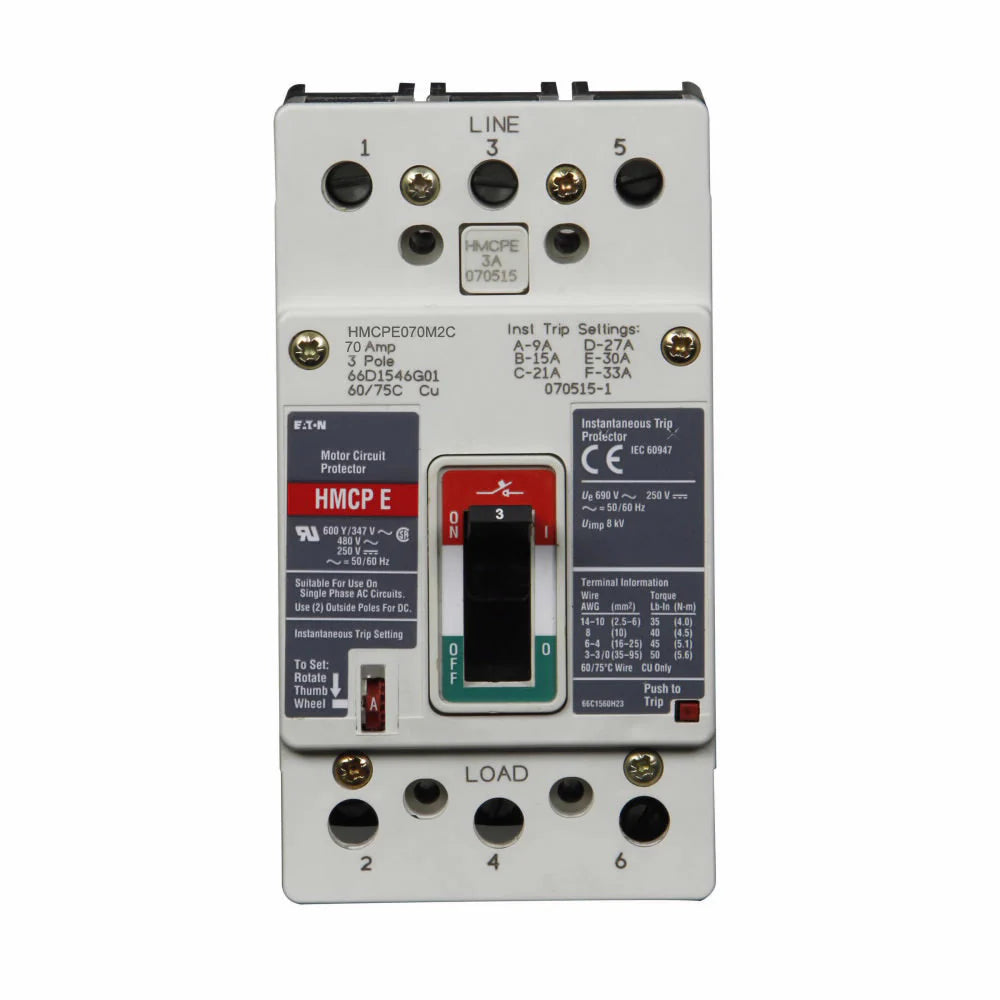

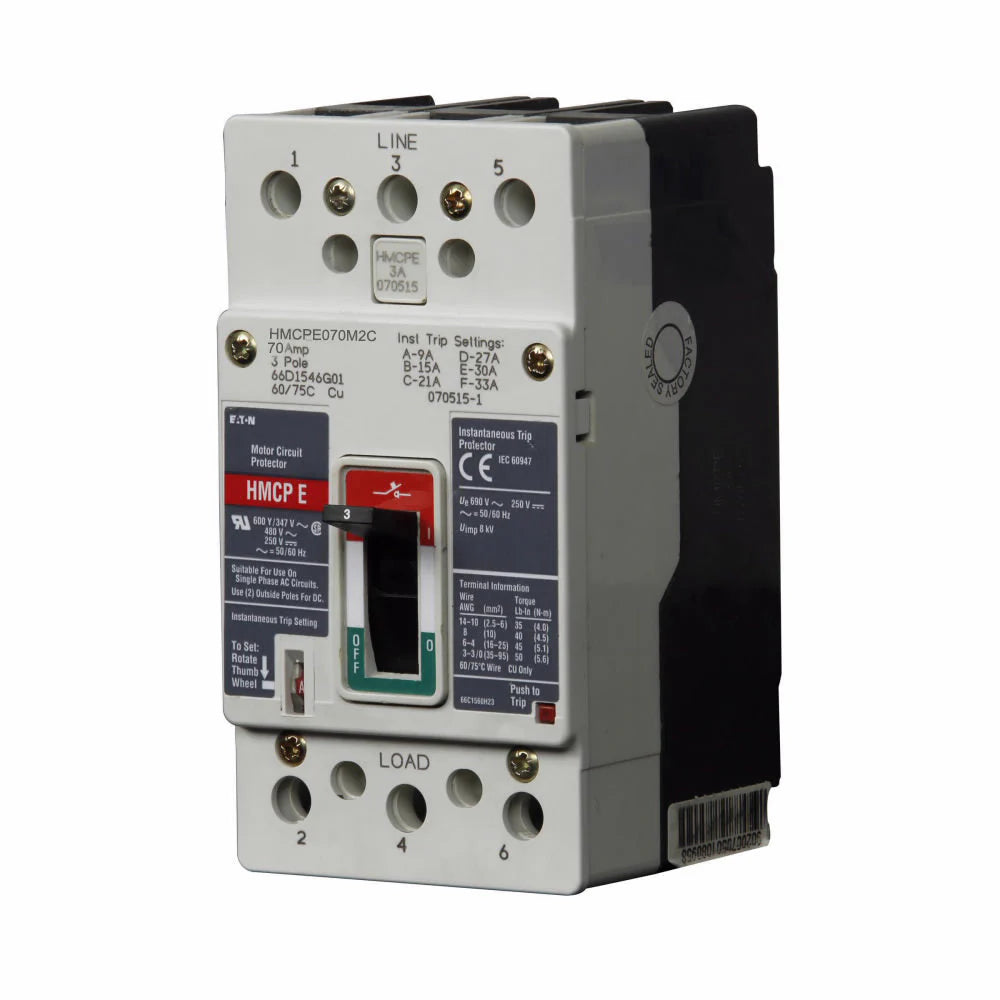

Eaton Cutler-Hammer HMCPE070M2X 70 Amp Molded Case Circuit Breaker – 3 Pole – Series G

The Eaton Cutler-Hammer HMCPE070M2X is a Series G molded case motor circuit protector (MCP) designed for motor circuit protection in applications using motor starters equipped with separate electronic overload relays. It features an EG-frame construction, a 70 A current rating, and a three-pole configuration. The breaker supports 480 V and 600Y/347 Vac systems and provides instantaneous magnetic-only protection through a non-interchangeable trip mechanism. Its magnetic trip range is 210–770 A, with a motor full-load amperage (FLA) range of 16.1–60.9 A. The unit includes non-aluminum line- and load-side lug terminals and a feed-through connection configuration.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker (MCCB)
• Product Series: Series G
• Frame Type: EG Frame
• Breaker Type: HMCPE
• Breaker Configuration: Complete Breaker
• Current Rating: 70 A
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Voltage Rating: 480 V
• Additional Voltage Rating: 600Y/347 Vac
• Operating Temperature: 40°C
• Trip Type: Non-interchangeable instantaneous magnetic-only trip
• Magnetic Trip Range: 210–770 A
• Motor Full-Load Amperage (FLA) Range: 16.1–60.9 A
• Terminal Type: Non-aluminum line- and load-side lug terminals
• Connection Type: Feed-through
• Application: Motor circuit protection
• Protection Function: Instantaneous protection only
• Model Number: HMCPE070M2X

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: HMCPE070M2X
• Product Family: Series G
• Frame Designation: EG Frame
• Breaker Type: HMCPE
• Current Rating: 70 Amp
• Pole Count: 3 Pole
• Trip Mechanism: Non-interchangeable instantaneous magnetic-only trip
• Product Category: Motor Circuit Protector (MCP)
• UPC:786679113684

Compatibility

Designed for compatible Eaton Cutler-Hammer Series G EG-frame motor starter assemblies requiring a three-pole, 70 A motor circuit protector with matching voltage, magnetic trip range, and electronic overload protection.

Certifications

• UL Listed
