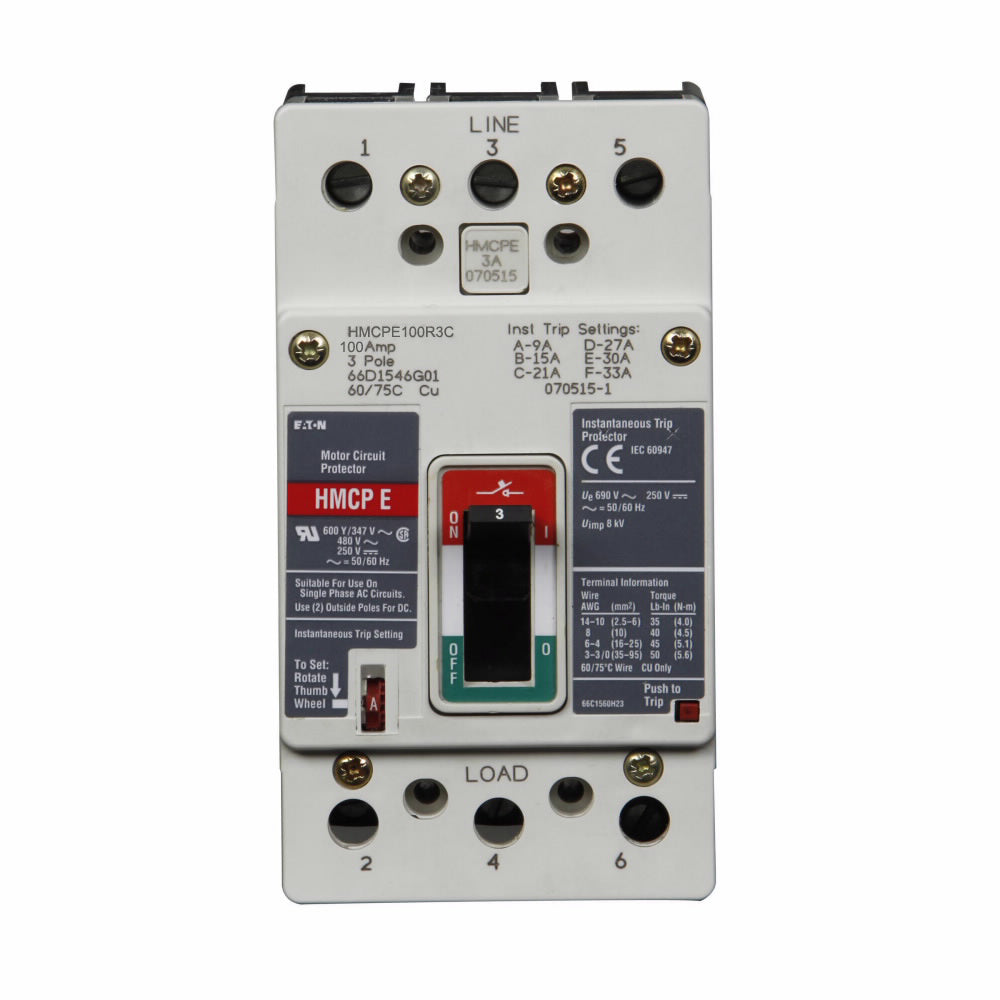

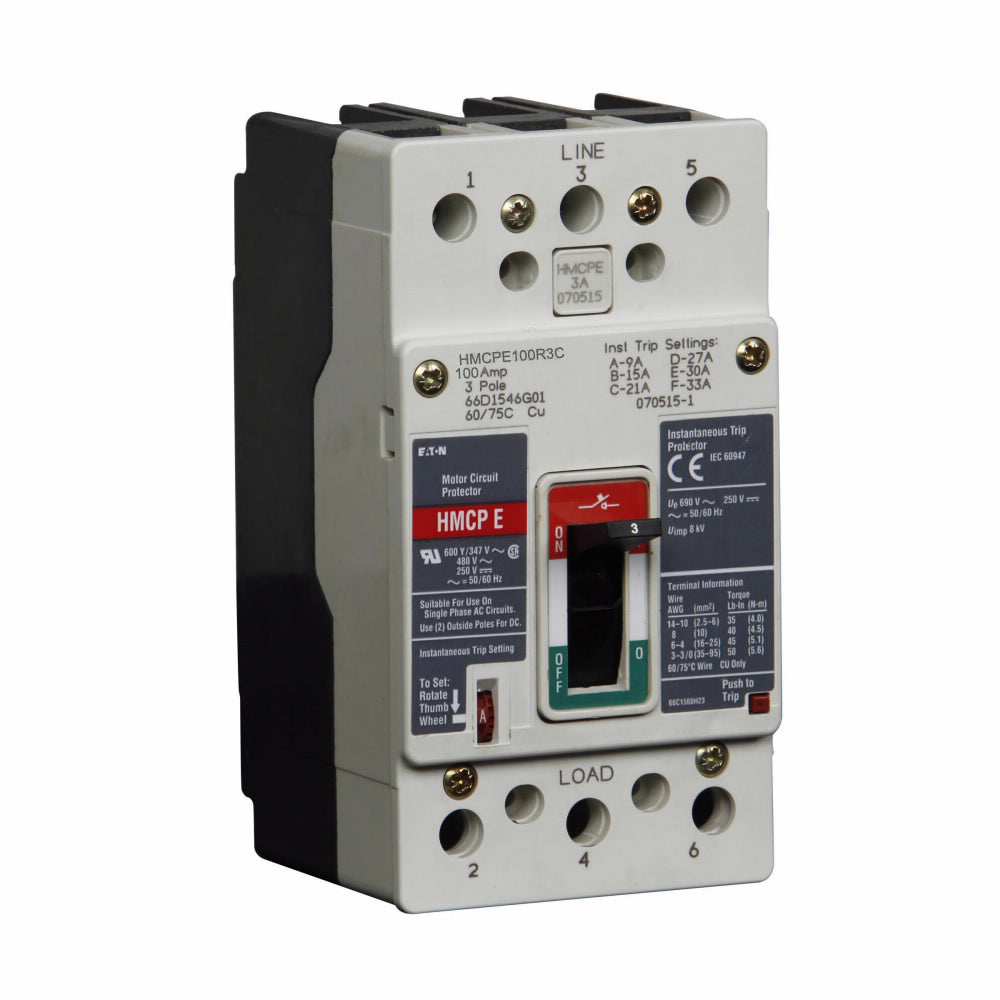

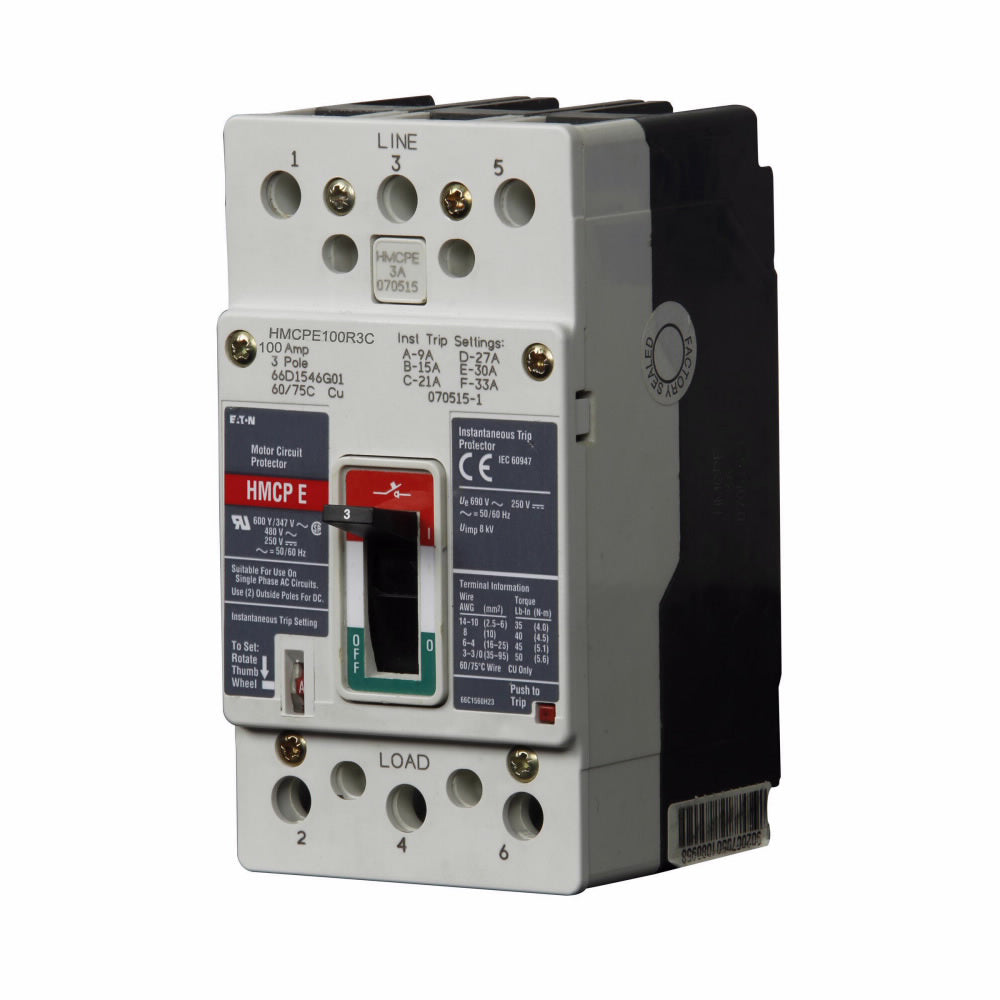

Eaton HMCPE100R3C Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 480V / 600Y/347V AC – Magnetic-Only – Feed-Thru – Series G HMCPE

The Eaton HMCPE100R3C is a 100A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Eaton / Cutler-Hammer Series G Type HMCPE. It features magnetic-only protection with instantaneous trip protection and is designed for motor circuit protection applications.

The HMCPE100R3C is rated for 480V AC and 600Y/347V AC and features a feed-thru configuration with non-aluminum line-side and load-side lug terminals. It has a non-interchangeable trip, a 330–1100A magnetic range, and a 23.0–87.0A motor FLA range.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series G
• Series: Series G
• Type: HMCPE
• Frame: EG Frame
• Catalog No.: HMCPE100R3C
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480V AC, 600Y/347V AC
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I)
• Trip Type: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Type: Non-Aluminum Line-Side and Load-Side Lug Terminals
• Magnetic Range: 330–1100A
• Motor FLA Range: 23.0–87.0A
• Application: Motor Circuit Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCPE100R3C
• Catalog Number: HMCPE100R3C
• Model: HMCPE100R3C
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Type: HMCPE
• Frame: EG Frame
• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• UPC:786679113691

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series G Type HMCPE motor circuit protection applications. The HMCPE100R3C is a 3-pole, 100A MCP with magnetic-only instantaneous protection, a 330–1100A magnetic range, and a 23.0–87.0A motor FLA range.

Always verify the specific motor application, panelboard or electrical equipment model, approved breaker/MCP type, system voltage, available fault current, pole configuration, magnetic trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• Specific Certifications: Not specified
