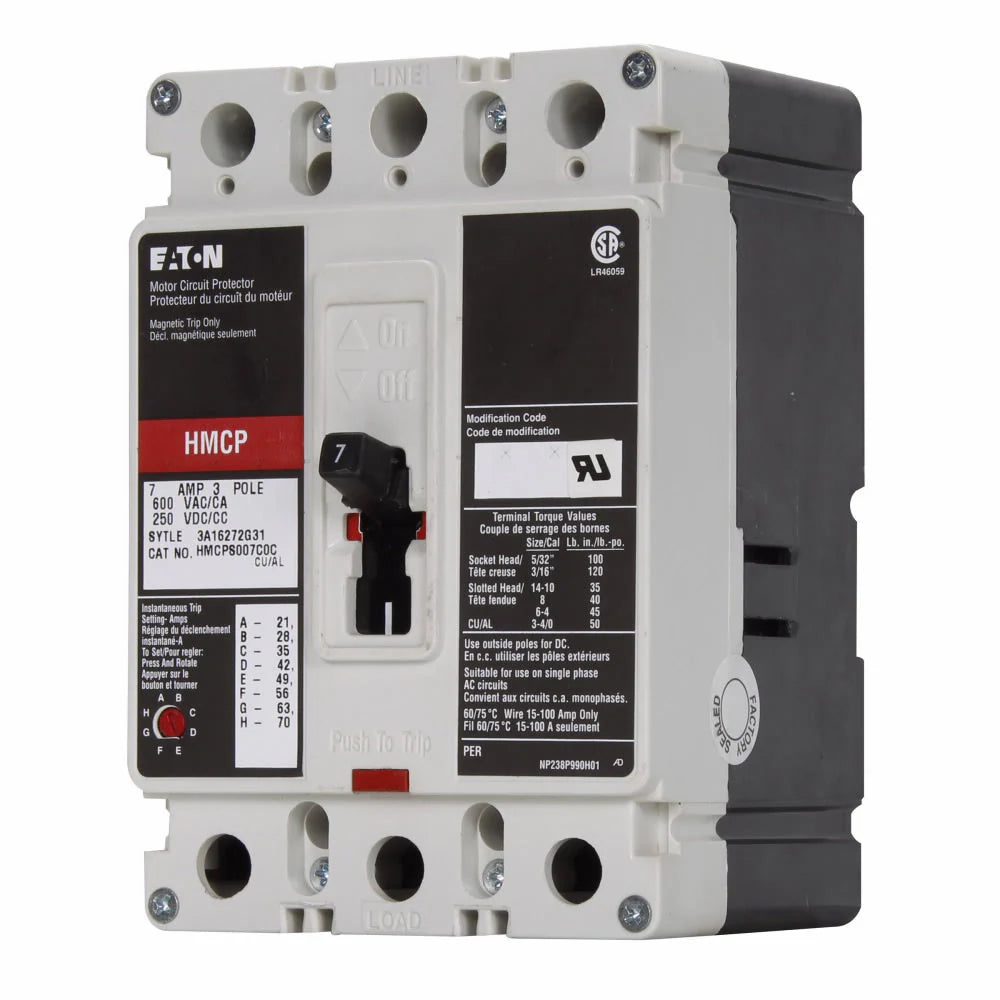

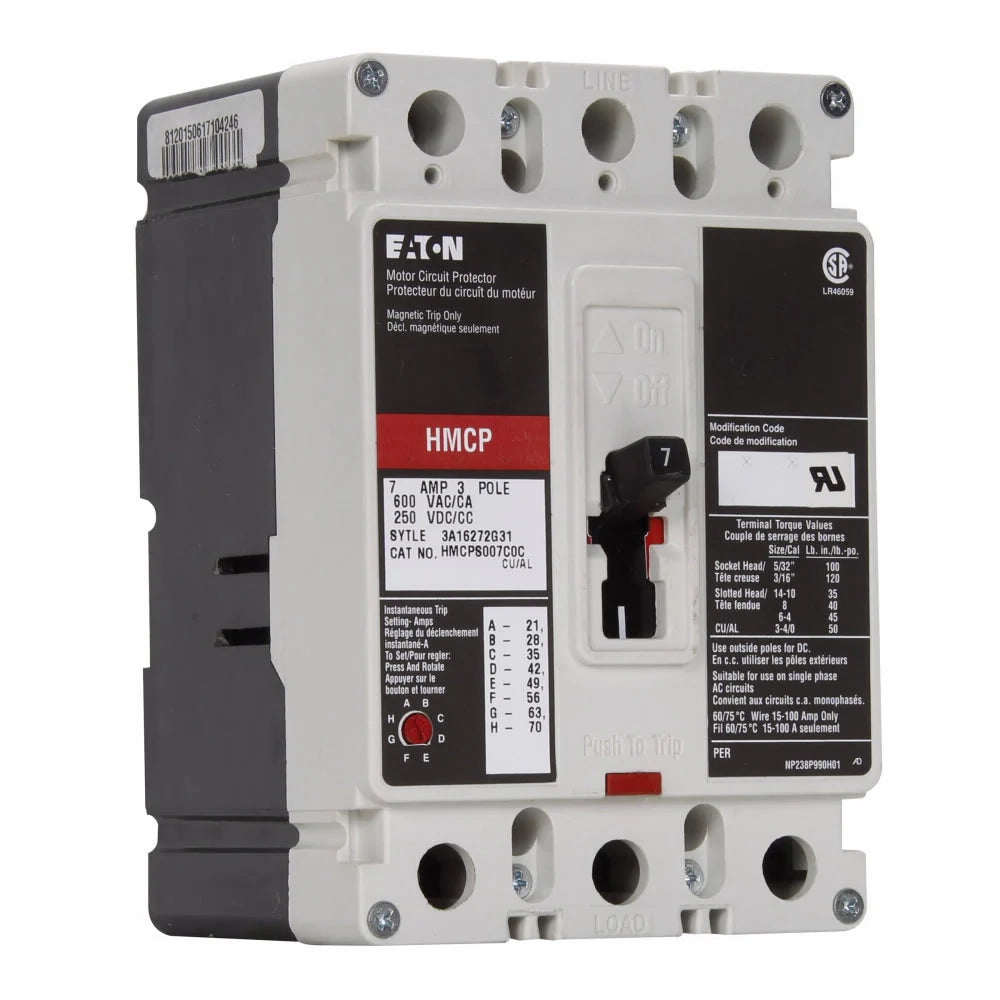

Eaton Cutler-Hammer HMCPS007C0 7 Amp Molded Case Circuit Breaker – 3 Pole – 65 kAIC at 480 Vac – Series C

The Eaton Cutler-Hammer HMCPS007C0 is a Series C molded case motor circuit protector (MCP) designed for use with motor starters equipped with electronic overload relays. Featuring an F-frame construction, a 7 A current rating, and a three-pole configuration, this breaker supports systems rated up to 600 V and provides an interrupting capacity of 65 kA at 480 Vac. It uses a non-interchangeable instantaneous magnetic-only trip mechanism, with a magnetic trip range of 21–70 A. The unit includes non-aluminum line- and load-side lug terminals and a feed-through connection configuration.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker (MCCB)
• Product Series: Series C
• Frame Type: F Frame
• Breaker Type: HMCPS
• Breaker Configuration: Complete Breaker
• Current Rating: 7 A
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Voltage Rating: 600 V
• Interrupting Capacity at 480 Vac: 65 kAIC
• Trip Type: Non-interchangeable instantaneous magnetic-only trip
• Magnetic Trip Range: 21–70 A
• Motor Full-Load Amperage (FLA) Range: 1.5–5.7 A
• Terminal Type: Non-aluminum line- and load-side lug terminals
• Connection Type: Feed-through
• Application: Motor circuit protection for motor starters equipped with electronic overload relays
• Protection Function: Instantaneous protection only
• Model Number: HMCPS007C0

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: HMCPS007C0
• Product Family: Series C
• Frame Designation: F Frame
• Breaker Type: HMCPS
• Current Rating: 7 Amp
• Pole Count: 3 Pole
• Trip Mechanism: Non-interchangeable instantaneous magnetic-only trip
• Product Category: Motor Circuit Protector (MCP)
• UPC:786679032732

Compatibility

Designed for compatible Eaton Cutler-Hammer Series C F-frame motor starter assemblies equipped with electronic overload relays and requiring a three-pole, 7 A motor circuit protector with matching voltage, interrupting capacity, and magnetic trip range.

Certifications

• UL Listed
