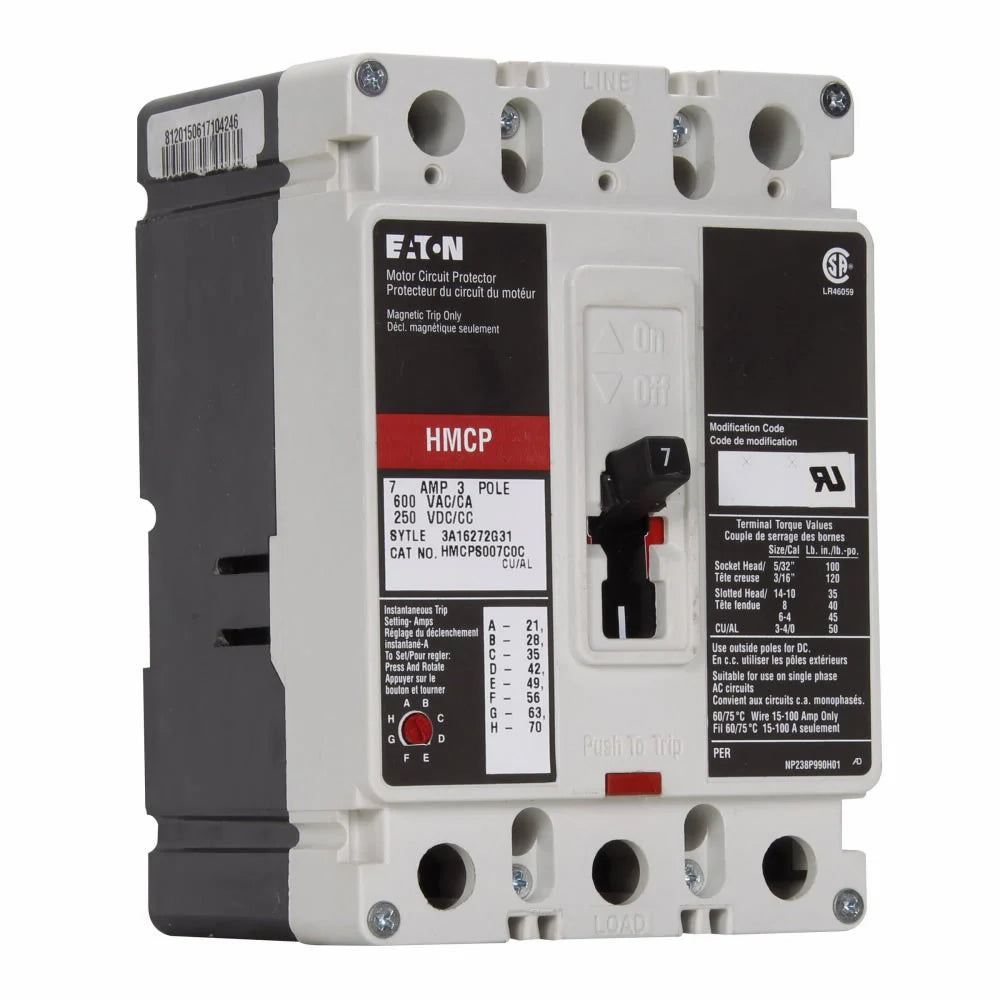

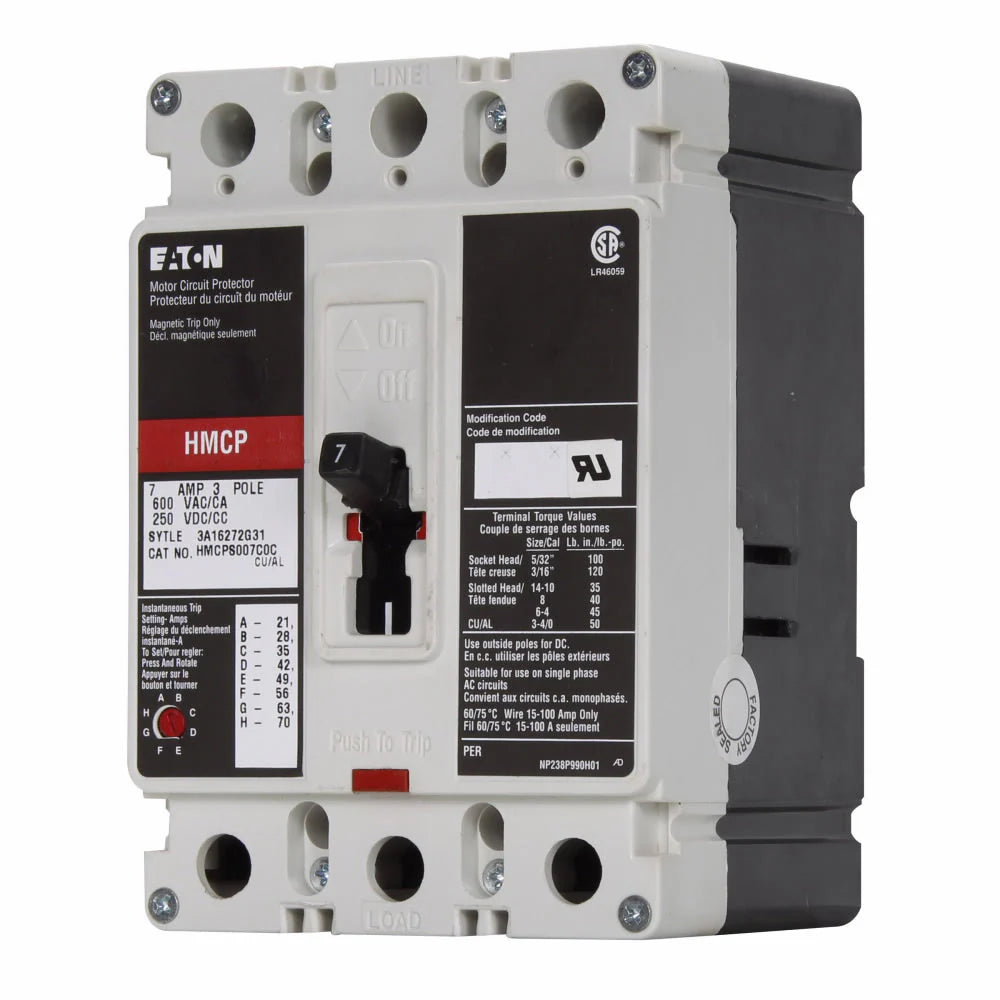

Eaton HMCPS007C0Y 7 Amp Motor Circuit Protector – 3 Pole – 600 V – 65 kA@480 V – Magnetic-Only – Series C

The Eaton HMCPS007C0Y is a 7 Amp, 3-pole, 3-phase motor circuit protector from the Eaton / Cutler-Hammer / Westinghouse Series C, Type HMCPS, F-Frame product range. It is rated for 600 V and provides a 65 kA interrupting rating at 480 V. This magnetic-only protector features a non-interchangeable trip unit with instantaneous protection and is designed for motor starters equipped with electronic overload relays. It includes non-aluminum line and load-side lug terminals and supports a magnetic range of 21–70 A.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Motor Circuit Protector (MCP)
• Series: Series C
• Type: HMCPS
• Frame: F Frame
• Catalog Number / MPN: HMCPS007C0Y
• Primary Rating: 7 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Trip Type: Magnetic Only
• Trip Unit: Non-Interchangeable
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 21–70 A
• Motor FLA Range: 1.5–5.7 A
• Connection / Mounting: Feed-Thru
• Terminals: Non-Aluminum Line & Load-Side Lug Terminals
• Application: Motor starters equipped with electronic overload relays

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: HMCPS007C0Y
• Series: Series C
• Type: HMCPS
• Frame: F Frame
• Current Rating: 7 A
• Pole Count: 3 Pole
• Product Type: Magnetic-Only Motor Circuit Protector
• Trip Unit: Non-Interchangeable
• Trip Functions: I – Instantaneous Protection Only
• Connection: Feed-Thru
• Terminals: Non-Aluminum Line & Load-Side Lug Terminals
• UPC:786679032732

Compatibility

The Eaton HMCPS007C0Y is intended for compatible Eaton / Cutler-Hammer Series C motor starter applications equipped with electronic overload relays.
