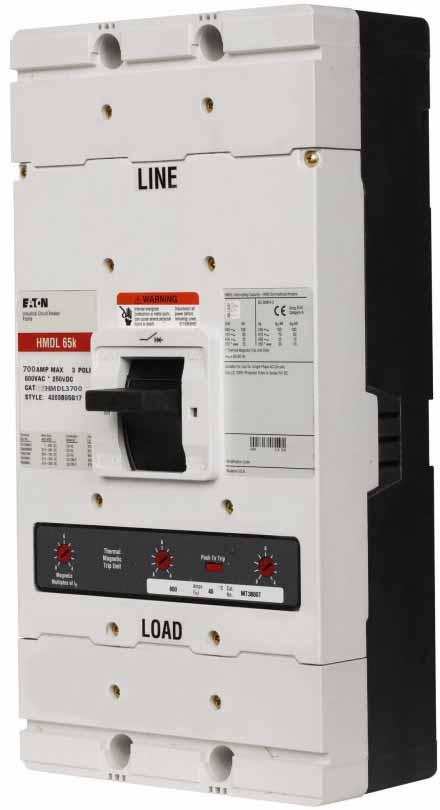

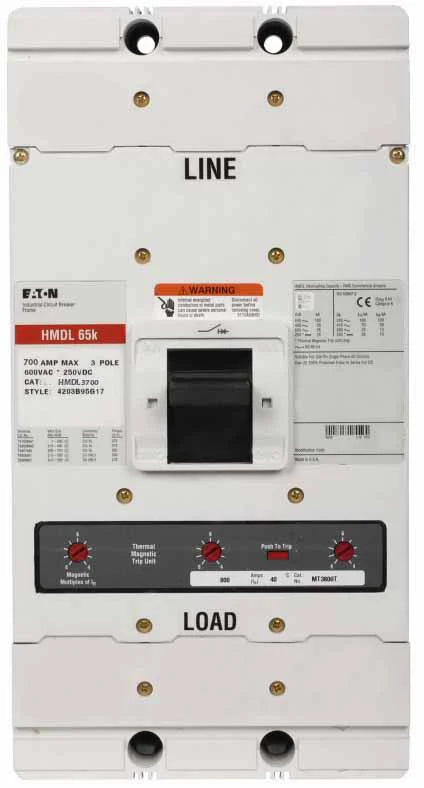

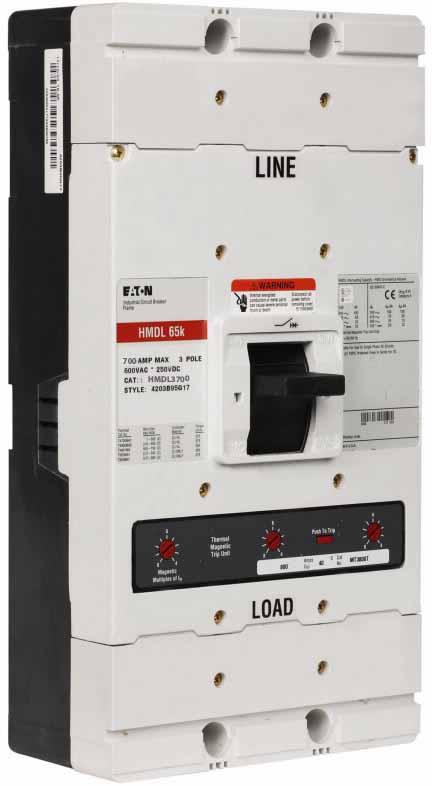

Eaton Cutler-Hammer HMDL3700C 700 Amp Molded Case Circuit Breaker – 3 Pole – 100 kAIC at 240 Vac – 65 kAIC at 480 Vac – Series C

The Eaton Cutler-Hammer HMDL3700C is a Series C complete molded case circuit breaker featuring an MDL frame and HMDL breaker configuration. It is equipped with fixed thermal and fixed magnetic trip mechanisms to provide overcurrent and short-circuit protection. This three-pole circuit breaker has a 700 A current rating, interrupting capacities of 100 kA at 240 Vac and 65 kA at 480 Vac, and operates at 50/60 Hz.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker (MCCB)
• Product Series: Series C
• Frame Type: MDL Frame
• Breaker Type: HMDL
• Breaker Configuration: Complete Breaker
• Current Rating: 700 A
• Number of Poles: 3 Pole
• Interrupting Capacity at 240 Vac: 100 kAIC
• Interrupting Capacity at 480 Vac: 65 kAIC
• Trip Type: Fixed Thermal, Fixed Magnetic
• Operating Frequency: 50/60 Hz
• Model Number: HMDL3700C

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: HMDL3700C
• Product Family: Series C
• Frame Designation: MDL
• Breaker Type: HMDL
• Current Rating: 700 Amp
• Pole Count: 3 Pole
• Trip Mechanism: Fixed Thermal-Magnetic
• Product Category: Molded Case Circuit Breaker
• UPC:782114586075

Compatibility

Designed for compatible Eaton Cutler-Hammer Series C MDL-frame applications requiring a three-pole, 700 A molded case circuit breaker with matching voltage and interrupting-capacity requirements.

Certifications

• UL Listed
