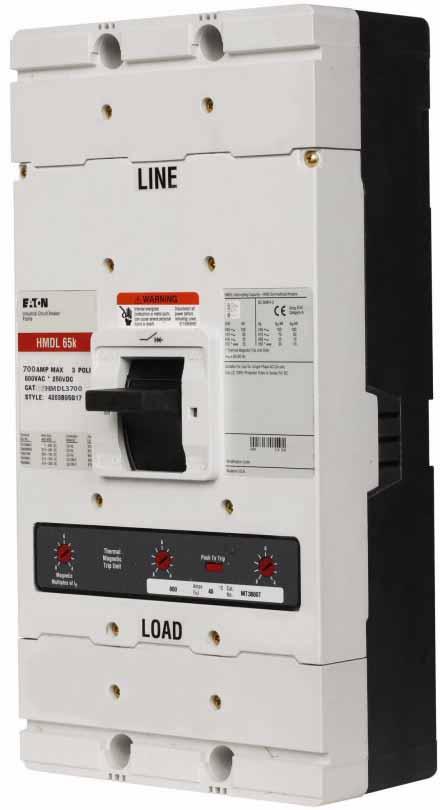

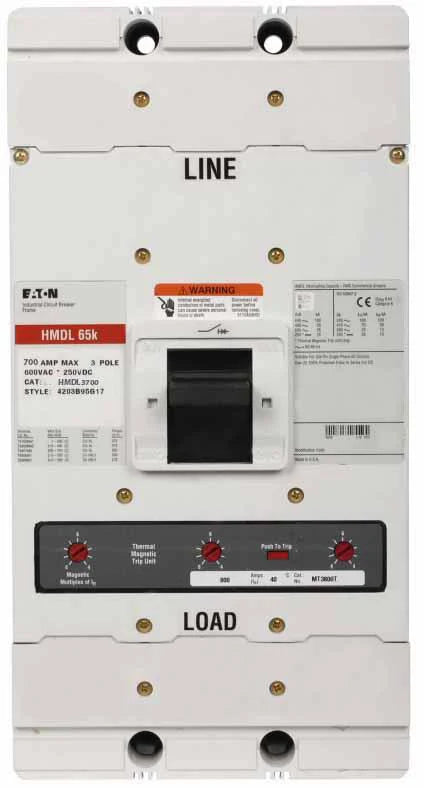

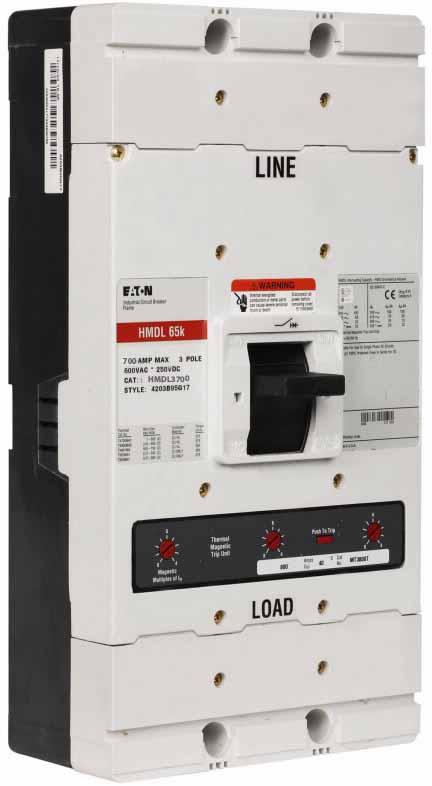

The Eaton Cutler-Hammer HMDL3700X is a complete molded case circuit breaker from Eaton’s Series C product family, featuring an MDL frame and fixed thermal-magnetic trip protection. Rated at 700 Amps with a three-pole configuration, it is designed to provide overcurrent protection in compatible industrial and commercial electrical distribution systems. The breaker offers interrupting ratings of 100 kAIC at 240 Vac and 65 kAIC at 480 Vac and operates at 50/60 Hz.
Specifications
- Manufacturer: Eaton
- Brand: Cutler-Hammer
- Product Type: Molded Case Circuit Breaker
- Product Series: Series C
- Frame Type: MDL Frame
- Breaker Type: HMDL
- Breaker Configuration: Complete Breaker
- Current Rating: 700 Amp
- Poles / Configuration: 3 Pole
- Interrupting Rating at 240 Vac: 100 kAIC
- Interrupting Rating at 480 Vac: 65 kAIC
- Trip Type: Fixed Thermal, Fixed Magnetic
- Frequency: 50/60 Hz
- Catalog Number / MPN: HMDL3700X
Part Numbers & Identification
- Manufacturer: Eaton
- Brand: Cutler-Hammer
- Catalog Number: HMDL3700X
- Product Family: Series C
- Frame Designation: MDL
- Breaker Type: HMDL
- Current Rating: 700 A
- Pole Count: 3 Pole
- Trip Mechanism: Fixed Thermal-Magnetic
-
Product Type: Molded Case Circuit Breaker
Compatibility
The Eaton HMDL3700X is intended for compatible Series C MDL-frame electrical distribution systems requiring a three-pole, 700 Amp molded case circuit breaker with matching interrupting-capacity requirements.
Certifications
- UL Listed
