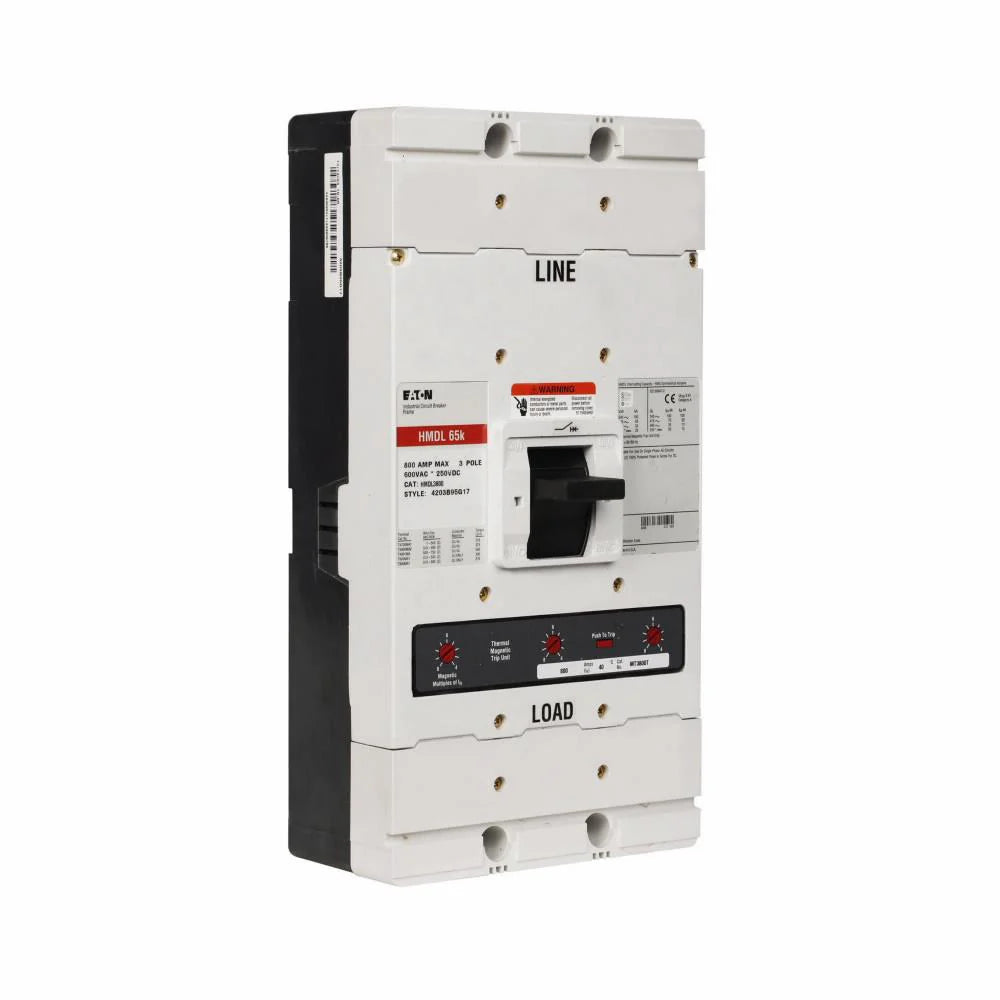

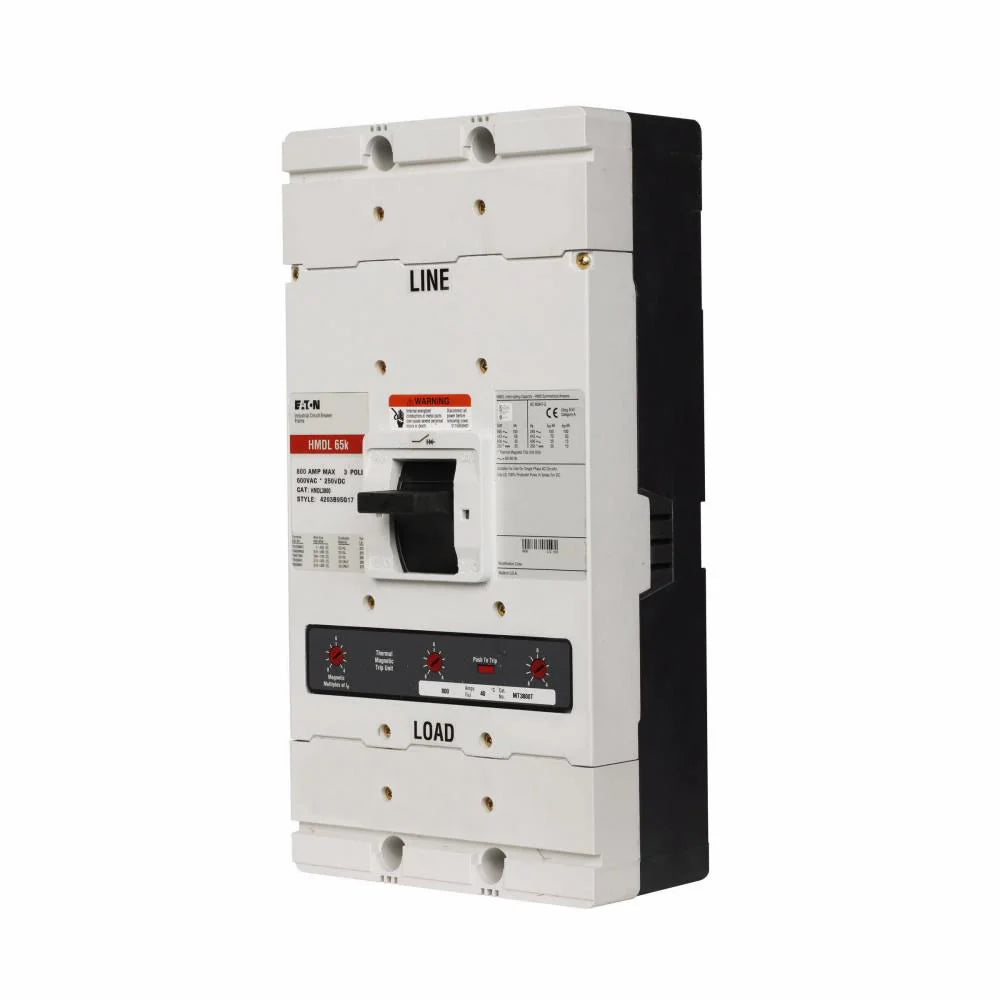

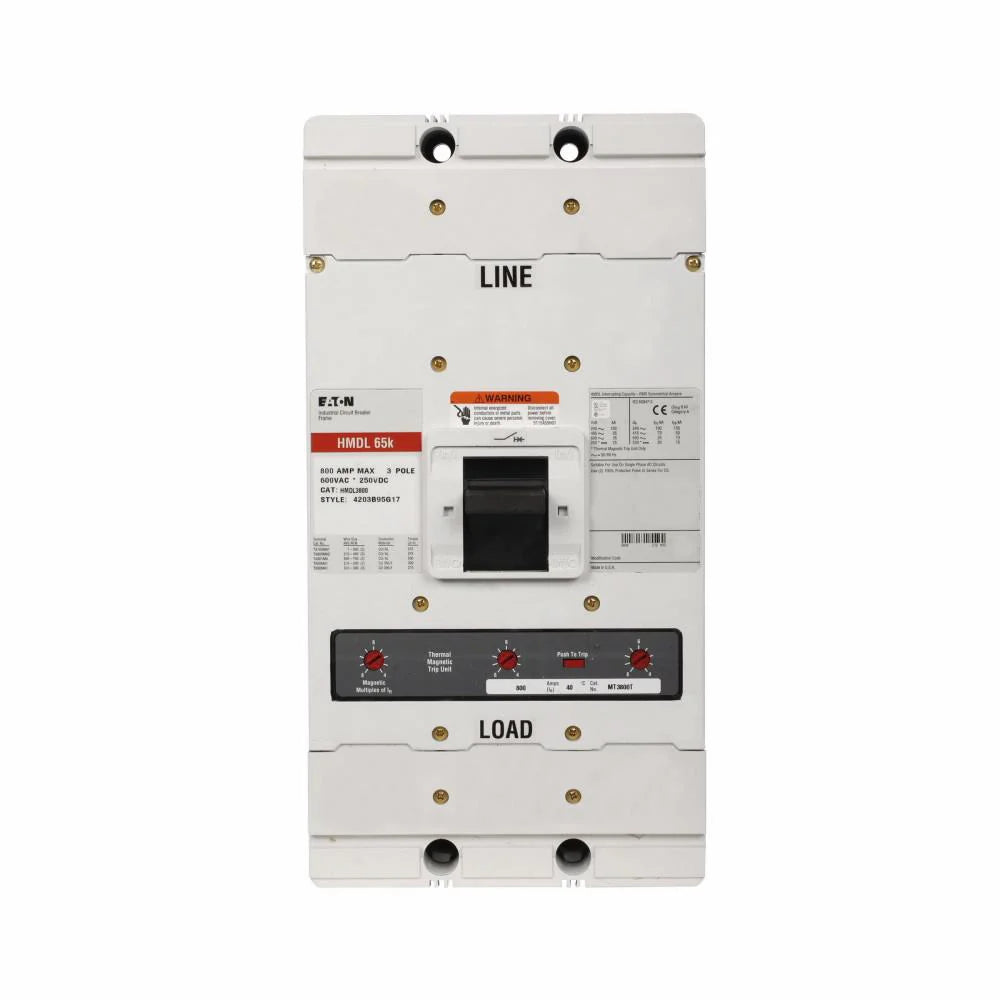

Eaton Cutler-Hammer HMDL3800C 800 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kAIC at 480 V – High Interrupting Capacity – Series C

The Eaton Cutler-Hammer HMDL3800C is a complete thermal-magnetic molded case circuit breaker from Eaton’s Series C product family. Designed for three-phase electrical distribution systems, it features an 800 Amp current rating and a 600 V voltage rating. This Type HMDL breaker provides a high interrupting capacity of 65 kA at 480 V and incorporates interchangeable LI trip functions for long-time and instantaneous overcurrent protection. Its feed-through design and line- and load-side lug terminals support installation in compatible industrial and commercial power distribution applications.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer / Eaton / Westinghouse
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Product Series: Series C
• Breaker Type: HMDL
• Current Rating: 800 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Rated Voltage: 600 V
• Interrupting Rating at 480 V: 65 kAIC
• Interrupting Capacity: High
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Mechanism: Thermal-Magnetic
• Temperature Rating: 40°C
• Connection Type: Feed-Through
• Terminal Configuration: Line- and Load-Side Lug Terminals
• Breaker Configuration: Complete Breaker
• Catalog Number / MPN: HMDL3800C

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: HMDL3800C
• Product Family: Series C
• Breaker Type: HMDL
• Current Rating: 800 A
• Pole Count: 3 Pole
• Voltage Rating: 600 V
• Trip Functions: LI — Long-Time and Instantaneous
• Product Type: Molded Case Circuit Breaker
• UPC:782114586082

Compatibility

The Eaton HMDL3800C is intended for compatible Series C Type HMDL electrical distribution applications requiring a three-pole, 800 Amp molded case circuit breaker with high interrupting capacity.

Certifications

• UL Listed
