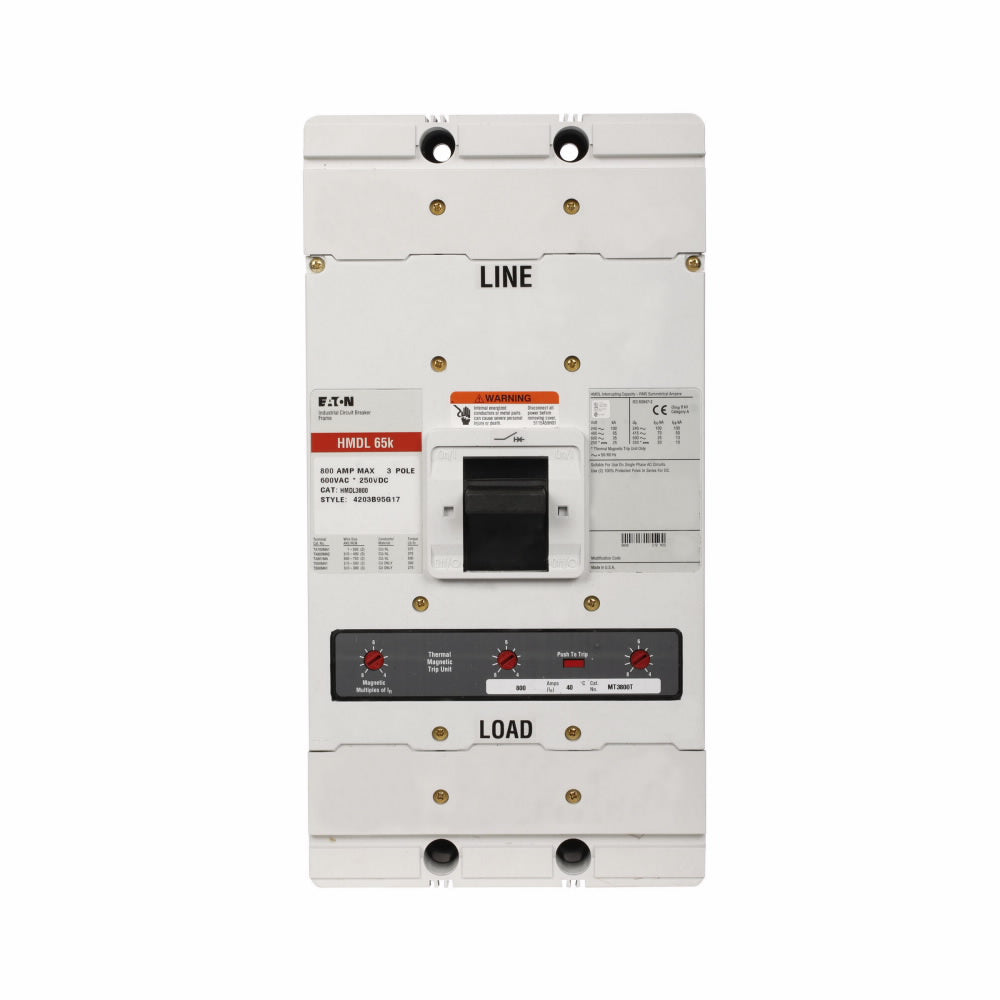

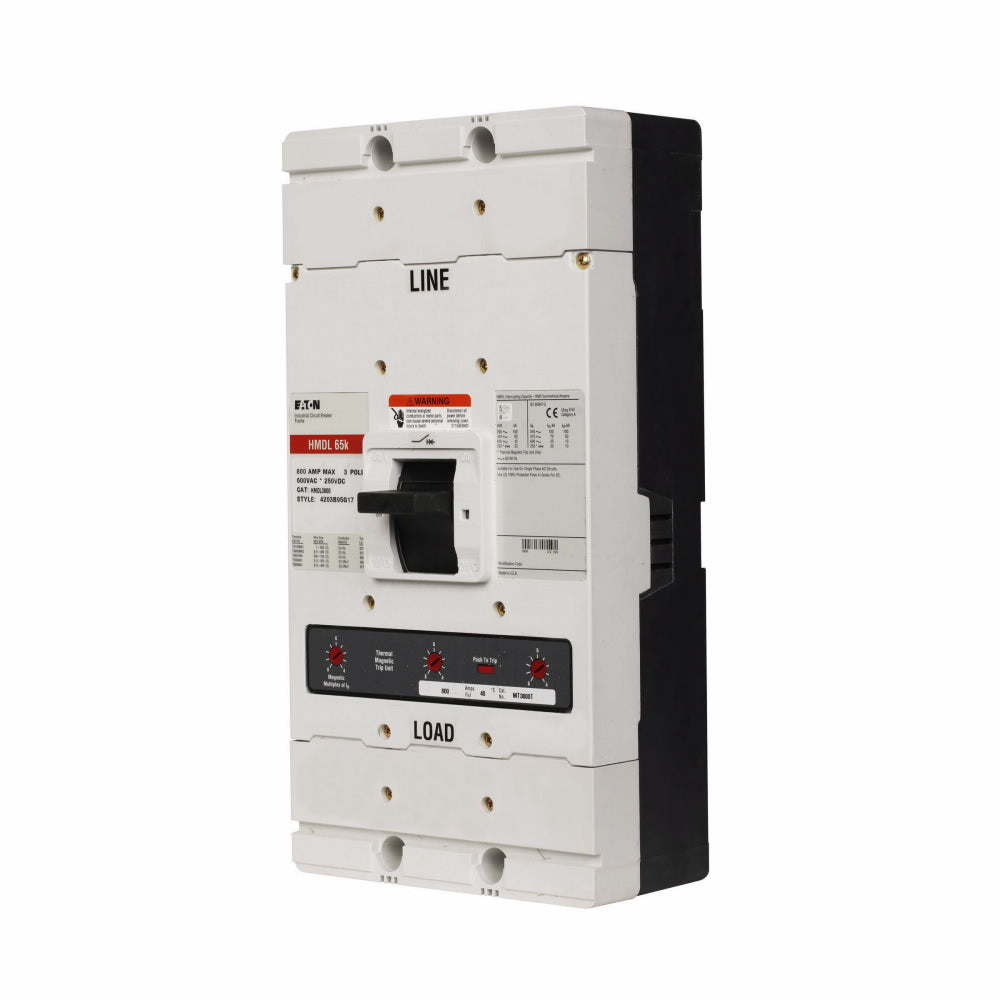

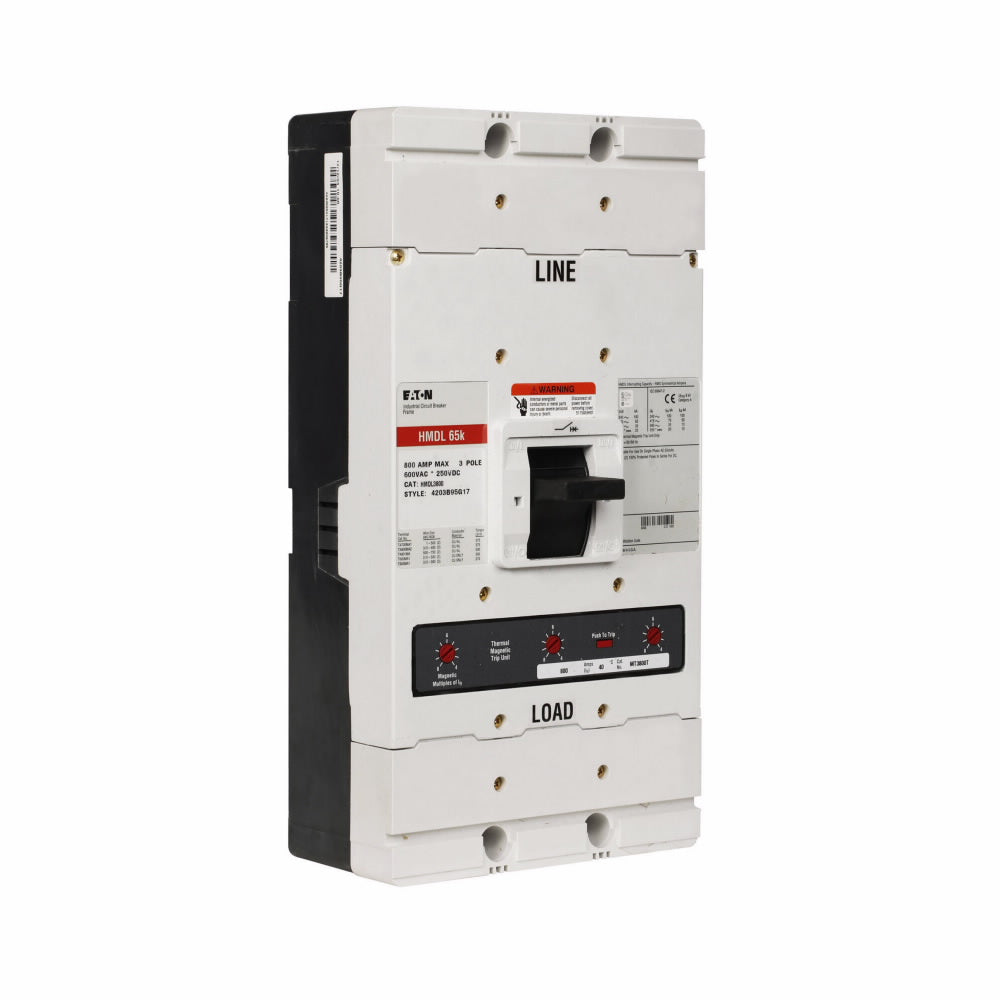

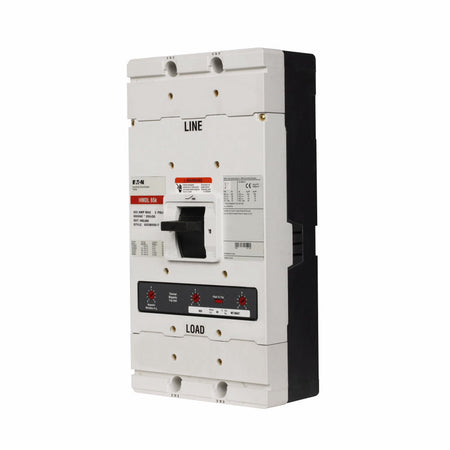

Eaton HMDL3800F Molded Case Circuit Breaker Frame – 800A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Series C HMDL

The Eaton HMDL3800F is an 800A, 3-pole, 3-phase molded case circuit breaker frame from the Eaton Series C HMDL Series. It features a thermal-magnetic design and is intended for compatible electrical distribution applications.

The HMDL3800F is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It is designed for 40°C operation and uses a bolt-on mounting configuration.

This is a frame-only configuration, so the applicable trip unit and other required components are not included unless separately specified.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: Series C
• Series: HMDL
• Type: HMDL
• Catalog No.: HMDL3800F
• Current Rating: 800A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Configuration: Frame Only
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMDL3800F
• Catalog Number: HMDL3800F
• Model: HMDL3800F
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: HMDL
• Type: HMDL
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Breaker Configuration: 3-Pole, 800A
• Configuration: Frame Only
• UPC:782114350584

Compatibility:

Designed for use with compatible Eaton Series C Type HMDL electrical distribution equipment that accepts the HMDL molded case circuit breaker frame. The HMDL3800F provides an 800A, 3-pole, 600V frame with a 65kA interrupting rating at 480V and high interrupting capacity.

The product is supplied as a frame only; the appropriate trip unit and other required components must be selected separately as required for the application.

Always verify the specific panelboard or electrical equipment model, approved breaker frame and trip-unit combination, system voltage, available fault current, pole configuration, mounting arrangement, and installation requirements before installation.

Certifications:

• Series C HMDL Series
• 800A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Design
• Bolt-On Mounting
• 40°C Rated
• Frame Only
