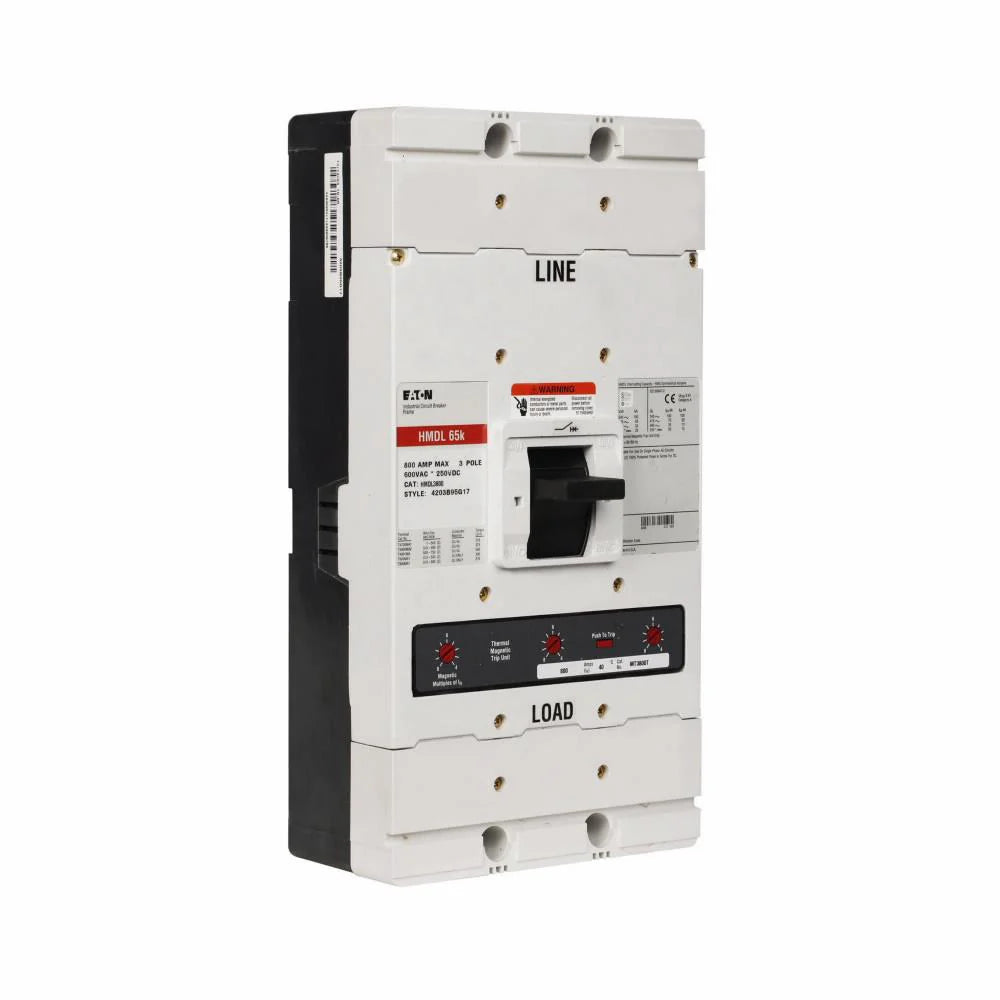

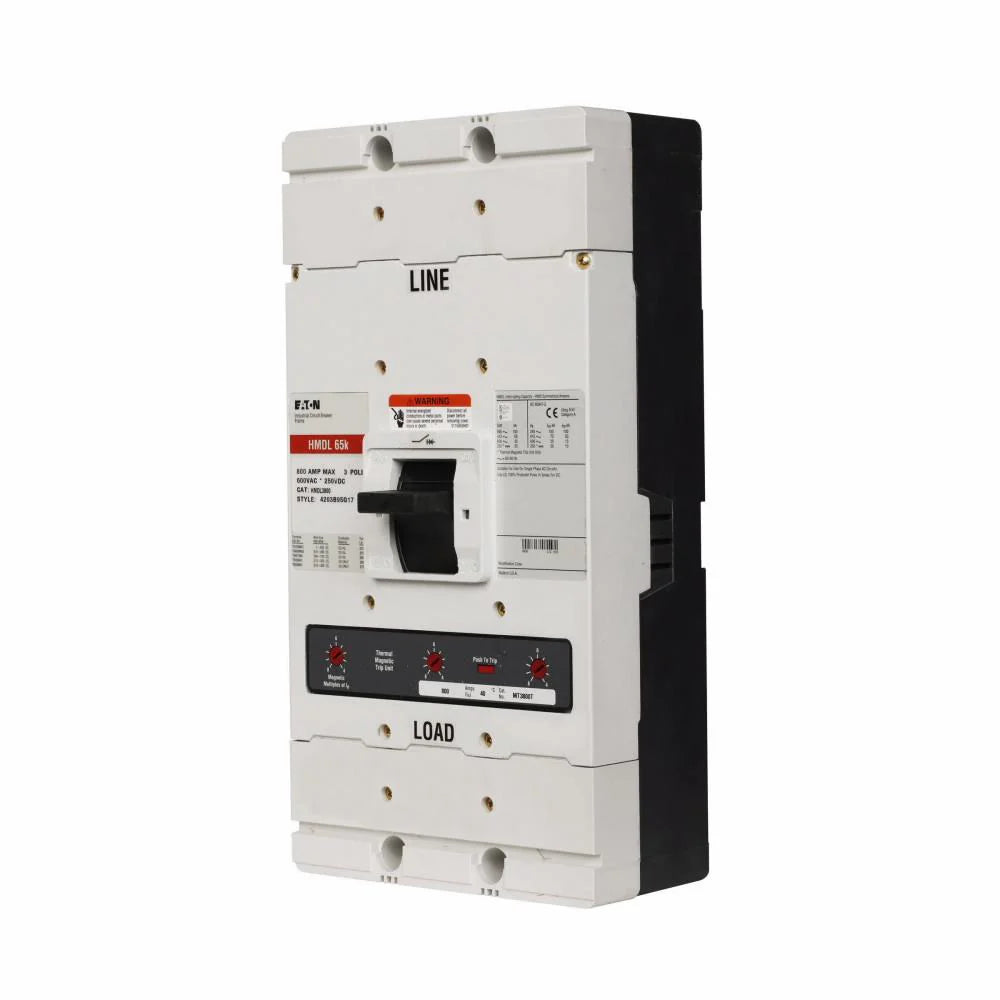

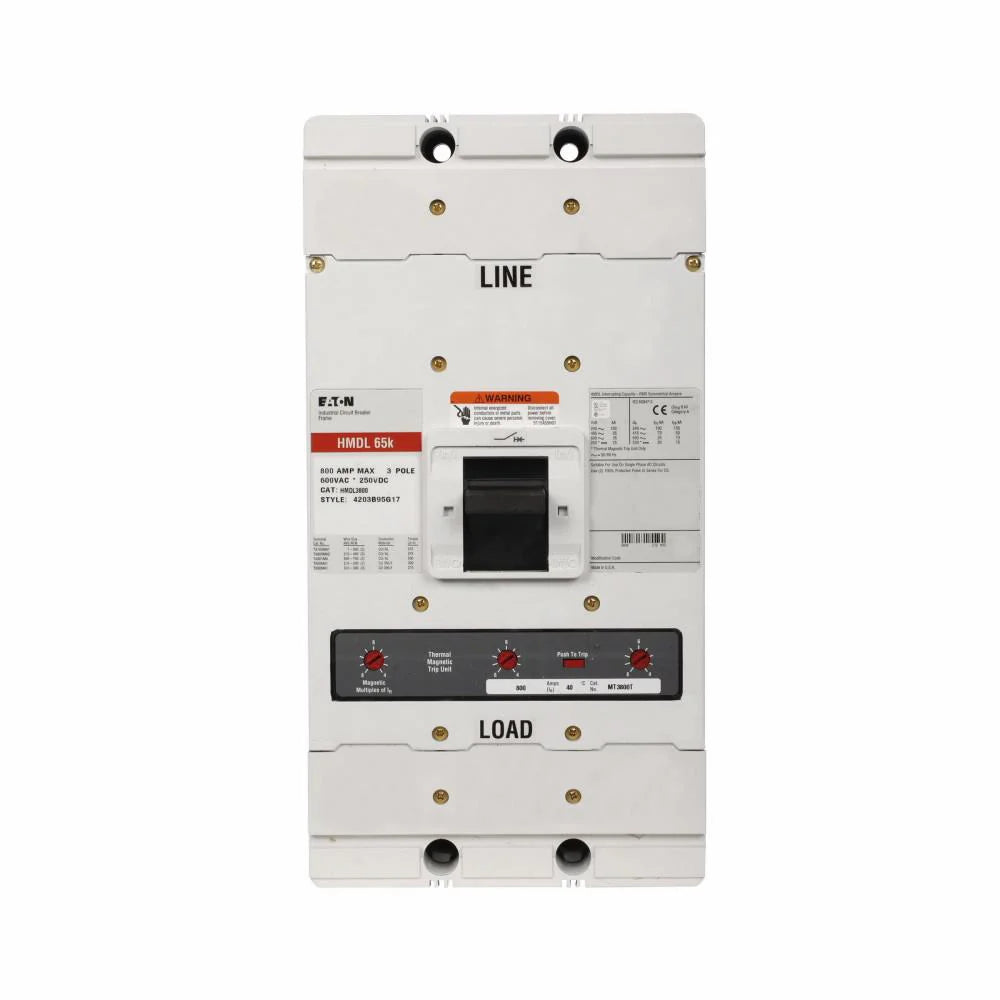

The Eaton Cutler-Hammer HMDL3800X is a complete thermal-magnetic molded case circuit breaker from Eaton’s Series C product family. Designed for three-phase electrical distribution systems, it features an 800 Amp current rating and a 600 V voltage rating. This Type HMDL breaker provides a high interrupting capacity of 65 kA at 480 V and incorporates interchangeable LI trip functions for long-time and instantaneous overcurrent protection. Its feed-through design and line- and load-side lug terminals support installation in compatible industrial and commercial power distribution applications.
Specifications
- Manufacturer: Eaton
- Brand: Cutler-Hammer / Eaton / Westinghouse
- Product Type: Thermal-Magnetic Molded Case Circuit Breaker
- Product Series: Series C
- Breaker Type: HMDL
- Current Rating: 800 Amp
- Poles / Configuration: 3 Pole
- Phase: 3 Phase
- Rated Voltage: 600 V
- Interrupting Rating at 480 V: 65 kAIC
- Interrupting Capacity: High
- Trip Functions: Long-Time and Instantaneous (LI)
- Trip Mechanism: Thermal-Magnetic
- Temperature Rating: 40°C
- Connection Type: Feed-Through
- Terminal Configuration: Line- and Load-Side Lug Terminals
- Breaker Configuration: Complete Breaker
- Catalog Number / MPN: HMDL3800X
Part Numbers & Identification
- Manufacturer: Eaton
- Brand: Cutler-Hammer
- Catalog Number: HMDL3800X
- Product Family: Series C
- Breaker Type: HMDL
- Current Rating: 800 A
- Pole Count: 3 Pole
- Voltage Rating: 600 V
- Trip Functions: LI — Long-Time and Instantaneous
- Product Type: Molded Case Circuit Breaker
- UPC:782114586082
Compatibility
The Eaton HMDL3800X is intended for compatible Series C Type HMDL electrical distribution applications requiring a three-pole, 800 Amp molded case circuit breaker with high interrupting capacity.
Certifications
- UL Listed
