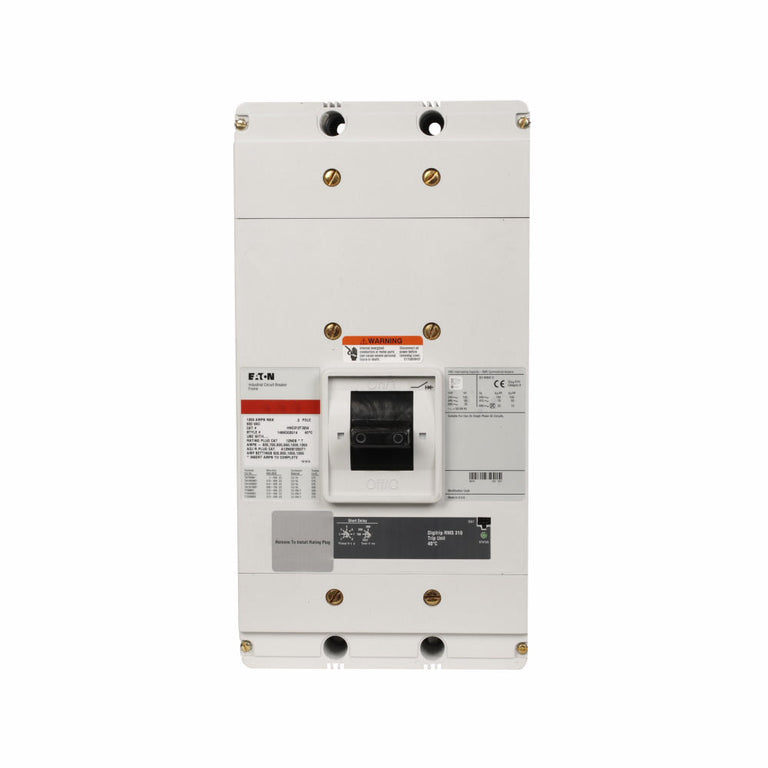

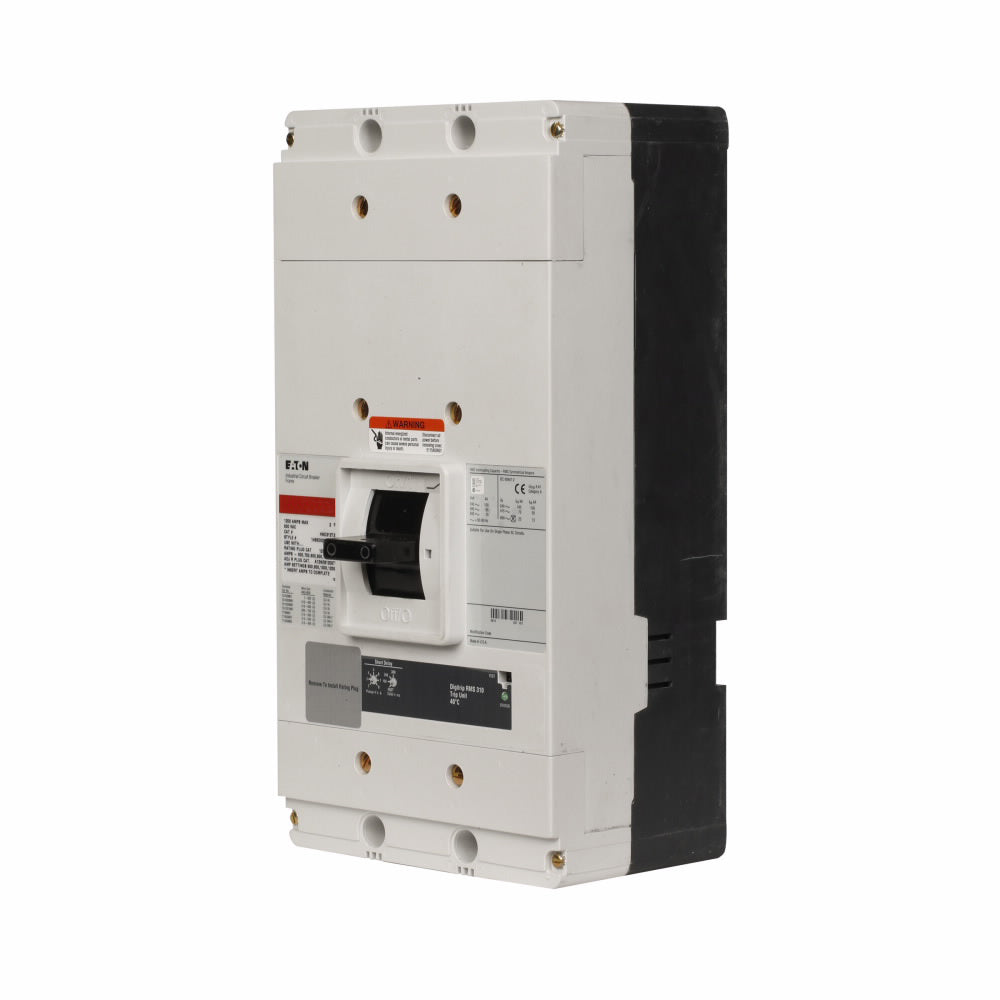

Eaton Cutler-Hammer HND312T106W 1200 Amp Molded Case Circuit Breaker – 3 Pole – 600V – 65 kA @ 480V – Series C HND Frame

The Eaton HND312T106W is a 1200A, 3-pole molded case circuit breaker from the Series C family, designed for three-phase industrial and commercial power distribution systems. It features a 600V rating and a 65 kA interrupting capacity at 480V. The breaker is equipped with a non-interchangeable solid-state electronic Digitrip RMS 1050 trip unit, providing LSIG protection (Long-Time, Short-Time, Instantaneous, and Ground Fault).

Specifications

• Brand: Eaton / Cutler-Hammer / Westinghouse
• Product Series: Series C
• Type: HND
• Model / MPN: HND312T106W
• Product Type: Molded Case Circuit Breaker (MCCB)
• Current Rating: 1200A
• Poles: 3 Pole
• Phase: 3 Phase
• Voltage Rating: 600V
• Interrupting Capacity: 65 kA @ 480V
• Interrupting Class: High Interrupting
• Mounting: Bolt-On
• Trip Unit: Digitrip RMS 1050
• Trip Unit Type: Non-Interchangeable
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous, and Ground Fault
• Trip Technology: Solid-State Electronic

Part Numbers & Identification

• Manufacturer: Eaton
• Associated Brands: Cutler-Hammer / Westinghouse
• Catalog Number: HND312T106W
• Product Family: Series C
• Breaker Type: HND
• UPC:786679050194

Compatibility

Designed for compatible Eaton, Cutler-Hammer, and Westinghouse Series C distribution equipment supporting 1200A, 3-pole breakers with matching voltage, interrupting capacity, and bolt-on mounting configuration.
