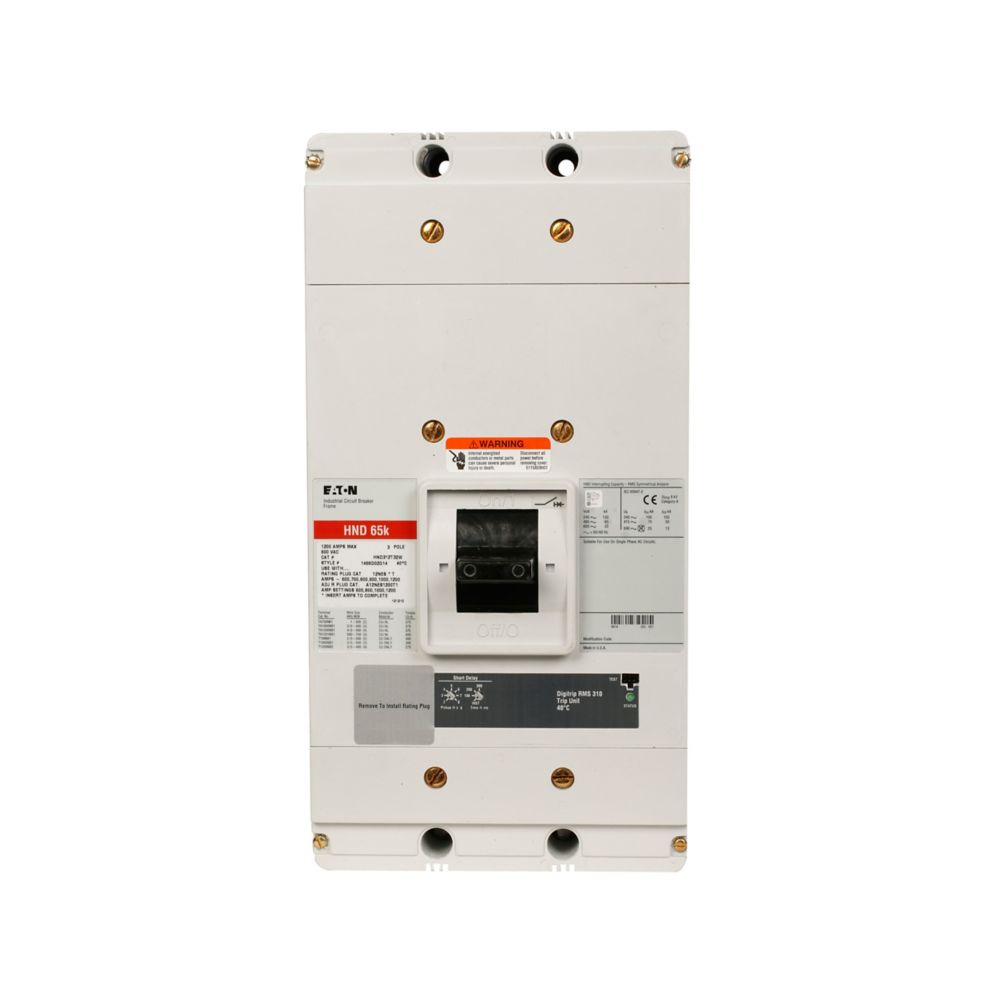

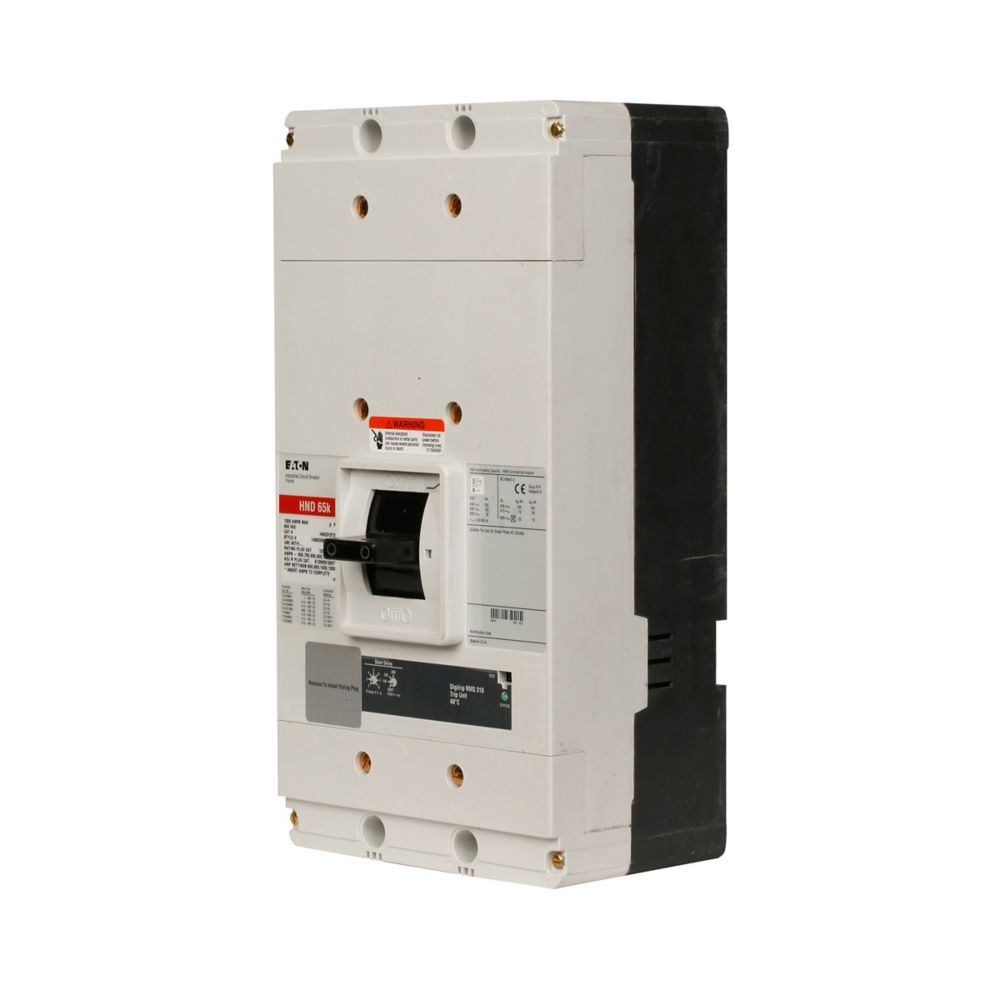

Eaton HND312T32W 1200 Amp Electronic Molded Case Circuit Breaker – 3 Pole – 600 V AC – 65 kAIC@480 V AC – Electronic LSIG – Series C

The Eaton HND312T32W is a 1200 Amp, 3-pole electronic molded case circuit breaker from the Eaton / Cutler-Hammer Series C, Type HND. It features an NG-frame design and a Digitrip 310 RMS electronic trip unit with LSIG (Long-Time, Short-Time, Instantaneous, and Ground-Fault) protection functions. Rated for 600 V AC at 50/60 Hz, it provides interrupting ratings of 100 kAIC at 240 V AC and 65 kAIC at 480 V AC. The breaker is 80% rated.

Specifications

• Manufacturer: Eaton
• Brand: Eaton / Cutler-Hammer
• Product Type: Electronic Molded Case Circuit Breaker
• Series: Series C
• Type: HND
• Frame: NG Frame
• Catalog Number / MPN: HND312T32W
• Primary Rating: 1200 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V AC
• Frequency: 50/60 Hz
• Interrupting Rating: 100 kAIC @ 240 V AC; 65 kAIC @ 480 V AC
• Trip Type: Electronic
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous, and Ground-Fault
• Connection / Mounting: Bolt-On
• Rating: 80% Rated
• HACR Rated: Yes

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton / Cutler-Hammer
• Catalog Number: HND312T32W
• Series: Series C
• Type: HND
• Frame: NG Frame
• Current Rating: 1200 A
• Pole Count: 3 Pole
• Product Type: Electronic Molded Case Circuit Breaker
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous, and Ground-Fault
• UPC: 786679252741

Compatibility

The Eaton HND312T32W is intended for compatible Eaton / Cutler-Hammer Series C NG-frame electrical distribution equipment, including approved panelboard and switchboard applications.

Certifications

• UL 489 Listed
• HACR Rated
