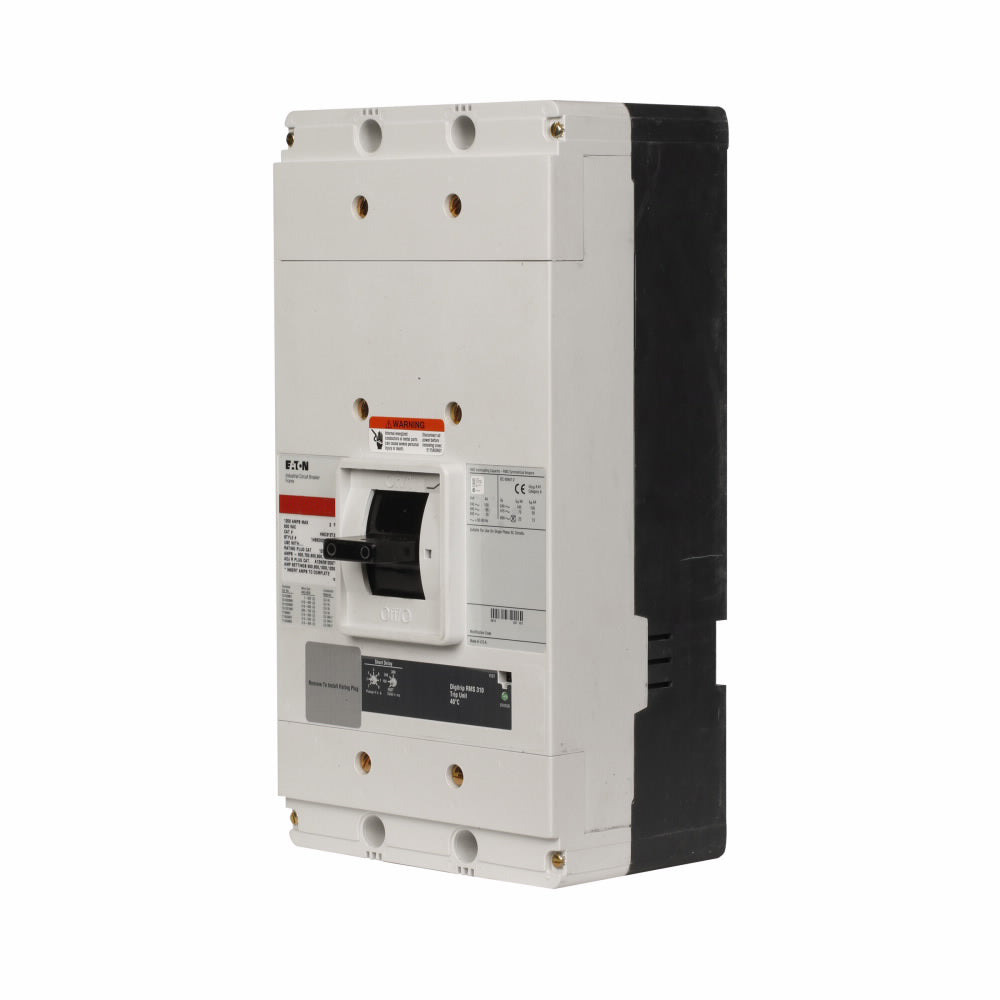

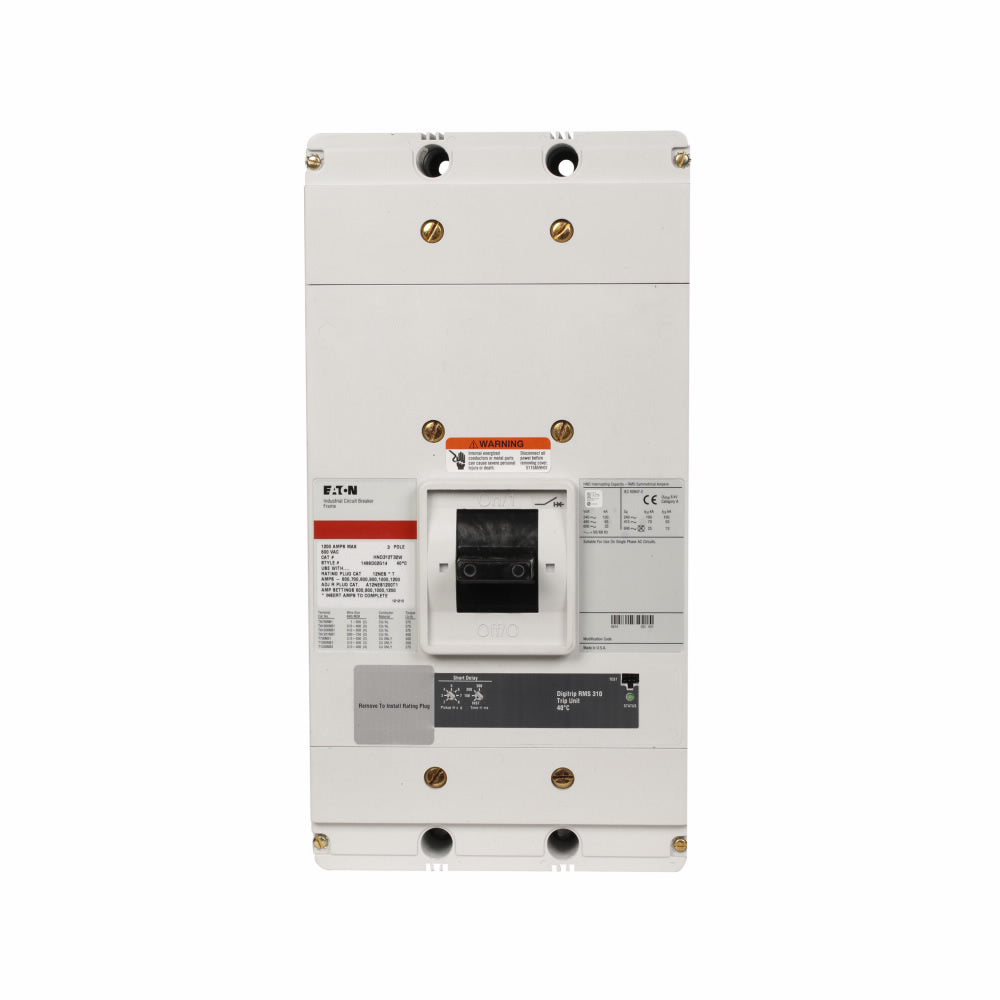

Eaton HND312T35W Molded Case Circuit Breaker – 1200A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Series C HND

The Eaton HND312T35W is a 1200A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer / Westinghouse Series C Type HND. It features solid-state electronic protection with a Digitrip RMS 310 trip unit and Long-Time, Short-Time, and Ground-Fault (LSG) trip functions.

The HND312T35W is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It uses a bolt-on mounting configuration and is supplied as a complete breaker with a non-interchangeable trip unit. Lugs and rating plug are not included.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: HND
• Catalog No.: HND312T35W
• Current Rating: 1200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Solid-State Electronic
• Trip Unit: Digitrip RMS 310
• Trip Functions: Long-Time, Short-Time, and Ground Fault (LSG)
• Trip Type: Non-Interchangeable
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Lugs: Not Included
• Rating Plug: Not Included
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HND312T35W
• Catalog Number: HND312T35W
• Model: HND312T35W
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HND
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 1200A
• Trip Unit: Digitrip RMS 310
• Trip Configuration: Non-Interchangeable LSG
• UPC:786679252765

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer / Westinghouse Series C Type HND electrical distribution equipment that accepts HND Series molded case circuit breakers. The HND312T35W provides 1200A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker uses a bolt-on mounting configuration and includes a non-interchangeable Digitrip RMS 310 trip unit with Long-Time, Short-Time, and Ground-Fault functions. Lugs and rating plug are not included. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, trip-unit compatibility, lug selection, rating-plug requirements, mounting arrangement, and installation specifications before installation.

Certifications:

• Series C HND Series
• 1200A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Solid-State Electronic Protection
• Digitrip RMS 310 Trip Unit
• Long-Time, Short-Time, and Ground-Fault (LSG) Trip Functions
• Non-Interchangeable Trip
• Bolt-On Mounting
• Complete Breaker
• Lugs Not Included
• Rating Plug Not Included
