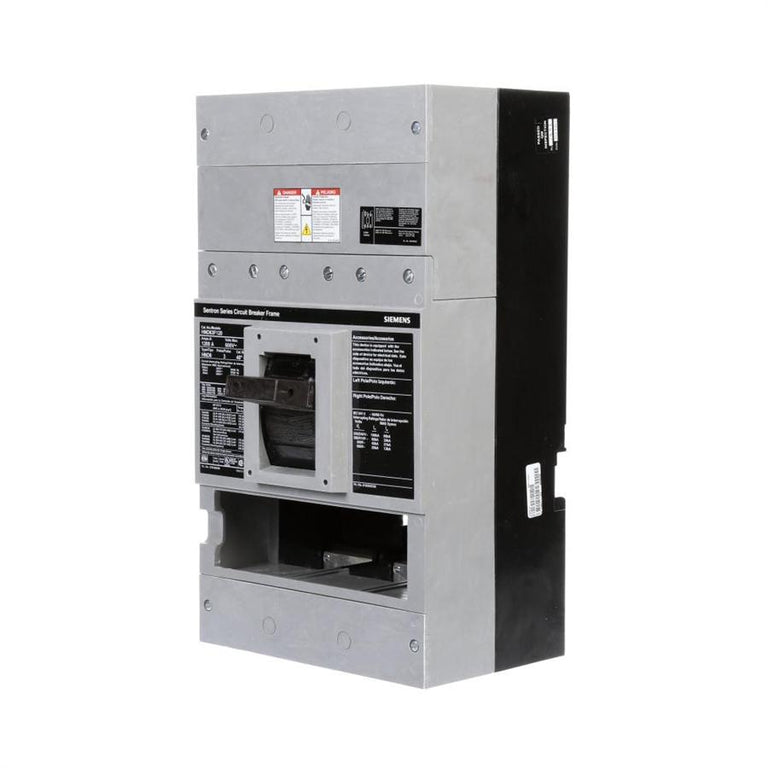

Siemens HND63F120 1200 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – Feed-Thru – SENTRON Series

The Siemens HND63F120 is a 1200 Amp, 3-pole molded case circuit breaker from the Siemens SENTRON Series, Type HND. It is rated for 600 V with a 65 kA interrupting rating at 480 V and features thermal-magnetic protection. The breaker is designed for feed-thru mounting and is supplied as a frame-only configuration without lugs.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: HND
• Catalog Number / MPN: HND63F120
• Primary Rating: 1200 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Interrupting Capacity: Standard
• Ambient Temperature Rating: 40°C
• Trip Type: Thermal-Magnetic
• Connection / Mounting: Feed-Thru
• Product Configuration: Frame Only
• Terminals: Lugs Not Included

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: HND63F120
• Series: SENTRON
• Type: HND
• Current Rating: 1200 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Product Configuration: Frame Only
• Terminals: Lugs Not Included
• UPC: 783643215665

Compatibility

The Siemens HND63F120 is designed for compatible Siemens SENTRON Type HND molded case circuit breaker applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, and terminal requirements before installation.
