Siemens HNXD63B100 Molded Case Circuit Breaker – 1000A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Sentron HNXD SeriesSiemens HNXD63B100 Molded Case Circuit Breaker – 1000A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Sentron HNXD Series

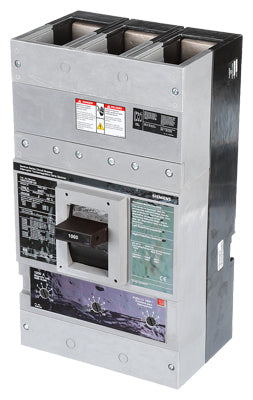

The Siemens HNXD63B100 is a 1000A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Type HNXD Series. It features thermal-magnetic protection with a non-interchangeable trip unit.

The breaker is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It uses a bolt-on mounting configuration, is supplied as a complete breaker with the non-interchangeable trip unit, and is rated for operation at 40°C.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: HNXD
• Type: HNXD
• Catalog No.: HNXD63B100
• Current Rating: 1000A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification

• Manufacturer Part Number (MPN): HNXD63B100
• Catalog Number: HNXD63B100
• Model: HNXD63B100
• Product Family: Siemens Sentron Circuit Breakers
• Series: HNXD
• Type: HNXD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 1000A
• Trip Configuration: Non-Interchangeable Trip Unit
• UPC:783643252370

Compatibility

Designed for use with compatible Siemens Sentron Type HNXD electrical distribution equipment that accepts HNXD Series molded case circuit breakers. The HNXD63B100 provides 1000A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker uses a bolt-on mounting configuration and is supplied as a complete breaker with a non-interchangeable trip unit. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, mounting arrangement, temperature requirements, and installation specifications before installation.

Certifications

• Siemens Sentron HNXD Series
• 1000A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip Unit
• Bolt-On Mounting
• Complete Breaker
• 40°C Rated
