HOM115PCAFI - Square D Homeline - Arc Fault (AFCI) Circuit Breaker
Couldn't load pickup availability
Ask an expert
Description
HOM115PCAFI

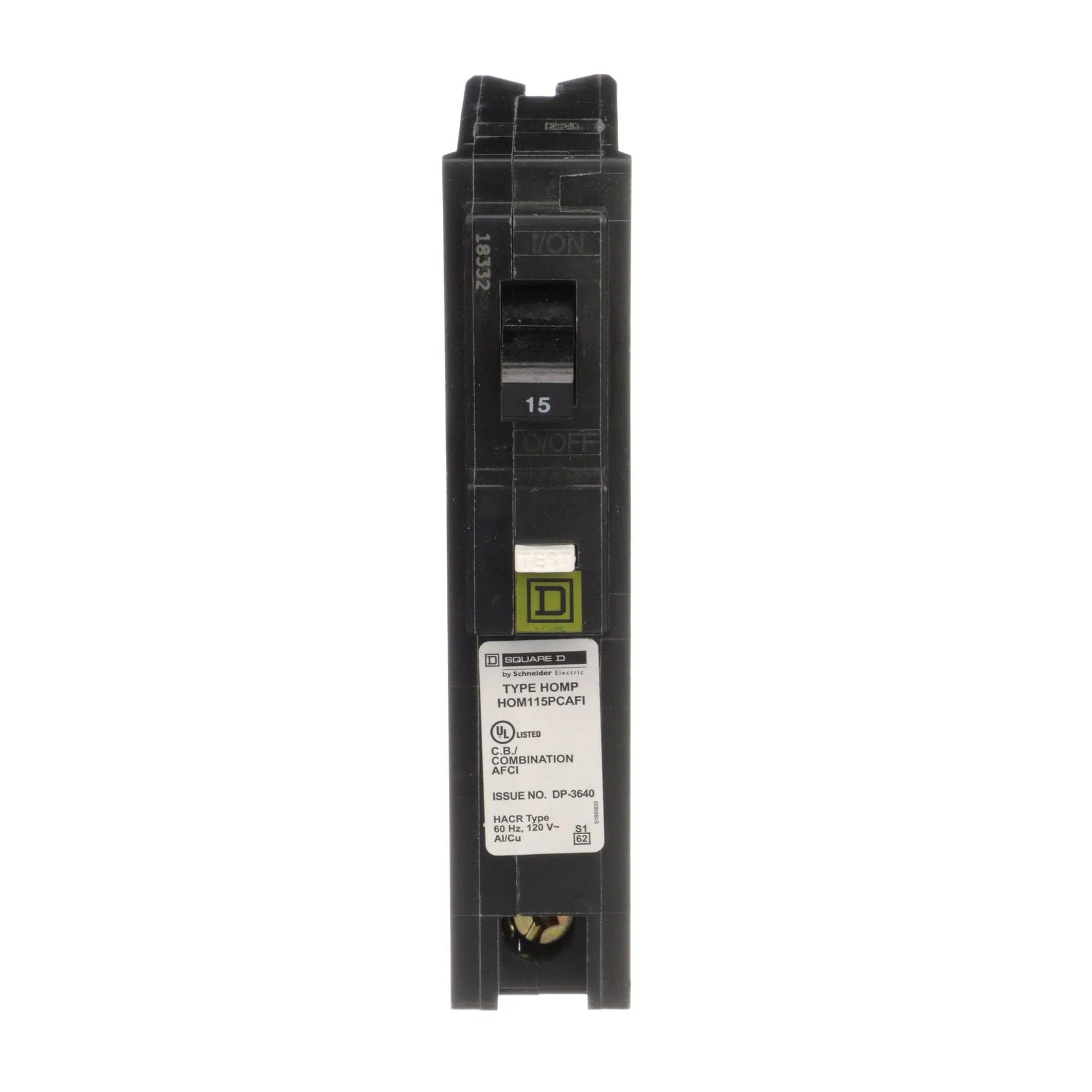

The Square D HOM115PCAFI is a Molded Case Circuit Breaker. This type HOM circuit breaker is a member of The HOMELINE family. The HOM115PCAFI is a 1 pole, 120 Volt, 15 amp rated circuit breaker, with an AIC rating of 10kA@120V. The HOM115PCAFI is manufactured by Square D. The HOM115PCAFI uses a Plug-In connection. Includes Thermal Magnetic protection.
Specifications
- Part Number: HOM115PCAFI
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOM
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Screw Clamp Terminals
- MCM Size : Min. Wire Size 14 AWG (Cu/Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al), 10 AWG (Cu)
- Breaker Type : Combination Arc-Fault
- Protection : Thermal Magnetic
Product Data
- UPC :785901950806
- GTIN : 00785901950806
- Country of Origin : Mexico
- Dimensions : 1 in x 3.13 in
- Weight : 1 lb
- Standards : UL Listed
- Certification : UL Listed
- Vendor My Circuit Breakers
