My Circuit Breakers

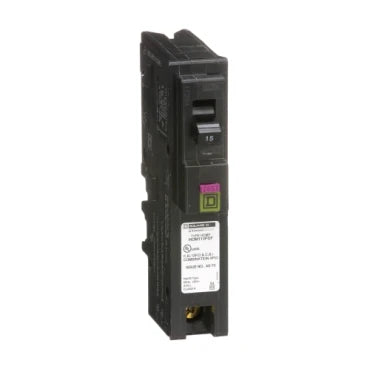

HOM115PDF - Square D 15 Amp 120 Volt 1-Pole Homeline Circuit Breaker Plug-On Neutral Dual Function

In stock
$42.00
Sale $63.00 $42.00
Condition
Secure transaction
FREE & fast shipping on orders over $99
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

Description

HOM115PDF


HOM115PDF is a Square D Homeline 1-pole circuit breaker rated for 15 amps and 120 volts with plug-on neutral and dual function arc fault and ground fault protection.HOM115PDFfeatures thermal magnetic trip protection, a 10 kA interrupt rating at 120 VAC, and plug-in mounting designed for Homeline load centers. It supports 14 to 8 AWG copper or aluminum wire with clamp terminal connection and meets UL 489, UL 1699, and UL 943 standards for arc fault and ground fault circuit interrupters.
  • Key Specifications
    • Amperage: 15 A
    • Voltage: 120 VAC
    • Poles: 1
    • Mounting Type: Plug-On Neutral
    • Interrupt Rating: 10 kA at 120 V
    • Series/Frame: Homeline
    • Trip Unit: Thermal Magnetic Dual Function (Arc Fault and Ground Fault)
    • Wire Range: 14-8 AWG Copper/Aluminum
    • Dimensions: 3.13" H x 1" W x 2.98" D
    • Certifications: UL Listed, NEC Compliant
    • Phase: Single
    • Weight: 0.65 lb

      Specifications

      • Part Number: HOM115PDF
      • Manufacturer : Square D
      • Category : Circuit Breaker
      • Item Subcategory : Molded Case
      • Family : HOMELINE
      • Type : HOM
      • Voltage : 120
      • Amperage : 15
      • Phase : 1
      • Poles : 1
      • AIC rating : 10kA@120V
      • Connection : Plug-In
      • Functions : LI - Long-Time and Instantaneous Trip
      • Terminal Connection : Screw Clamp Terminals
      • Temp Rating : -13–158 °F (-25–70 °C)
      • MCM Size : Min. Wire Size 14 AWG (Cu/Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al), 10 AWG (Cu)
      • Breaker Type : Combination Arc-Fault And Ground Fault
      • Protection : Thermal Magnetic

      Product Data

      • UPC : 785901978510
      • GTIN : 00785901978510
      • Country of Origin : Mexico
      • Dimensions : 1 in x 3.13 in
      • Weight : 0.64
      • Standards : UL Listed
      • Certification : UL Listed
      • Wire Size : AWG 14 to AWG 8, Aluminum/Copper, AWG 14 to AWG 10, Copper
