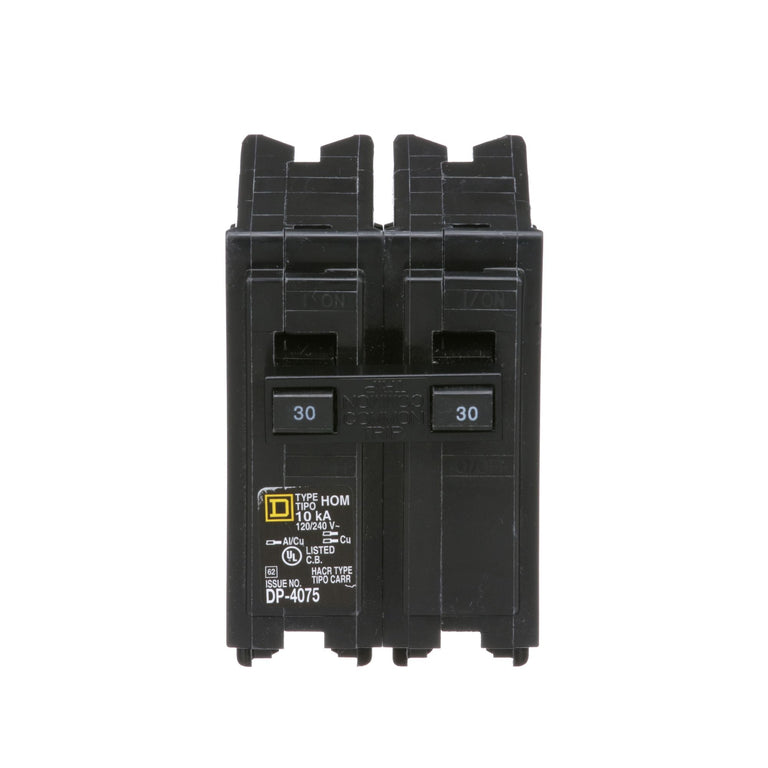

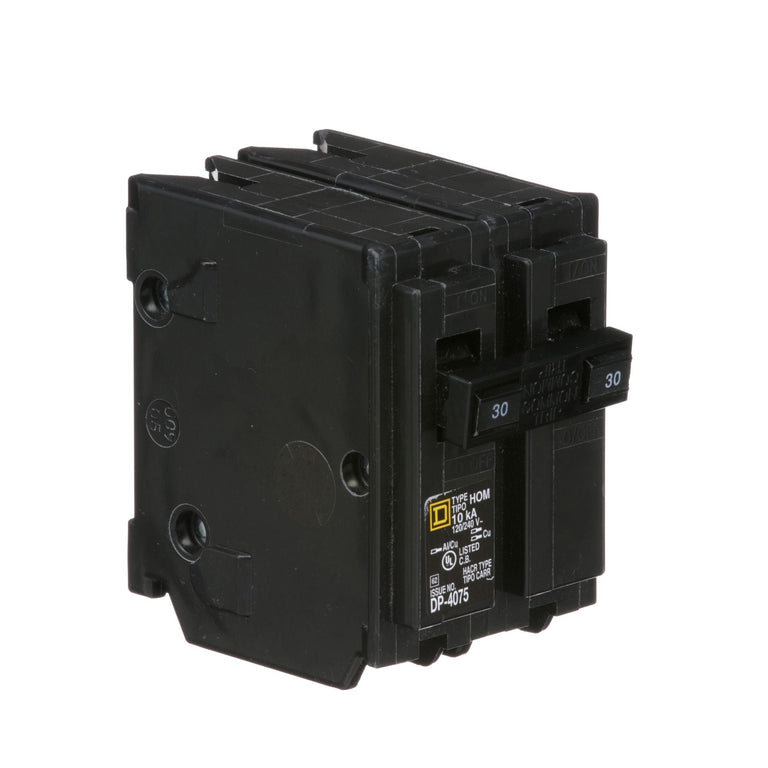

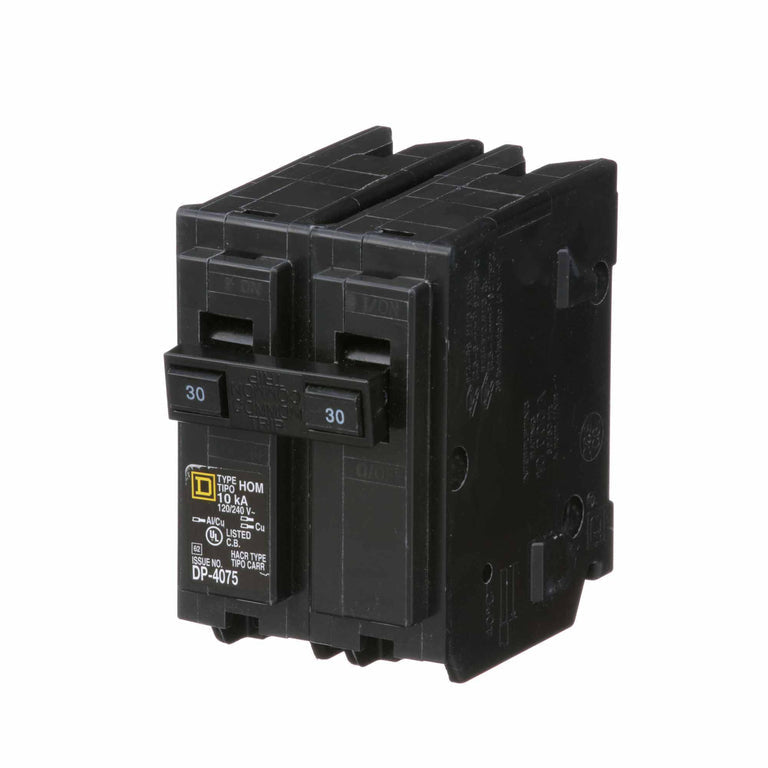

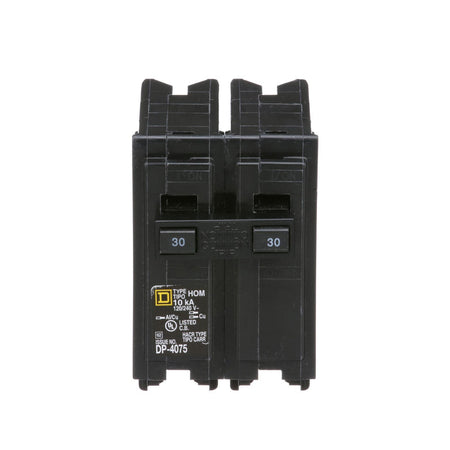

Square D HOM230 – 30 Amp 2-Pole 120/240V Homeline Plug-In Circuit Breaker – 10kAIC

Product Description

The Square D HOM230 is a 30 Amp, 2-Pole miniature circuit breaker designed for use in Homeline™ load centers and CSED devices. Manufactured by Schneider Electric, this breaker provides reliable overload and short-circuit protection for residential and light commercial electrical systems.

Its plug-in design allows for quick installation, while the common-trip mechanism disconnects both poles simultaneously for added safety. Rated for 120/240 VAC with a 10kAIC interrupting rating, the HOM230 is ideal for protecting 240V branch circuits such as water heaters, air conditioners, compressors, and other heavy-duty loads.

Key Features

• 30 Amp
• 2-Pole
• 120/240 Volt AC
• 10kAIC Interrupting Rating
• Plug-In Mount
• Common Trip Design
• Thermal-Magnetic Protection
• HACR Rated
• UL Listed
• Compatible with Copper and Aluminum Conductors
• Designed for Homeline™ Load Centers and CSED Devices
• Genuine Square D / Schneider Electric Product

Technical Specifications

• Brand: Square D by Schneider Electric
• Catalog Number: HOM230
• Series: Homeline
• Breaker Type: Standard Thermal-Magnetic
• Amperage: 30 Amps
• Poles: 2
• Voltage Rating: 120/240 VAC
• Interrupting Rating: 10kAIC
• Mounting Style: Plug-In
• Trip Type: Common Trip
• Connection Type: Clamp Terminal
• Wire Range:
  • 14–8 AWG Copper
  • 14–8 AWG Aluminum
• Frequency: 50/60 Hz
• Certification: UL Listed
• Application: Residential & Light Commercial Branch Circuit Protection

Compatible Panels

Compatible with Square D Homeline™ Load Centers, including:

• Homeline Load Centers
• Homeline Indoor Panels
• Homeline Outdoor Panels
• Homeline Combination Service Entrance Devices (CSED)

Not compatible with Square D QO load centers.

Applications

• Air Conditioners
• Heat Pumps
• Water Heaters
• Electric Dryers
• Compressors
• Pumps
• Electric Heating Equipment
• 240V Residential Circuits
• General Branch Circuits

Product Data

• Manufacturer: Square D / Schneider Electric
• Catalog Number: HOM230
• GTIN / UPC: 785901065296
• Condition: New / Used (Select Condition)
• Weight: Approximately 0.5 lb
