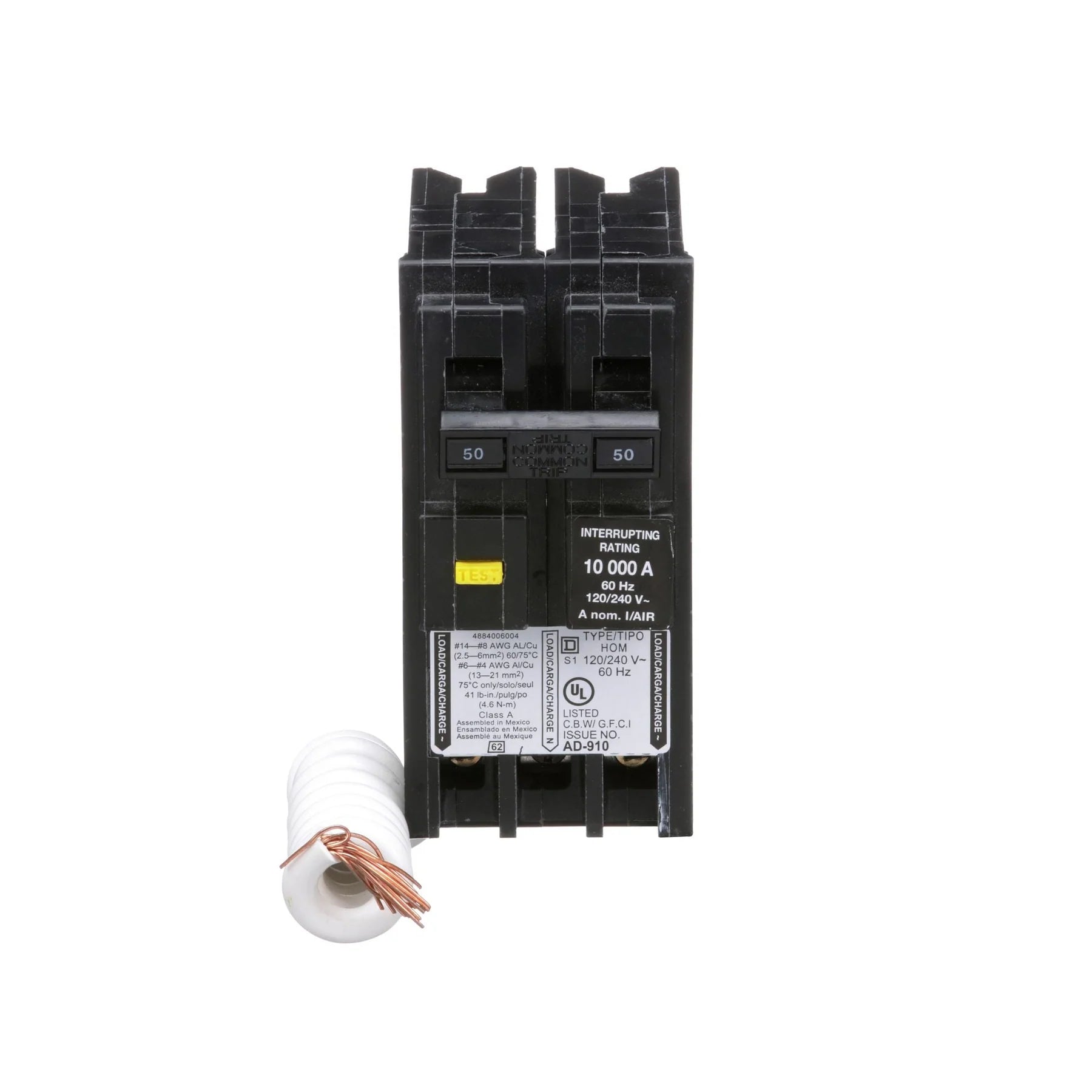

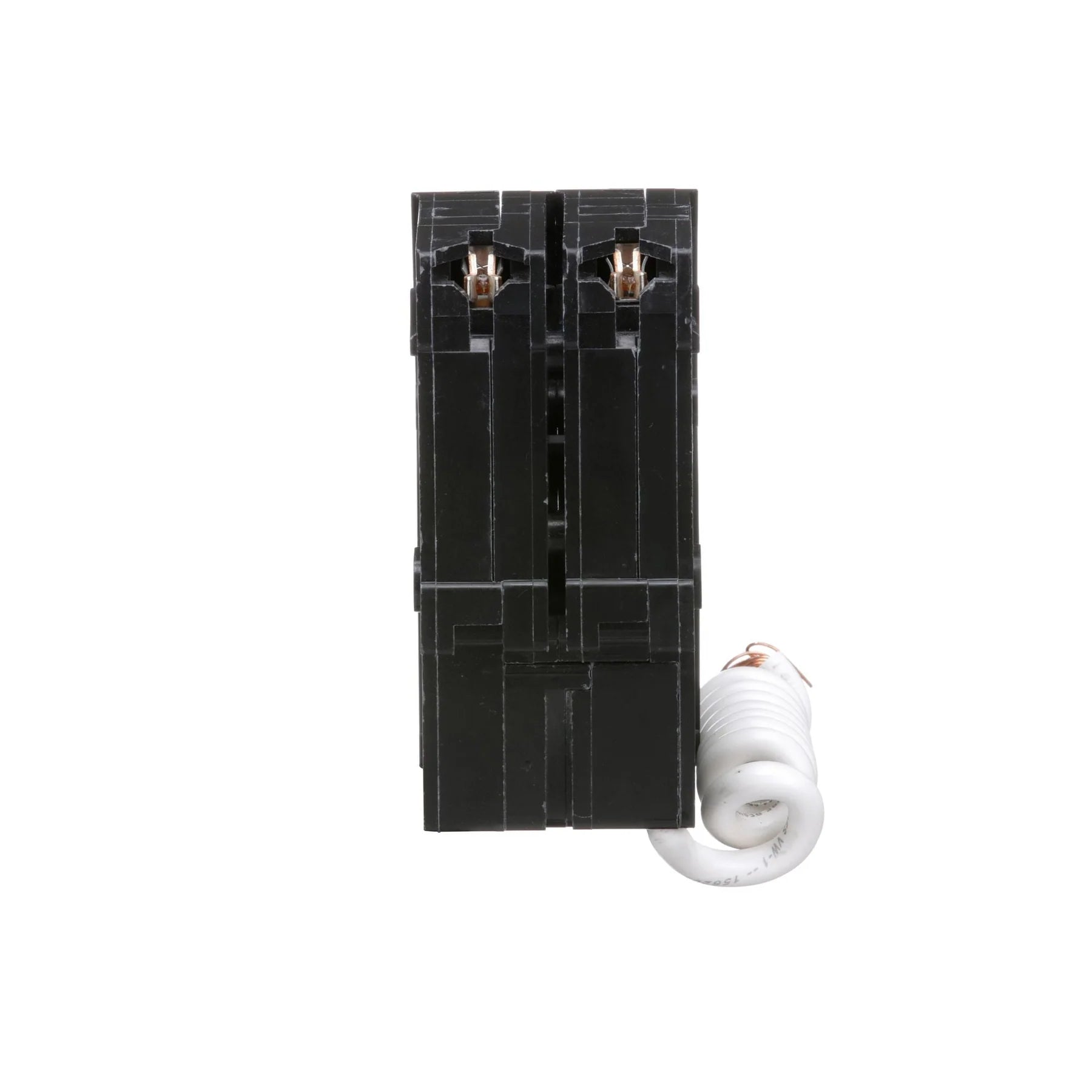

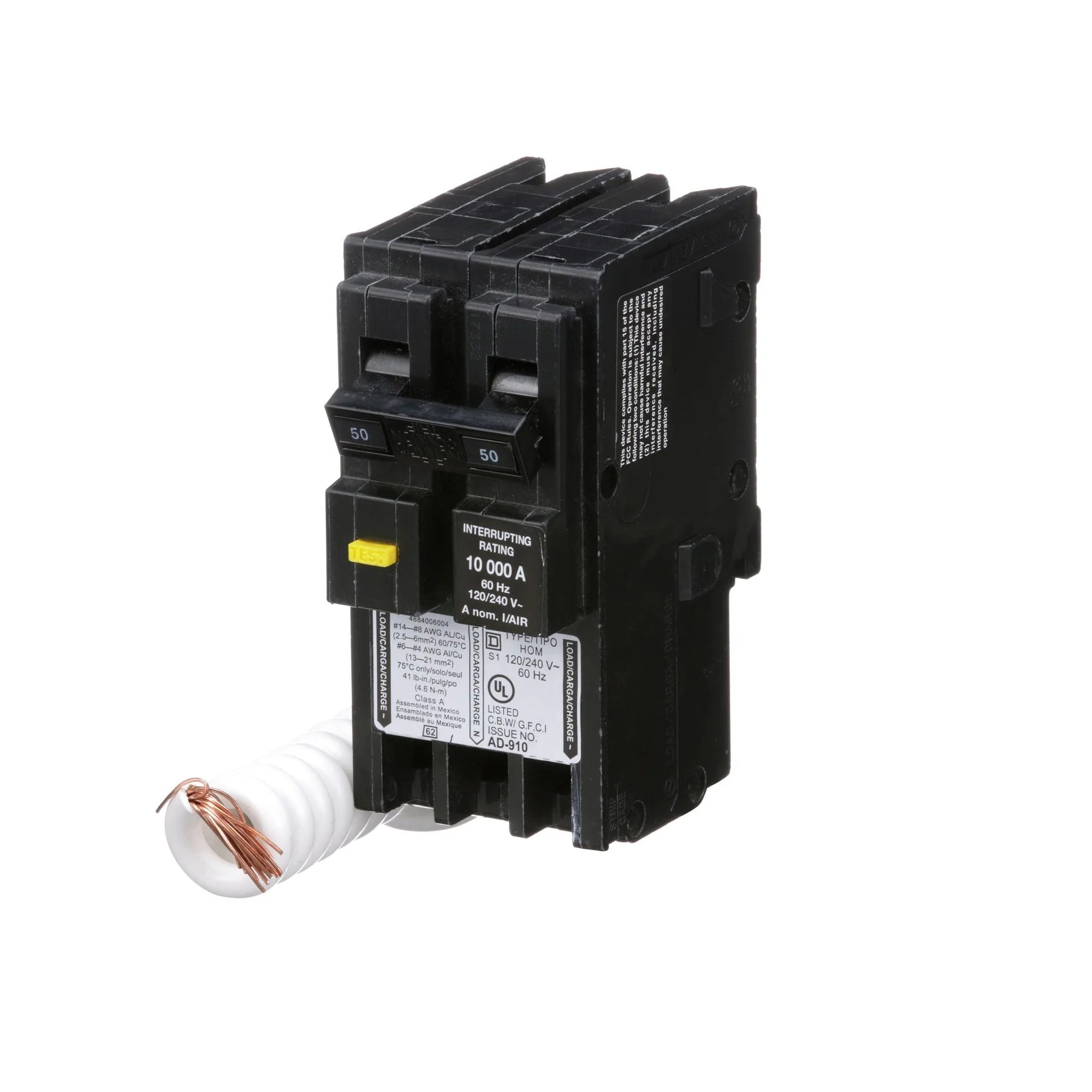

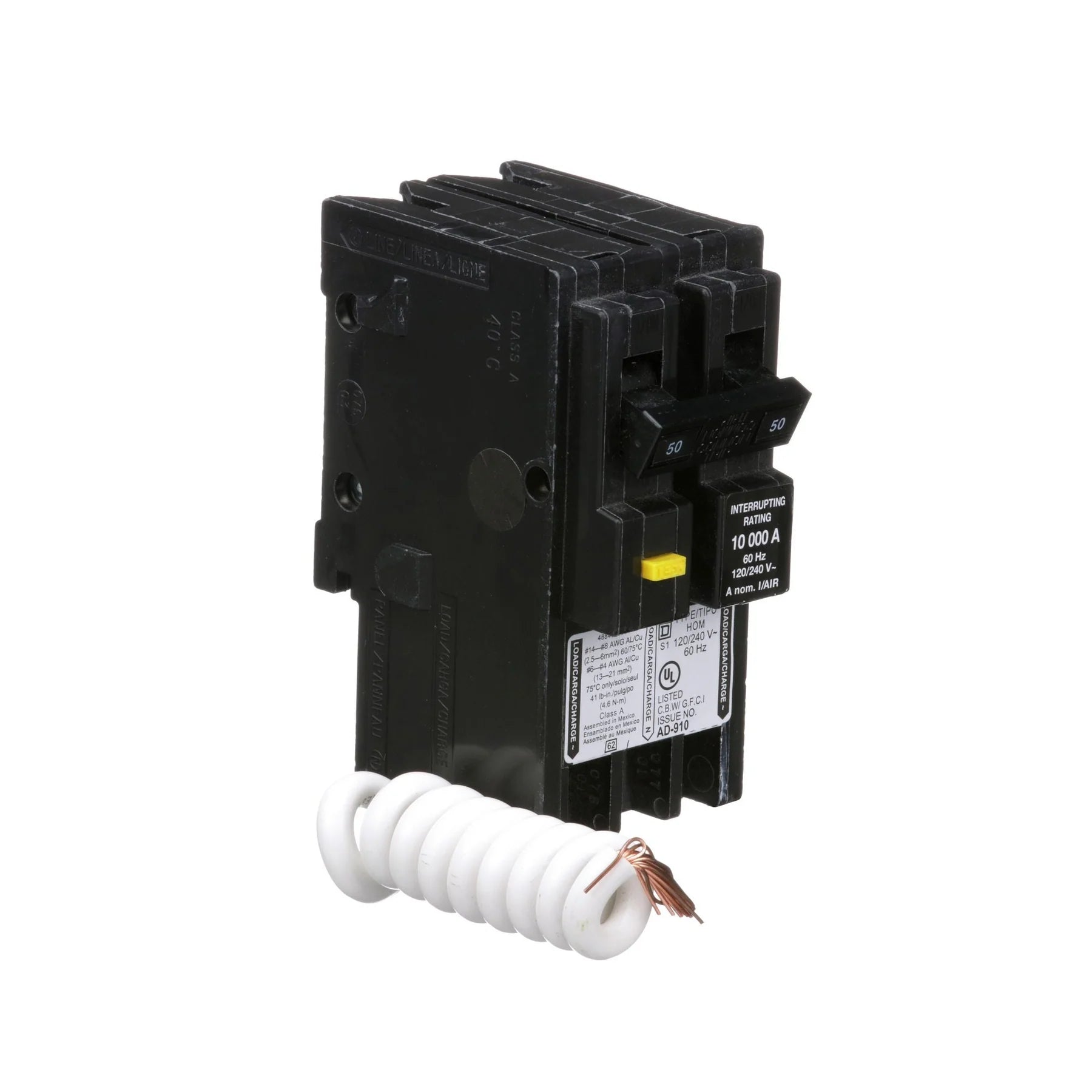

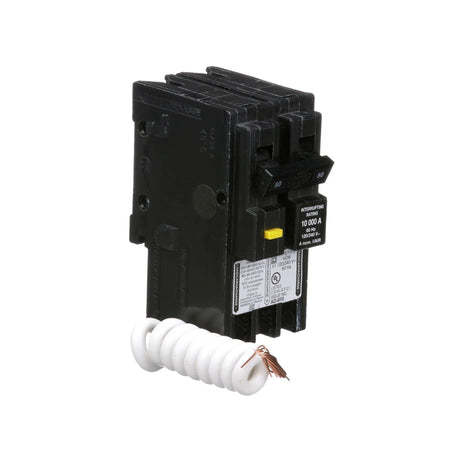

HOM250GFI - Square D Homeline - GFCI Circuit Breaker

The Square D HOM250GFI 50 Amp 2-Pole GFCI breaker provides reliable ground-fault protection for residential and light commercial 120/240V circuits. Designed for Square D Homeline load centers, it features Class A 6 mA ground-fault protection and a 10kA short-circuit current rating, ensuring fast response to electrical faults.

This plug-in breaker supports 14–6 AWG copper and 12–4 AWG aluminum wiring with screw clamp terminals. HACR rating makes it suitable for heating, air conditioning, and refrigeration applications. UL listing guarantees safety and code compliance.

Voltage & Rating

• Current Rating: 50 Amps
• Voltage Rating: 120/240 Volts AC
• Short-Circuit Rating: 10 kAIC
• Ground-Fault Protection: Class A, 6 mA

Key Specifications

• Breaker Type: GFCI (Ground-Fault Circuit Interrupter)
• Number of Poles: 2-Pole
• Mounting Type: Plug-In
• Wire Compatibility: 14–6 AWG Copper, 12–4 AWG Aluminum
• Electrical Connection: Screw Clamp Terminals
• Number of Spaces: 2
• Certifications: UL Listed, HACR Rated

Technical Specifications

• Tightening Torque: 40.7 lbf.in (4.6 N·m) for AWG 16–14 and AWG 12–4
• Dimensions: Height: 3.13 in; Width: 2 in; Depth: 2.98 in
• Weight: 1.22 lb
• Maximum Operating Temperature: 104°F (40°C)

Product Data

• • Manufacturer: Schneider Electric
  • Brand: Square D
  • Model Number: HOM250GFI
  • UPC: 785901783572
