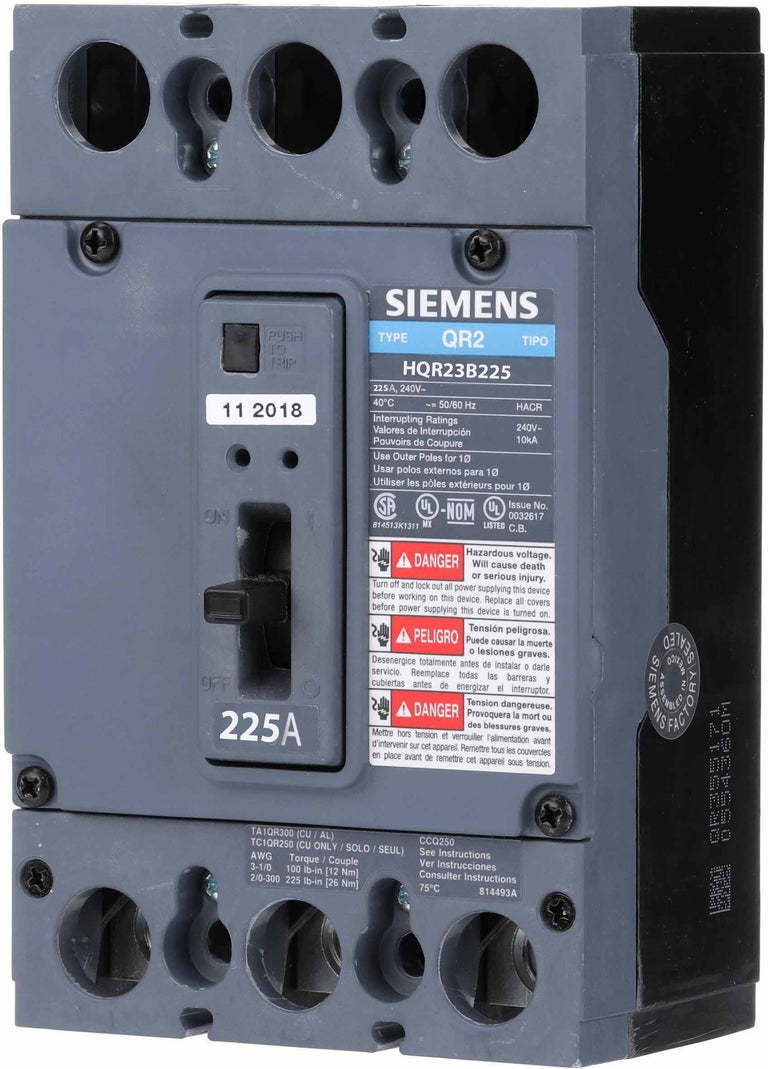

Siemens HQR23B225HL 225 Amp QR Series Molded Case Circuit Breaker – 3 Pole – 240V AC – 100 kA @ 240V

The Siemens HQR23B225HL is a QR Series molded case circuit breaker, Type HQR2H, designed for three-phase electrical distribution applications. It features a 225A current rating, 240V AC voltage rating, and a very high interrupting capacity of 100kA at 240V. The breaker has a feed-through configuration and is equipped with a non-interchangeable thermal-magnetic trip unit providing long-time and instantaneous (LI) protection. Line-side and load-side lug terminals are included.

Specifications

• Brand: Siemens
• Product Series: QR
• Type: HQR2H
• MPN: HQR23B225HL
• Current Rating: 225A
• Poles: 3
• Phase: 3-phase
• Voltage Rating: 240V AC
• Interrupting Capacity: 100kA at 240V
• Interrupting Rating: Very high
• Connection: Feed-through
• Trip Unit: Non-interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Trip Technology: Thermal-magnetic
• Terminals: Line-side and load-side lug terminals included

Part Numbers & Identification

• Manufacturer Part Number: HQR23B225HL
• Product Family: Siemens QR Series HQR2H
• Product Category: Molded Case Circuit Breaker (MCCB)
• UPC:804766137167

Compatibility

Designed for compatible Siemens QR Series distribution equipment requiring a three-pole, 225A breaker with a 240V AC rating, feed-through configuration, and very high interrupting capacity.
