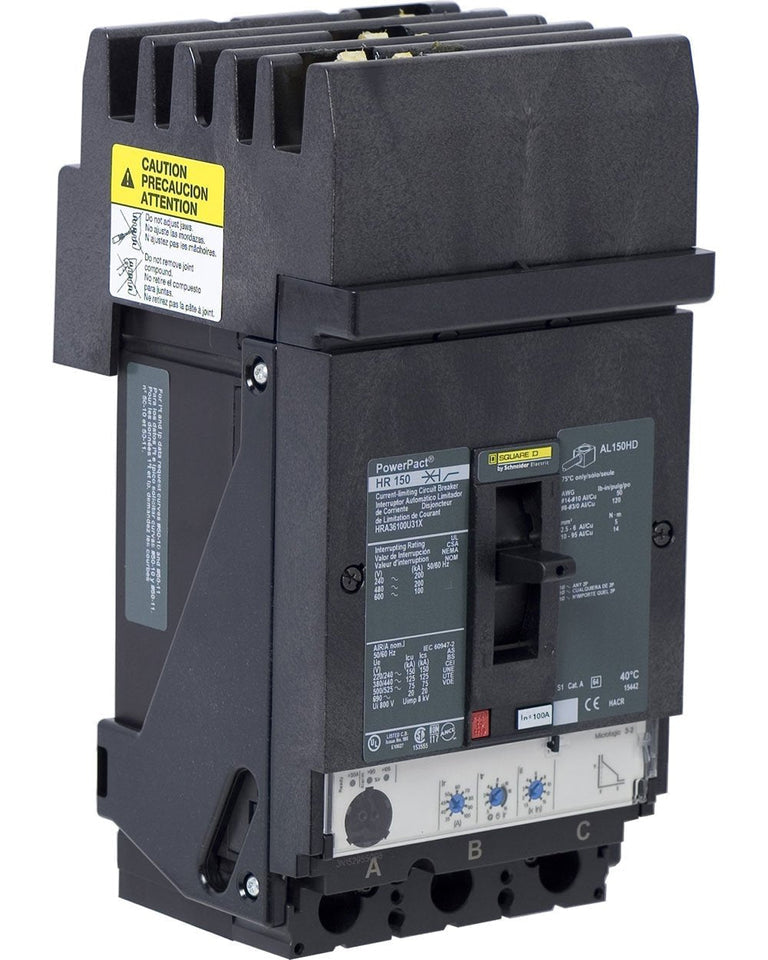

Square D HRA36100U31X 100 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 200 kA@480 V – 100 kA@600 V – I-Line Plug-In – PowerPact HRA

The Square D HRA36100U31X is a 100 Amp, 3-pole, 3-phase molded case circuit breaker from Schneider Electric / Square D's PowerPact Series, Type HRA. It is rated for 600 V and provides interrupting ratings of 200 kA at 480 V and 100 kA at 600 V.

The breaker features an I-Line style plug-in connection with ABC phase configuration for compatible Square D electrical distribution equipment. It is 80% rated and UL listed for low-voltage electrical distribution applications requiring high fault-interruption capability.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact
• Type: HRA
• Catalog Number / MPN: HRA36100U31X
• Primary Rating: 100 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Phase Connection: ABC
• Voltage: 600 V
• Interrupting Rating at 480 V: 200 kA
• Interrupting Rating at 600 V: 100 kA
• Continuous Current Rating: 80% Rated
• Connection / Mounting: I-Line Style Plug-In
• Application: Low-Voltage Electrical Distribution
• Protection: Overload and Short-Circuit
• UL Listing: UL Listed

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: HRA36100U31X
• Series: PowerPact
• Type: HRA
• Current Rating: 100 A
• Pole Count: 3 Pole
• Phase Configuration: 3 Phase
• Phase Connection: ABC
• Product Type: Molded Case Circuit Breaker
• Continuous Rating: 80%
• Connection Type: I-Line Plug-In
• UPC:785901710493

Compatibility

The Square D HRA36100U31X is intended for compatible Schneider Electric / Square D I-Line electrical distribution equipment supporting PowerPact HRA, 100 Amp, 3-pole molded case circuit breakers with ABC phase connections.

Certifications

• UL Listed
