HRL36150U31X - Square D Feed-Thru 600V 150A 3 pole circuit breaker 200kA@480V
Couldn't load pickup availability
Ask an expert
Description
HRL36150U31X

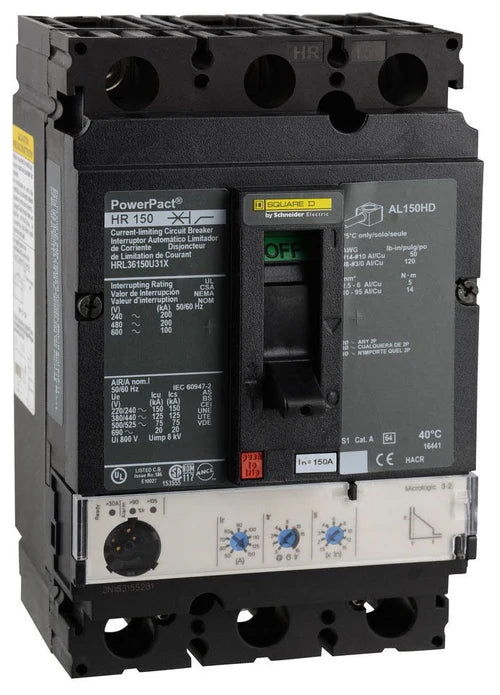

The Square D HRL36150U31X is a Molded Case Circuit Breaker. This type HRL circuit breaker is a member of The Powerpact family. The HRL36150U31X is a 3 pole, 600 Volt, 150 amp rated circuit breaker, with an AIC rating of 200kA@480V. The HRL36150U31X is manufactured by Square D. The HRL36150U31X uses a Feed-Thru connection. Includes Solid State protection
Specifications
- Part Number: HRL36150U31X
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HRL
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : H
- MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
- Protection : Solid State
Product Data
- UPC : 078590194874
- GTIN : 00785901948742
- Country of Origin : United States
- Dimensions : 4.09 in x 6.42 in
- Weight : 1.99
- Standards : UL, CSA, NEMA, NOM, CE
- Certification : UL, CSA, NEMA, NOM, CE
- Wire Size : AWG 14...AWG 3/0 aluminum/copper terminal
- Type Circuit Breakers
- Vendor Schneider Electric
- Brand Square D
- Electrical Rating Feed-Thru - 150 Amp - 3 Pole - 600 Volt
