Square D HU363DS Disconnect and Safety Switch – 100A – 3-Pole / 3-Phase – 600V AC – 200kA @ 600V – Not Applicable – Series E HU

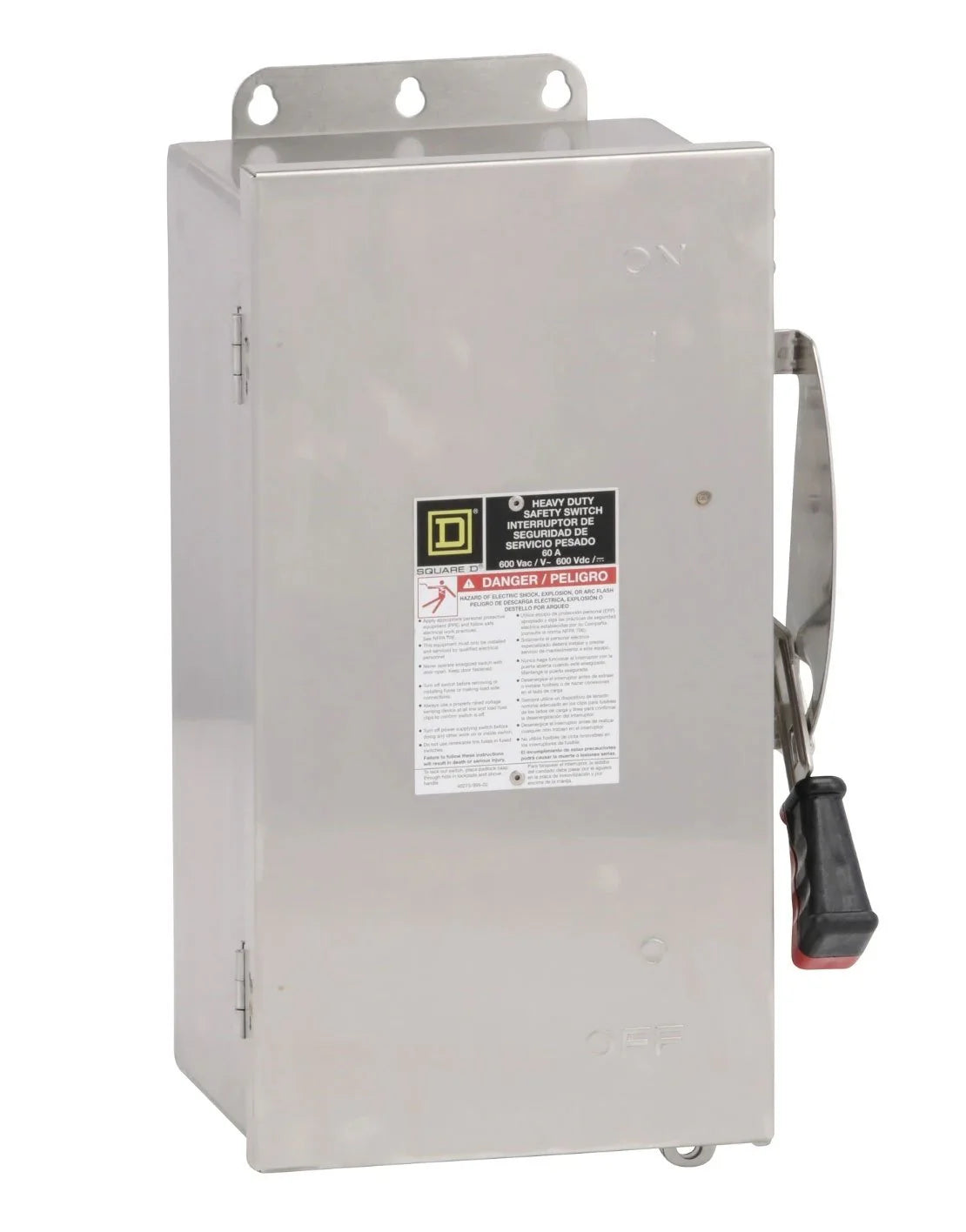

The Square D HU363DS is a 100A, 3-pole, 3-phase heavy-duty disconnect and safety switch from the Square D Series E Type HU. It is a non-fusible disconnect switch designed for compatible electrical disconnect and safety-switch applications.

The HU363DS is rated for 600V and provides a 200kA interrupting rating at 600V. It features a 3-wire configuration and a NEMA 4/4X stainless-steel enclosure designed for rainproof, dust-tight, and corrosion-resistant protection. The switch is suitable for indoor and outdoor use and is specified as a single-style disconnect safety switch.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Disconnect and Safety Switch
• Product Family: Heavy-Duty Safety Disconnect Switches
• Series: E
• Type: HU
• Catalog No.: HU363DS
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Wire Configuration: 3-Wire
• Voltage Rating: 600V
• Interrupting Rating: 200kA @ 600V
• Switch Type: Non-Fusible
• Fuse Class: Not Applicable
• Enclosure Rating: NEMA 4/4X
• Enclosure Material: Stainless Steel
• Configuration: Single Style
• Environmental Protection: Rainproof, Dust-Tight, and Corrosion Resistant
• Indoor/Outdoor Use: Suitable for Indoor and Outdoor Use
• Application: Disconnect and Safety Switching

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HU363DS
• Catalog Number: HU363DS
• Model: HU363DS
• Product Family: Square D Heavy-Duty Safety Disconnect Switches
• Series: E
• Type: HU
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Disconnect and Safety Switch
• Switch Configuration: 3-Pole, 100A
• Switch Type: Non-Fusible
• UPC:785901023715

Compatibility:

Designed for use with compatible Square D / Schneider Electric Series E Type HU heavy-duty safety disconnect switch applications requiring a 100A, 3-pole, 600V non-fusible disconnect.

The HU363DS uses a NEMA 4/4X stainless-steel enclosure for applications requiring rainproof, dust-tight, and corrosion-resistant protection and is suitable for indoor and outdoor installations. Always verify the specific electrical equipment, system voltage, pole configuration, enclosure requirements, conductor configuration, available fault current, and installation requirements before installation.

Certifications:

• NEMA 4/4X Enclosure
• Stainless-Steel Enclosure
• 100A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 200kA @ 600V Interrupting Rating
• Non-Fusible Type
• 3-Wire Configuration
• Rainproof
• Dust-Tight
• Corrosion Resistant
• Suitable for Indoor/Outdoor Use
• Heavy-Duty Safety Disconnect Switch
