HU366NR - Square D 600A 3-Pole 600V Non-Fusible Safety Switch NEMA 3R

Description
HU366NR

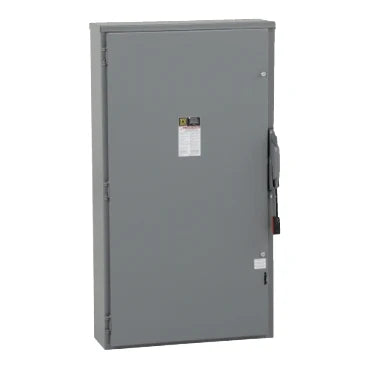

The Square D HU366NR is a heavy-duty, non-fusible safety switch built for dependable isolation and disconnect in industrial and commercial environments. This 600A, 3-pole switch supports both AC and DC applications and is designed for surface mounting. It operates at up to 600VAC or 600VDC and includes a factory-installed neutral for use in 3-phase, 4-wire systems. With a rugged NEMA 3R outdoor-rated enclosure and a 500 HP rating, the HU366NR delivers long-lasting performance in demanding conditions.

Key Details

• Amperage: 600A

• Voltage Rating: 600VAC / 600VDC

• Poles: 3

• Phase: 3-Phase

• Wire Configuration: 4-Wire (with factory-installed neutral)

• Horsepower Rating: 500 HP

• Mounting: Surface mount

• Enclosure: NEMA 3R (outdoor rated)

• Switch Type: Non-fusible

• Application: Heavy-duty safety disconnect

Specifications

• Part Number: HU366NR

• Manufacturer: Square D

• Category: Switch

• Subcategory: Disconnect

• Family: Series F

• Type: H (Heavy-Duty)

• Voltage: 600V

• Amperage: 600A

• Phase: 3

• Poles: 3

• AIC Rating: 200kA @ 600V

• Configuration: Single

• Style: Non-fusible safety switch

• NEMA Rating: 3R

• Product Data

  • UPC : 785901112211
  • GTIN : 00785901112211
  • Country of Origin : United States
  • Dimensions : 27.88 in x 10.13 in x 50.31 in (WxDxH)
  • Weight : 1 lb
  • Certification : UL
