Intermatic EI500WC 7-Day Digital In-Wall Programmable Timer – 125V, 15A, White

The EI500WC Digital Timer from Intermatic is a versatile 7-day programmable in-wall timer designed to automate lighting, fans, and other electrical loads. Featuring flexible 24-hour or 7-day scheduling, battery backup, and a compact single-gang design, it ensures reliable operation even during power outages—ideal for residential and light commercial use.

Electrical Ratings

• Input Voltage: 125 Volts AC, 60 Hz
• Amperage Rating: 15 Amps
• Switch Type: SPST-NO
• Maximum ON/OFF Events: 14
• Minimum Switching Time: 1 Minute

Timer & Installation Details

• Timer Type: 7-Day Standard Programmable Digital Timer
• Programming Mode: 24-Hour / 7-Day
• Mounting Type: In-Wall, Single-Gang
• Wiring Configuration: Single Circuit
• Backup Power: Rechargeable Battery Backup

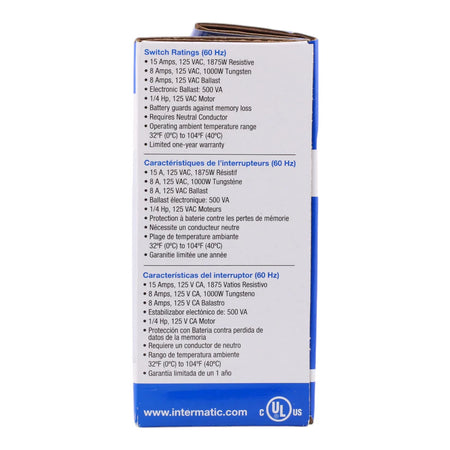

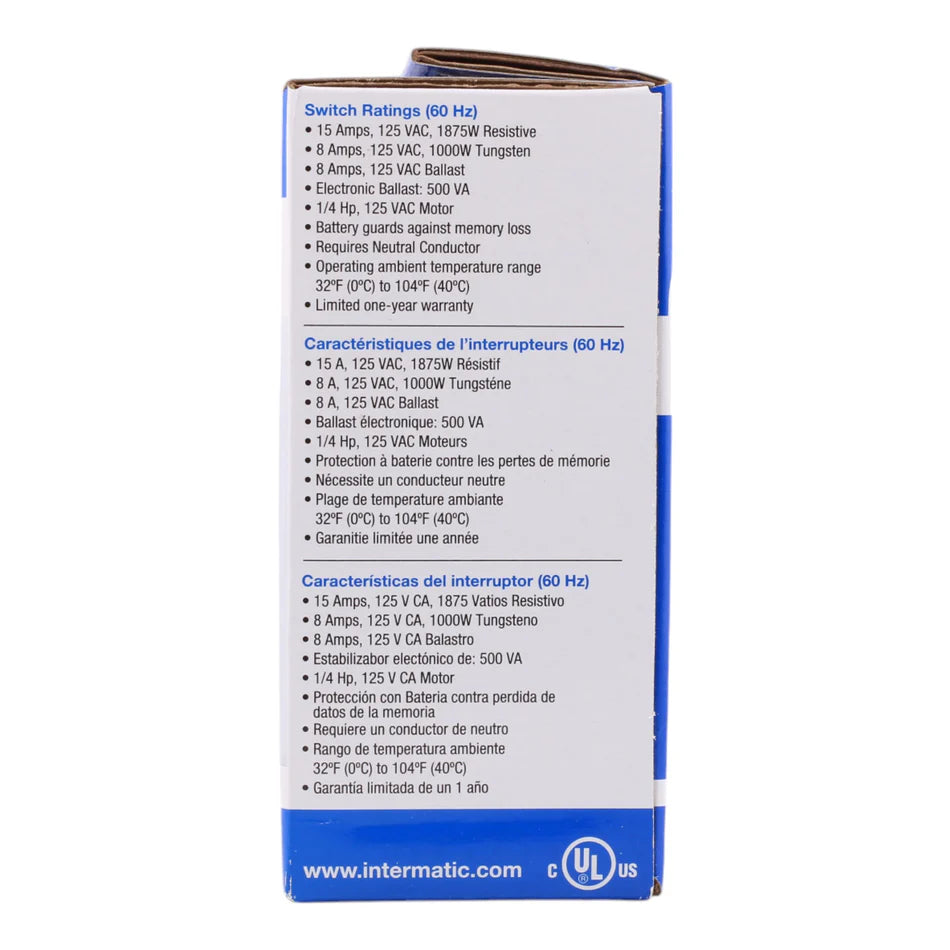

Load Ratings

• General Purpose: 15A, 125V
• Resistive / Heater Load: 15A, 1875W
• Tungsten / Incandescent: 1000W
• Electronic Ballast / LED: 4A, 500VA
• Inductive Load: 1000VA
• Motor Load: 1/4 HP, 125V

Battery Specifications

• Battery Type: Nickel-Metal Hydride (Rechargeable)
• Battery Weight: 3.5 g (0.008 lb)

Physical Specifications

• Color: White
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Dimensions (H × W × D): 4.125 × 1.75 × 1.438 in
• Weight: 0.47 lb

Certifications & Compliance

• cULus Certified
• RoHS Compliant
• Green Energy Certified

Product Data

• • Brand / Manufacturer: Intermatic
  • Model Number: EI500WC
  • UPC: 078275105232
