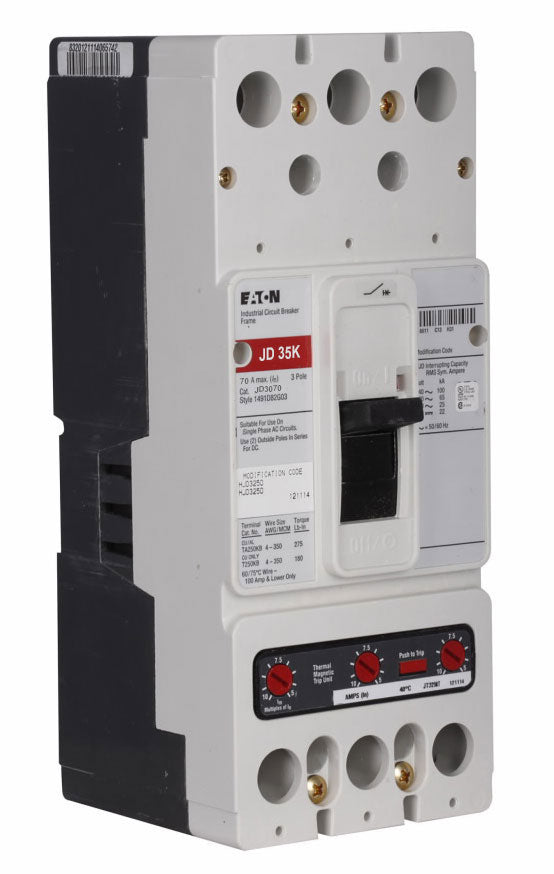

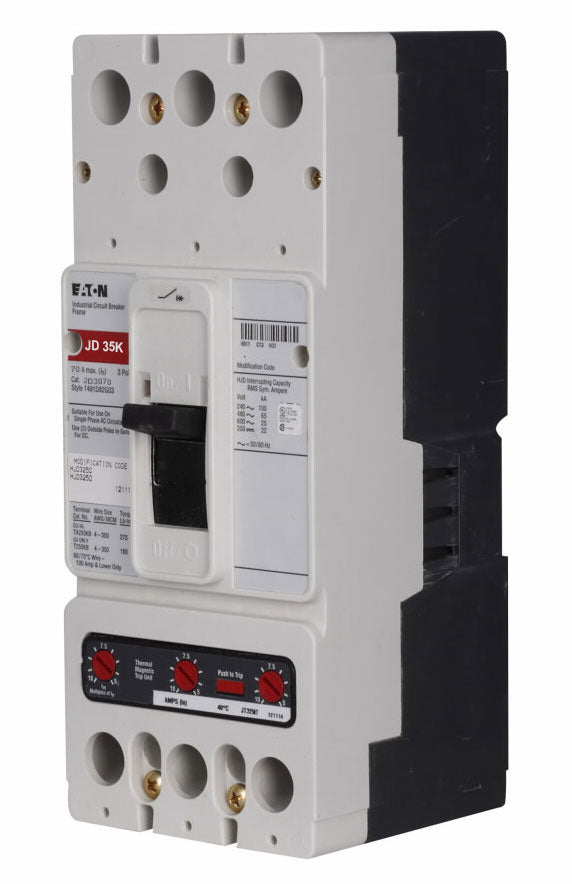

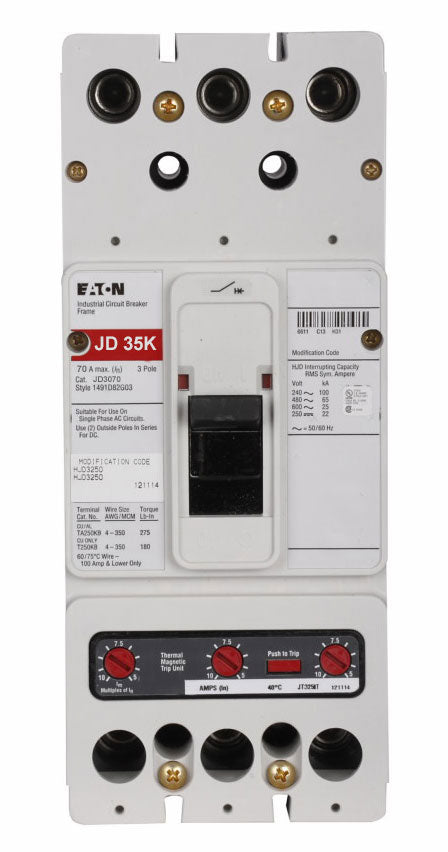

Eaton JD3070 70 Amp Molded Case Circuit Breaker – 3 Pole – 600 Vac – 65 kA@240 Vac – Fixed Thermal-Magnetic – Series C

The Eaton JD3070 is a 70 Amp, 3-pole molded case circuit breaker from the Eaton Series C, J-Frame. It features fixed thermal and fixed magnetic trip protection and is rated for up to 600 Vac and 250 Vdc. The breaker provides 65 kA interrupting capacity at 240 Vac and 35 kA at 480 Vac for reliable circuit protection.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Frame: J-Frame
• Type: JD
• Catalog Number / MPN: JD3070
• Primary Rating: 70 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600 Vac
• DC Voltage Rating: 250 Vdc
• Interrupting Rating: 65 kA @ 240 Vac; 35 kA @ 480 Vac
• Trip Type: Fixed Thermal, Fixed Magnetic
• Frequency: 50/60 Hz
• Connection / Mounting: Not specified

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: JD3070
• Series: Series C
• Frame: J-Frame
• Type: JD
• Current Rating: 70 A
• Pole Count: 3 Pole
• Product Type: Complete Molded Case Circuit Breaker
• Trip Type: Fixed Thermal / Fixed Magnetic
• UPC: 786679013502

Compatibility

The Eaton JD3070 is designed for compatible Eaton Series C J-Frame molded case circuit breaker applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, and breaker compatibility before installation.
