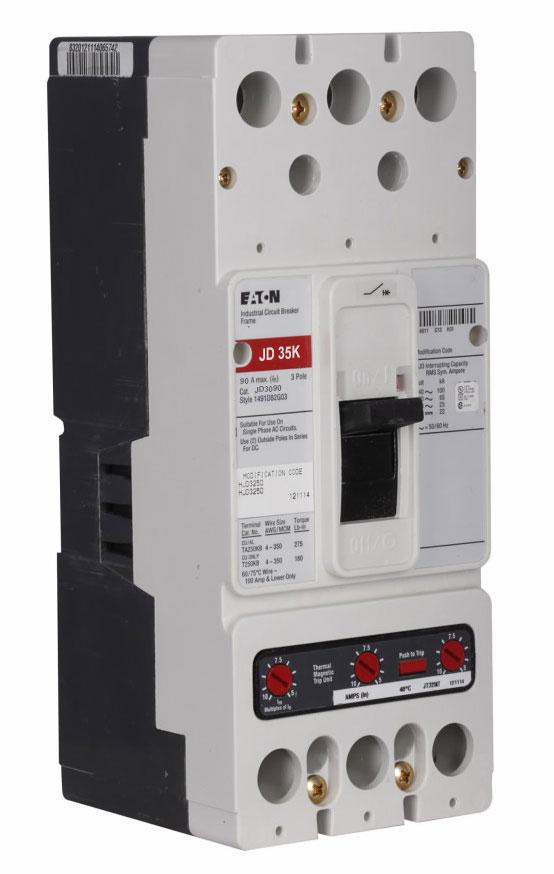

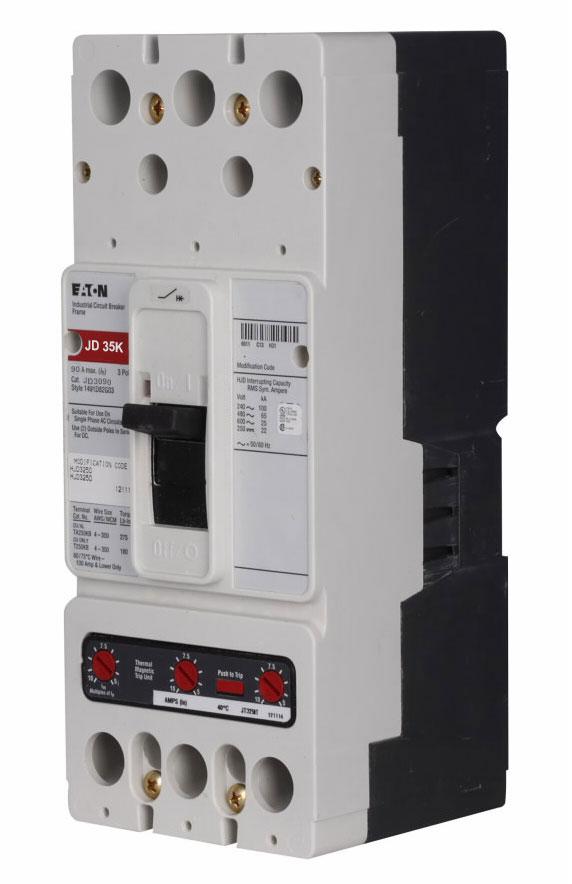

Eaton JD3090W 90 Amp Molded Case Circuit Breaker – 3 Pole – 600 V AC / 250 V DC – 65 kAIC@240 V AC – 35 kAIC@480 V AC – J Frame – Series C

The Eaton JD3090W is a 90 Amp, 3-pole molded case circuit breaker from the Eaton Series C, Type JD, J-frame product range. It is rated for 600 V AC and 250 V DC, with interrupting ratings of 65 kAIC at 240 V AC and 35 kAIC at 480 V AC. The complete breaker features fixed thermal and fixed magnetic trip protection and is suitable for 50/60 Hz applications.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: JD
• Frame: J Frame
• Catalog Number / MPN: JD3090W
• Primary Rating: 90 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600 V AC
• DC Voltage: 250 V DC
• Interrupting Rating: 65 kAIC @ 240 V AC; 35 kAIC @ 480 V AC
• Trip Type: Fixed Thermal / Fixed Magnetic
• Frequency: 50/60 Hz
• Assembly: Complete Breaker

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: JD3090W
• Series: Series C
• Type: JD
• Frame: J Frame
• Current Rating: 90 A
• Pole Count: 3 Pole
• Product Type: Molded Case Circuit Breaker
• Trip Configuration: Fixed Thermal / Fixed Magnetic
• UPC:786679013519

Compatibility

The Eaton JD3090W is intended for compatible Eaton Series C J-frame electrical distribution and circuit protection applications.
