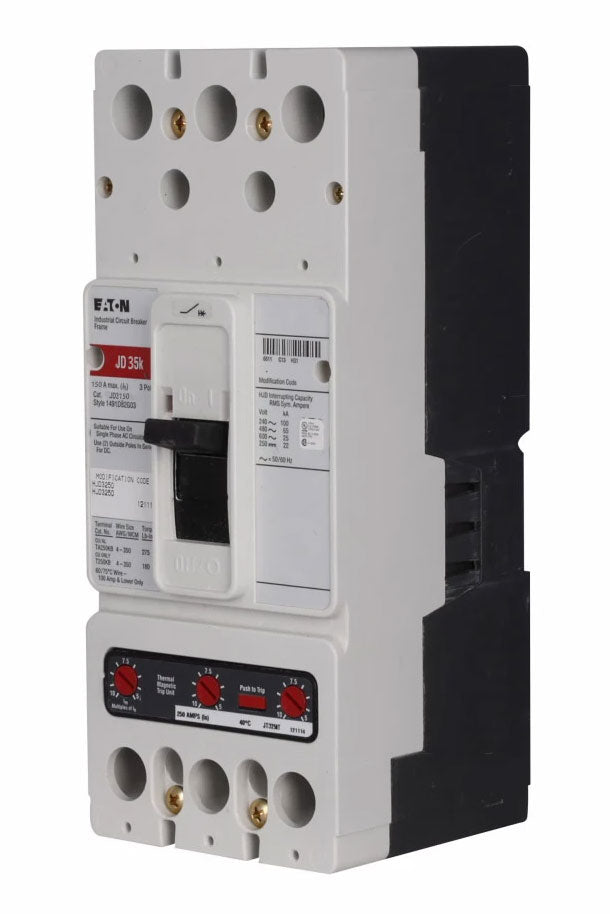

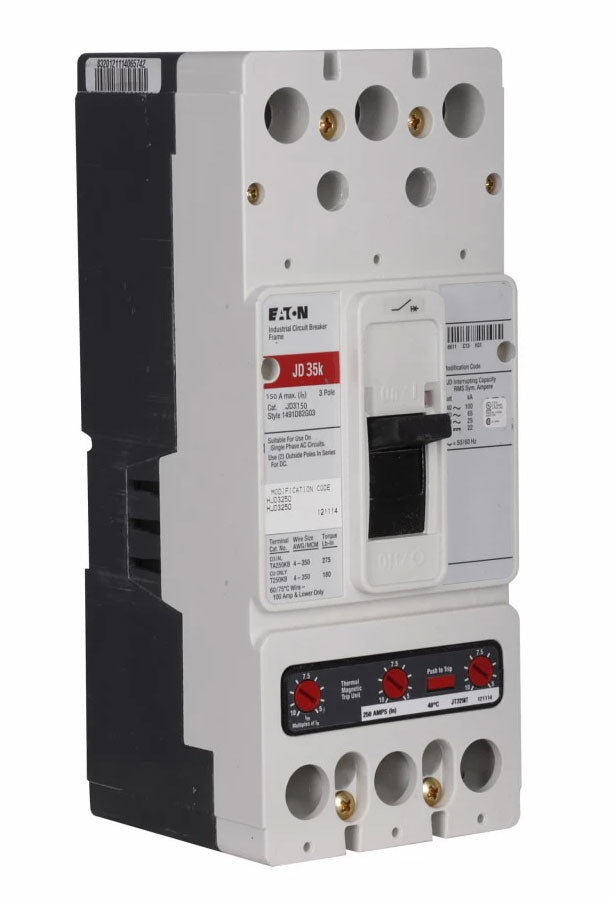

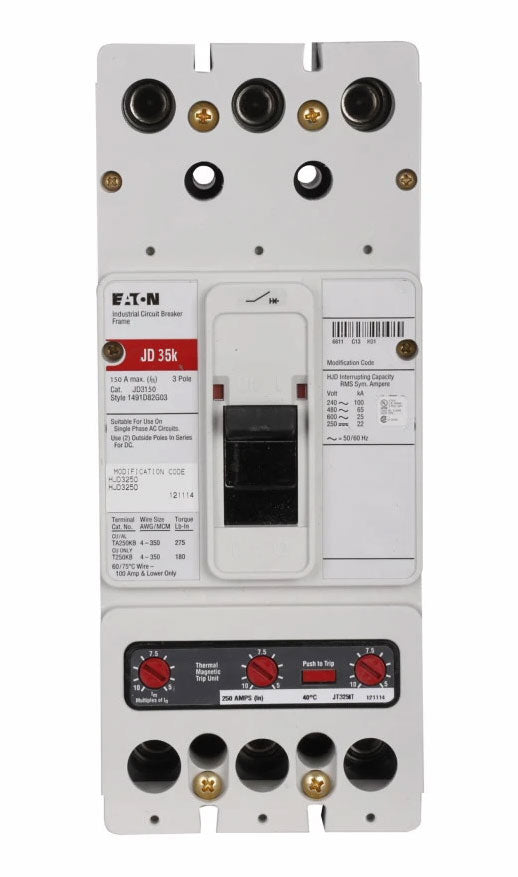

Eaton JD3150 Molded Case Circuit Breaker – 150A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Bolt-On – Series C JD

The Eaton / Cutler-Hammer JD3150 is a 150A, 3-pole, 3-phase molded case circuit breaker from the Eaton Series C Type JD. It is designed for compatible electrical distribution applications and provides thermal-magnetic overcurrent protection.

The JD3150 is rated for 600V and provides a 35kA interrupting rating at 480V with standard interrupting capacity. It features a bolt-on mounting configuration, an interchangeable trip unit with Long-Time and Instantaneous (LI) trip functions, and load-side lug terminals. The breaker is calibrated for operation at 40°C.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: JD
• Catalog No.: JD3150
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JD3150
• Catalog Number: JD3150
• Model: JD3150
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: JD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 150A
• Trip Configuration: Interchangeable LI
• UPC:786679346136

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type JD electrical distribution equipment that accepts bolt-on molded case circuit breakers. The JD3150 provides 150A, 3-pole thermal-magnetic protection for compatible 600V applications.

The breaker includes an interchangeable LI trip unit and load-side lug terminals.
