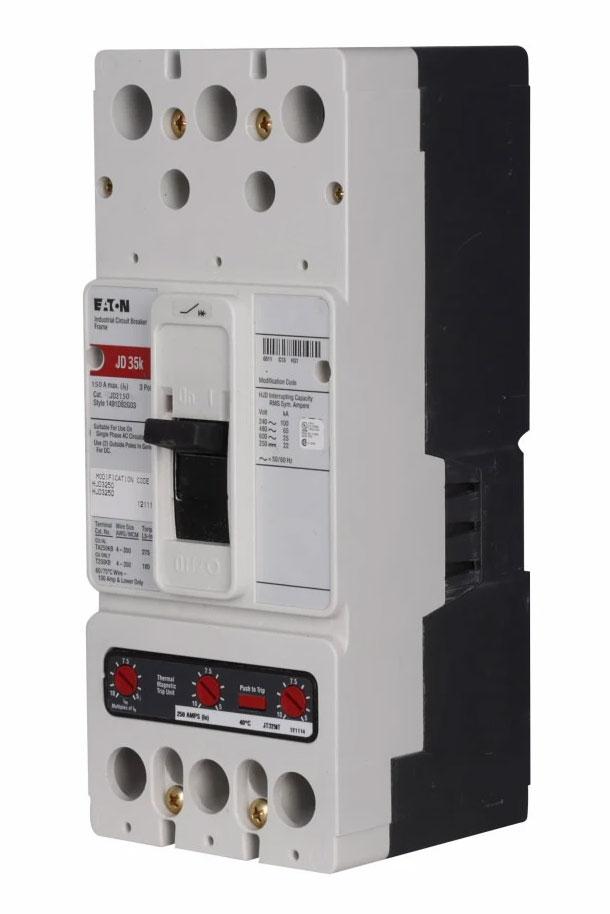

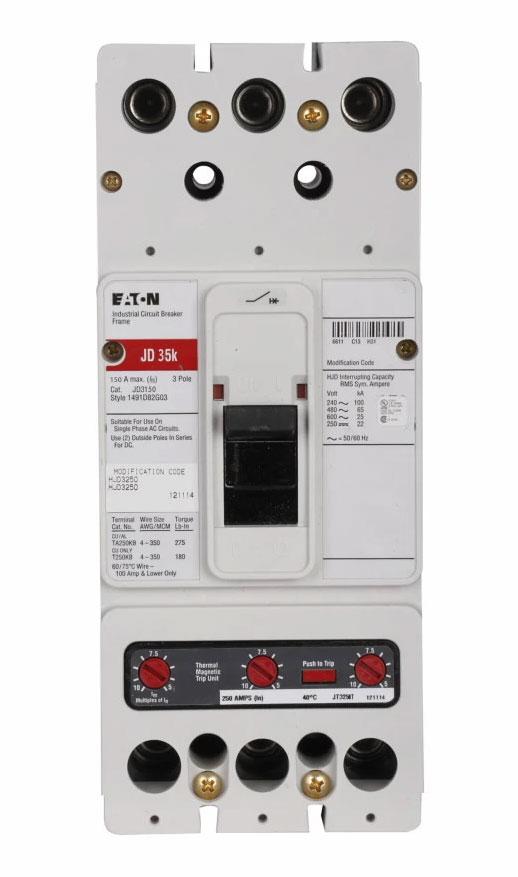

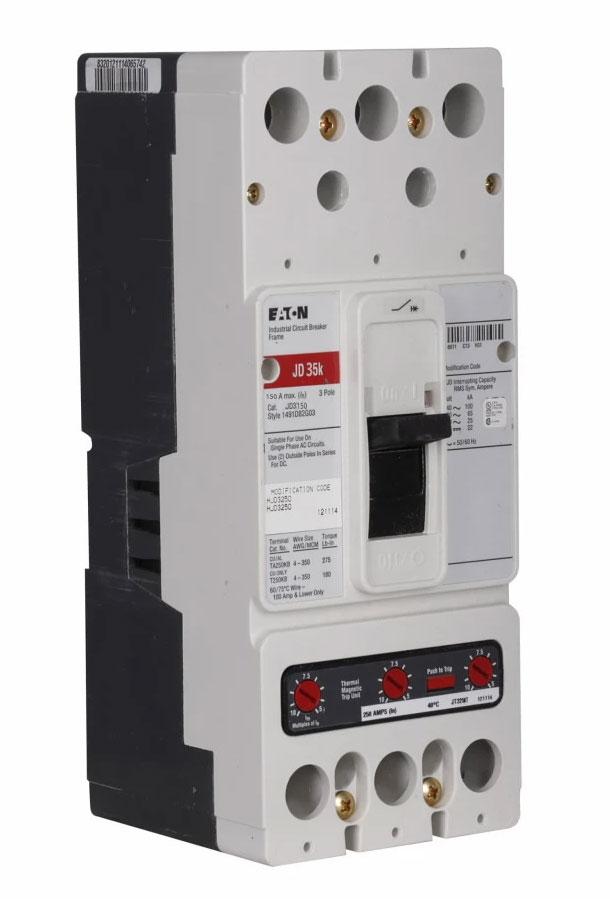

Eaton Cutler-Hammer JD3150X 150 Amp Molded Case Circuit Breaker – 3 Pole – 600V – 35 kA @ 480V – Series C

The Eaton JD3150X is a Series C Type JD molded case circuit breaker rated at 150 A, with a three-pole configuration and a 600 V rating. It features thermal-magnetic protection with interchangeable LI (Long-Time and Instantaneous) trip functions, bolt-on mounting, and load-side lug terminals. The breaker has a standard interrupting capacity of 35 kA at 480 V and is rated for operation at 40°C.

Specifications

• Brand: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: Series C
• Type: JD
• Frame: JD Frame
• Ampere Rating: 150 A
• Poles: 3
• Phase: 3 Phase
• Voltage Rating: 600 V
• Interrupting Capacity: 35 kA at 480 V
• Interrupting Rating: Standard
• Temperature Rating: 40°C
• Mounting: Bolt-on
• Trip Function: Interchangeable LI (Long-Time and Instantaneous)
• Trip Type: Thermal-magnetic
• Terminal Type: Load-side lug terminals

Part Numbers & Identification

• Catalog Number: JD3150X
• Manufacturer: Eaton
• Product Family: Series C Molded Case Circuit Breakers
• Type Designation: JD
• UPC:786679346136

Compatibility

Suitable for Eaton Series C Type JD applications requiring a 150 A, three-pole MCCB with interchangeable LI trip functions and bolt-on mounting.
