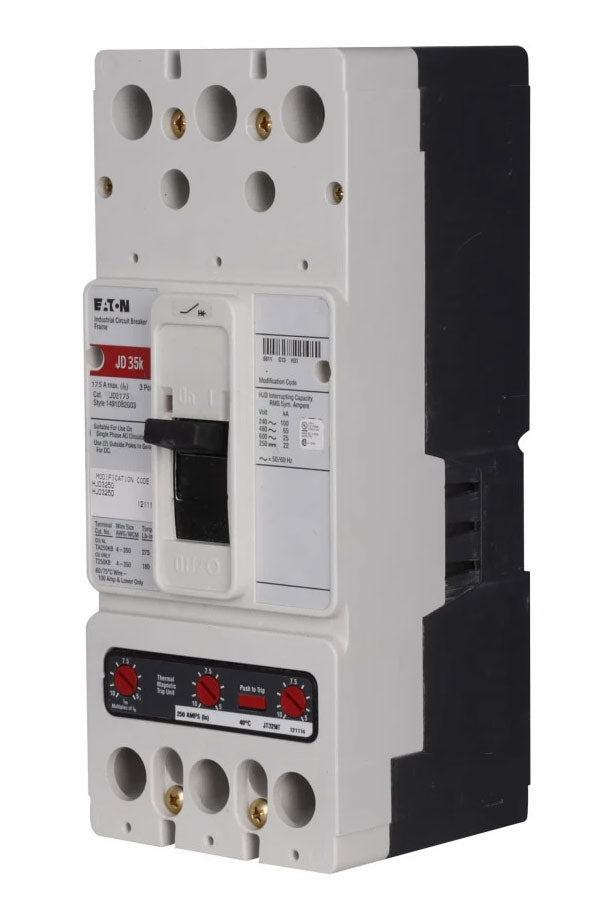

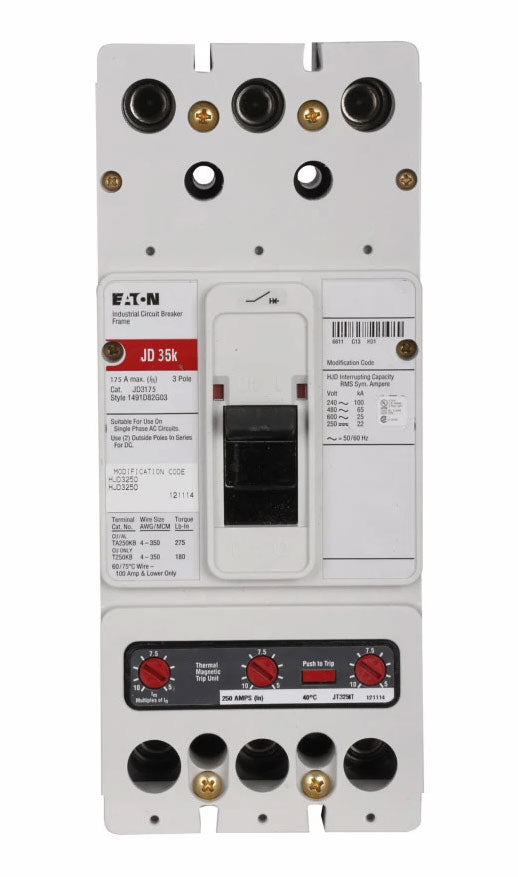

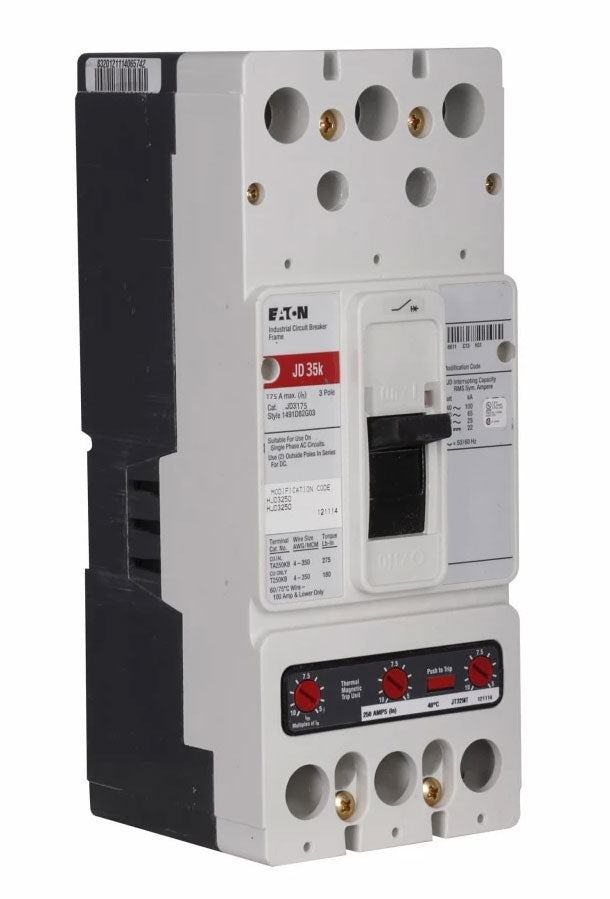

Eaton JD3175 175 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 35 kA@480 V – Bolt-On – Series C

The Eaton JD3175 is a 175 Amp, 3-pole molded case circuit breaker from the Eaton Cutler-Hammer Series C, Type JD. It is rated for 600 V with a 35 kA interrupting rating at 480 V and features standard interrupting capacity. The breaker is designed for bolt-on mounting and includes an interchangeable thermal-magnetic trip unit with Long-Time and Instantaneous protection and load-side lug terminals.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: JD
• Catalog Number / MPN: JD3175
• Primary Rating: 175 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 35 kA @ 480 V
• Interrupting Capacity: Standard
• Ambient Temperature Rating: 40°C
• Trip Type: Thermal-Magnetic
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Bolt-On
• Terminals: Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: JD3175
• Series: Series C
• Type: JD
• Current Rating: 175 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Terminals: Load-Side Lug Terminals
• UPC: 786679346143

Compatibility

The Eaton JD3175 is designed for compatible Eaton Cutler-Hammer Series C Type JD molded case circuit breaker applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
