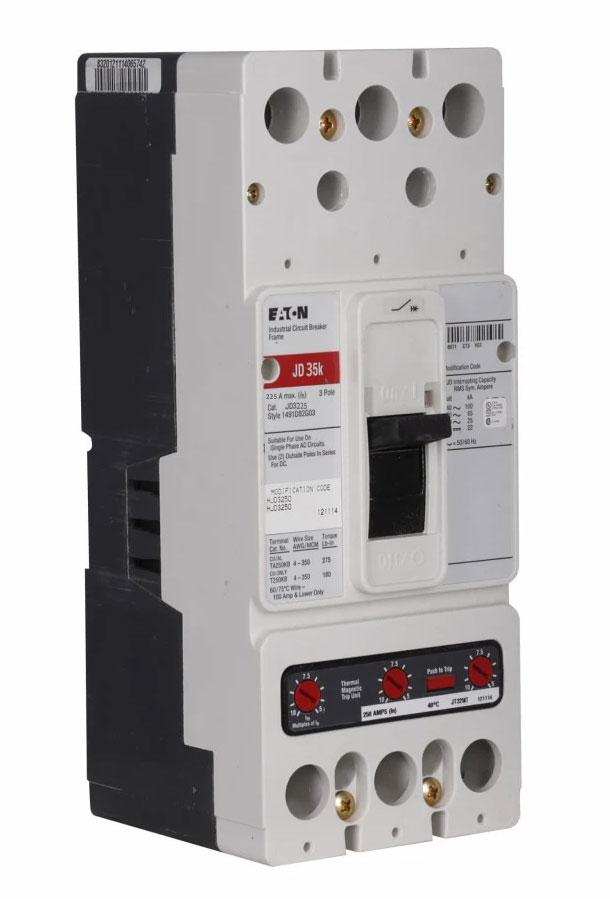

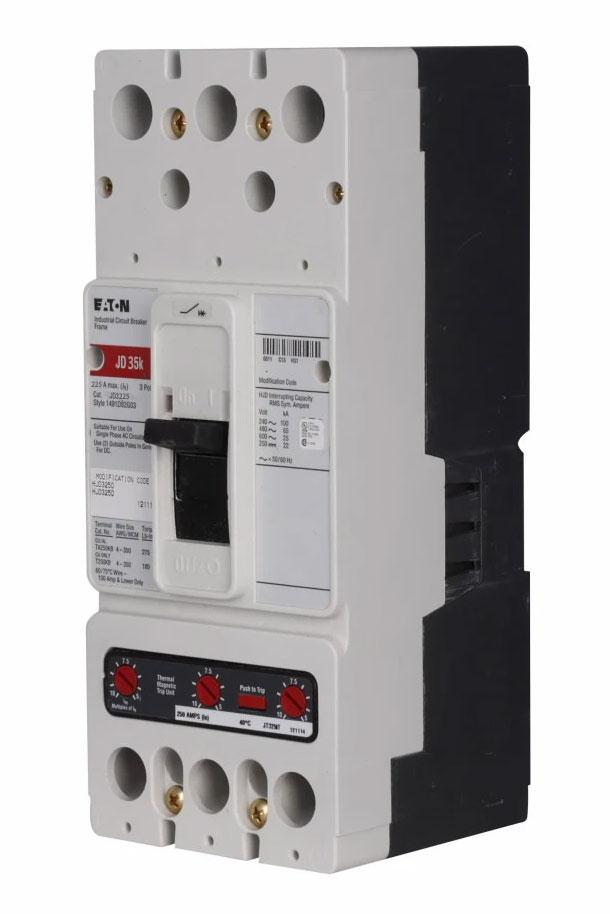

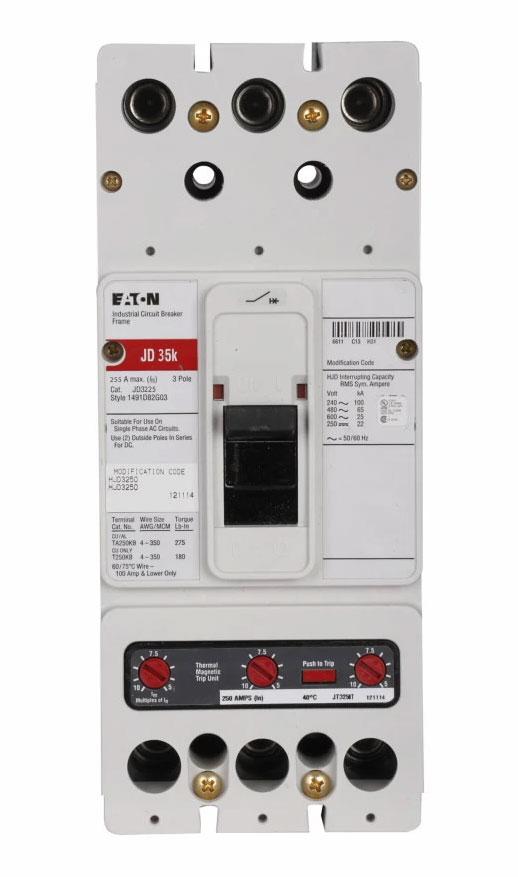

Eaton JD3225Y Molded Case Circuit Breaker – 225A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Bolt-On – Series C JD

The Eaton JD3225Y is a 225A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Eaton / Cutler-Hammer Series C Type JD. It is designed for compatible electrical distribution and overcurrent protection applications.

The JD3225Y is rated for 600V and provides a 35kA interrupting rating at 480V with standard interrupting capacity. It features a bolt-on mounting configuration, an interchangeable Long-Time and Instantaneous (LI) trip, and a load-side lug terminal. The breaker is rated for operation at 40°C.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: JD
• Catalog No.: JD3225Y
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Terminal Type: Load-Side Lug Terminal
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JD3225Y
• Catalog Number: JD3225Y
• Model: JD3225Y
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: JD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 225A
• Rated Current: 225A
• Rated Voltage: 600V
• Trip Configuration: Interchangeable Long-Time and Instantaneous (LI)
• UPC:786679471159

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type JD electrical distribution equipment that accepts JD Series molded case circuit breakers. The JD3225Y provides 225A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker uses a bolt-on mounting configuration, is supplied as a complete breaker, and includes a load-side lug terminal. Its interchangeable LI trip functions provide Long-Time and Instantaneous protection. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit compatibility, terminal arrangement, and installation requirements before installation.

Certifications:

• Series C JD Series
• 225A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Interchangeable Long-Time and Instantaneous (LI) Trip
• Bolt-On Mounting
• Complete Breaker
• Load-Side Lug Terminal
• 40°C Rated
