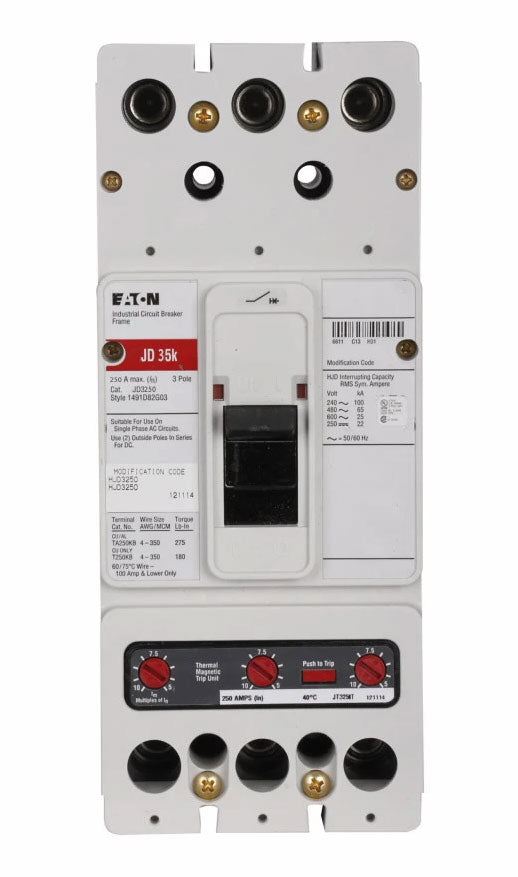

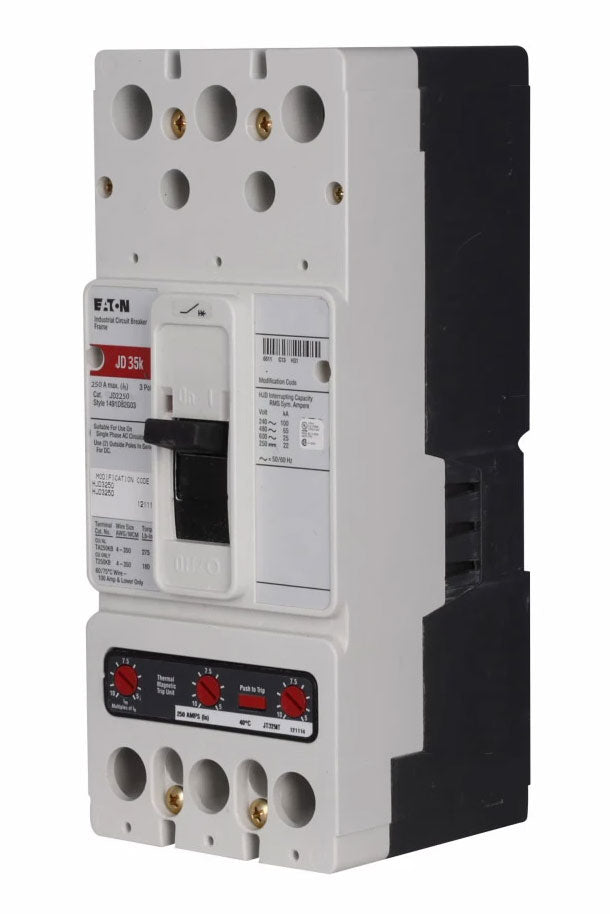

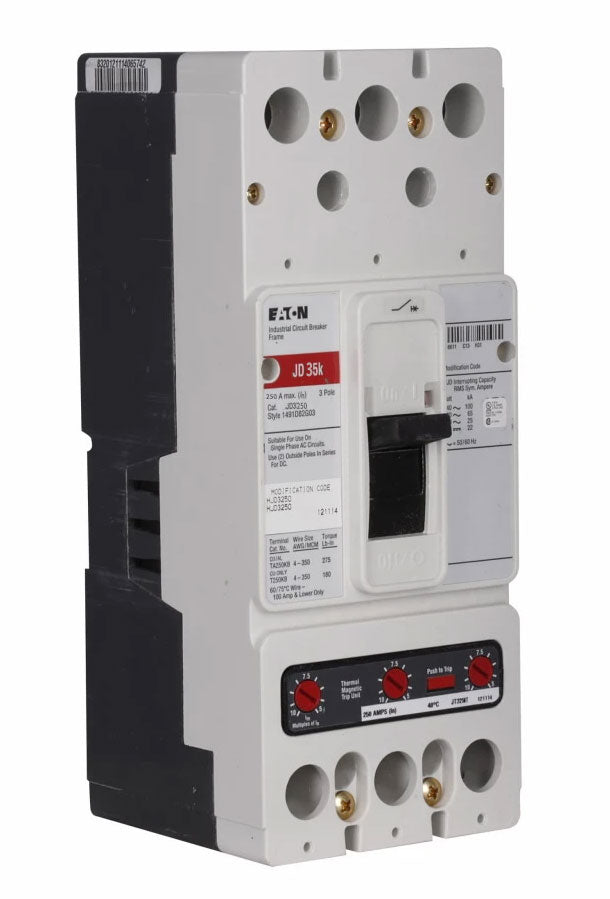

Eaton JD3250 Molded Case Circuit Breaker – 250A – 3-Pole – 600V – 35kA @ 480V – Bolt-On – Series C JD

The Eaton JD3250 is a 250A, 3-pole, 3-phase molded case circuit breaker from the Eaton Cutler-Hammer Series C Type JD. It features thermal-magnetic protection with interchangeable Long-Time and Instantaneous (LI) trip functions.

The JD3250 is rated for 600V and provides a 35kA interrupting rating at 480V. It has a bolt-on mounting configuration and includes load-side lug terminals. The breaker has a standard interrupting capacity and is calibrated for a 40°C ambient temperature.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: JD
• Frame: JD
• Catalog No.: JD3250
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Interchangeable
• Mounting Type: Bolt-On
• Terminal Configuration: Load-Side Lug Terminals
• Ambient Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer
• Authenticity: Authentic Eaton Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JD3250
• Catalog Number: JD3250
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: JD
• Frame: JD
• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Model: JD3250
• Breaker Configuration: 3-Pole, 250A
• upc:
  786679346174

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type JD electrical distribution equipment that accepts JD-frame molded case circuit breakers. The JD3250 is a 3-pole, 250A, 600V thermal-magnetic breaker with interchangeable LI Long-Time and Instantaneous trip functions, bolt-on mounting, and load-side lug terminals.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and mounting configuration before installation.

Certifications:

• Series C JD Series
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Interchangeable LI Trip Functions
• Long-Time and Instantaneous Protection
• Bolt-On Mounting
• Load-Side Lug Terminals
• 40°C Ambient Rating
• Genuine Eaton / Cutler-Hammer Product
