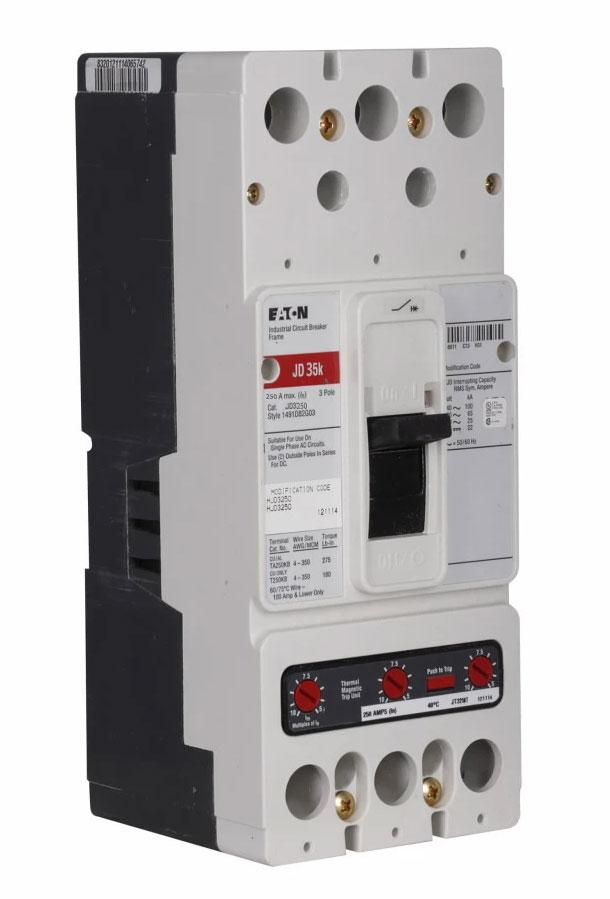

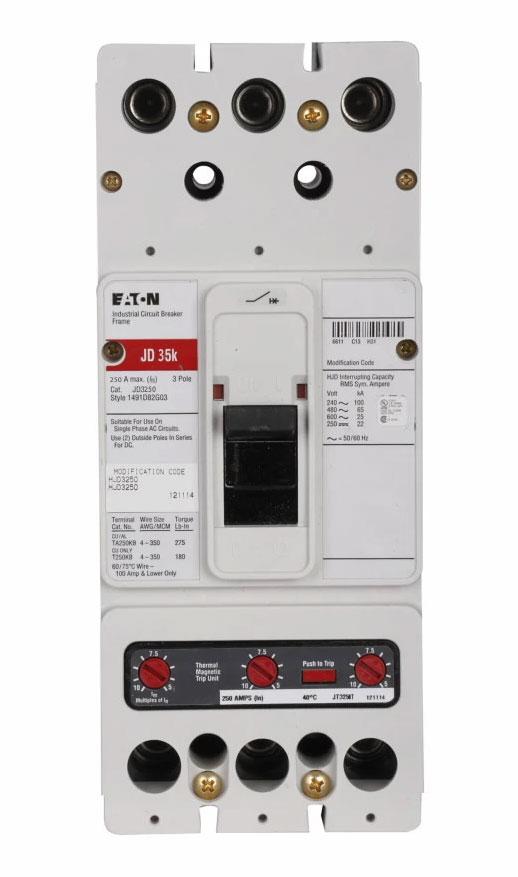

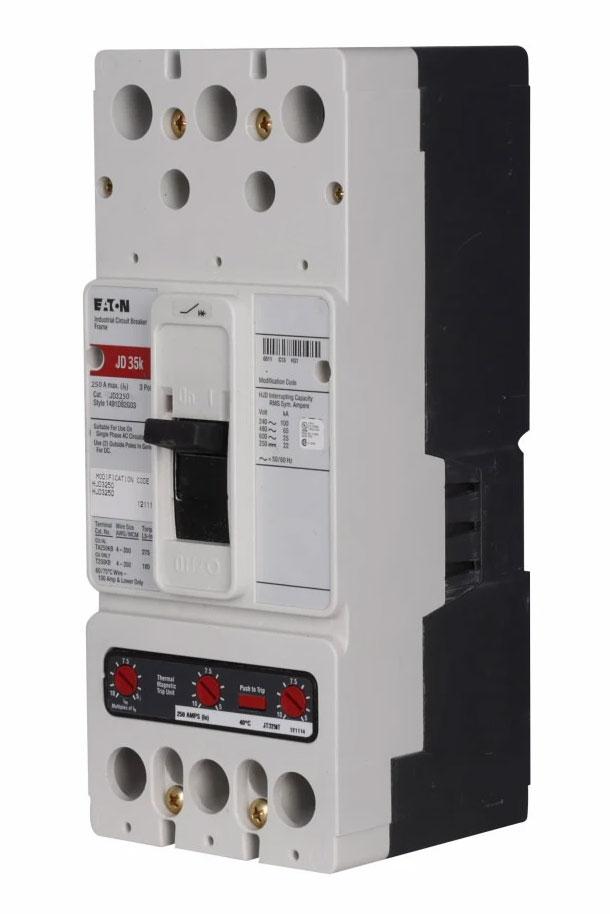

Eaton Cutler-Hammer JD3250Y 250 Amp Molded Case Circuit Breaker – 3 Pole – 600V – Series C

The Eaton Cutler-Hammer JD3250Y is a Series C, Type JD thermal-magnetic molded case circuit breaker rated at 250 A. It features a three-pole configuration, interchangeable long-time and instantaneous (LI) trip functions, and bolt-on mounting. The breaker is rated for 600 V and has an interrupting capacity of 35 kA at 480 V, with load-side lug terminals.

Specifications

• Brand: Eaton / Cutler-Hammer
• MPN: JD3250Y
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: Series C
• Frame / Type: JD
• Rated Current: 250 A
• Number of Poles: 3
• Phases: 3-phase
• Rated Voltage: 600 V
• Interrupting Capacity at 480 V: 35 kA
• Interrupting Capacity Class: Standard interrupting capacity
• Trip Type: Interchangeable LI (Long-Time and Instantaneous)
• Operating Mechanism: Thermal-magnetic
• Mounting: Bolt-on
• Terminals: Load-side lug terminals
• Ambient Temperature Rating: 40°C

Part Numbers & Identification

• Manufacturer: Eaton
• Catalog Number: JD3250Y
• Product Family: Series C
• Circuit Breaker Type: JD
• Identification: Three-pole, 250 A thermal-magnetic molded case circuit breaker
• UPC:786679346174

Compatibility

Suitable for Eaton Series C Type JD applications requiring a 250 A, three-pole molded case circuit breaker with interchangeable LI trip functions and bolt-on mounting.
