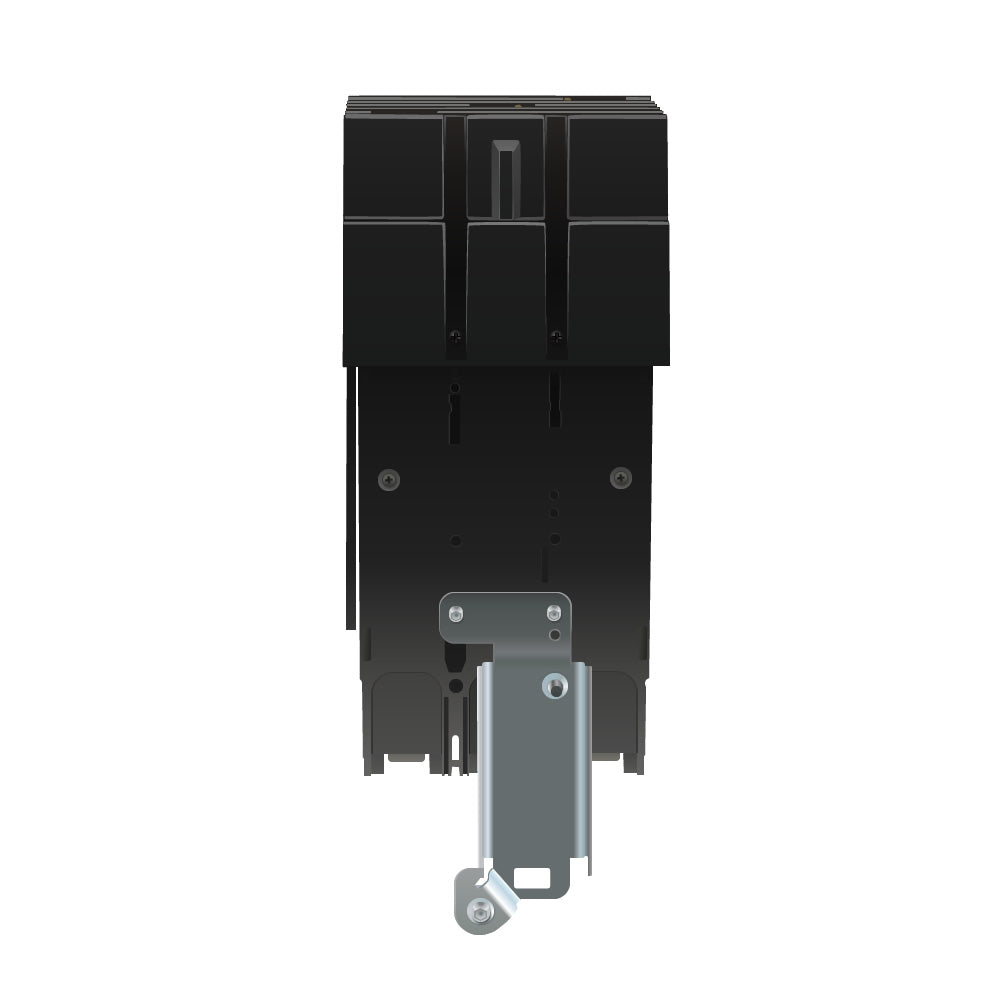

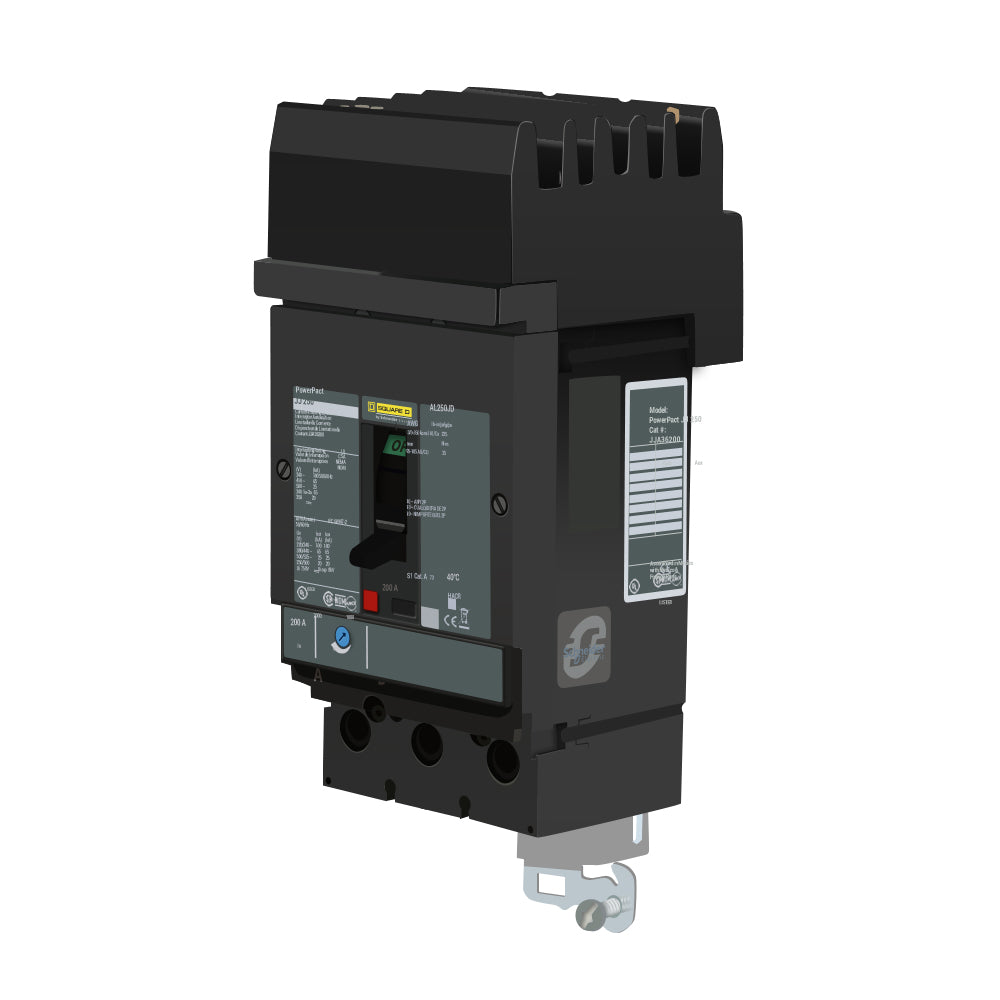

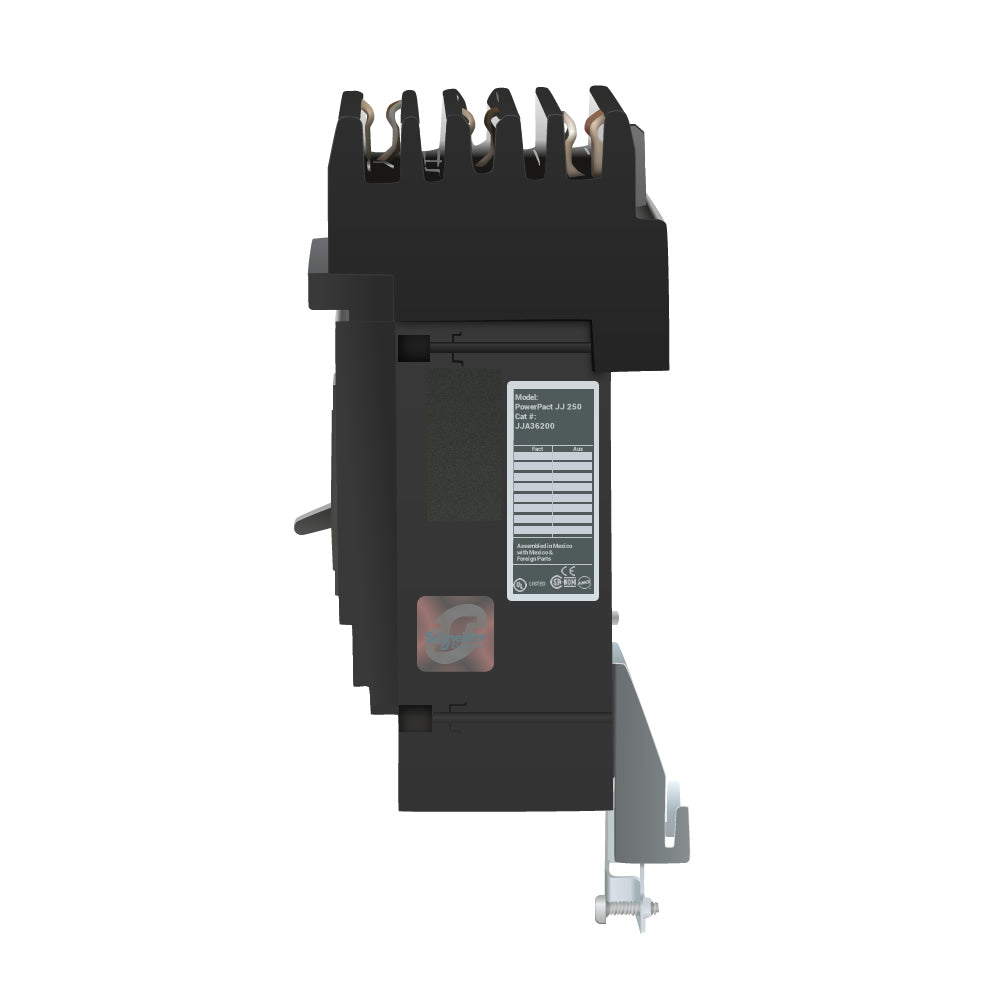

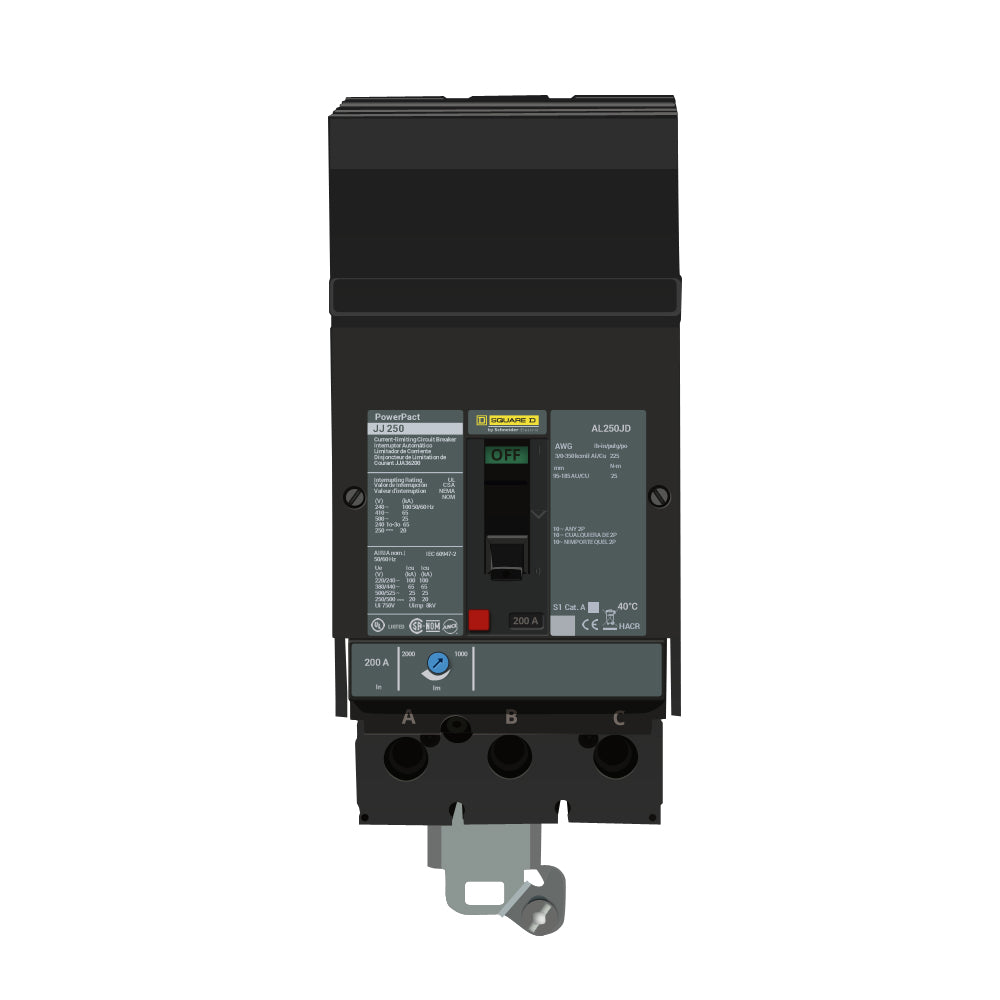

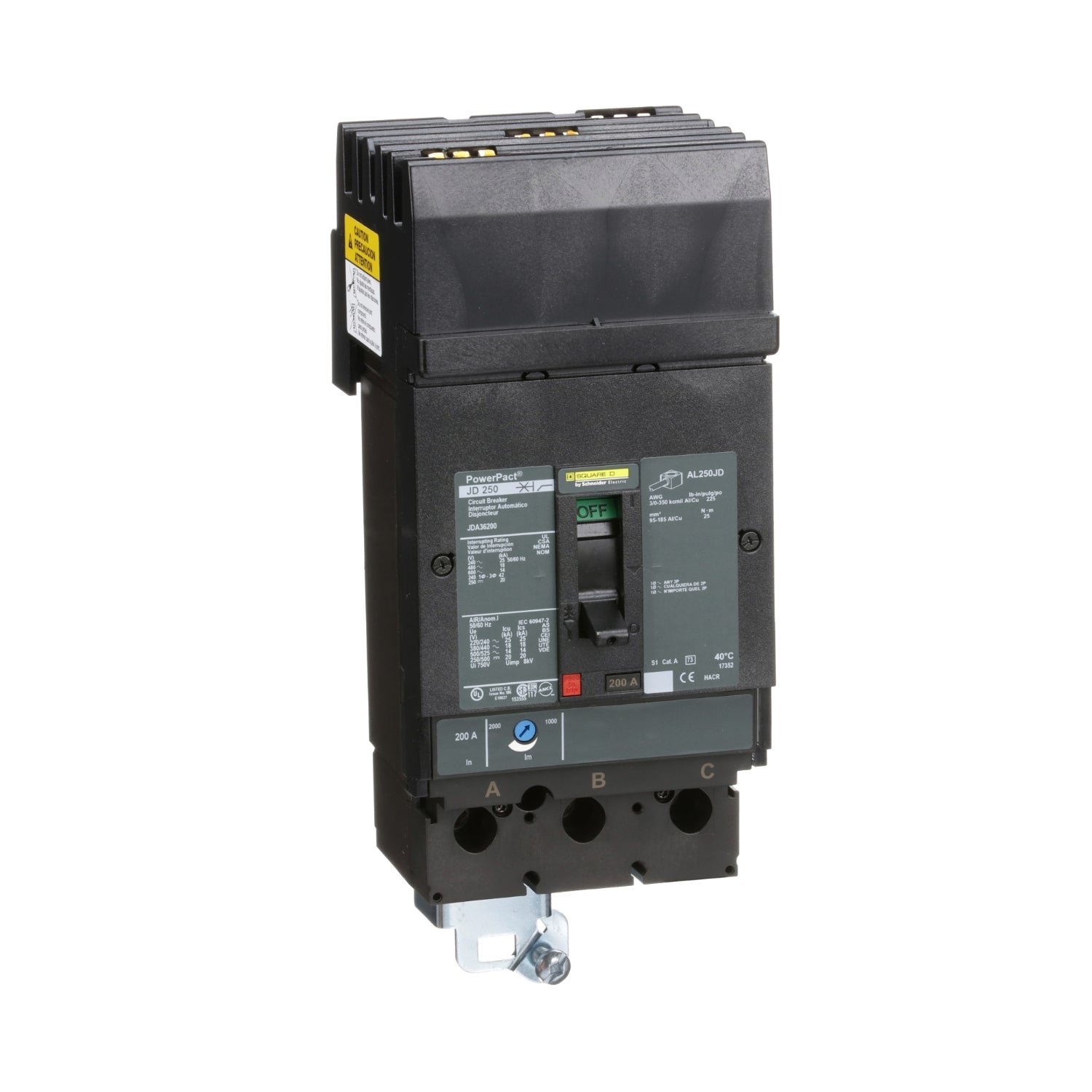

Square D JDA36200 Molded Case Circuit Breaker – 200A – 3-Pole – 600VAC – 14kA – I-Line – JDA Series

The Square D JDA36200 PowerPact is a 200A, 3-pole molded case circuit breaker designed to protect electrical systems against overloads and short circuits. It has a 600VAC rating and a 14kA breaking capacity at 600VAC.

The breaker features an I-Line connection, thermal-magnetic trip unit, and Long-Time and Instantaneous (LI) trip functions. It has a non-interchangeable trip and is suitable for reverse-fed applications. Thermal trip elements are calibrated for a 40°C free-air ambient temperature.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Series: JDA / PowerPact
• Catalog No.: JDA36200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Voltage Rating: 600VAC
• Breaking Capacity: 14kA @ 600VAC
• Connection Type: I-Line
• Trip Technology: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable Trip
• Feed Application: Suitable for Reverse-Fed Applications
• Phase Connection: ABC Phase Connection
• Calibration Ambient: 40°C Free-Air Ambient
• Application: Overload and Short-Circuit Protection

Part Numbers & Identification

• Manufacturer Part Number (MPN): JDA36200
• Catalog Number: JDA36200
• Product Family: PowerPact
• Series: JDA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• upc:785901539766

Compatibility

Designed for use with compatible Square D / Schneider Electric PowerPact JDA Series I-Line electrical distribution equipment. The JDA36200 is suitable for compatible 200A, 3-pole, 600VAC applications and supports reverse-fed installations as specified.

Always verify the exact panelboard or switchboard model, voltage, interrupting requirements, connection configuration, and approved breaker combinations before installation.

Certifications

• UL Listed
• CSA Certified
• NOM Certified
• CCC Certified
• IEC Compliant
• CE Marked
