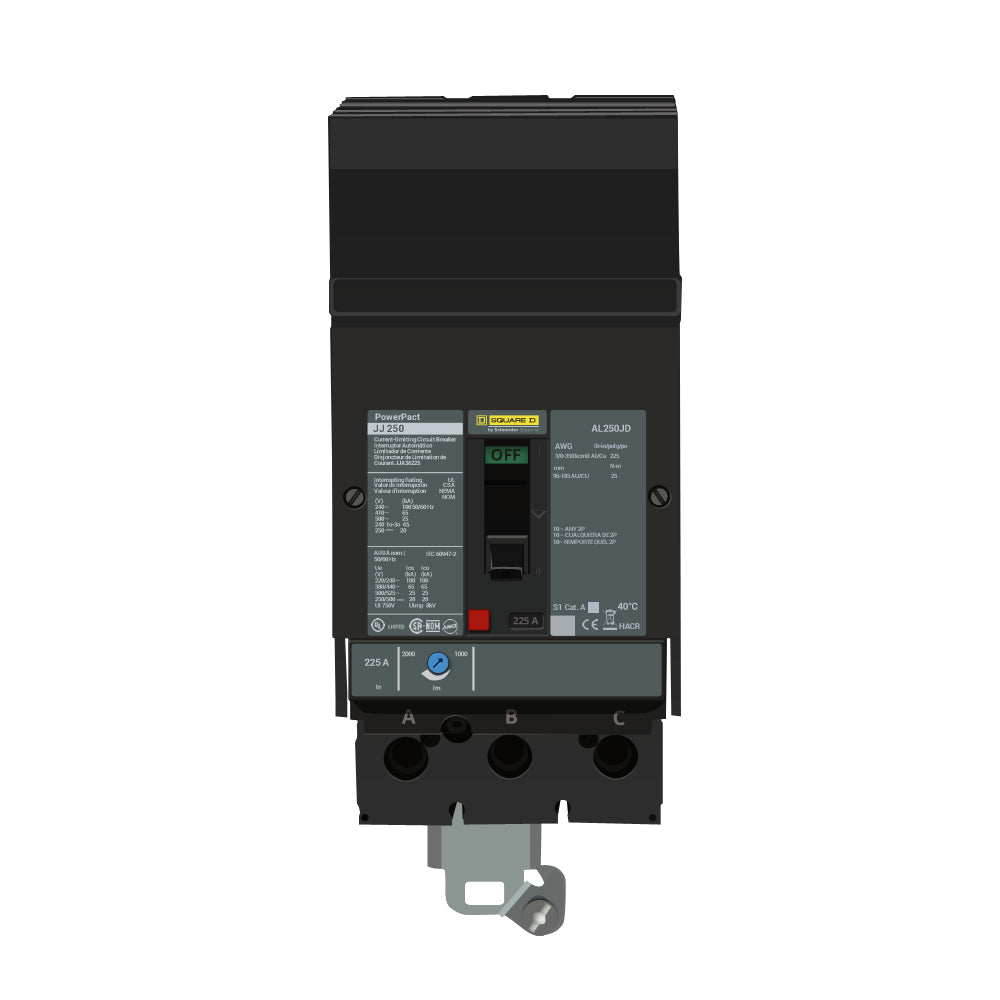

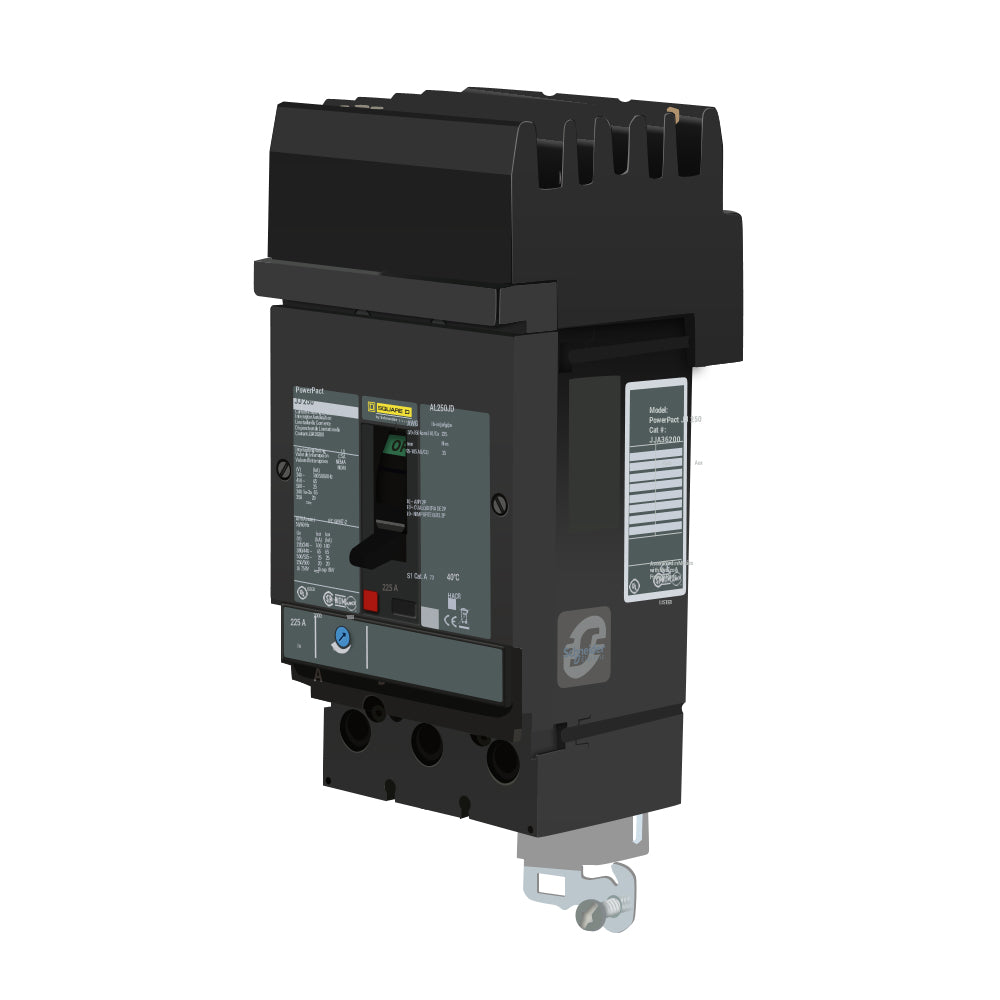

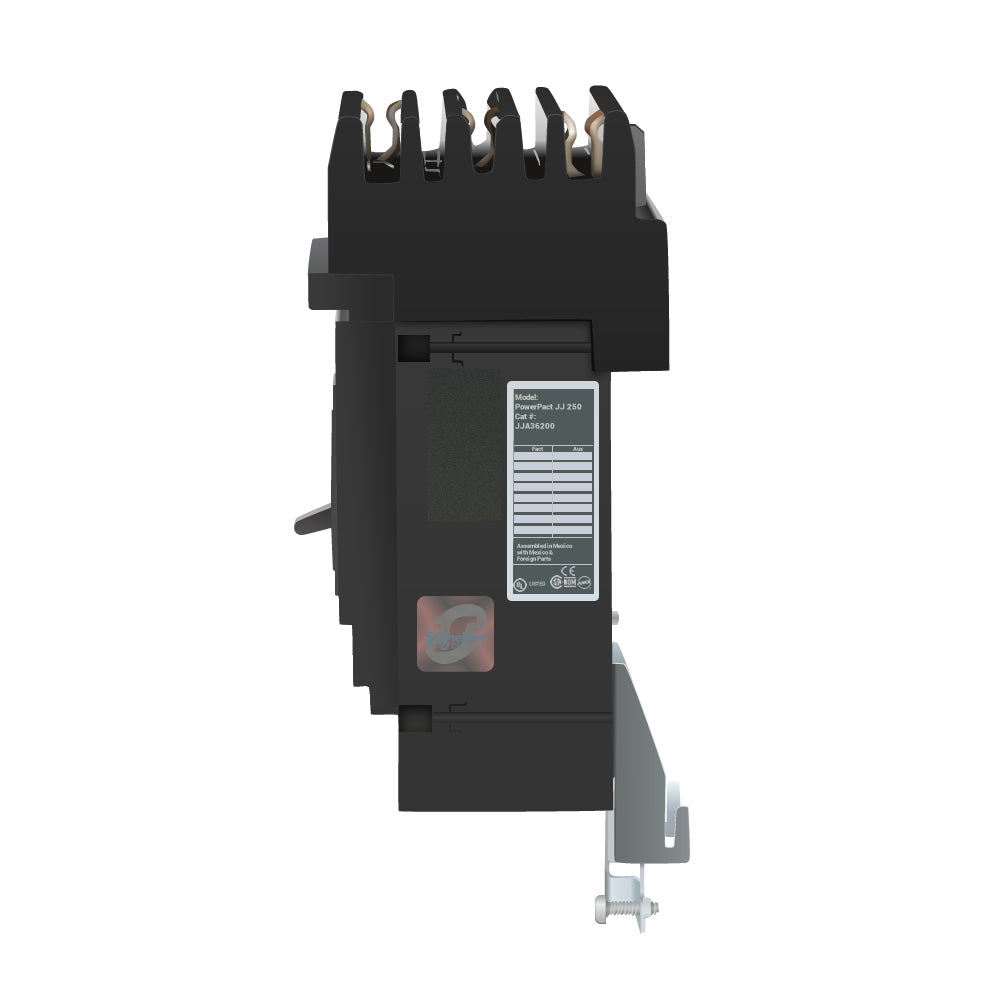

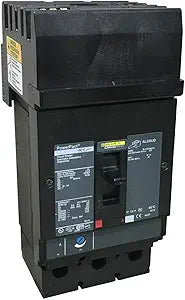

Square D JDA36225 Molded Case Circuit Breaker – 175A – 3-Pole – 600V – 18kA @ 480V – Plug-In – PowerPact JDA Series

The Square D JDA36225 is a 175A, 3-pole molded case circuit breaker from the PowerPact JDA Series. It features an I-Line style plug-in connection, thermal-magnetic protection, and LI long-time and instantaneous trip functions. The breaker is rated for 600V with a standard interrupting capacity of 18kA at 480V and is suitable for reverse-fed applications. It includes a non-interchangeable trip and an ABC phase connection.

Specifications:

• Manufacturer: Schneider Electric / Square D
• Product Type: Molded Case Circuit Breaker
• Catalog No.: JDA36225
• Product Family: PowerPact
• Series: JDA
• Current Rating: 175A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Rating: 18kA at 480V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Trip Configuration: Non-Interchangeable

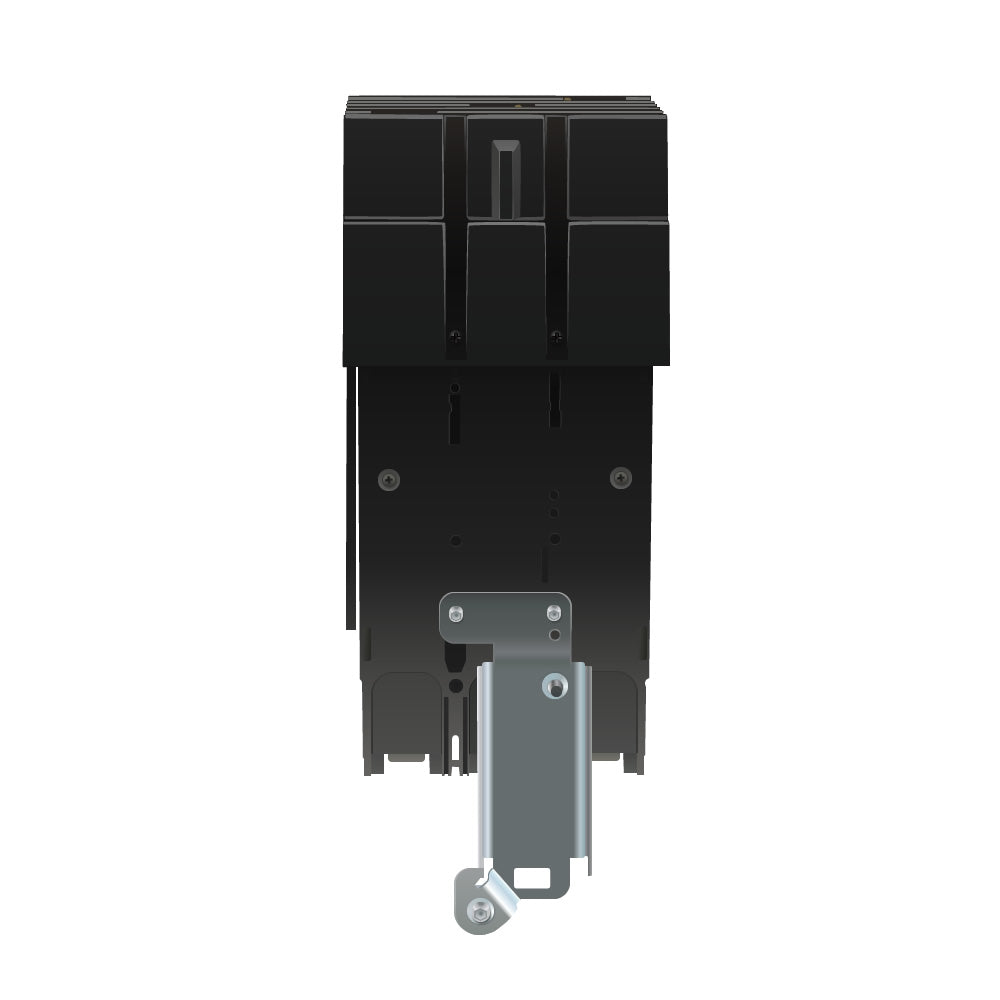

• Mounting Type: I-Line Style Plug-In
• Reverse Feed: Suitable for Reverse-Fed Applications
• Brand: Square D

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JDA36225
• Catalog Number: JDA36225
• Model: JDA36225
• Product Family: Square D PowerPact
• Series: JDA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Configuration: 3-Pole, 175A
• upc:785901834168

Compatibility:

Designed for use with compatible Square D PowerPact JDA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The JDA36225 provides 175A thermal-magnetic protection with LI long-time and instantaneous trip functions and is suitable for reverse-fed applications.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, pole configuration, phase connection, interrupting rating, trip configuration, and reverse-feed requirements before installation.

Certifications:

• UL Listed
• 175A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 18kA Interrupting Rating at 480V
• Thermal-Magnetic Protection
• LI Long-Time and Instantaneous Trip
• Non-Interchangeable Trip
• I-Line Style Plug-In
• Reverse-Feed Suitable
• Genuine Square D / Schneider Electric Product
