JDA36250 - SquarSquare D JDA36250 Molded Case Circuit Breaker – 250A – 3-Pole – 600V – 18kA @ 480V – Plug-In – PowerPact JDA Seriese D - Molded Case Circuit Breaker

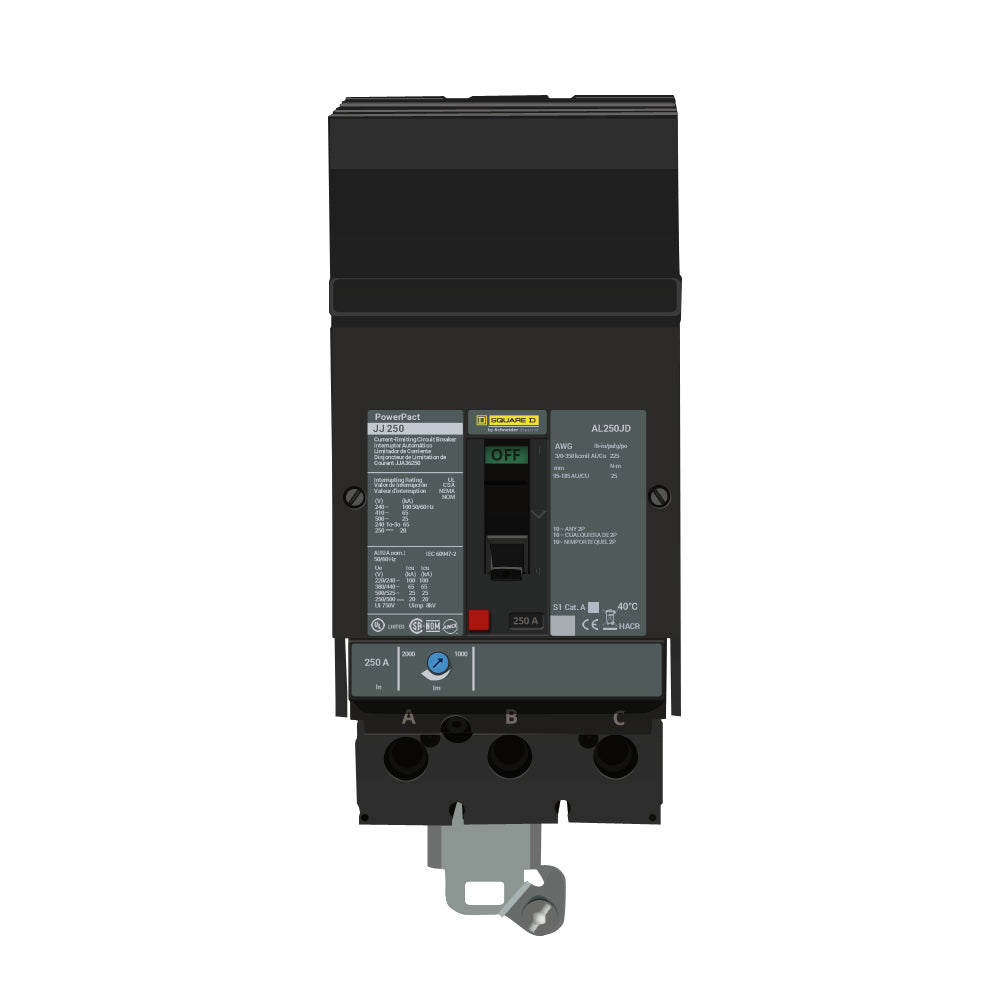

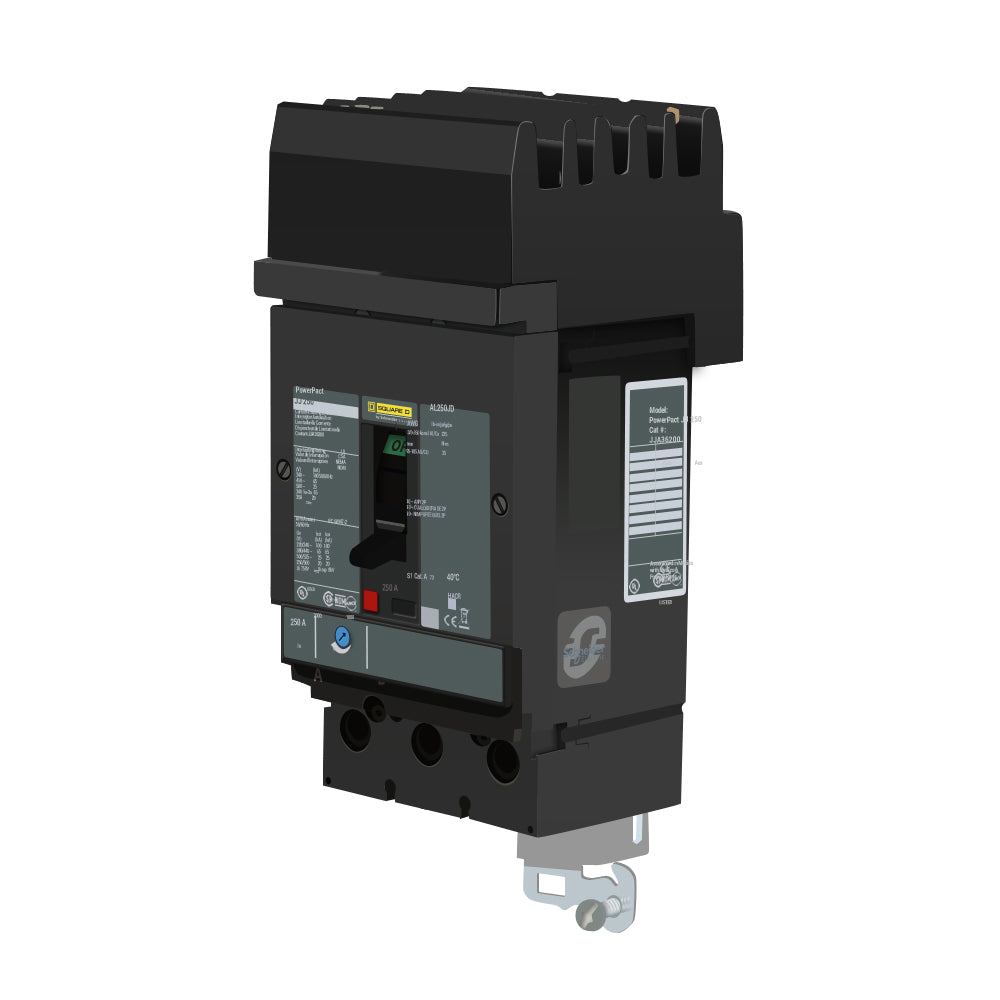

The Square D JDA36250 is a 250A, 3-pole molded case circuit breaker from the Square D PowerPact JDA Series. It is designed for 3-phase electrical distribution and features an I-Line style plug-in connection, thermal-magnetic protection, and LI (Long-Time and Instantaneous) trip functions. The breaker has a 600V rating, an 18kA interrupting rating at 480V, and a non-interchangeable trip configuration. It is also suitable for reverse-fed applications.

Specifications:

• Manufacturer: Schneider Electric / Square D
• Product Type: Molded Case Circuit Breaker
• Catalog No.: JDA36250
• Product Family: PowerPact
• Series: JDA
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Rating: 18kA @ 480V
• Interrupting Capacity: Standard
• Connection Type: I-Line Style Plug-In
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Protection Type: Thermal-Magnetic
• Application: Electrical Distribution
• Reverse Fed: Suitable for Reverse-Fed Applications
• Brand: Square D
• Authenticity: Genuine Square D / Schneider Electric Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JDA36250
• Catalog Number: JDA36250
• Product Family: Square D PowerPact
• Series: JDA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: JDA36250
• Breaker Configuration: 3-Pole, 250A
• Connection Style: I-Line Plug-In
• upc:785901834175

Compatibility:

Designed for compatible Square D PowerPact JDA Series and I-Line electrical distribution equipment that accepts the specified JDA molded case circuit breaker configuration. The JDA36250 is a 3-pole, 250A, 600V thermal-magnetic breaker with an I-Line style plug-in connection and non-interchangeable LI trip functions.

The breaker is suitable for reverse-fed applications as specified. Always verify the specific panelboard or switchboard model, approved breaker type, phase connection, system voltage, interrupting rating, trip configuration, and installation requirements before installation.

Certifications:

• UL Listed
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 18kA @ 480V Interrupting Rating
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip
• Non-Interchangeable Trip
• I-Line Style Plug-In
• Suitable for Reverse-Fed Applications
• Genuine Square D / Schneider Electric Product
