Eaton JDB3100 100 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 35 kA@480 V – Feed-Thru – Series C

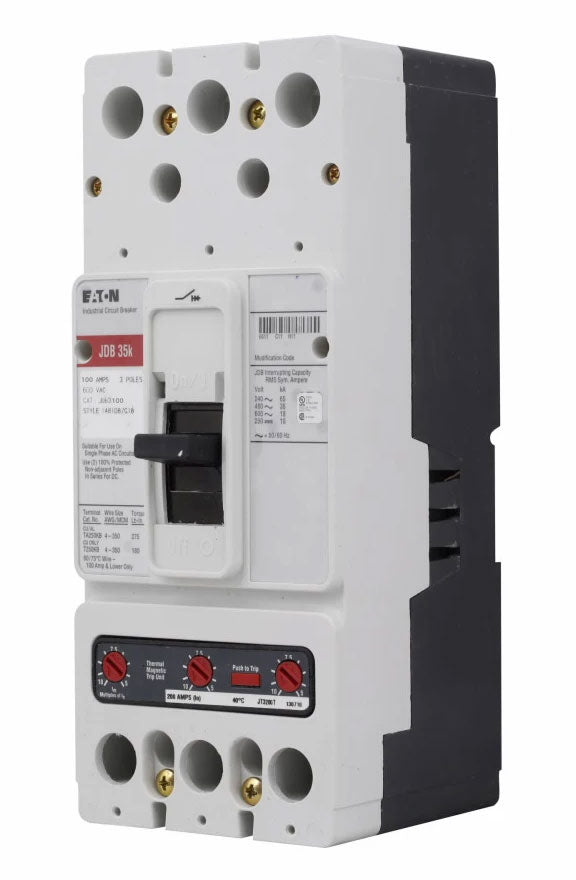

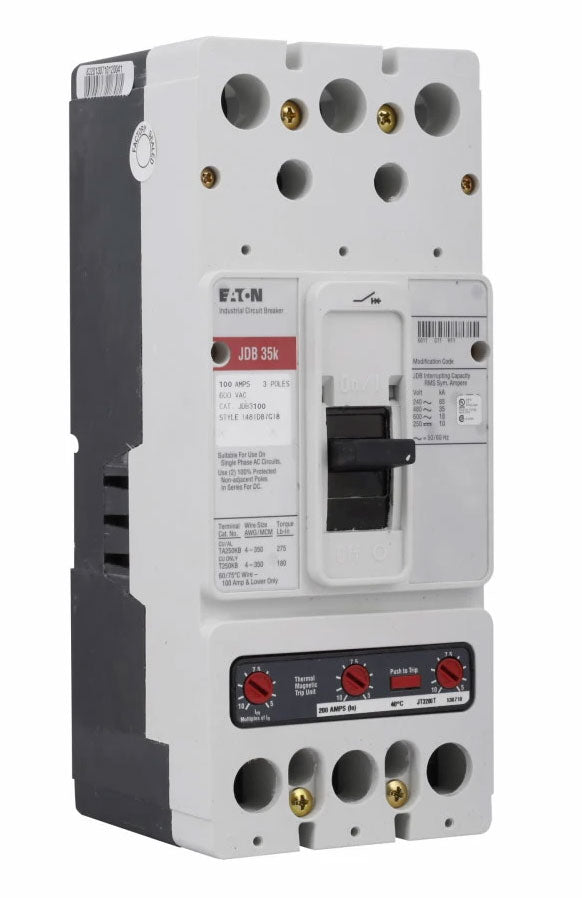

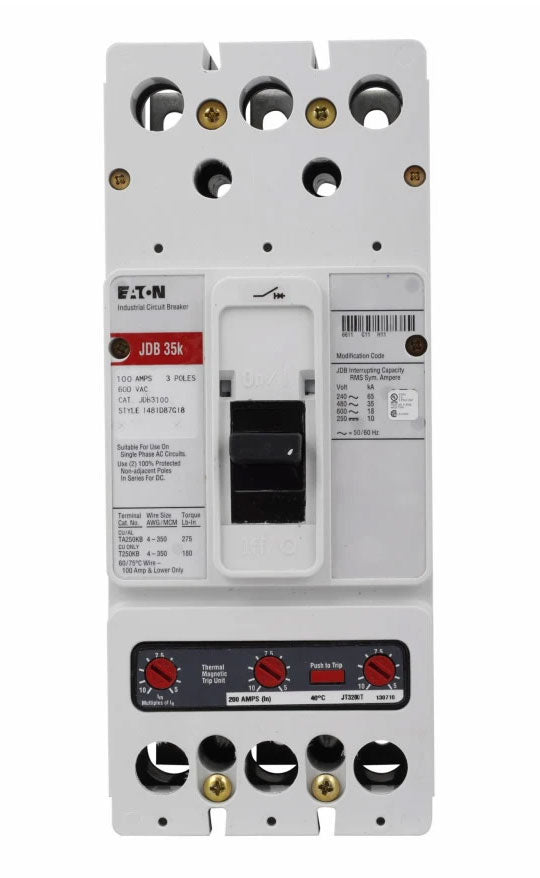

The Eaton JDB3100 is a 100 Amp, 3-pole molded case circuit breaker from the Eaton Cutler-Hammer Series C, Type JDB. It is rated for 600 V with a 35 kA interrupting rating at 480 V and features standard interrupting capacity. The breaker is designed for feed-thru applications, is suitable for reverse-fed applications, and includes a non-interchangeable thermal-magnetic trip unit with Long-Time and Instantaneous protection.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: JDB
• Catalog Number / MPN: JDB3100
• Primary Rating: 100 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 35 kA @ 480 V
• Interrupting Capacity: Standard
• Ambient Temperature Rating: 40°C
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Reverse-Feed Application: Suitable for Reverse-Fed Applications
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: JDB3100
• Series: Series C
• Type: JDB
• Current Rating: 100 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Terminals: Line & Load-Side Lug Terminals
• UPC: 786679516225

Compatibility

The Eaton JDB3100 is designed for compatible Eaton Cutler-Hammer Series C Type JDB molded case circuit breaker applications and is suitable for reverse-fed applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
