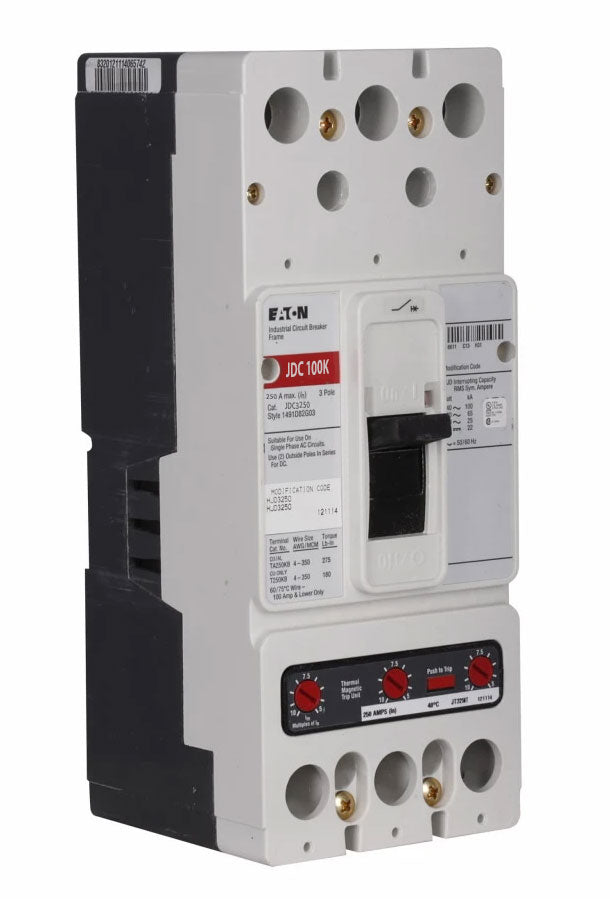

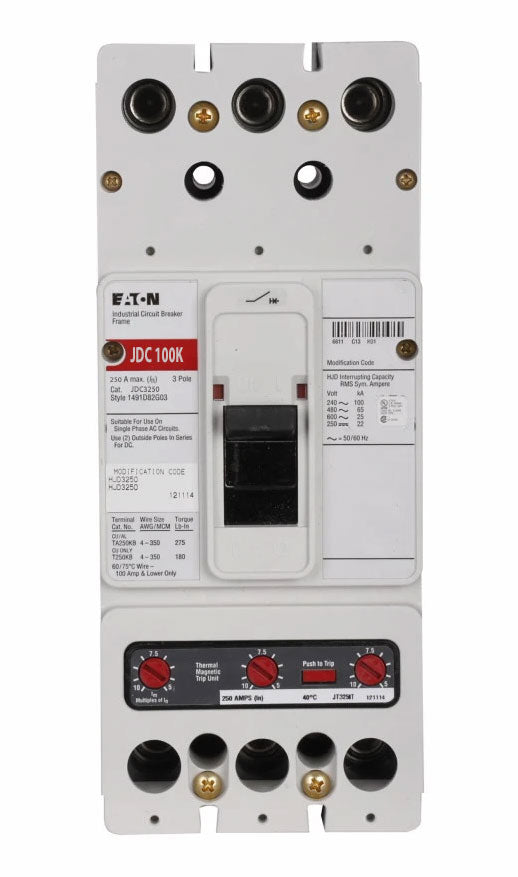

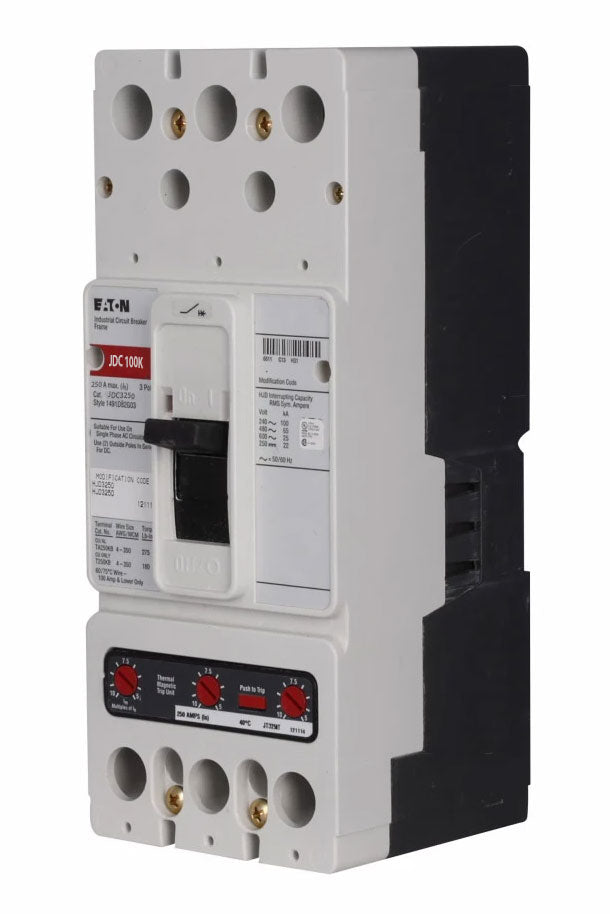

Eaton JDC3250 250 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 100 kA@480 V – Feed-Thru – Series C

The Eaton JDC3250 is a 250 Amp, 3-pole molded case circuit breaker from the Eaton Cutler-Hammer Series C, Type JDC. It is rated for 600 V and provides current-limiting protection with a 100 kA interrupting rating at 480 V. The breaker is designed for feed-thru applications, is suitable for reverse-fed applications, and features a non-interchangeable thermal-magnetic trip unit with Long-Time and Instantaneous protection.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: JDC
• Catalog Number / MPN: JDC3250
• Primary Rating: 250 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 100 kA @ 480 V
• Interrupting Capacity: Current Limiting
• Ambient Temperature Rating: 40°C
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Reverse-Feed Application: Suitable for Reverse-Fed Applications
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: JDC3250
• Series: Series C
• Type: JDC
• Current Rating: 250 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Terminals: Line & Load-Side Lug Terminals
• UPC:786679340929

Compatibility

The Eaton JDC3250 is designed for compatible Eaton Cutler-Hammer Series C Type JDC molded case circuit breaker applications and is suitable for reverse-fed applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
