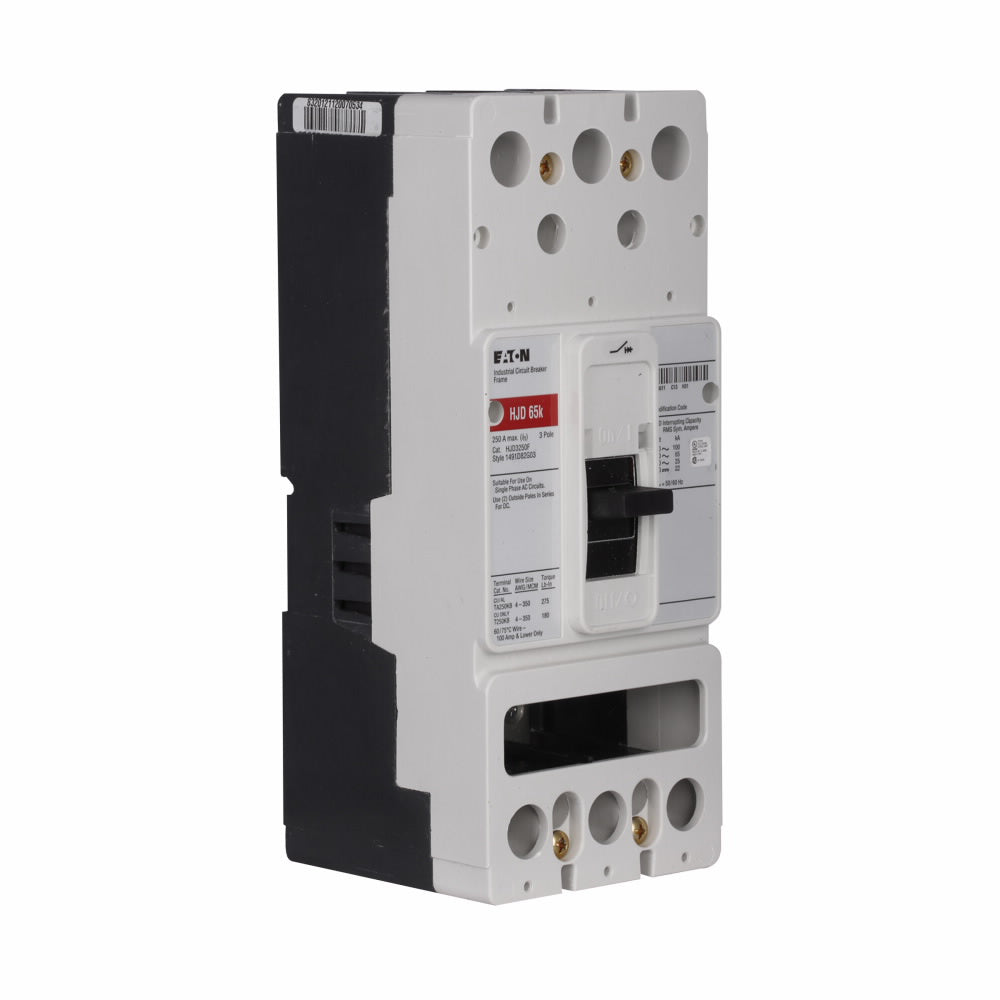

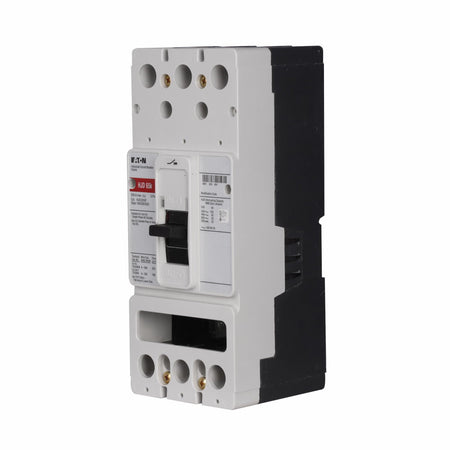

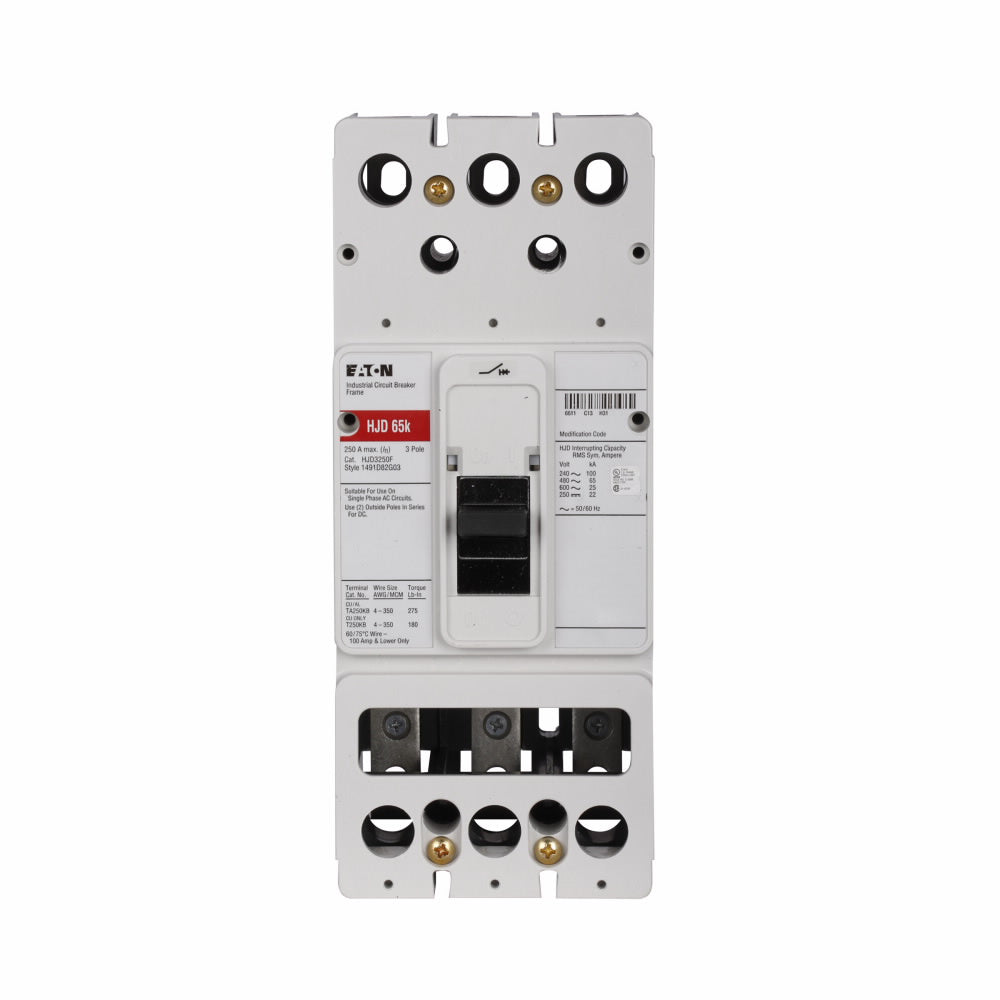

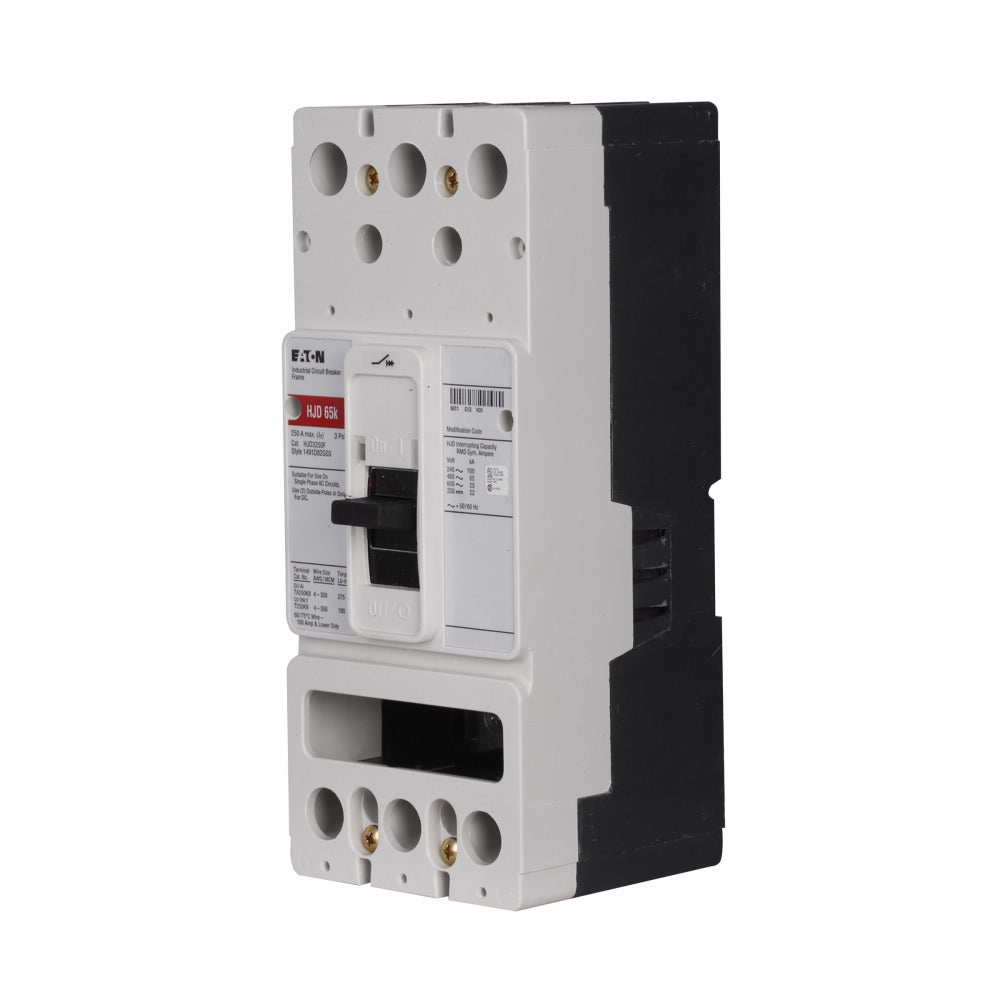

Eaton JDC3250F Molded Case Circuit Breaker Frame – 250A – 3-Pole / 3-Phase – 600V – 100kA @ 480V – Bolt-On – Series C JDC

The Eaton JDC3250F is a 250A, 3-pole, 3-phase molded case circuit breaker frame from the Eaton / Cutler-Hammer / Westinghouse Series C Type JDC. It is specified as a frame-only device and is designed for compatible electrical distribution applications.

The JDC3250F features thermal-magnetic protection, current-limiting construction, and a 100kA interrupting rating at 480V. It is rated for 600V, uses a bolt-on mounting configuration, and is suitable for reverse-fed applications. The frame is calibrated for operation at 40°C.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: Series C
• Series: Series C
• Type: JDC
• Catalog No.: JDC3250F
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 480V
• Protection Type: Thermal-Magnetic
• Current Limiting: Current Limiting
• Mounting Type: Bolt-On
• Configuration: Frame Only
• Reverse Feed: Suitable for Reverse-Fed Applications
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JDC3250F
• Catalog Number: JDC3250F
• Model: JDC3250F
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: JDC
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Configuration: 3-Pole, 250A
• Product Form: Frame Only
• UPC:786679516393

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer / Westinghouse Series C Type JDC electrical distribution equipment requiring a JDC frame. The JDC3250F is a 250A, 3-pole, 600V thermal-magnetic frame with current-limiting construction and a 100kA interrupting rating at 480V.

The product is specified as frame only, so the complete breaker configuration and required components must be verified separately. It is also suitable for reverse-fed applications as specified. Always verify the specific electrical equipment model, approved breaker/frame configuration, system voltage, available fault current, trip-unit requirements, terminal requirements, mounting arrangement, and installation specifications before installation.

Certifications:

• Series C JDC
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 100kA @ 480V Interrupting Rating
• Thermal-Magnetic Protection
• Current Limiting
• Bolt-On Mounting
• Frame Only
• 40°C Rated
• Suitable for Reverse-Fed Applications
