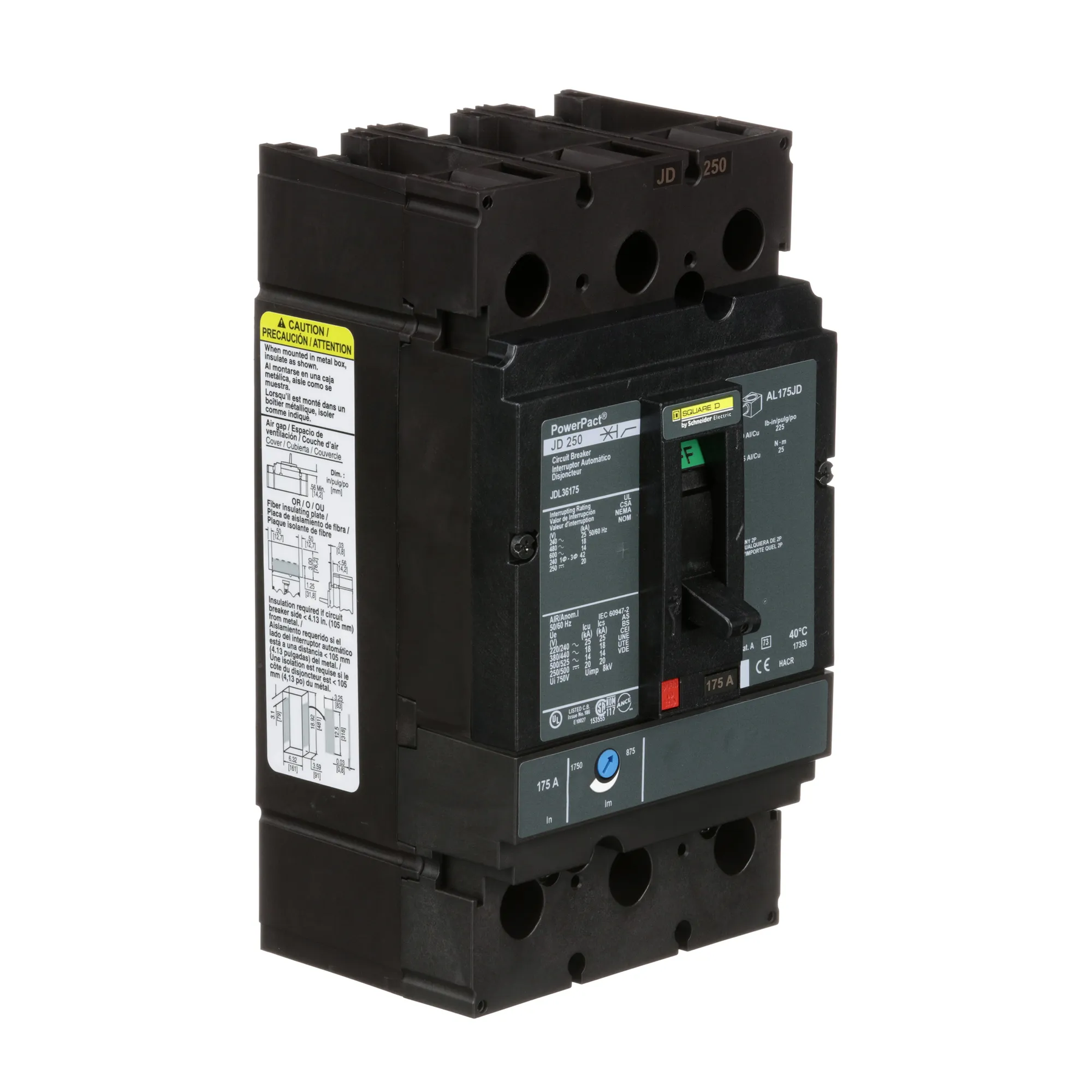

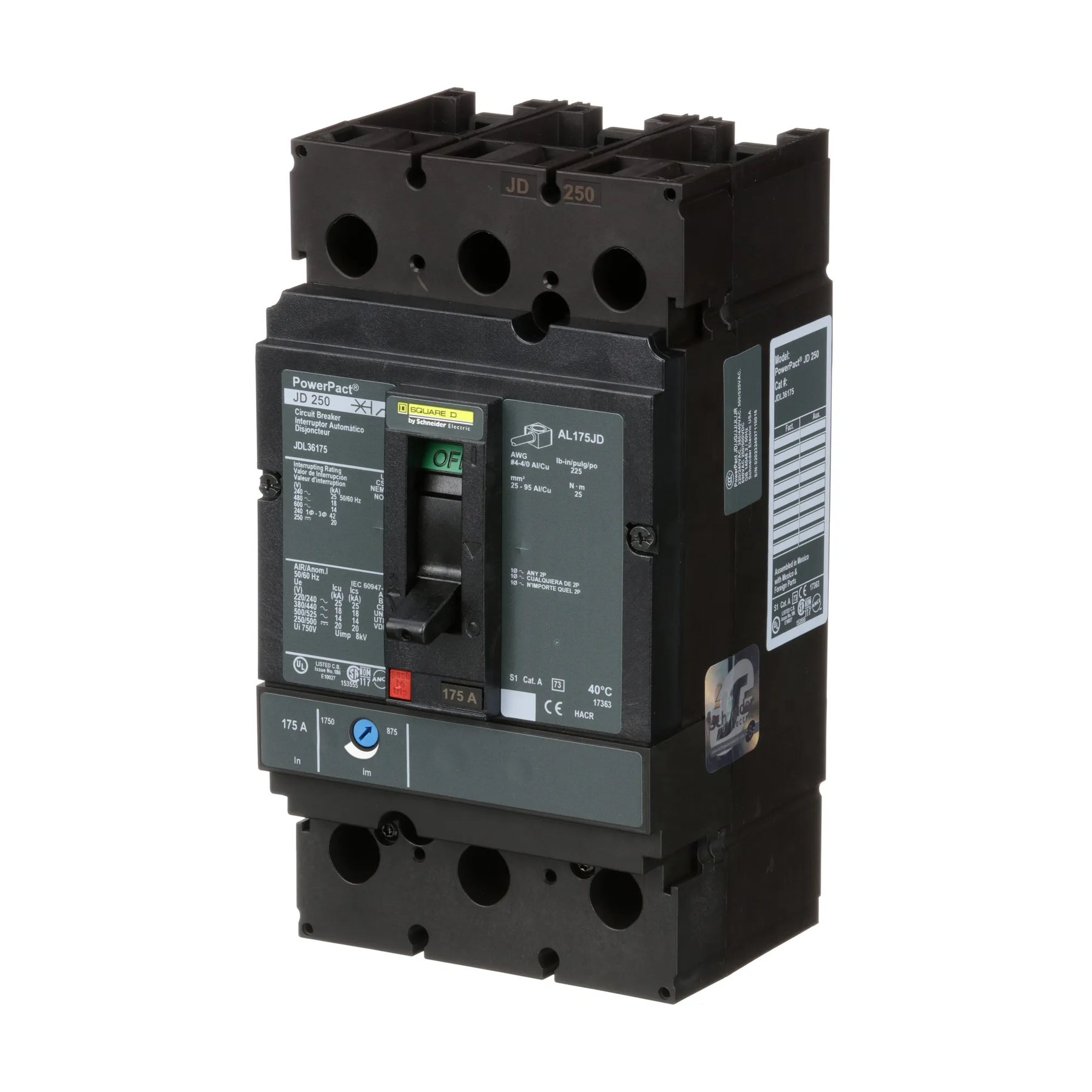

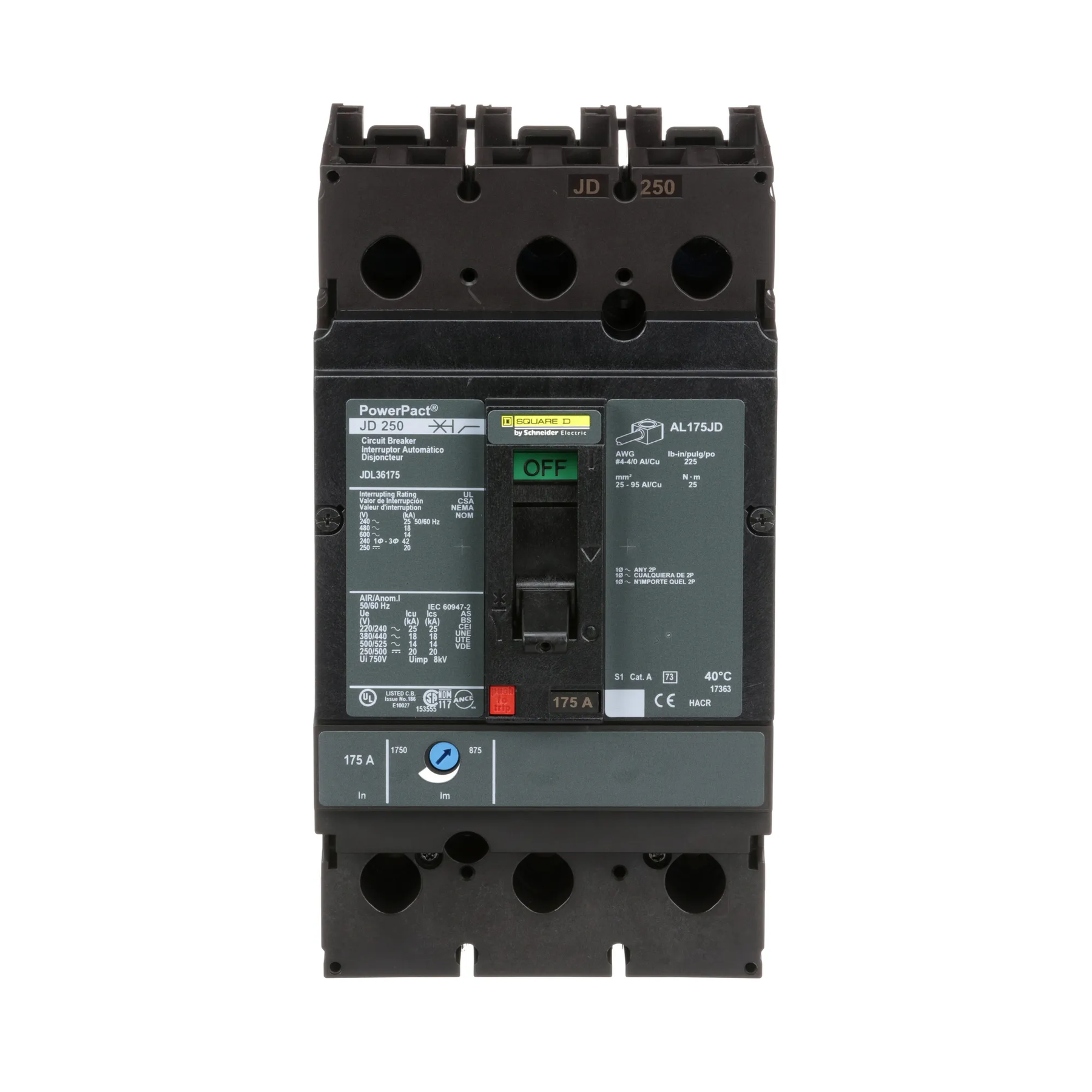

The Square D JDL36175 is a 175A, 3-pole, 3-phase molded case circuit breaker from the PowerPact JDL Series. It is rated for 600V and provides an 18kA interrupting rating at 480V. The breaker features thermal-magnetic protection, a non-interchangeable trip unit, and Long-Time and Instantaneous (LI) trip functions.

The JDL36175 uses a feed-thru configuration with line- and load-side lug terminals. It is UL Listed and suitable for reverse-fed applications.

Specifications:

• Manufacturer: Schneider Electric / Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact JDL
• Type: JDL
• Catalog No.: JDL36175
• Current Rating: 175A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 18kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Configuration: Feed-Thru
• Terminal Configuration: Line- and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Reverse Feed: Suitable for Reverse-Fed Applications

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JDL36175
• Catalog Number: JDL36175
• Product Family: PowerPact Molded Case Circuit Breakers
• Series: JDL
• Type: JDL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: JDL36175
• upc:785901706663

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact JDL Series electrical distribution equipment. The JDL36175 is a 3-pole, 175A, 600V thermal-magnetic MCCB with an 18kA interrupting rating at 480V, LI trip functions, and line- and load-side lug terminals.

The breaker is suitable for reverse-fed applications as specified. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• 18kA Interrupting Rating @ 480V
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip
• Non-Interchangeable Trip
• Suitable for Reverse-Fed Applications
• Genuine Square D / Schneider Electric Product
