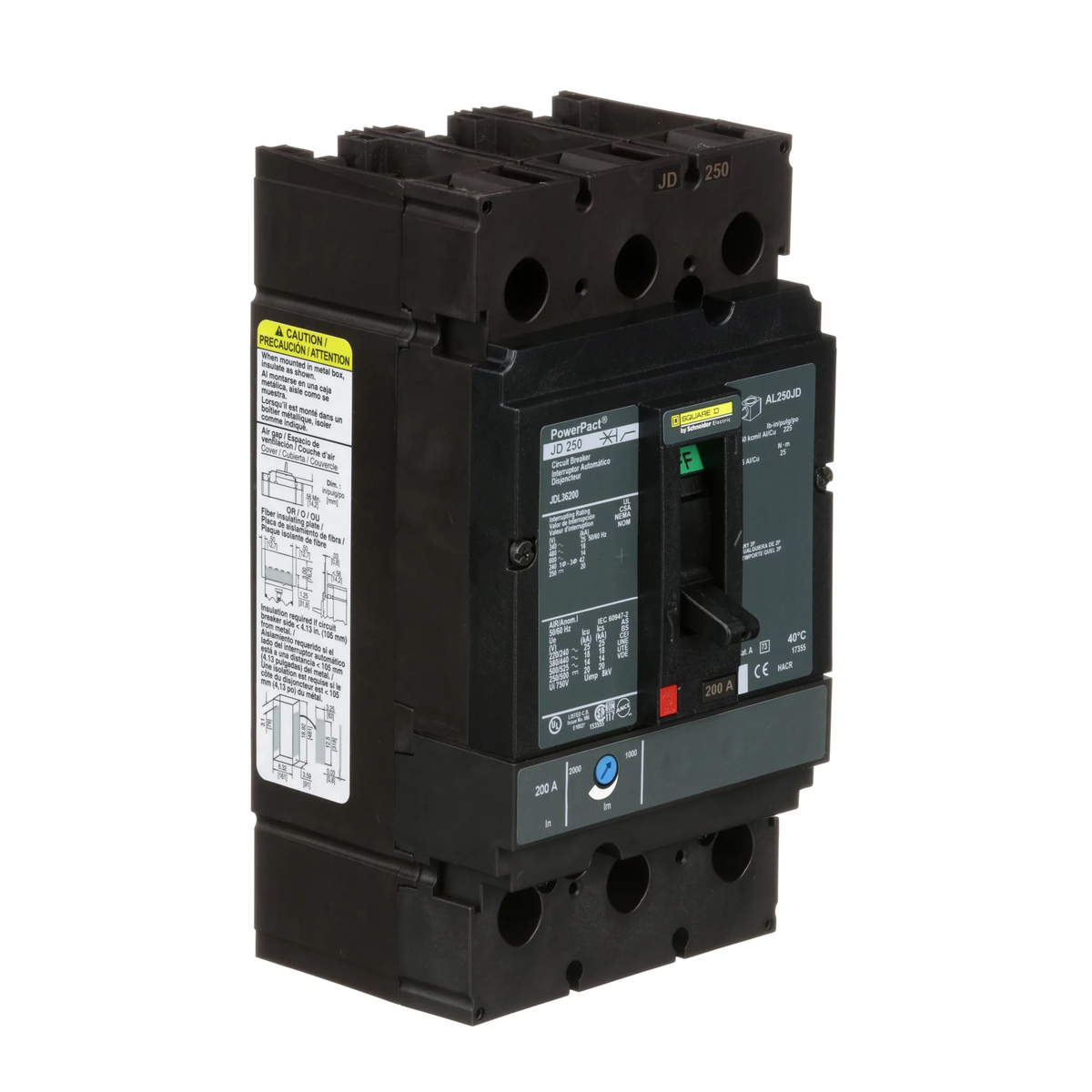

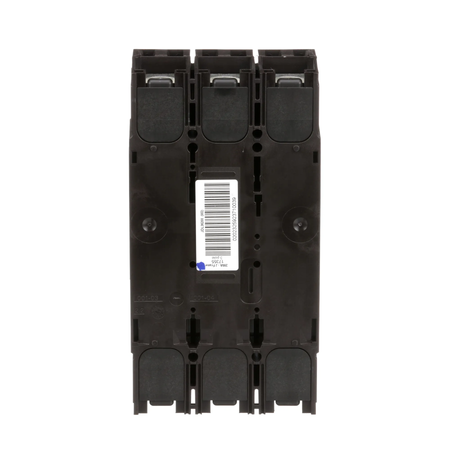

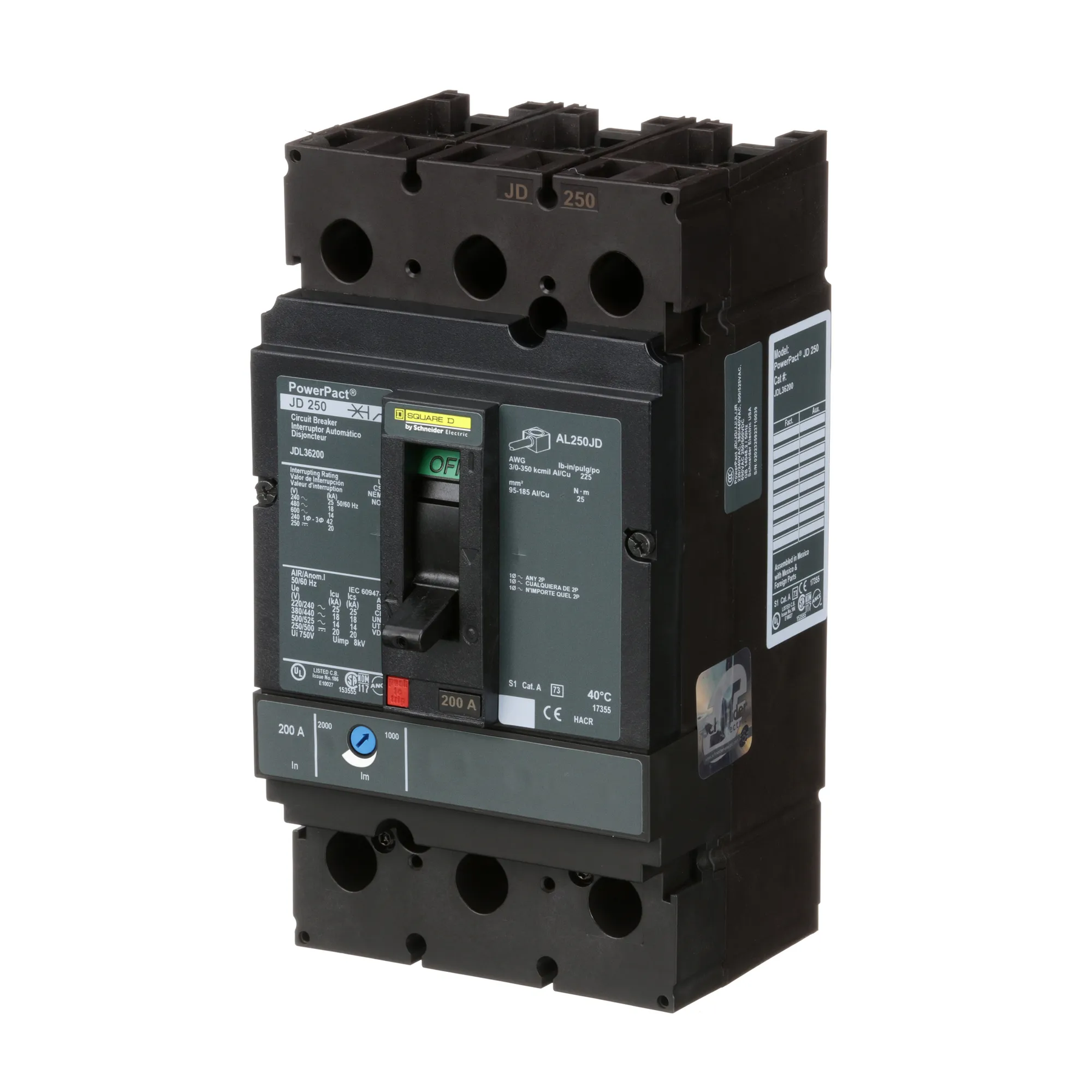

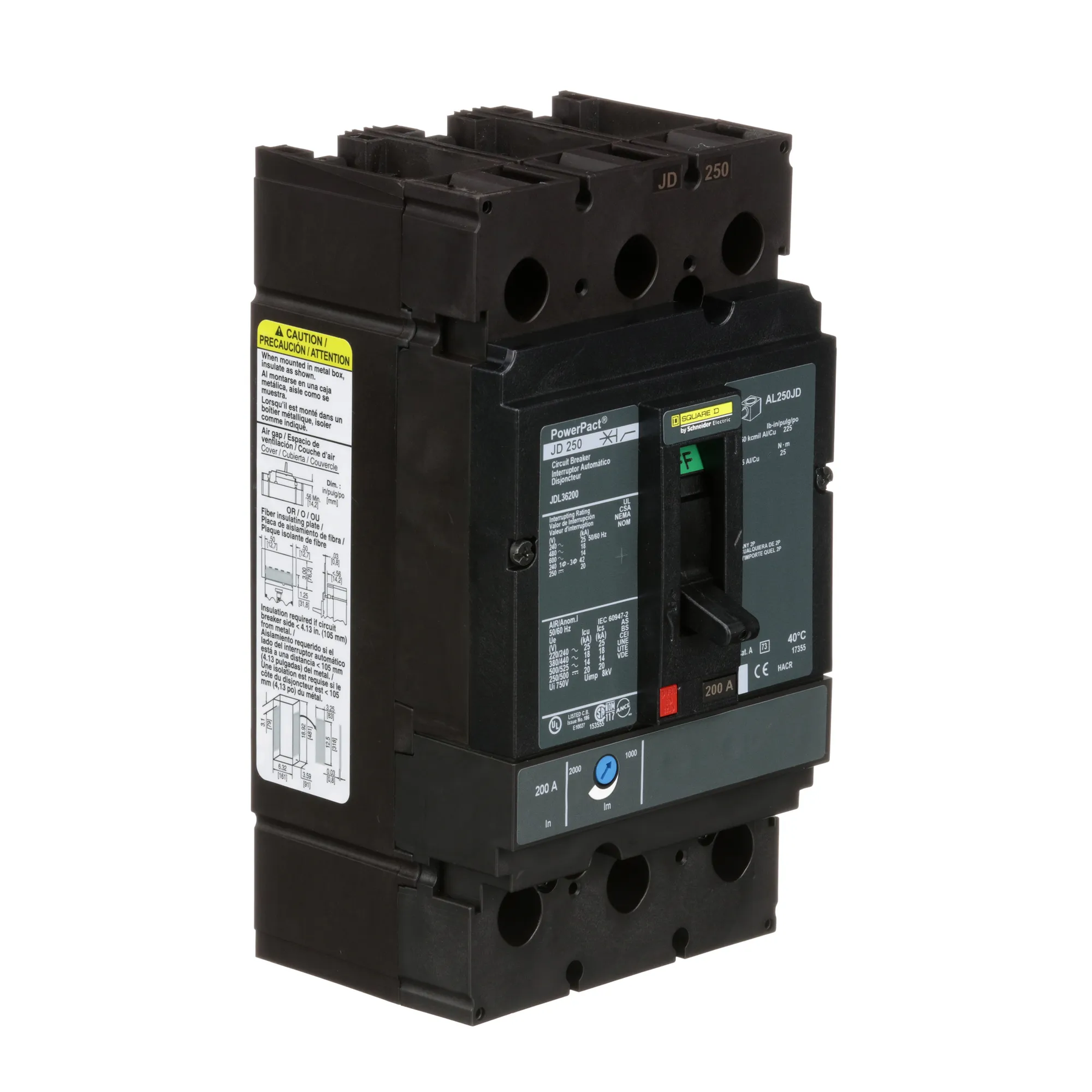

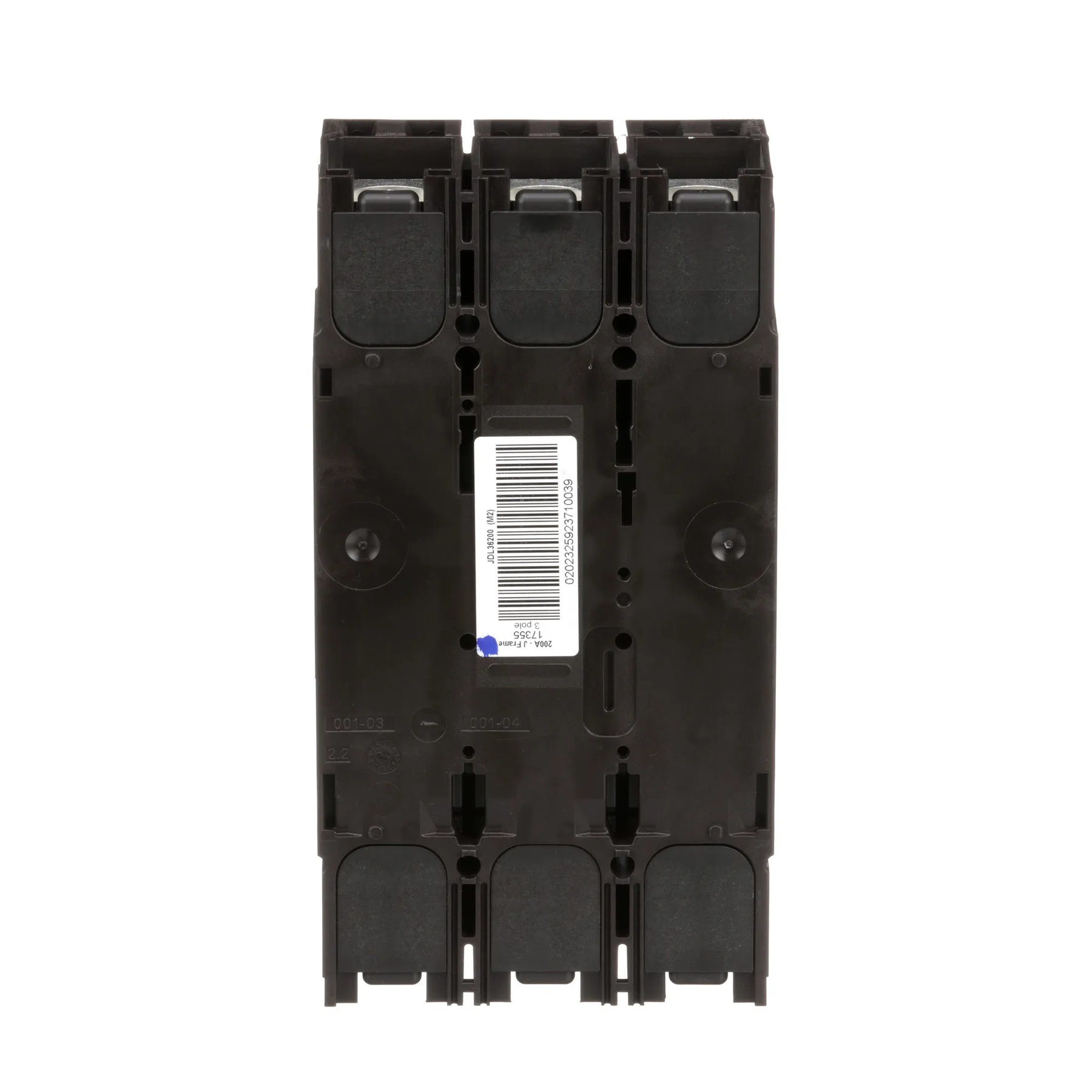

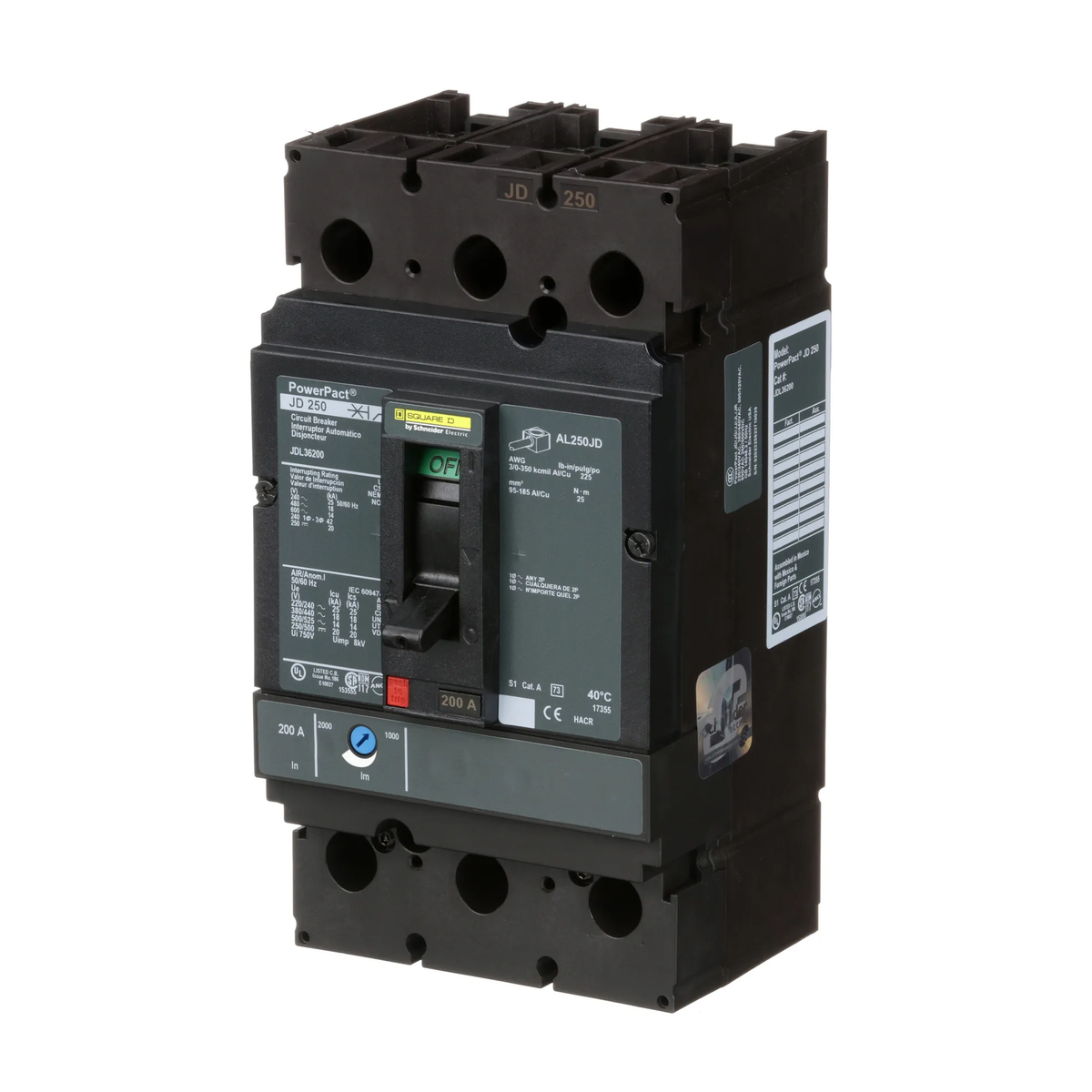

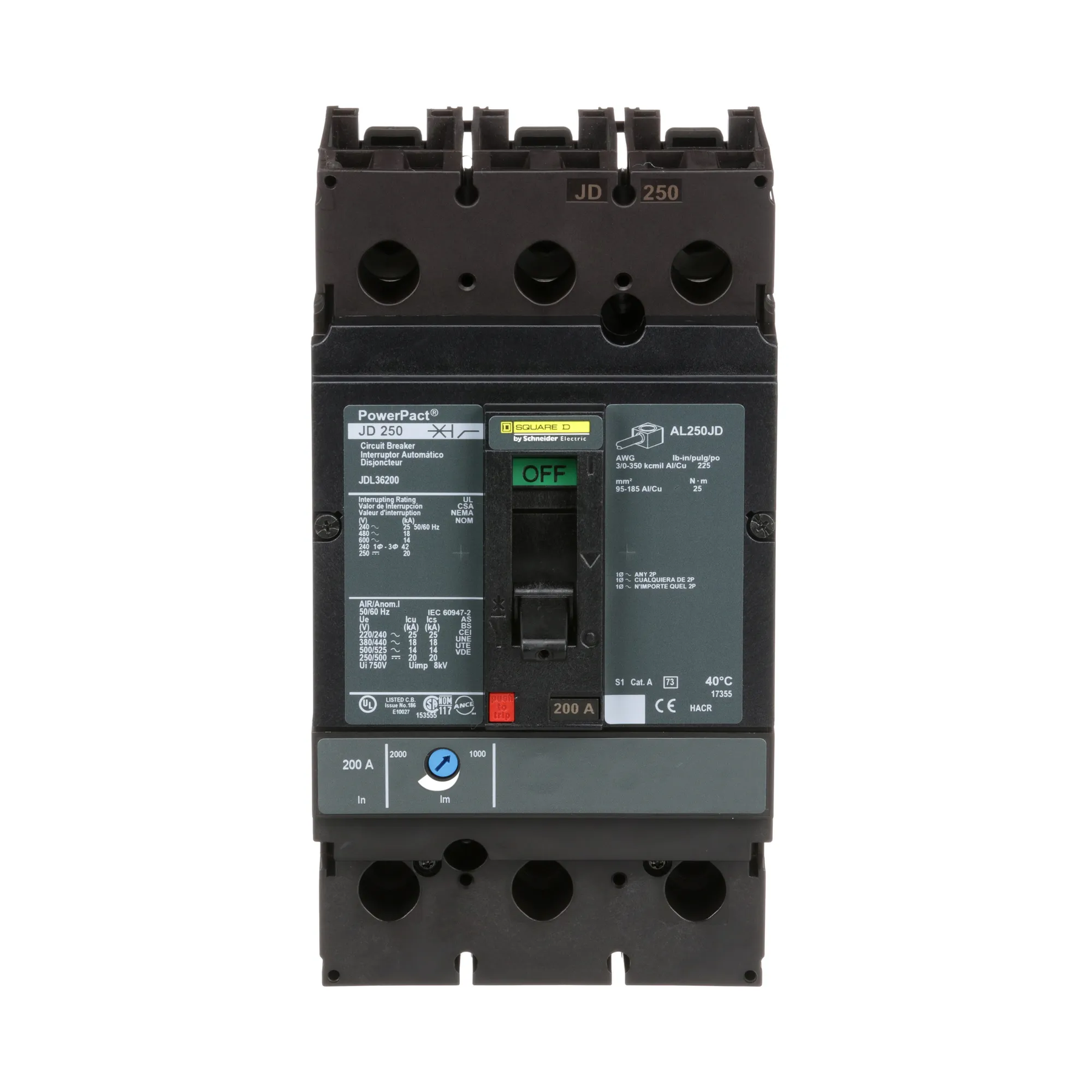

Square D JDL36200 Molded Case Circuit Breaker – 200A – 3-Pole – 600V – 18kA – Feed-Thru – PowerPact JDL Series

The Square D JDL36200 is a 200A, 3-pole, 3-phase molded case circuit breaker from the PowerPact JDL Series. It is rated for 600V and has an 18kA interrupting capacity at 480V with a standard interrupting capacity configuration.

The JDL36200 features a thermal-magnetic trip unit with LI (Long-Time and Instantaneous) trip functions, a non-interchangeable trip, and line- and load-side lug terminals. It is a feed-thru breaker and is suitable for reverse-fed applications.

Specifications:

• Manufacturer: Schneider Electric / Square D
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact JDL
• Type: JDL
• Catalog No.: JDL36200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 18kA at 480V
• Interrupting Type: Standard Interrupting Capacity
• Mounting / Connection: Feed-Thru
• Trip Technology: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Trip Type: Non-Interchangeable
• Application: Reverse-Fed Applications
• Terminals: Line-Side and Load-Side Lug Terminals

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JDL36200
• Catalog Number: JDL36200
• Product Family: Square D PowerPact JDL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: JDL36200
• Breaker Configuration: 3-Pole, 200A
• upc:785901955856

Compatibility:

Designed for use in compatible Square D / Schneider Electric PowerPact JDL applications. The JDL36200 is configured for 3-phase, 200A, 600V applications and supports reverse-fed installation as specified.

Always verify the specific panelboard or switchboard, approved breaker configuration, system voltage, interrupting rating, feed-thru arrangement, terminal requirements, and reverse-feed suitability before installation.

Certifications:

• UL Listed
• PowerPact JDL Series
• 200A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 18kA at 480V
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• LI Long-Time and Instantaneous Trip
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Suitable for Reverse-Fed Applications
