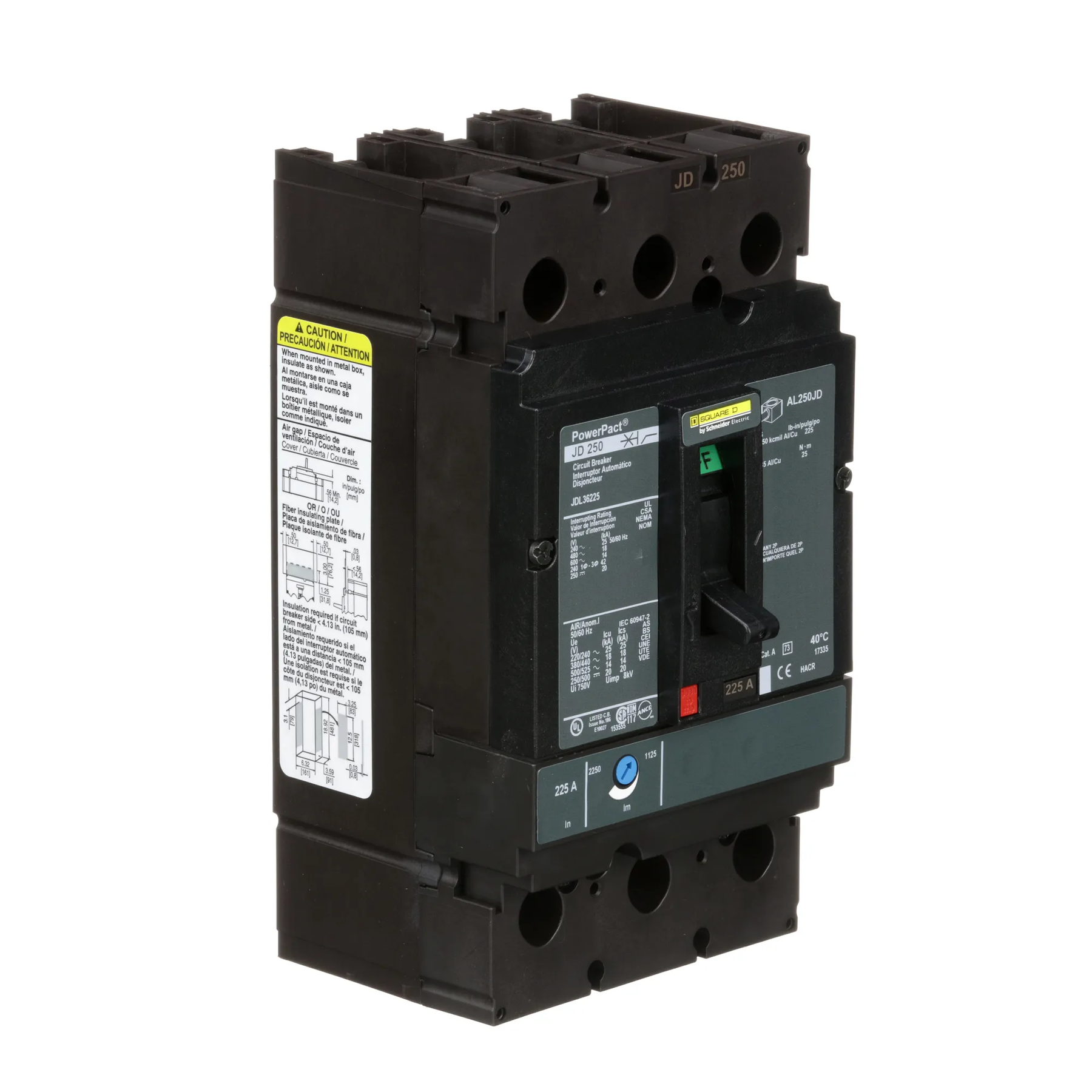

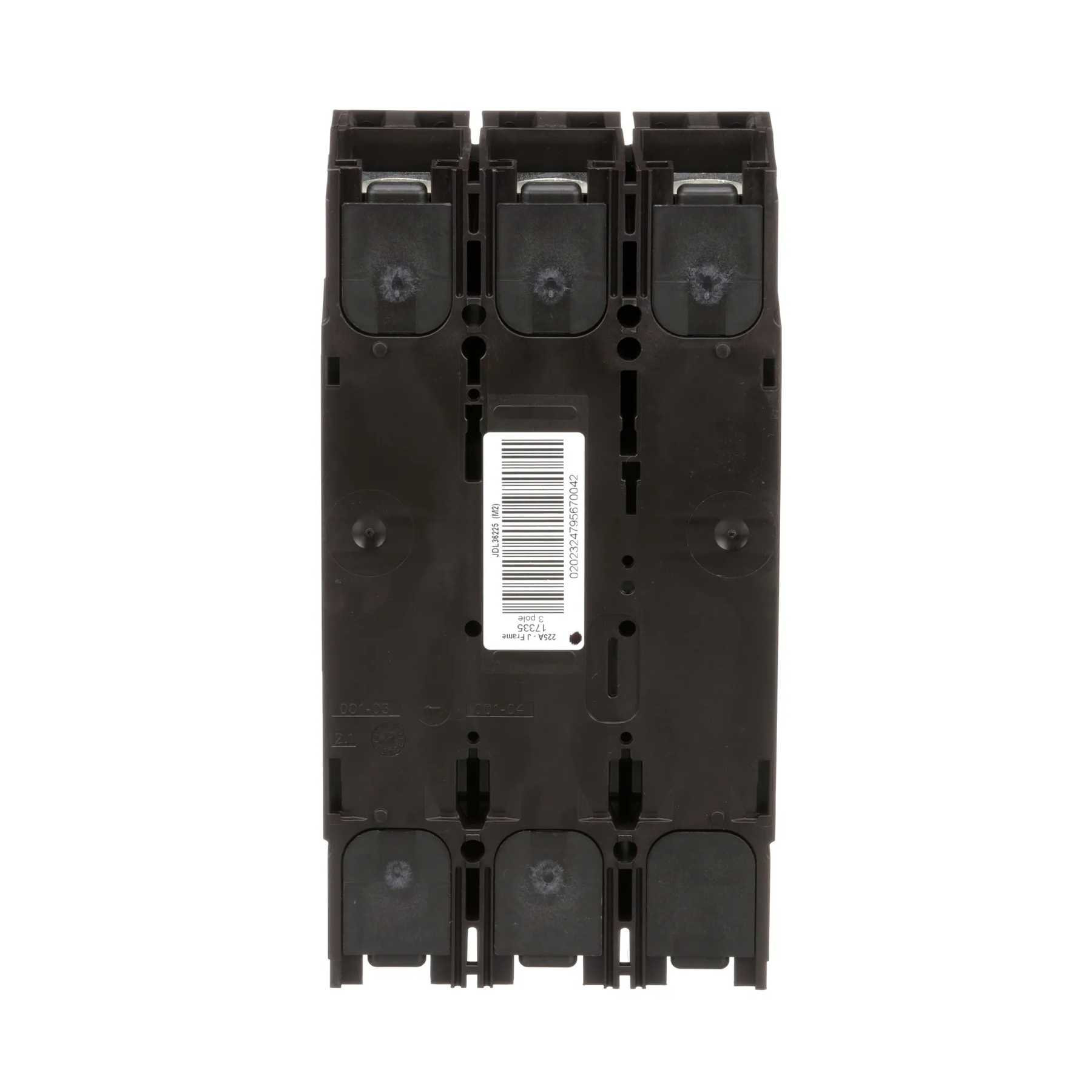

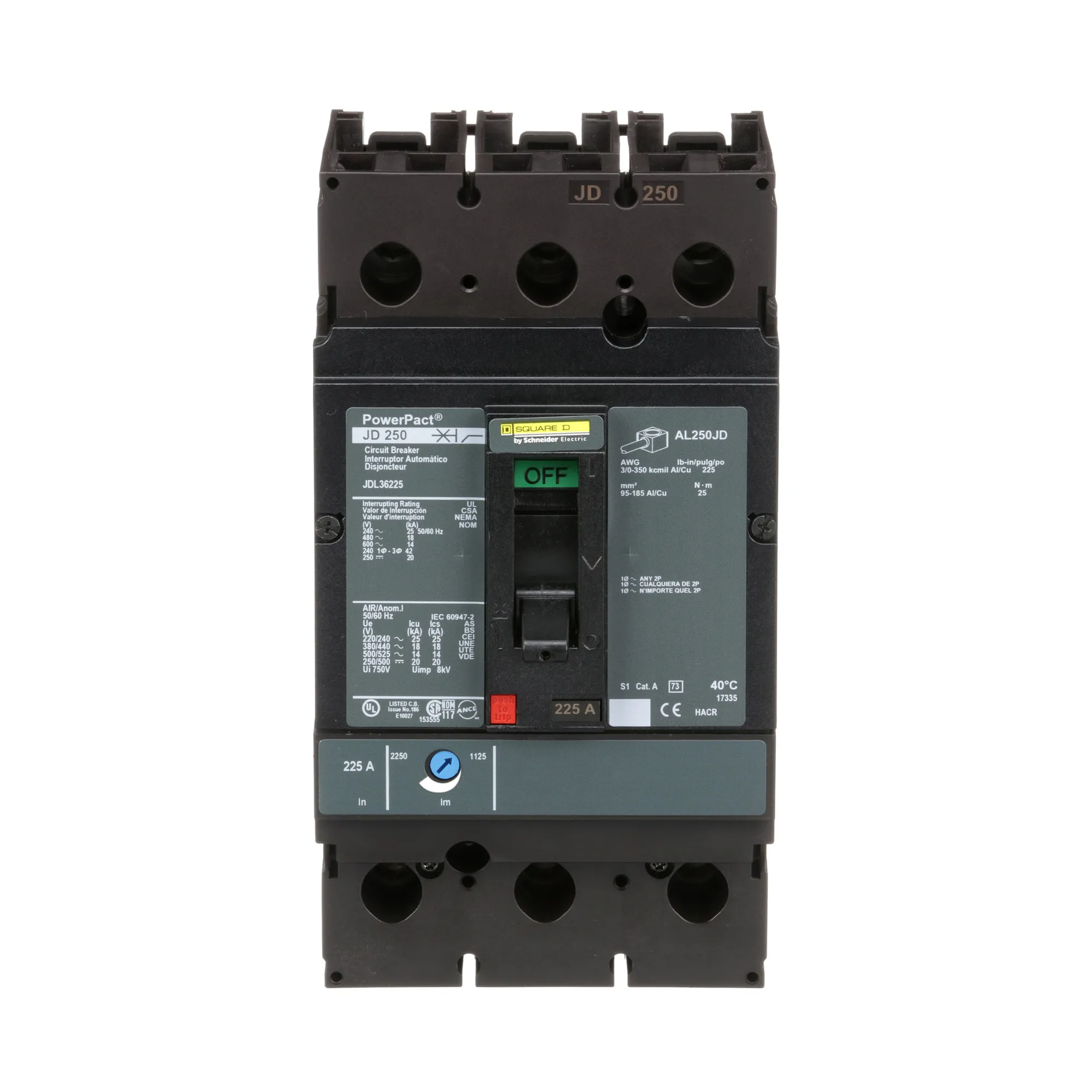

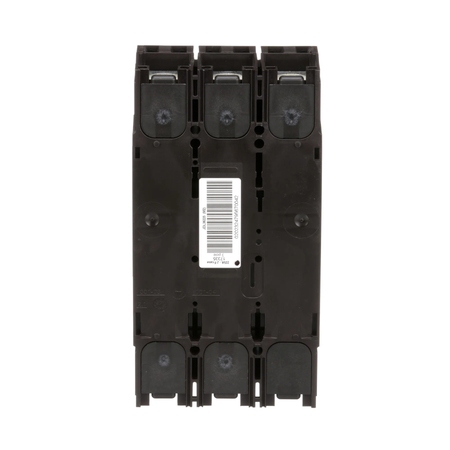

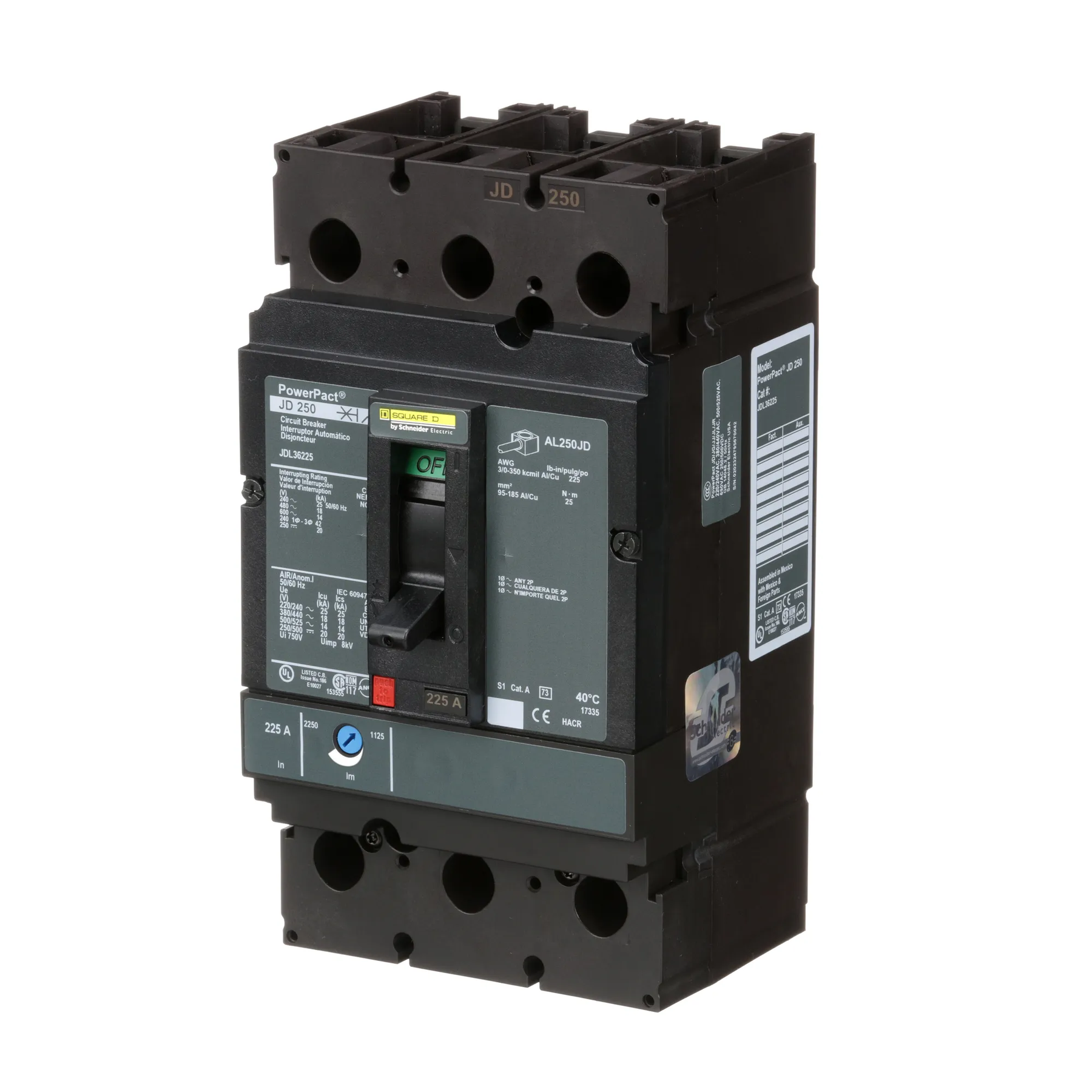

Square D JDL36225 Molded Case Circuit Breaker – 225A – 3-Pole / 3-Phase – 600V AC – 25kAIC @ 240V / 18kAIC @ 480V / 14kAIC @ 600V – Unit Mount – PowerPact J Series

The Square D JDL36225 is a 225A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact J Series. It is designed for commercial and industrial electrical distribution applications and provides thermal-magnetic overcurrent protection for overload and short-circuit conditions.

The JDL36225 is rated for 600V AC and 250V DC and provides interrupting ratings of 25kAIC at 240V AC, 18kAIC at 480V AC, and 14kAIC at 600V AC. It features Long-Time and Instantaneous (LI) trip functions, unit mounting, and line- and load-side lug connections.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: PowerPact J
• Frame: J-Frame
• Catalog No.: JDL36225
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Frequency: 50/60Hz
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time (LI) and Instantaneous
• Mounting Type: Unit Mount
• Terminal Connection: Line- and Load-Side Lugs
• Wire Size: AWG 3/0 to 350 kcmil
• Interrupting Rating: 25kAIC @ 240V AC; 18kAIC @ 480V AC; 14kAIC @ 600V AC
• Temperature Rating: –25°C to 70°C
• Application: Commercial and Industrial Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JDL36225
• Catalog Number: JDL36225
• Model: JDL36225
• Product Family: Square D PowerPact Circuit Breakers
• Series: PowerPact J
• Frame: J-Frame
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 225A
• Rated Current: 225A
• Rated Voltage: 600V AC
• UPC: 785901623175
• GTIN: 00785901623175

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact J Series switchboards, panelboards, and electrical distribution equipment that accepts the JDL36225 breaker. The JDL36225 provides 225A, 3-pole thermal-magnetic overcurrent protection for compatible 600V AC / 250V DC applications.

The breaker uses a unit-mount configuration with line- and load-side lug connections and accommodates AWG 3/0 to 350 kcmil conductors. Always verify the specific equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal requirements, conductor size, mounting arrangement, and installation specifications before installation.

Certifications:

• UL 489 Listed
• CSA Certified
• CE Marked
• IEC 60947-2 Compliant
• NEMA Standards
• PowerPact J Series
• 225A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 250V DC Rated
• 25kAIC @ 240V AC
• 18kAIC @ 480V AC
• 14kAIC @ 600V AC
• Thermal-Magnetic Protection
• Long-Time (LI) and Instantaneous Trip Functions
• Unit Mount
• Line- and Load-Side Lug Connections
