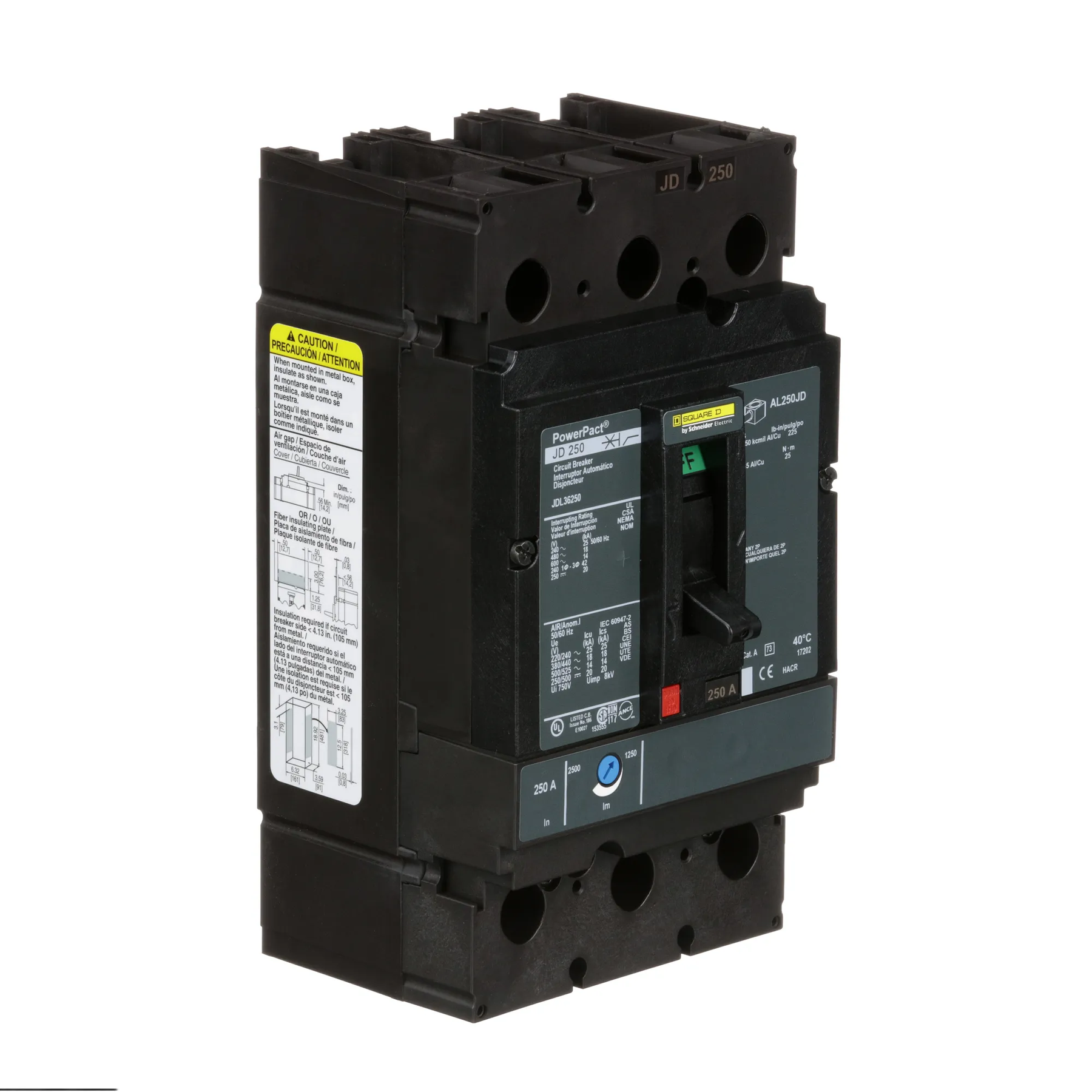

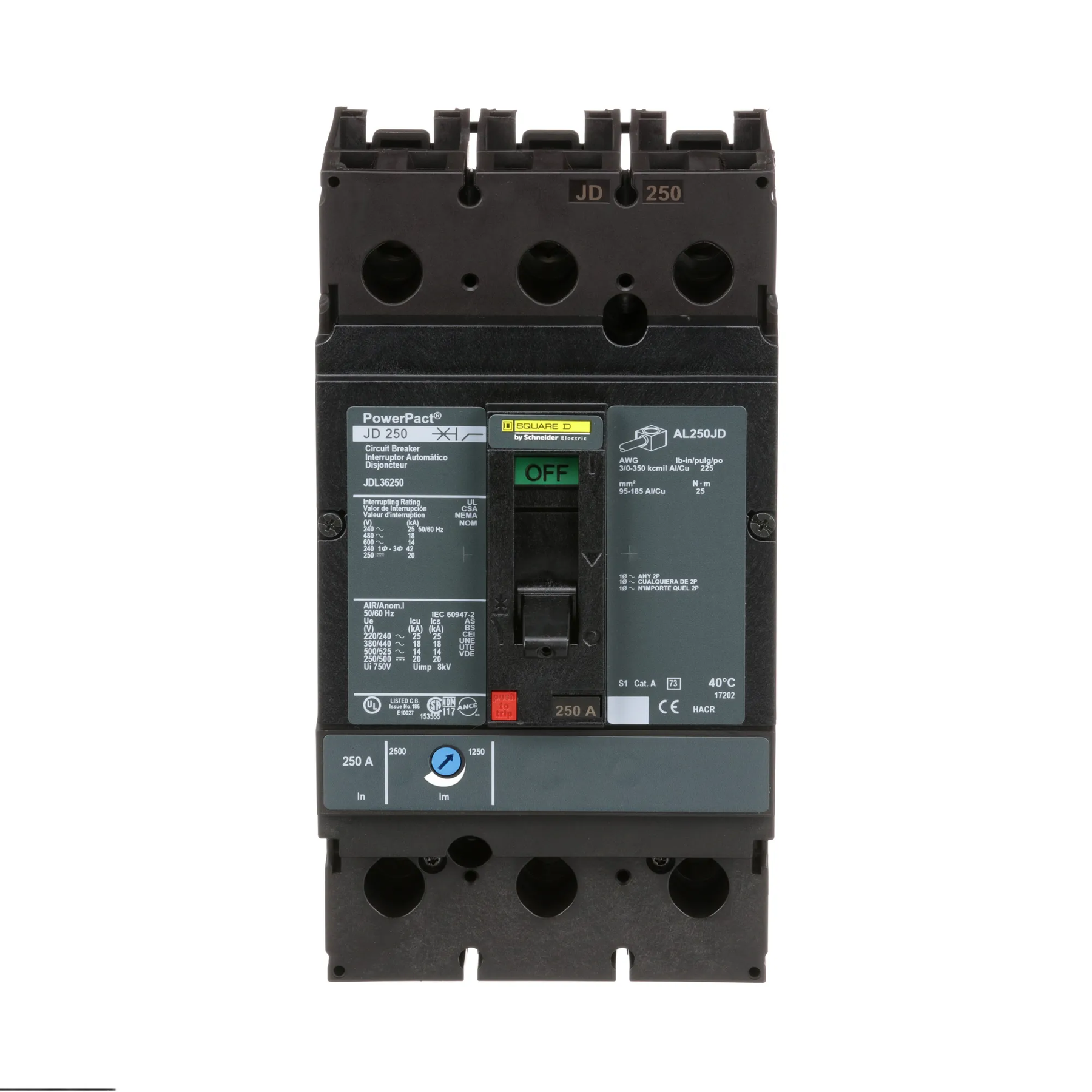

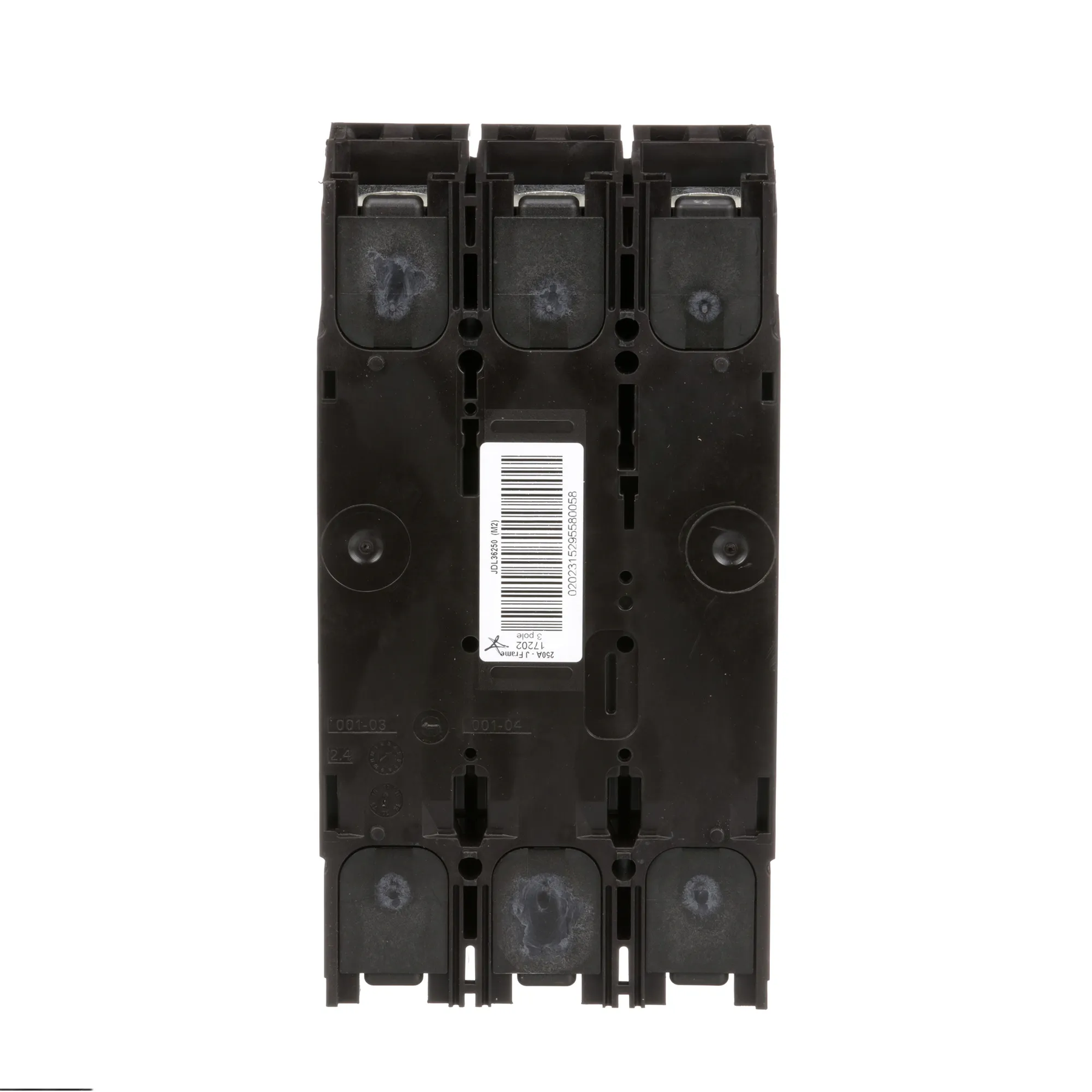

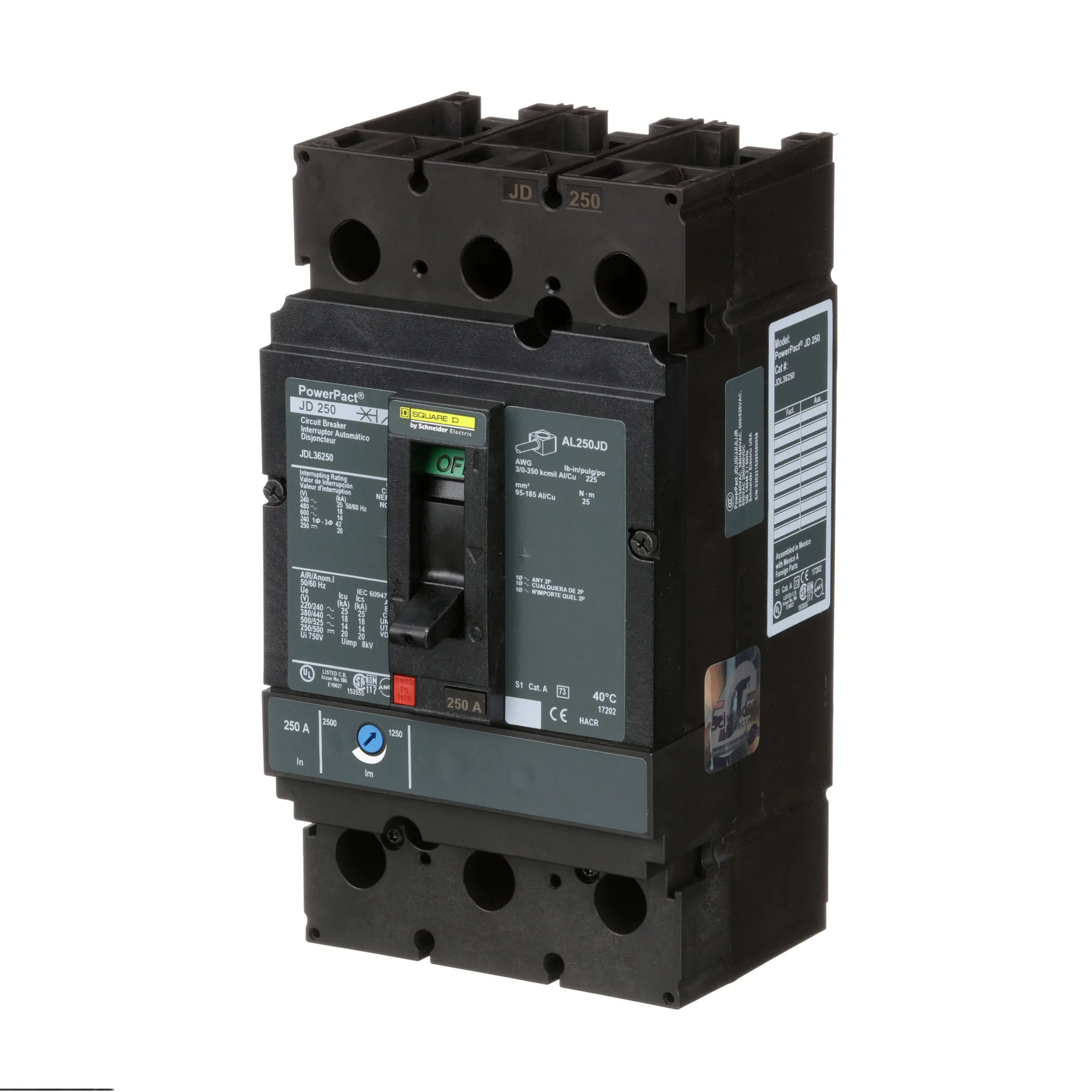

Square D JDL36250 Molded Case Circuit Breaker – 250A – 3-Pole – 600V – 18kA @ 480V – Feed-Thru – PowerPact JDL Series

The Square D JDL36250 is a 250A, 3-pole molded case circuit breaker from the PowerPact JDL Series. It is designed for three-phase electrical distribution applications and is rated for 600V with an 18kA interrupting rating at 480V. The breaker features thermal-magnetic protection, a non-interchangeable trip unit, and Long-Time and Instantaneous (LI) trip functions.

The JDL36250 uses a feed-thru configuration with line-side and load-side lug terminals. It is also UL Listed and suitable for reverse-fed applications.

Specifications:

• Manufacturer: Schneider Electric / Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact JDL
• Type: JDL
• Catalog No.: JDL36250
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 18kA @ 480V
• Interrupting Capacity: Standard
• Trip Technology: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Feed-Thru
• Terminal Configuration: Line-Side and Load-Side Lug Terminals
• Application: Electrical Distribution and Circuit Protection
• Reverse Feed: Suitable for Reverse-Fed Applications

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JDL36250
• Catalog Number: JDL36250
• Product Family: PowerPact JDL Series
• Series: JDL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: JDL36250
• Configuration: 250A, 3-Pole
• upc:785901839941

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact JDL Series electrical distribution equipment. The JDL36250 is a 250A, 3-pole, 600V molded case circuit breaker with a feed-thru configuration and line- and load-side lug terminals.

The breaker is suitable for reverse-fed applications as specified. Always verify the specific panelboard or equipment model, approved breaker type, system voltage, pole configuration, interrupting rating, terminal arrangement, and reverse-feed requirements before installation.

Certifications:

• UL Listed
• Suitable for Reverse-Fed Applications
• PowerPact JDL Series
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 18kA @ 480V
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip
• Non-Interchangeable Trip
