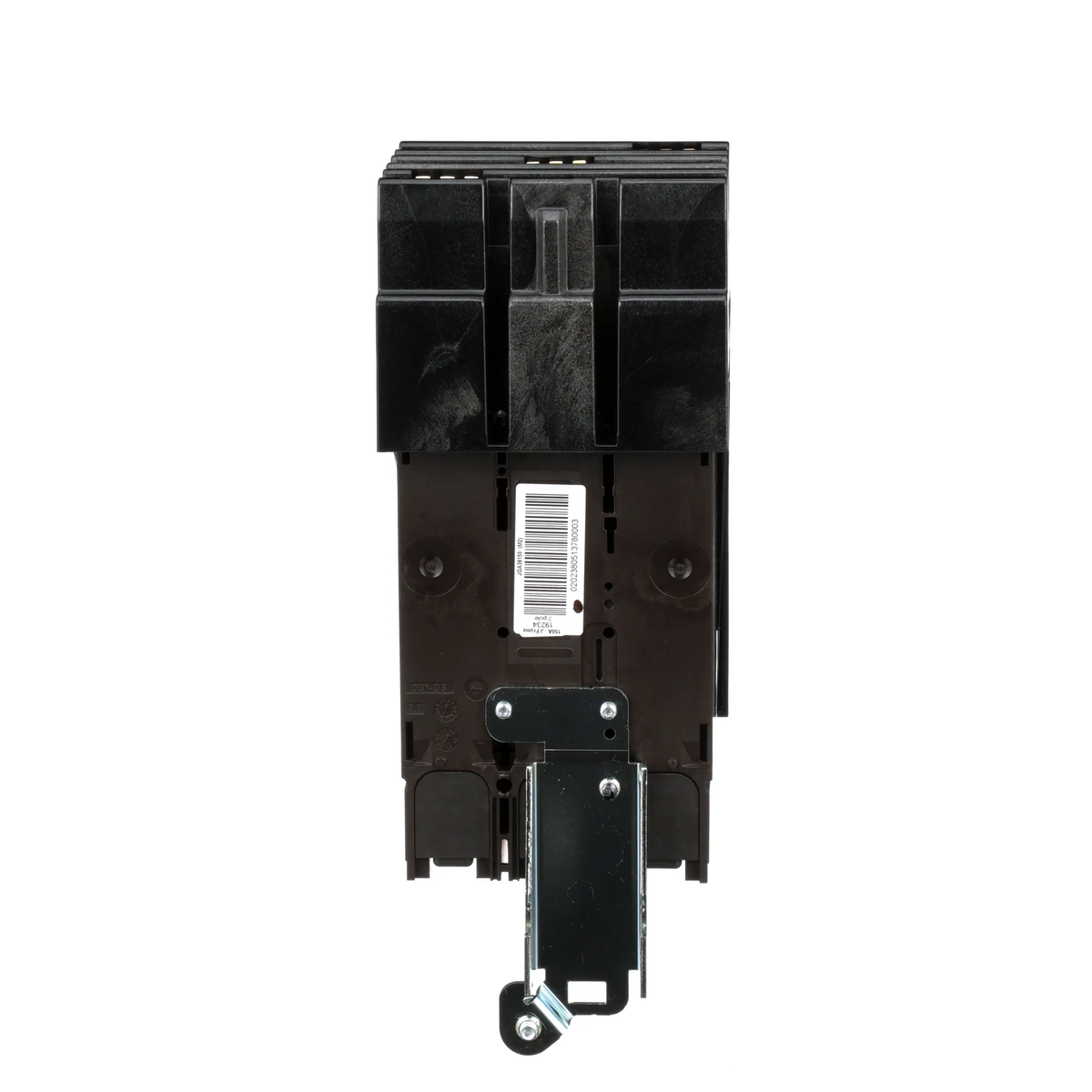

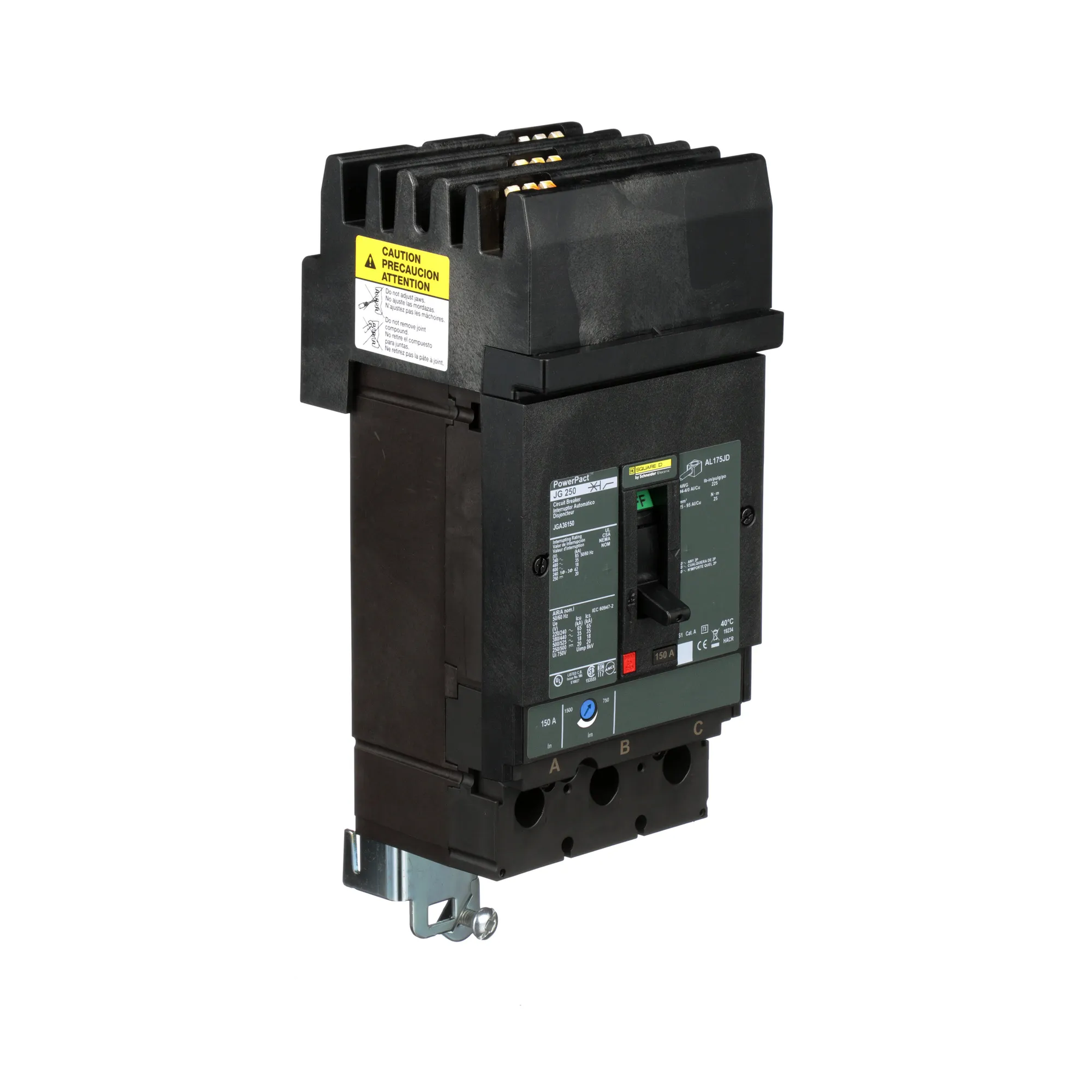

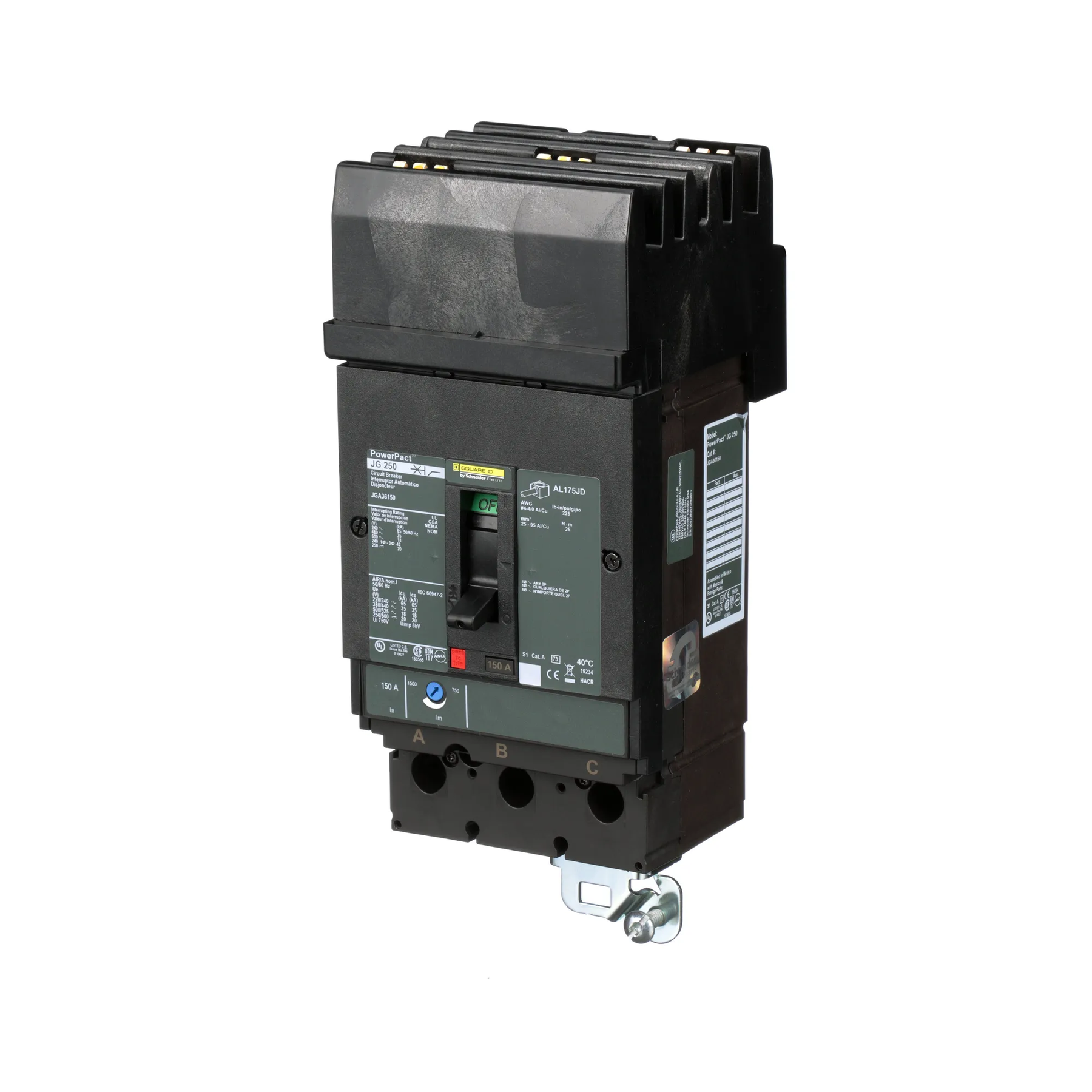

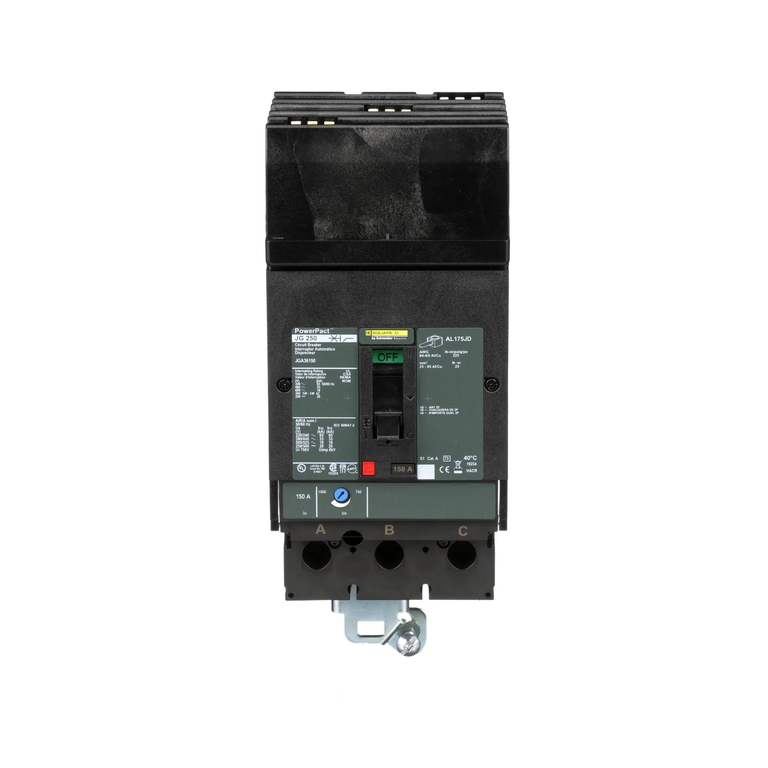

Square D JGA36150 Molded Case Circuit Breaker – 150A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – I-Line Style Plug-In – PowerPact JGA Series

The Square D JGA36150 is a 150A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type JGA Series. It features thermal-magnetic protection with a non-interchangeable Long-Time and Instantaneous (LI) trip.

The JGA36150 is rated for 600V and provides a 35kA interrupting rating at 480V with high interrupting capacity. It features an I-Line style plug-in connection, an ABC phase connection, and is UL Listed and suitable for reverse-fed applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: JGA
• Type: JGA
• Catalog No.: JGA36150
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: I-Line Style Plug-In
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JGA36150
• Catalog Number: JGA36150
• Model: JGA36150
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: JGA
• Type: JGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 150A
• Phase Connection: ABC
• Trip Configuration: Non-Interchangeable LI
• UPC:785901795810

Compatibility:

Designed for use with compatible Square D PowerPact JGA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The JGA36150 provides 150A, 3-pole thermal-magnetic protection for compatible 600V electrical distribution applications.

The breaker features an ABC phase connection, non-interchangeable LI trip functions, and is suitable for reverse-fed applications as specified.

Certifications:

• UL Listed
• PowerPact JGA Series
• 150A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• I-Line Style Plug-In
• ABC Phase Connection
• Suitable for Reverse-Fed Applications
