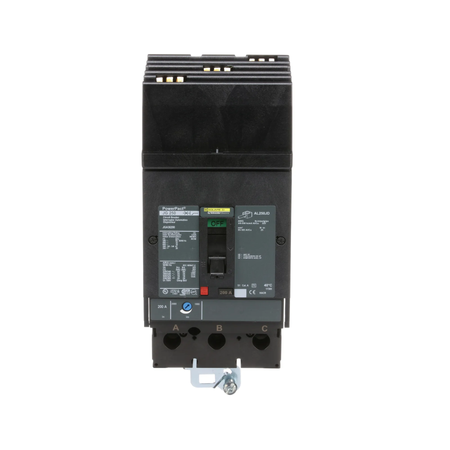

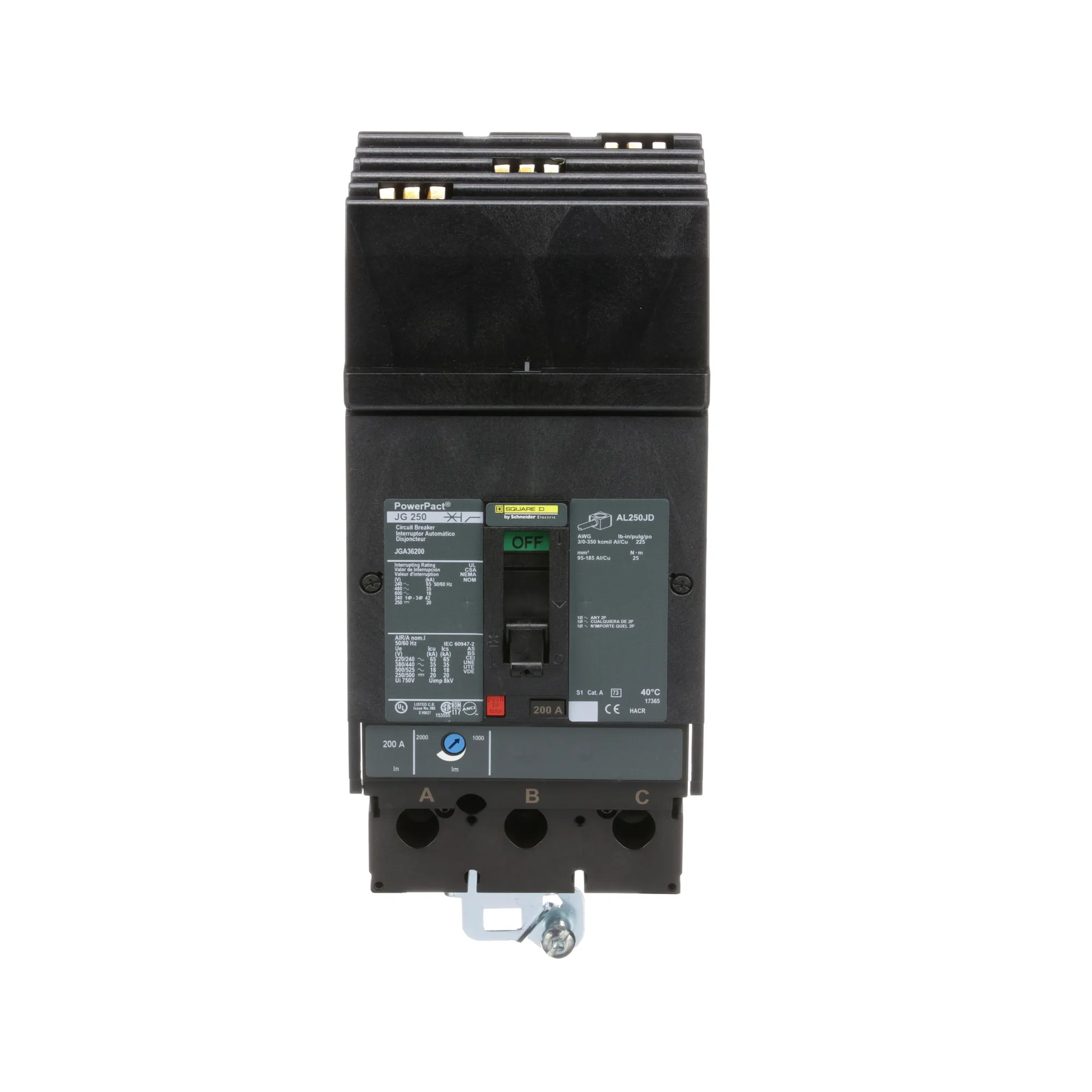

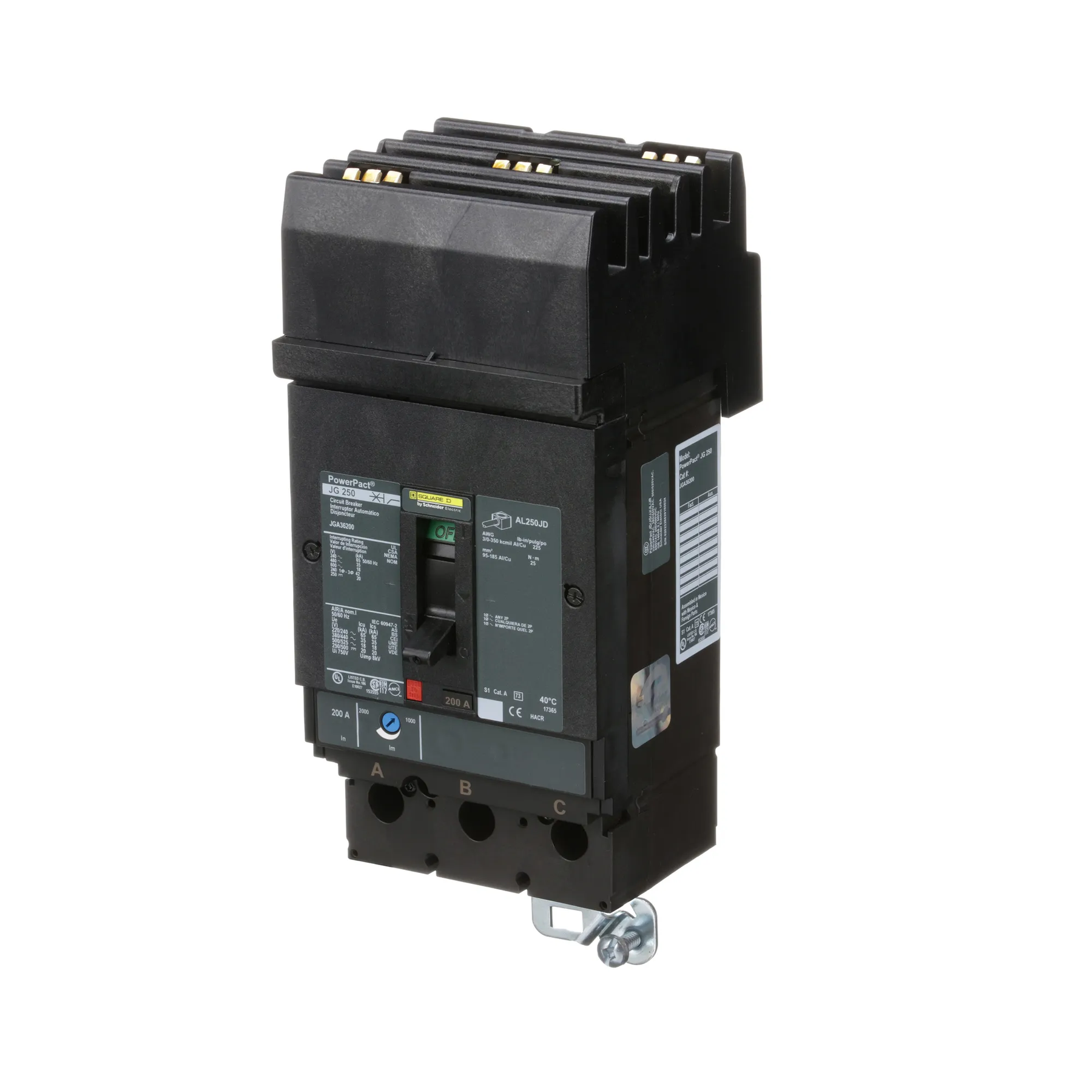

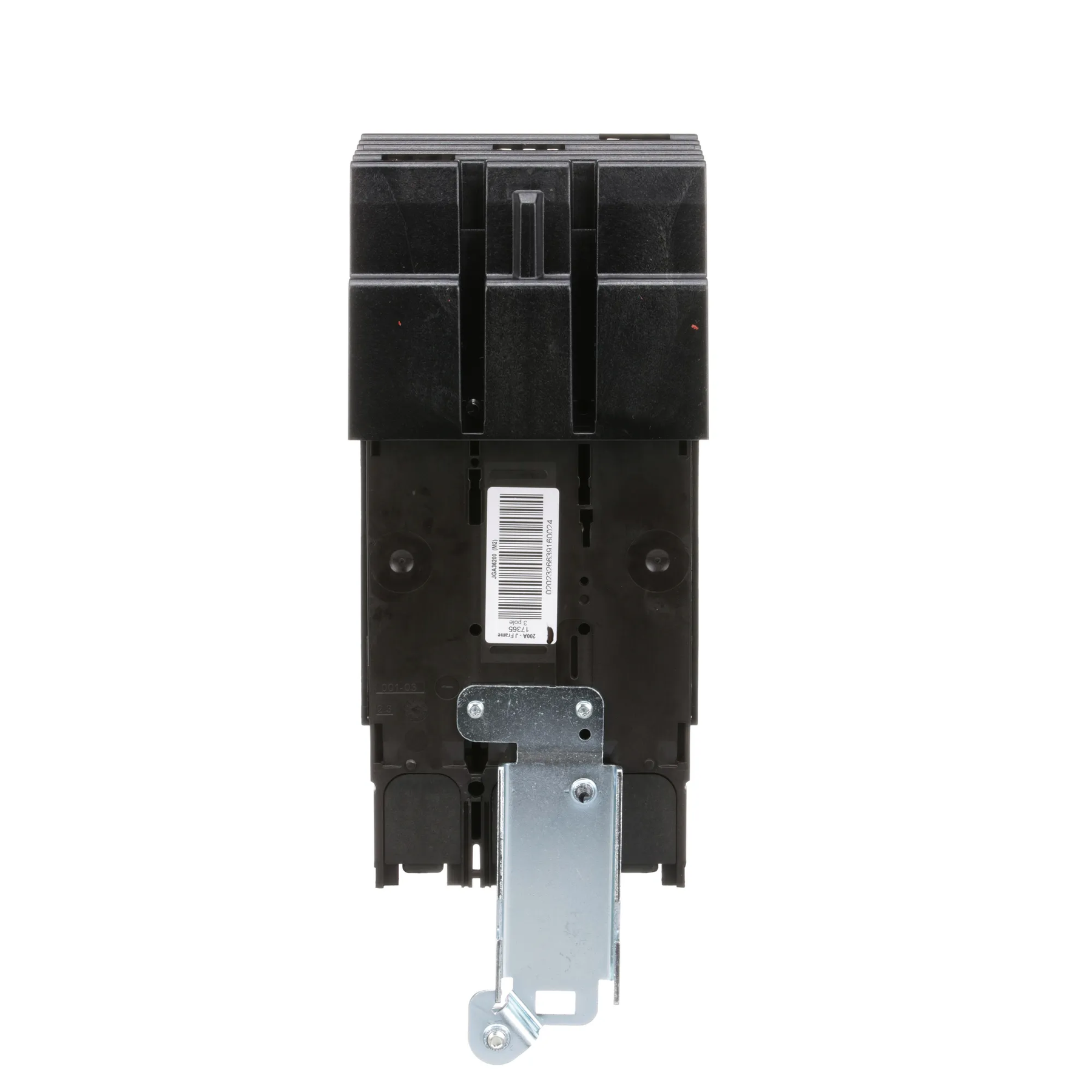

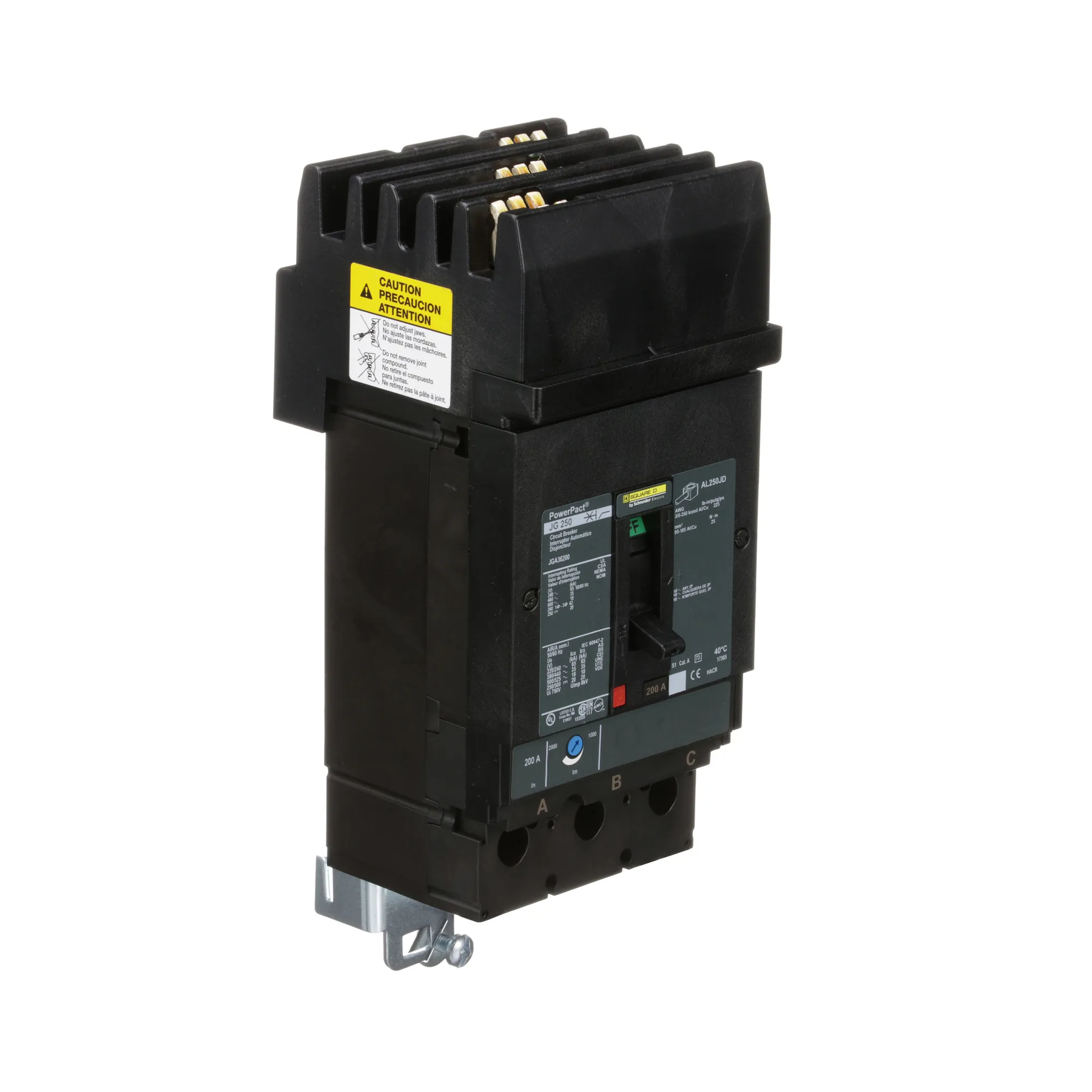

Square D JGA36200 Molded Case Circuit Breaker – 200A – 3-Pole – 600V – 35kA – I-Line Plug-In – PowerPact JGA Series

compatible commercial and industrial power distribution equipment requiring reliable circuit protection.

Specifications:

• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact JGA
• Type: JGA
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V AC
• Interrupting Capacity: High
• Trip Technology: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Unit: Non-Interchangeable
• Mounting Type: I-Line Style Plug-In
• Phase Connection: ABC
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Commercial and industrial power distribution

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JGA36200
• Catalog Number: JGA36200
• Product Family: PowerPact JGA Series
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: JGA36200
• Breaker Type: JGA
• upc:785901430735

Compatibility:

Designed for use with compatible Square D PowerPact JGA Series and I-Line style electrical distribution equipment accepting the specified 3-pole breaker configuration. The JGA36200 is suitable for 200A, 3-phase, 600V applications and supports reverse-fed installation where permitted by the equipment and applicable installation requirements.

Always verify the specific panelboard or switchboard model, I-Line compatibility, voltage, interrupting rating, phase configuration, and reverse-feed requirements before installation.

Certifications:

• UL Listed
• High Interrupting Capacity
• Suitable for Reverse-Fed Applications
• PowerPact JGA Series
