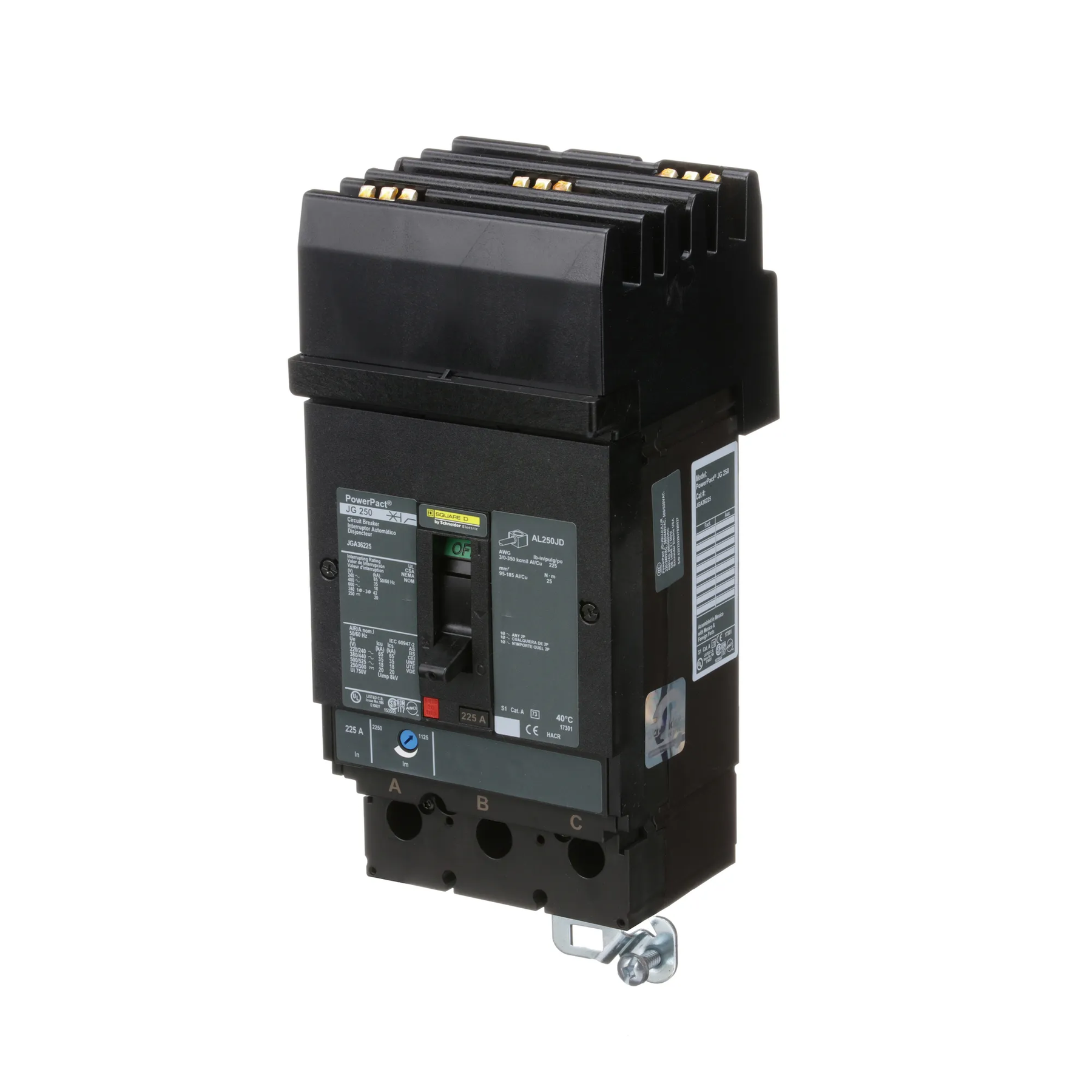

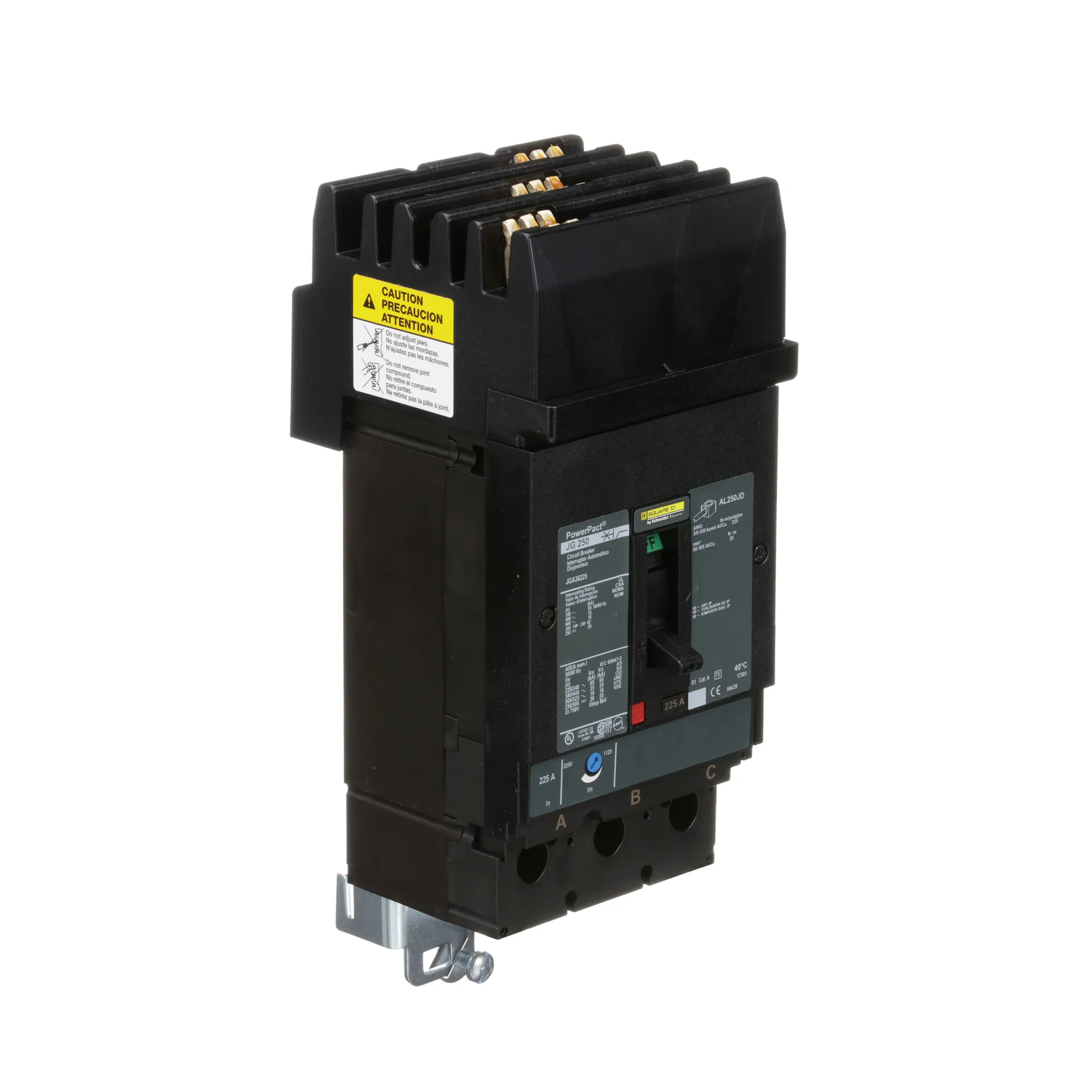

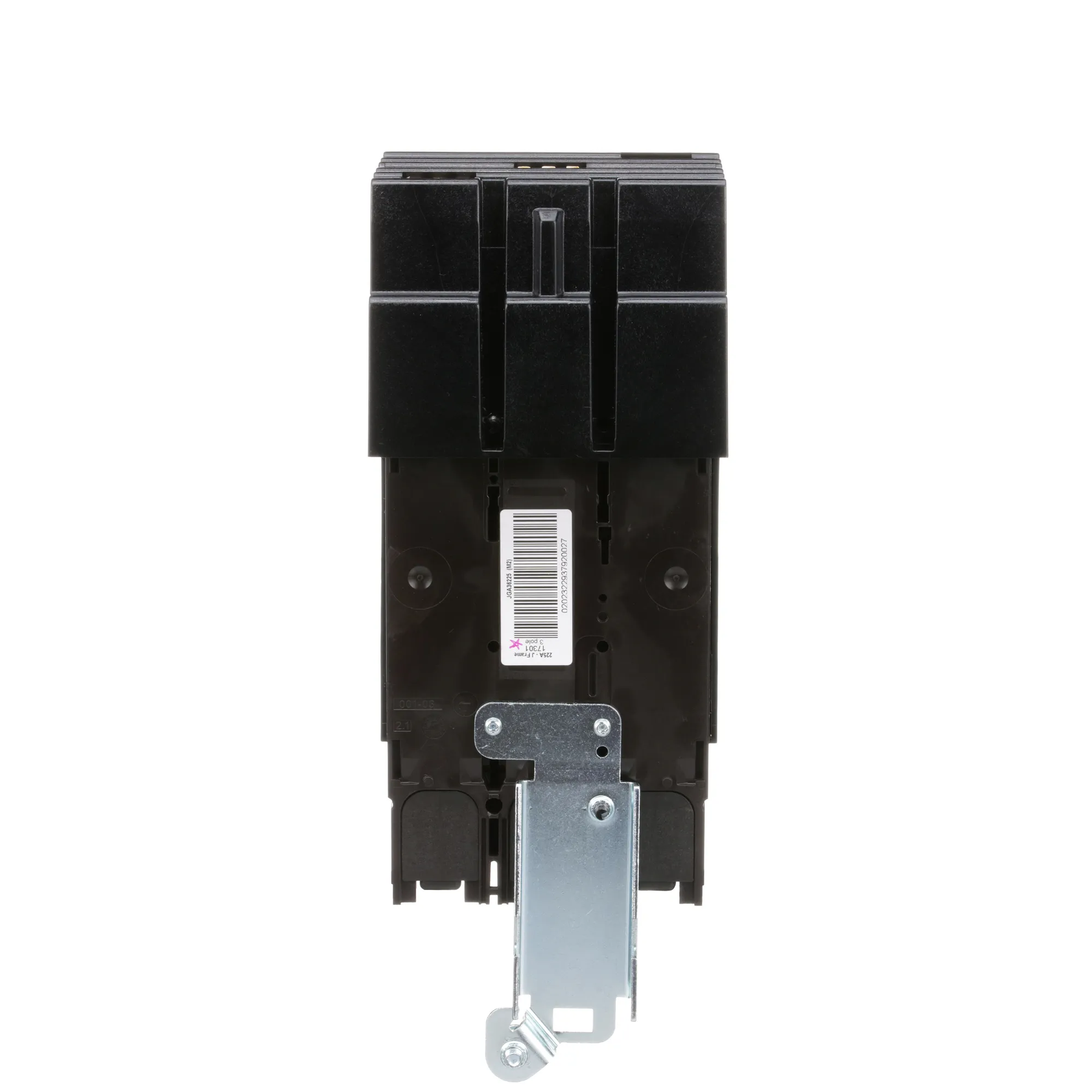

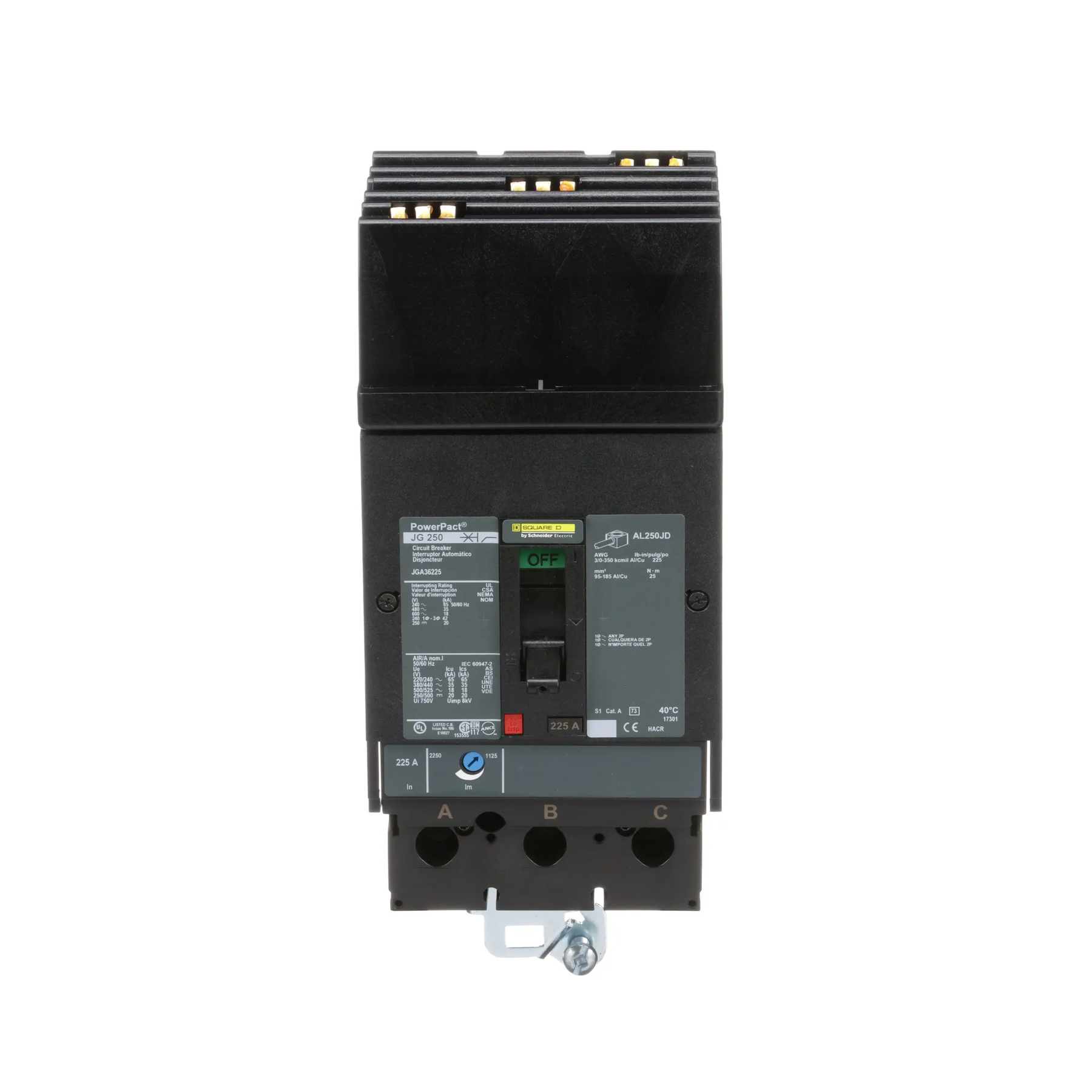

Square D JGA36225 Molded Case Circuit Breaker – 225A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – I-Line Plug-In – PowerPact JGA Series

The Square D JGA36225 is a 225A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact JGA Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The JGA36225 is rated for 600V with a 35kA interrupting rating at 480V. It uses an I-Line style plug-in connection with an ABC phase connection, provides high interrupting capacity, and is suitable for reverse-fed applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: JGA
• Type: JGA
• Catalog No.: JGA36225
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Connection: I-Line Style Plug-In
• Application: Electrical Distribution and Overcurrent Protection
• Reverse Feed: Suitable for Reverse-Fed Applications
• Brand: Square D
• Authenticity: Not Specified

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JGA36225
• Catalog Number: JGA36225
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: JGA
• Type: JGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: JGA36225
• Breaker Configuration: 3-Pole, 225A
• upc:785901795841

Compatibility:

Designed for use with compatible Square D PowerPact JGA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The JGA36225 provides 225A, 3-pole protection for compatible 600V, 3-phase applications and features thermal-magnetic LI protection with a non-interchangeable trip.

The breaker is also suitable for reverse-fed applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, phase connection, trip-unit requirements, and mounting arrangement before installation.

Certifications:

• UL Listed
• PowerPact JGA Series
• 225A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• I-Line Style Plug-In
• ABC Phase Connection
• Suitable for Reverse-Fed Applications
