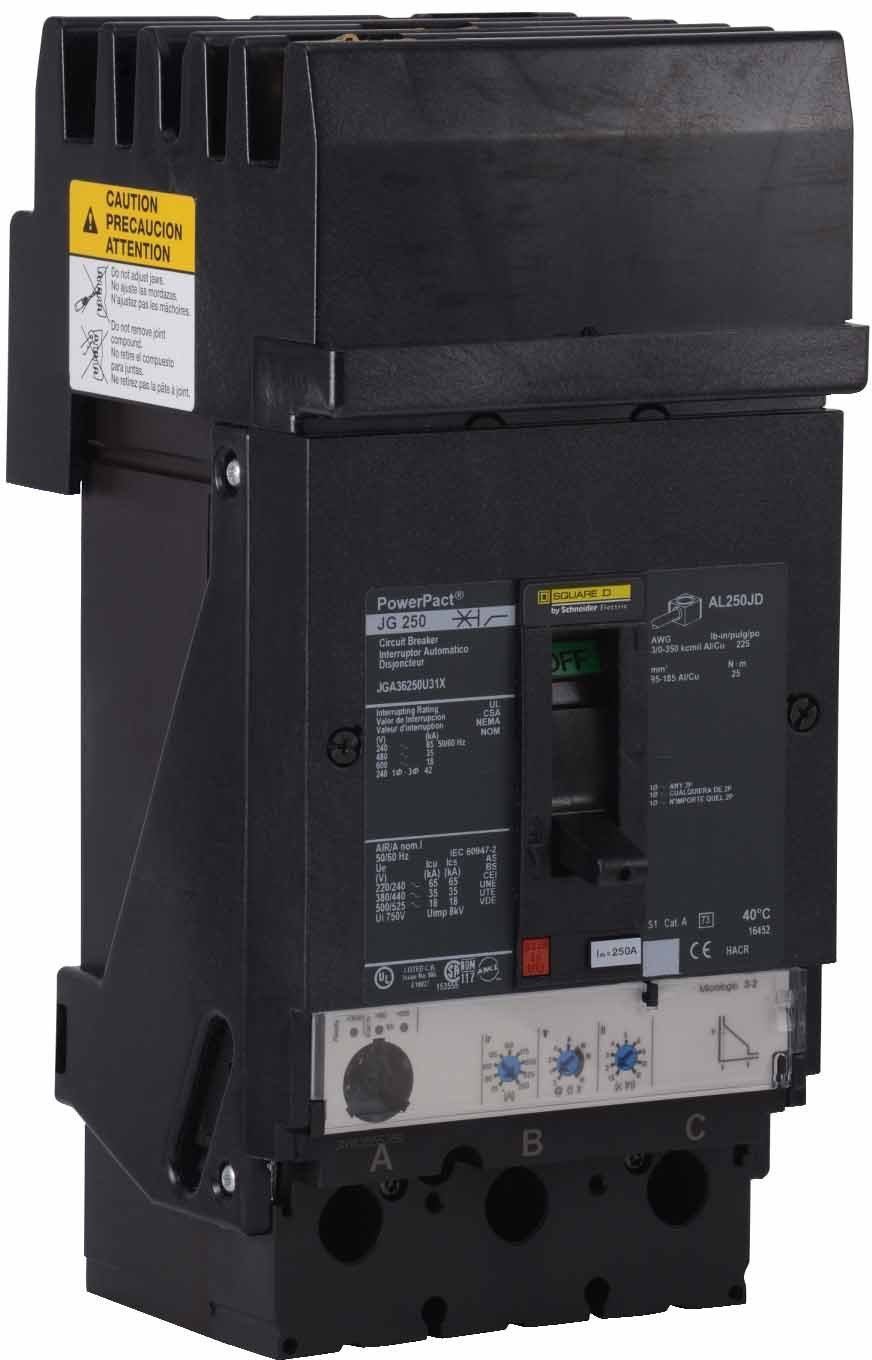

Square D JGA36250U31X Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – I-Line Style Plug-In – PowerPact JGA Series

The Square D JGA36250U31X is a 250A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact JGA Series. It features a high interrupting capacity and an I-Line style plug-in connection for compatible electrical distribution equipment.

The breaker is rated for 600V and provides a 35kA interrupting rating at 480V. It includes a MicroLogic Standard 3.2 non-interchangeable trip unit with Long-Time and Instantaneous (LI) trip functions. The breaker is suitable for reverse connection and can be used for 2-pole applications as specified.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: JGA
• Type: JGA
• Catalog No.: JGA36250U31X
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Not specified
• Trip Unit: MicroLogic Standard 3.2
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: I-Line Style Plug-In
• Reverse Connection: Suitable for Reverse Connection
• 2-Pole Application: Can Be Used for 2-Pole Applications
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JGA36250U31X
• Catalog Number: JGA36250U31X
• Model: JGA36250U31X
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: JGA
• Type: JGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 250A
• Trip Unit: MicroLogic Standard 3.2
• Trip Configuration: Non-Interchangeable LI
• UPC:785901965749

Compatibility:

Designed for use with compatible Square D PowerPact JGA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The JGA36250U31X provides 250A, 3-pole protection for compatible 600V applications.

The breaker includes a MicroLogic Standard 3.2 non-interchangeable trip unit, supports Long-Time and Instantaneous (LI) trip functions, is suitable for reverse connection, and can be used for 2-pole applications as specified. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, and mounting arrangement before installation.

Certifications:

• PowerPact JGA Series
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• High Interrupting Capacity
• MicroLogic Standard 3.2 Trip Unit
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• I-Line Style Plug-In
• Suitable for Reverse Connection
• Can Be Used for 2-Pole Applications
• Complete Breaker
